ZH257001

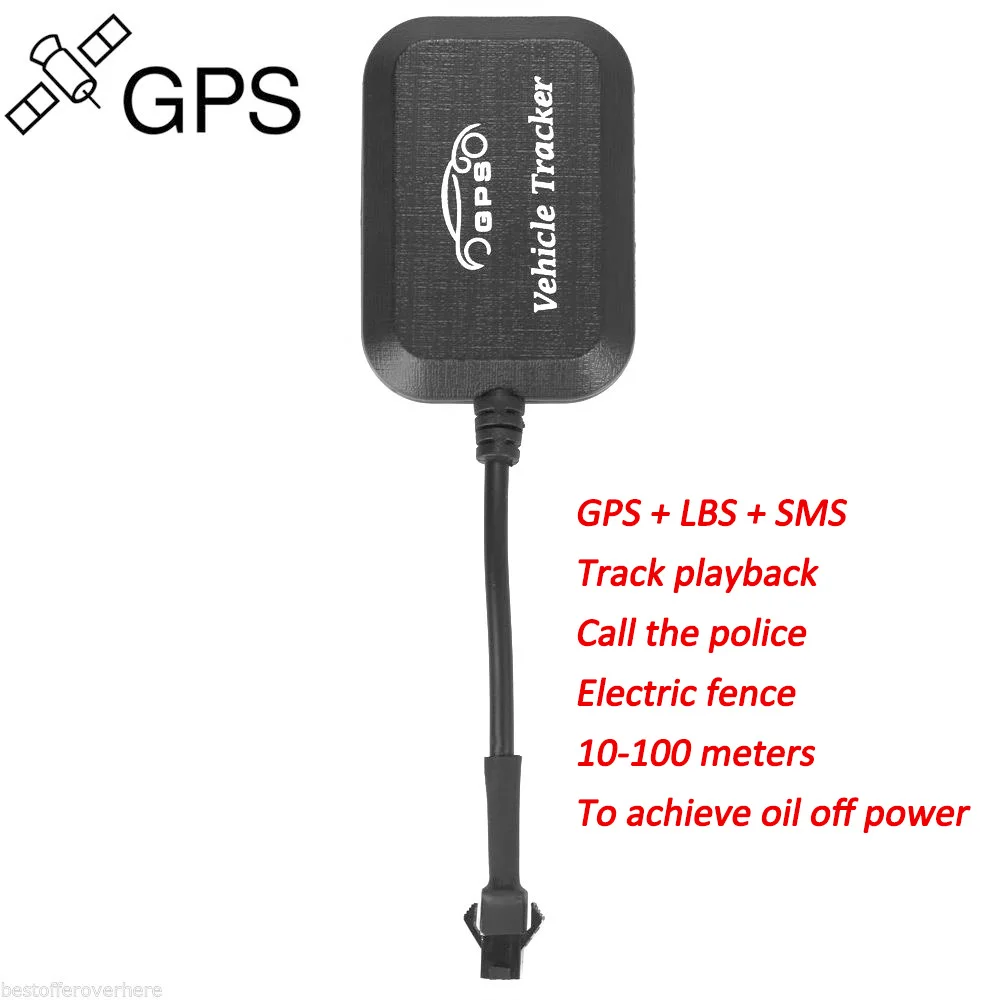

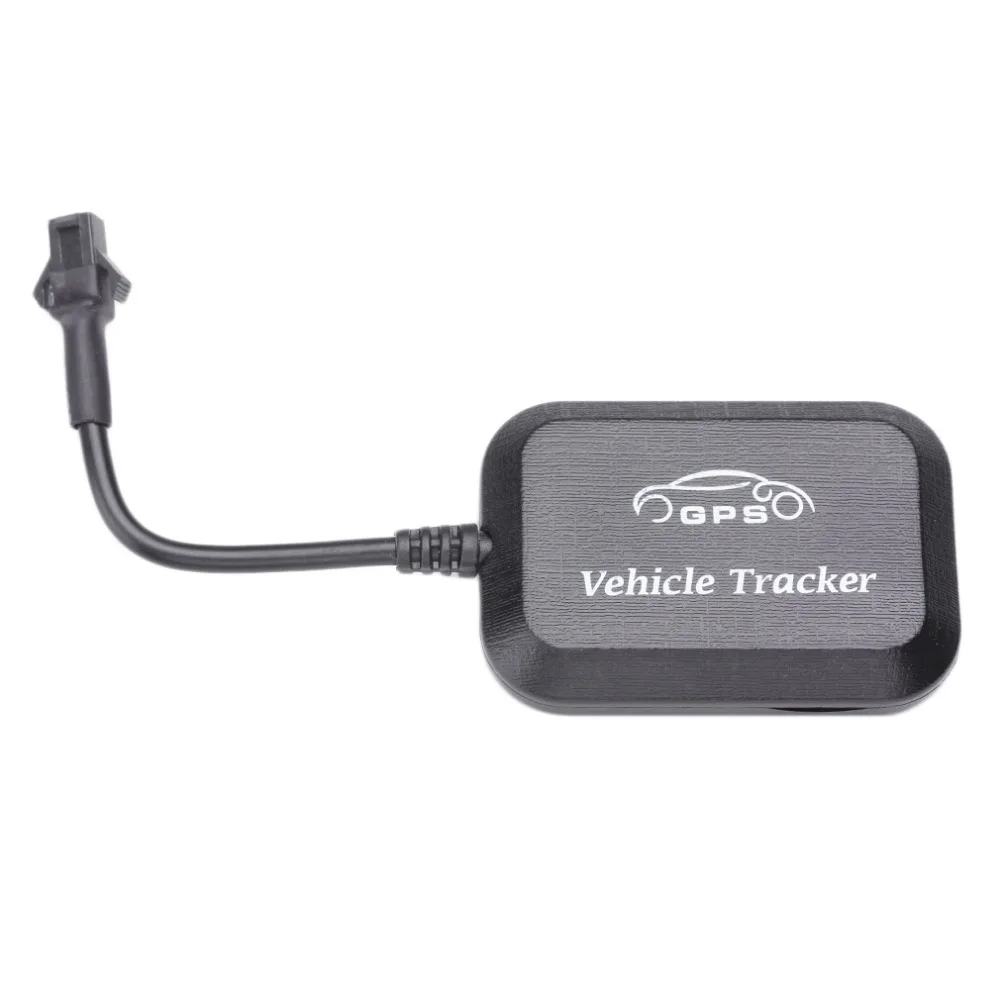

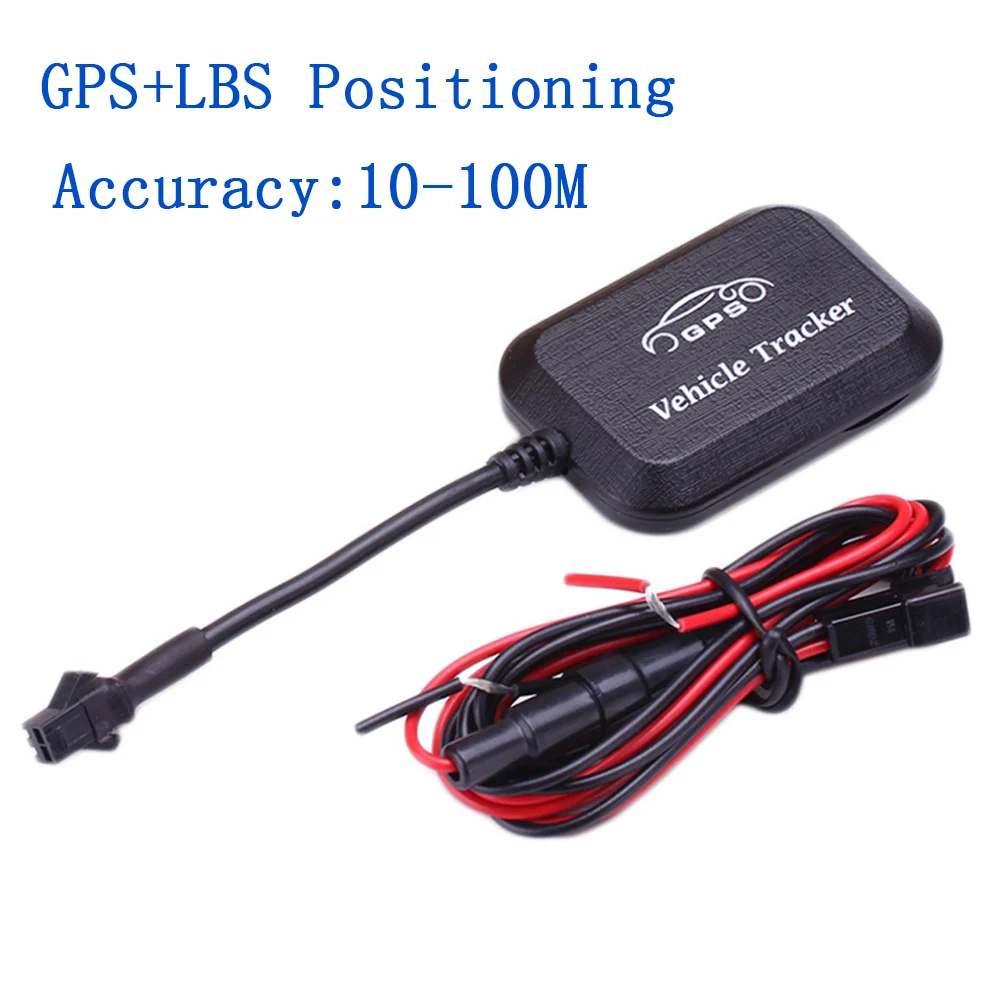

Mini Motorcycle GPS Tracker Car GPS LBS GPRS Positioning Device Vehicle Trunk GPS Locator Tracker With Off Oil Power Function

GPS Tracker Function:

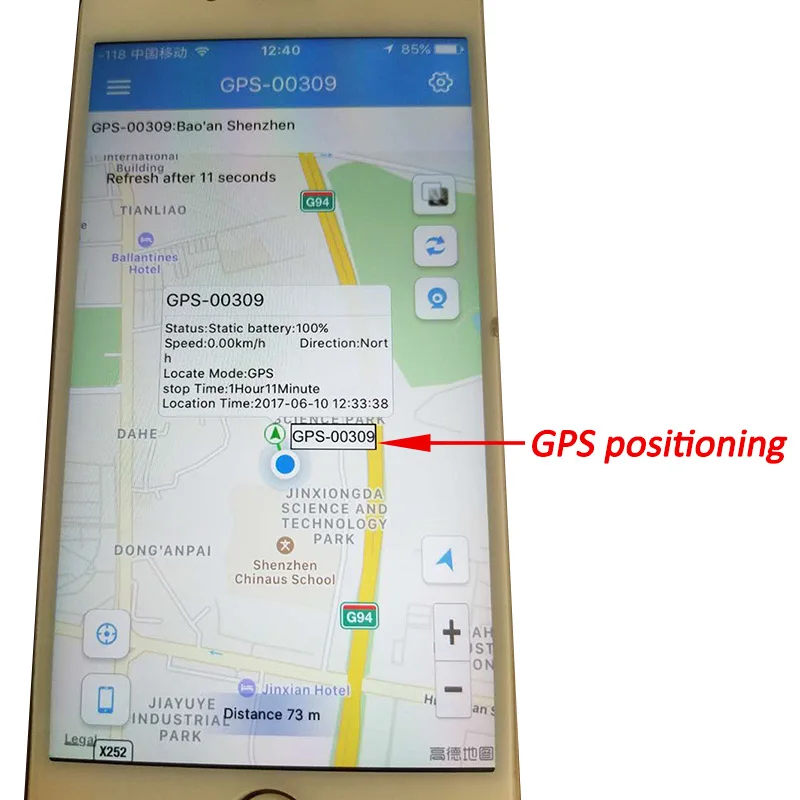

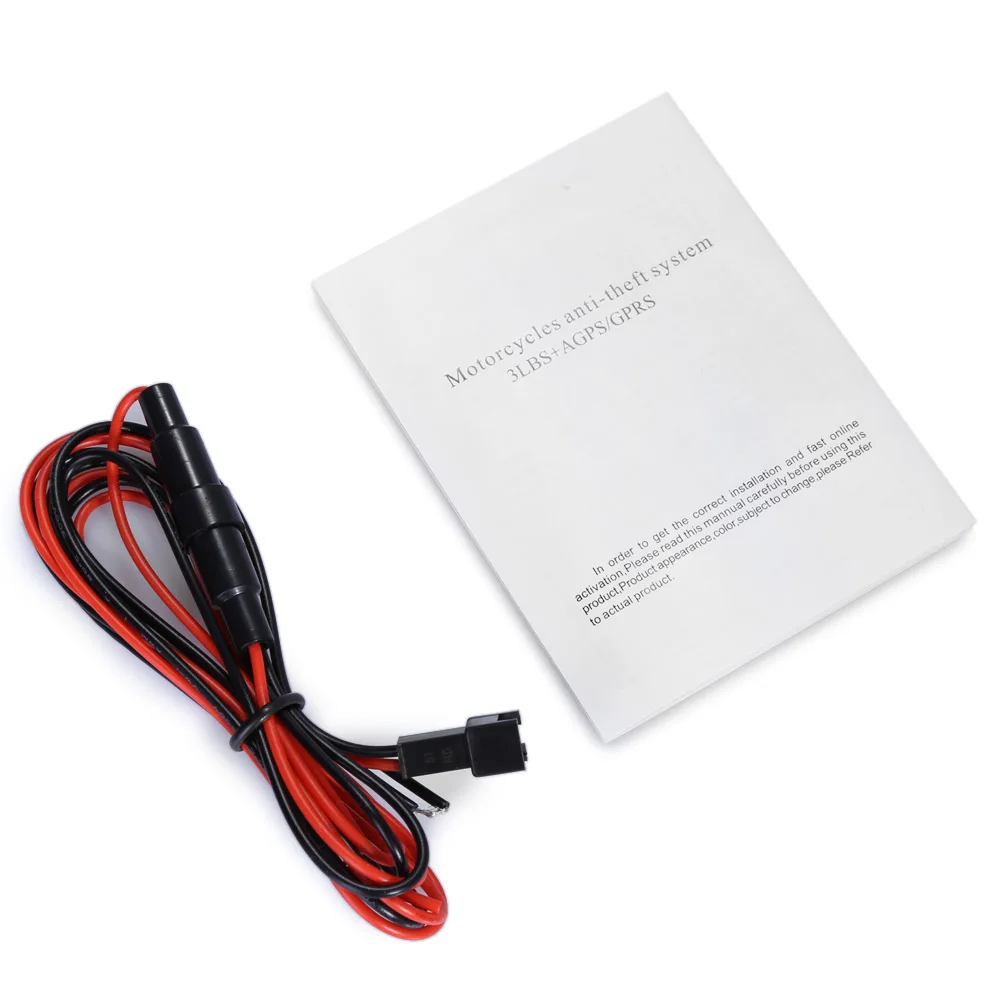

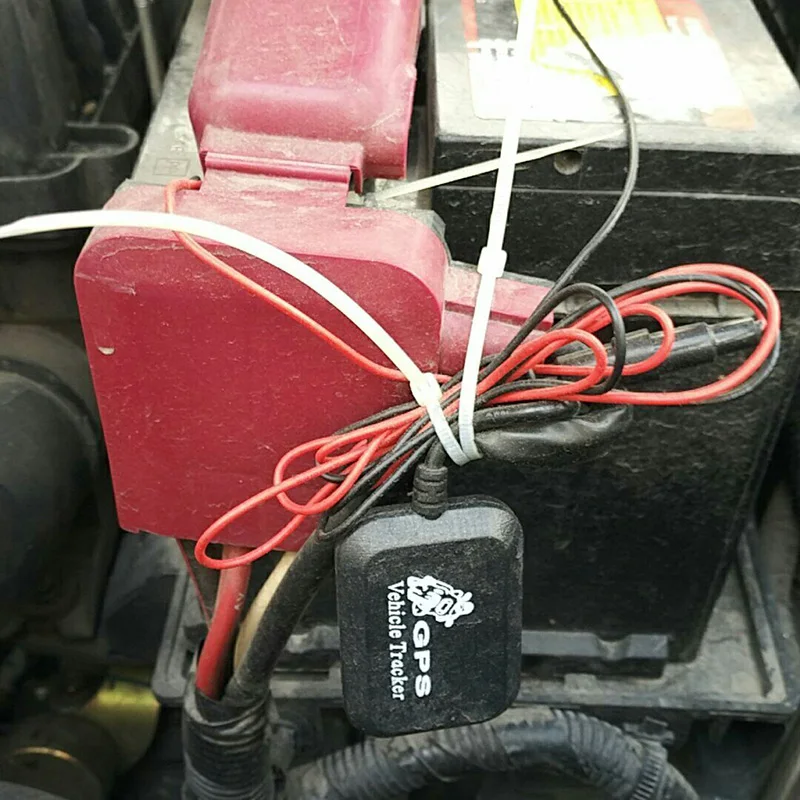

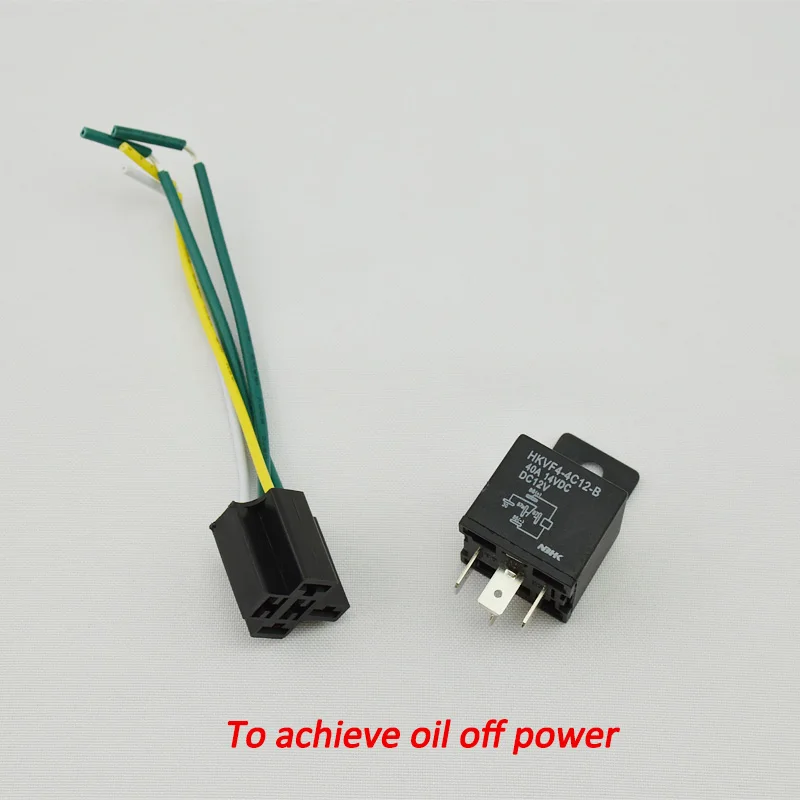

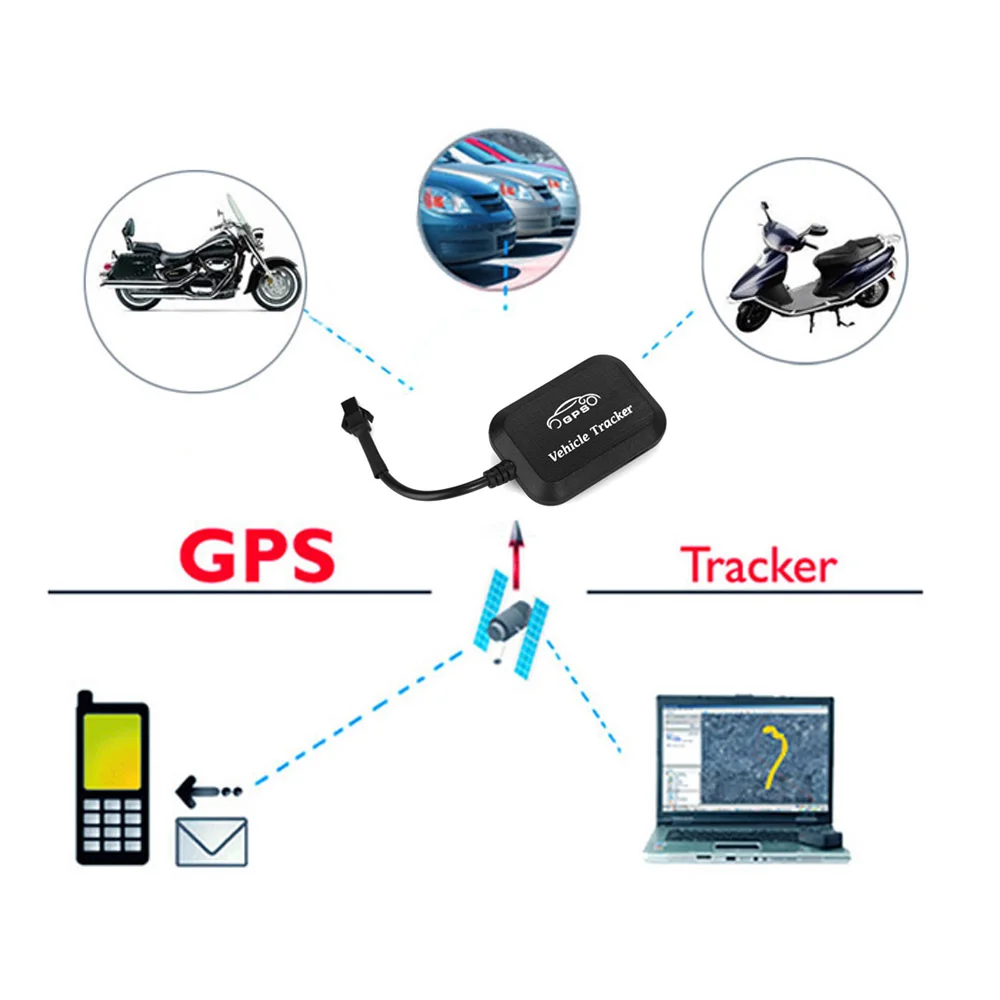

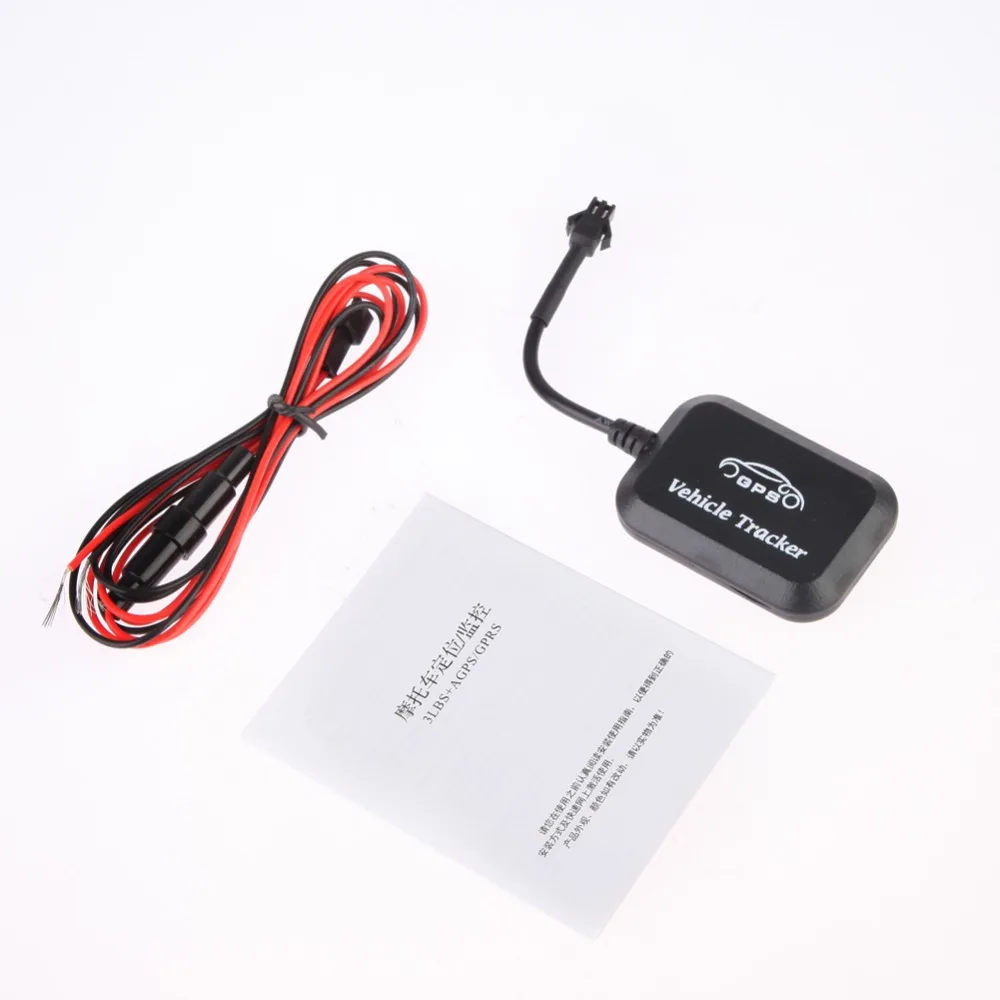

Real-time location tracking, track playback; support SMS and GPRS platform tracking; Micro letter management platform, free control; Mobile client support android, apple system remote control; Query function machine wap mode; Voice alarm,Vibration alarm, Speed alarm, Remote pickup AGPS + 3LBS + SMS positioning Remote off oil power (If you found your motorcycle was stolen, You can remote off the oil and power of vehicle by cellphone) Mini GPS Tracker Specification: GSM:900/1800MHz or 850/1900MHz GPRS:Class12, TCP/IP GPS chip: UBLOX G7020 GSM module: MT6261 + RDA6625E Voltage range:9-36VDC Operating current: ≈22mA (12V DC) ≈12mA (24V DC) GPS Locator Accurancy: 10-100M Operating ambient temperature:-30℃-  +80℃ Work environment Humidity:20%-80%RH Dimensions:56.0(L)*40.0(W)*14.0(H)mm Preparation before Use A SIM card is needed Support GSM network standard(The product don't include SIM card)，and online traffic set should be ordered.Please insert the SIM card in the right direction. When the indicator light sparkles, the phone is turned on normally. Package included: 1X Car GPS Tracker 1X Charger Cable 1X Use Manual 1X Certificate of Conformity 1X Relay Installation method: Motorcycle connection mode: Open the battery box, The red line joint battery anode, Black line joint battery cathode. Car connection mode: There are four groups battery, and each group is 12V. The red line joint anode of one group battery, The black line joint cathode. (Note: When you will driving high speedly, Please make sure your device joint one or two pieces of battery.) How to use? 1. Open the gps tracker cap and insert the SIM Card(Make sure your card support GSM and receive text message, make a call ) 2. Connect the battery, The indicator light lighting and device will turn on 3. Download a APP by QR code 4. Landing service platform by the IMEI account and password. 5. Then you can track your device on google map How to set a center number? Send a message"CENTER, 000000,13800138000#" to your device card. “13800138000 represent your center number.
