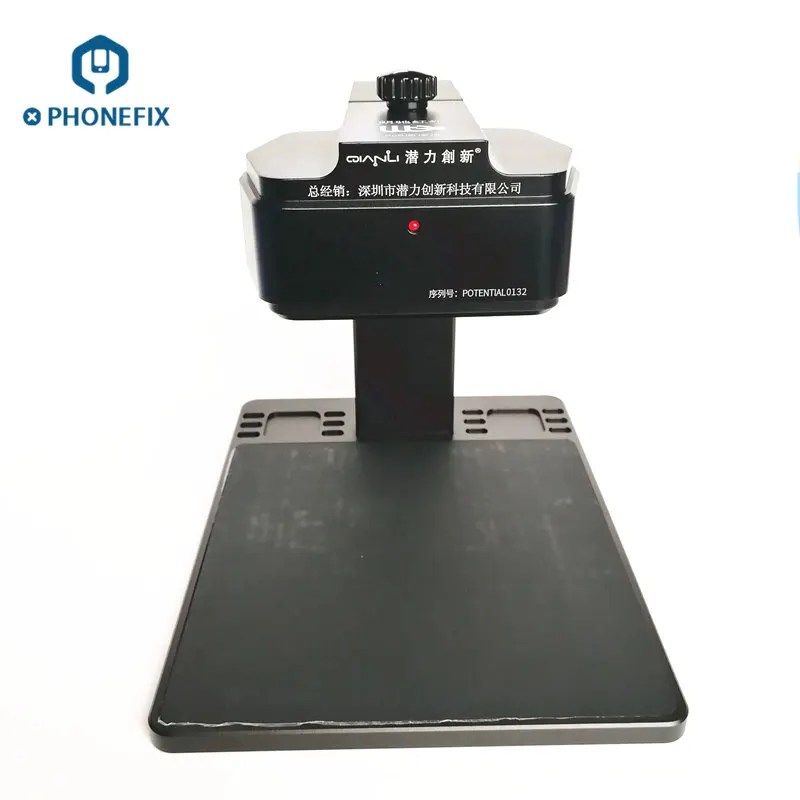

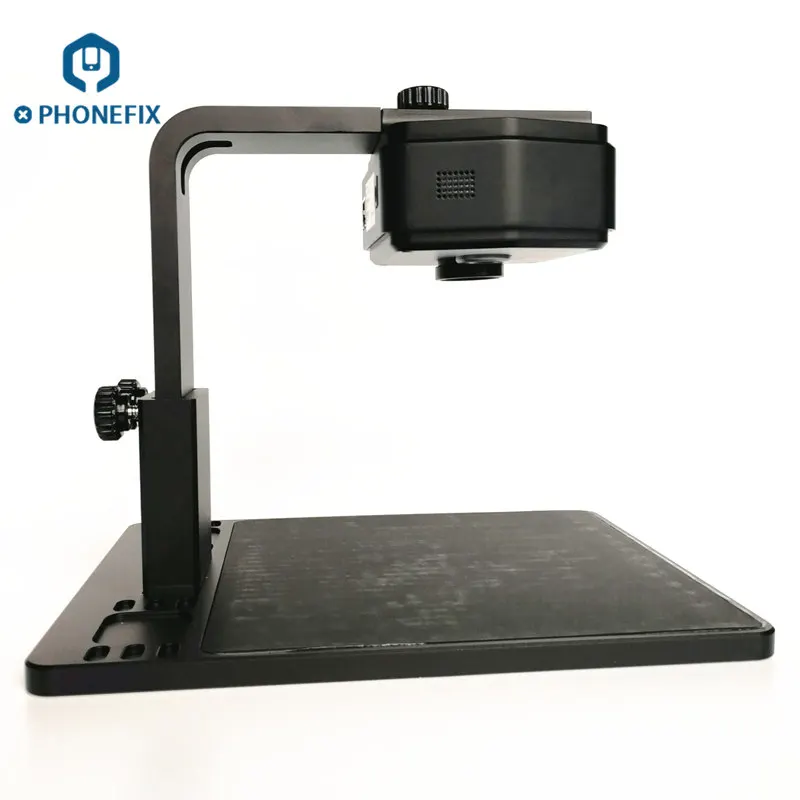

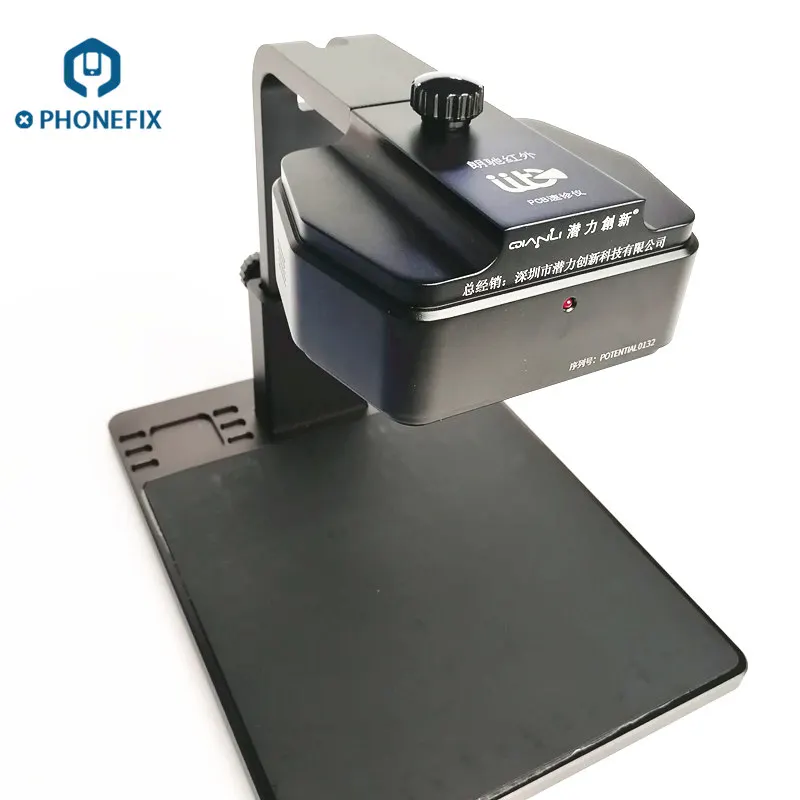

qianli camera PCB diagnosis thermal imaging instrument for Phone Motherboard Trouble Shoot fault repair | Инструменты

Infrared Thermal Imaging Analyzer for Speed Diagnostic Cell Phone PCB Circuit Board Fault Problem, Check PCB Component Troubleshooting and Find mobile phone Circuit Board (PCB) Fault Defects, Phone PCB Fault Infrared Thermal Imaging Thermal Image Analyzer for iPhone Samsung Xiaomi Huawei Vivo HTC All SmartPhones

Features:

1. Detect the motherboard chip, resistor and capacitor running temperature by the powerful PC intelligent analysis software and intelligent algorithm;
2. Fastly Locate the capacitance of micro current leakage, short-circuit position;

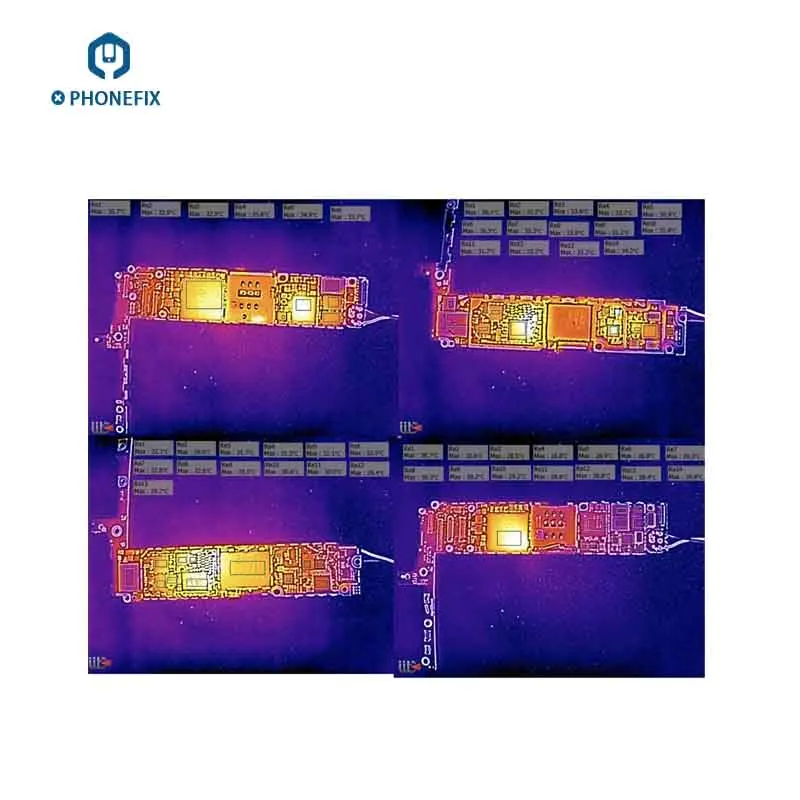

3. Through the analysis of normal / abnormal motherboard comparison mode, quickly and accurately identify the problem chip, help phone fix technician troubleshooting motherboard, greatly improve the efficiency and accuracy of maintenance of the new generation of overhaul equipment

Specification:

Resolution: 160x120
Wavelength range: 7.5-13.5 μm
Lens angle: 57 °x44°
Visible part of the parameters: resolution 1920x1080
Display Mode: Visible / Infrared Thermography / Dual Optical Interlace positioning
Power: Input power voltage 5-26V DC
Power consumption: 2.2W (maximum 3W)
Temperature function: full temperature
