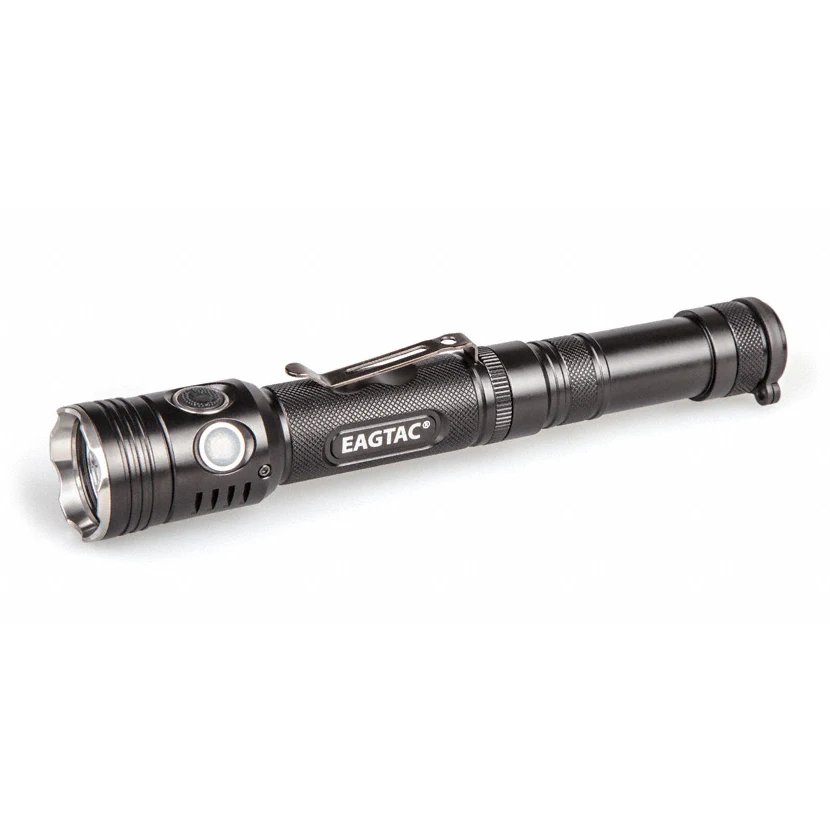

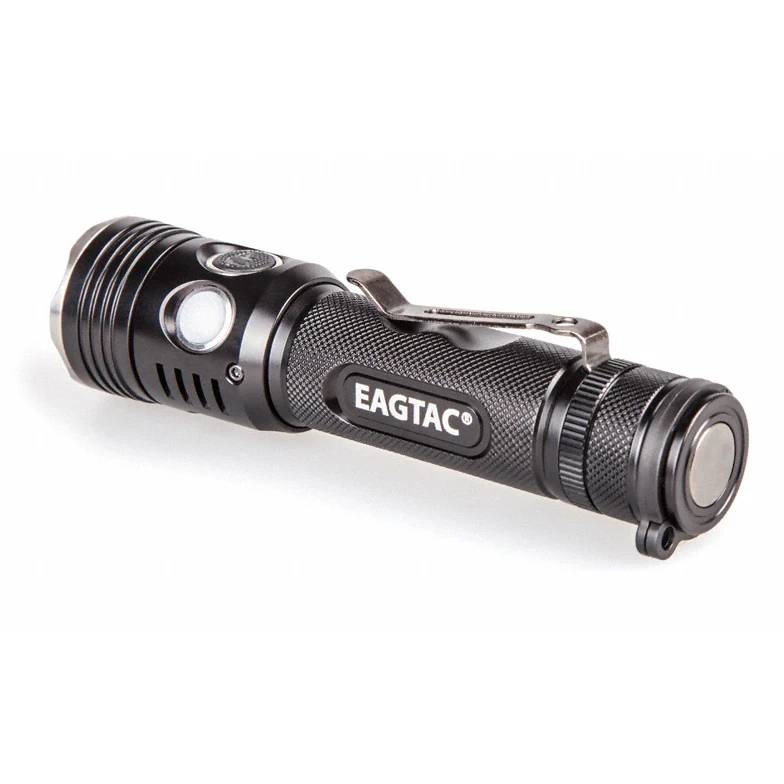

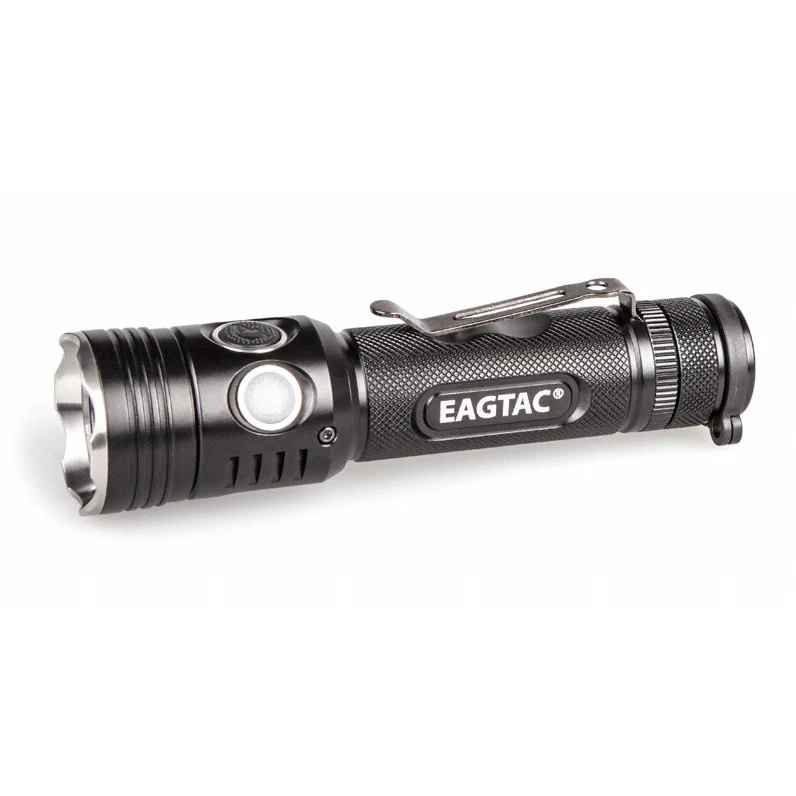

EagleTac TX30C2 Kit -Kit-version of the successor of the legendary EDC flashlight tx25c2. In the head part of the lantern there is a removable impact edge, in the end there is a built-in magnet.

Specifications:

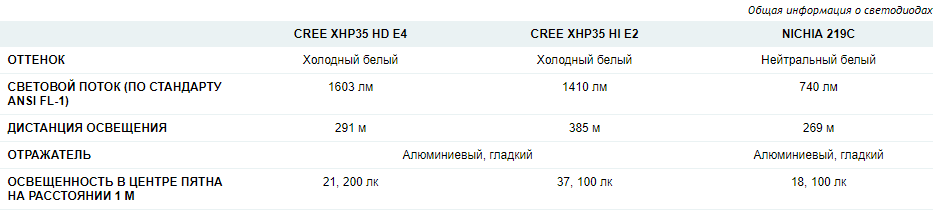

• LED:Cree xhp35 HD E4 (coldWhite light)
• Luminous flux:1603ANSI lumens
• Lighting range:291 m

Driver:

• W1900 Pro
• Synchronous driver with MOSFET transistor, efficiency up to 95%
• Stabilization in all modes of constant light
• High frequency converter ensures the compactness of the entire design of the electronics unit
• Smoothly reduce brightness when voltage drops from 3,0 to 2,7 V
• Zero current consumption in standby mode
• Working voltage: 2,7 A-8. IN
• Built-in thermal control: When the temperature threshold is exceeded (60 °c), the brightness is automatically reduced from 100% to 72%

Additional characteristics of the lantern:

• Shockproof glass with double-sided illuminating coating (light permeability 96%)
• Dimensions: 128x25 4mm diameter head parts 33mm
• Weight: 110g (without batteries)
• Waterproof for IPX8 standard (immersion to a depth of 2 meters of up to 30 minutes)
• Phosphorous bronze spring contacts with silver plating provide minimal internal resistance
• Material: high strength aluminum alloy body T6061 used in air and aerospace industries, with anodizing III (highest) degree of rigidity

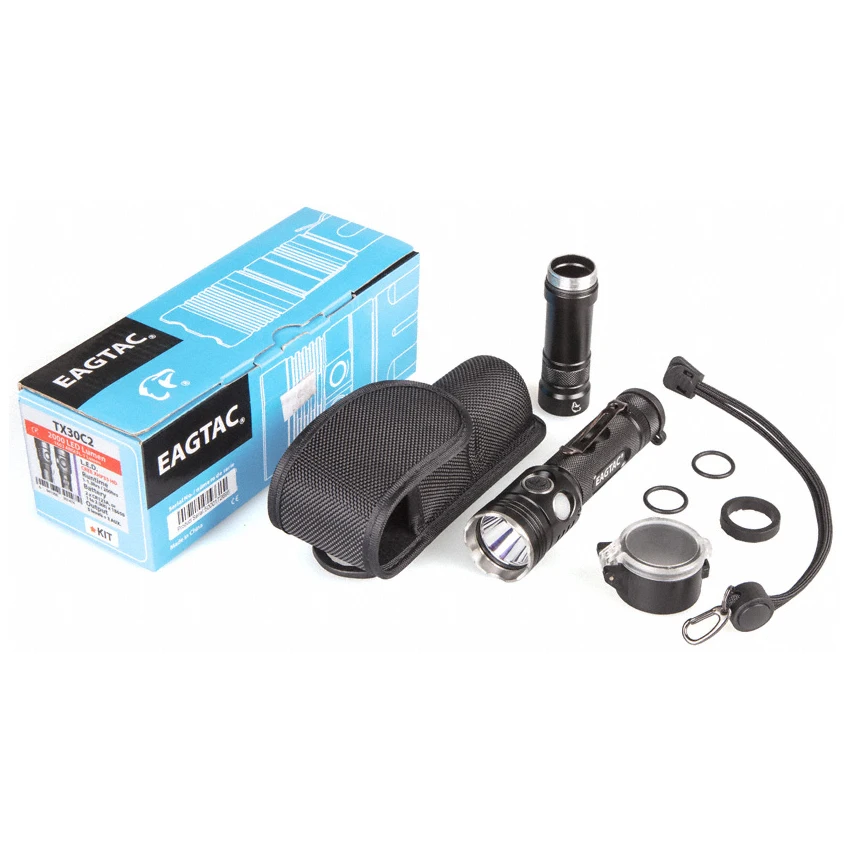

Package Contents:

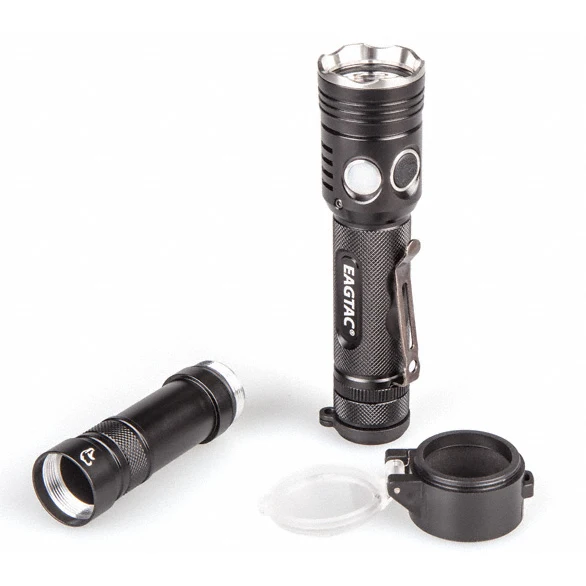

• Lantern with removable impact edge and magnet in the end
• Lace on hand
• Spare O-rings
• Diffusing filter et33 II with folding lid
• Body extension (for additional battery 18650)
• Hard Case
• User Manual
• Warranty card

Power supply:

• 1 Li-Ion battery 18650 format (it is recommended to use battery with Overcharge Protection Board, overdischarge and short circuit)
• 2 CR123A 3,0 v lithium batteries (each)
• When using the case extension can use 2 Li-ion battery 18650 voltage of 3,7 V (each)

Control lamp:

• Turning on the tx30c2 kit flashlight in the brightest mode (Turbo) is done by pressing the side button of black color.
• Turning on in minimum mode-by pressing the side button of white color.
• Switching between modes is short pressed on the white button. Modes switch in series, from less bright to brighter (with reset to minimum After Turbo mode).

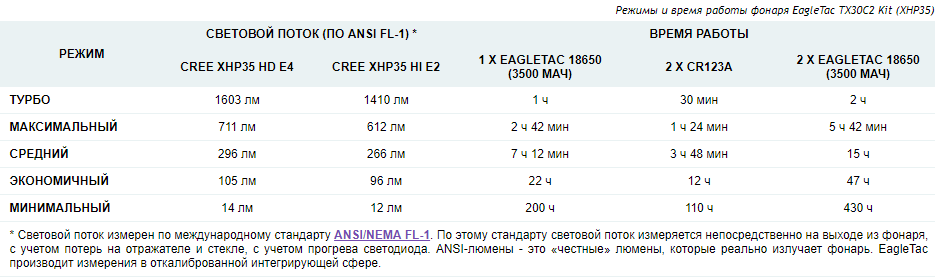

• The tx30c2 kit flashlight has 5 modes of constant light and 3 hidden modes (strobe, SOS, emergency Lighthouse).
• To access the strobe, you need to make a quick double press (with hold) on the side button of black color. In strobe mode, the flashlight only works when the button is held. The strobe can be activated both when turned on and when the lamp is turned off.
• Access to two remaining hidden modes is carried out with the flashlight on. To do this, you need a white button to produce 2 complete cycles of mode change.
• Tx30c2 kit has the ability to program the start mode (when you press the White button). To program the flashlight, switch it to the mode you need with a white button and hold it. Hold the button pressed until the blue LED is lit with constant light. Check whether the desired mode has been saved by turning off the flashlight and turning it on by pressing the White button.

Charge level indicator

Under the white side button of the tx30c2 kit lantern is the LED which flashing blue light, informing about the battery charge level. The indicator shows the level of charge for the mode in which the lantern works. In different modes, indicator readings may differ.

• One time flash-battery charge less than 20%
• Double flash-charge AKB from 20 to 50%
• Трёхкратная flash-charge 50 to 80%
• Четырёхкратная flash-charge more than 80%
