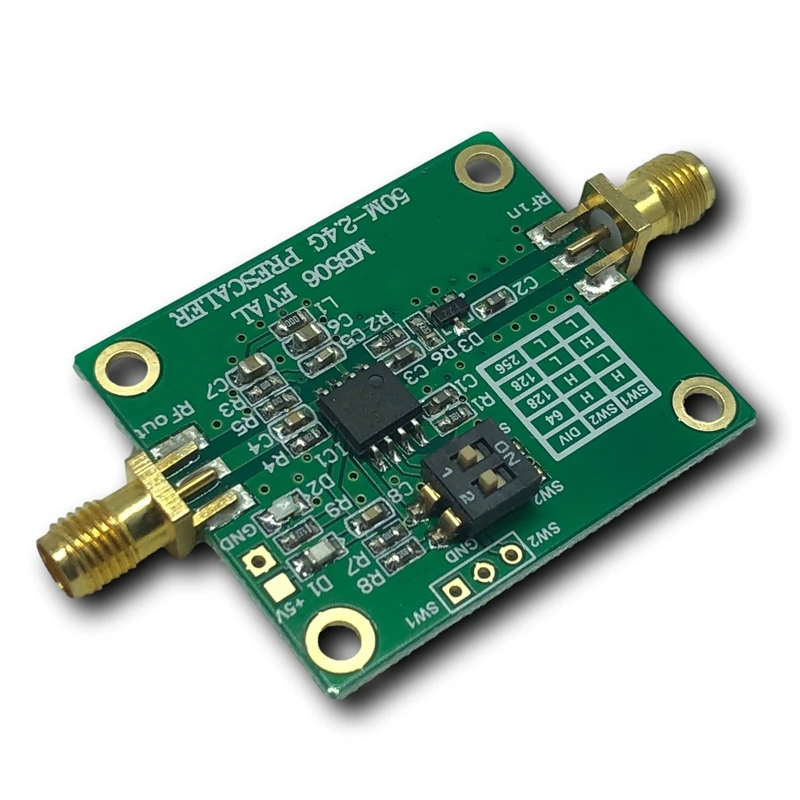

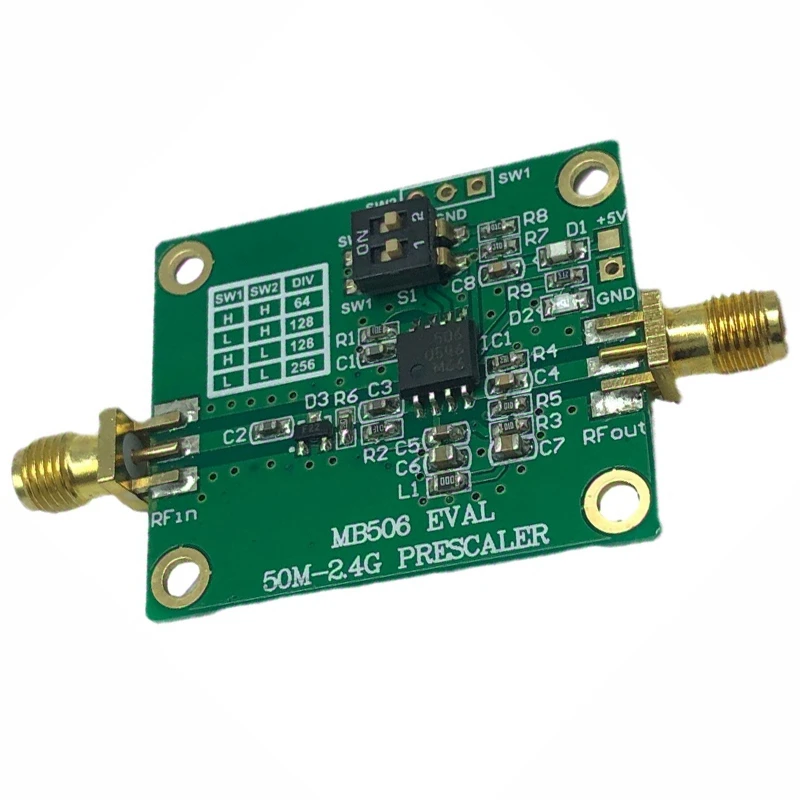

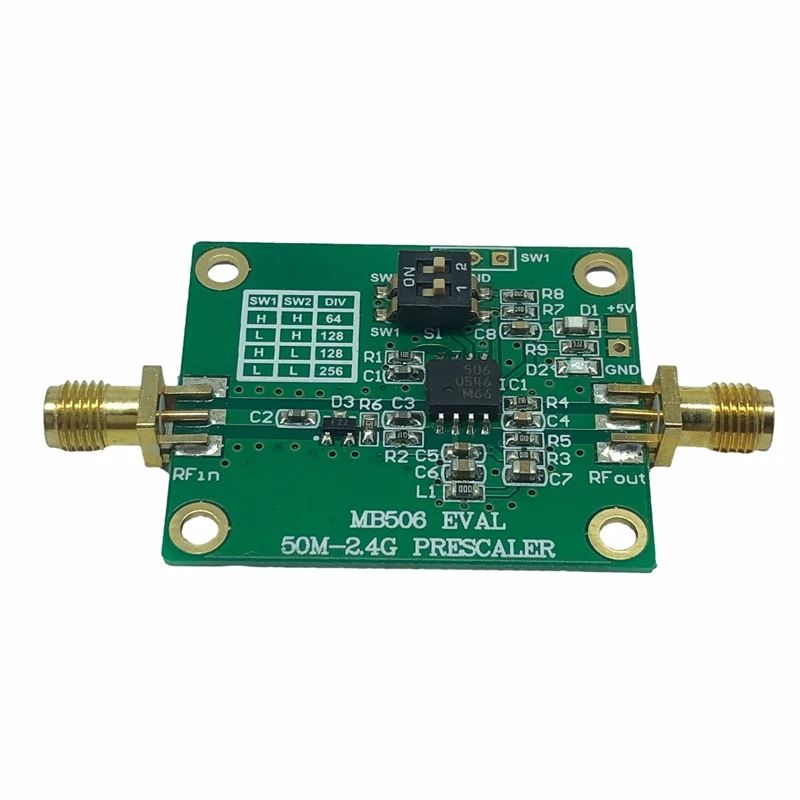

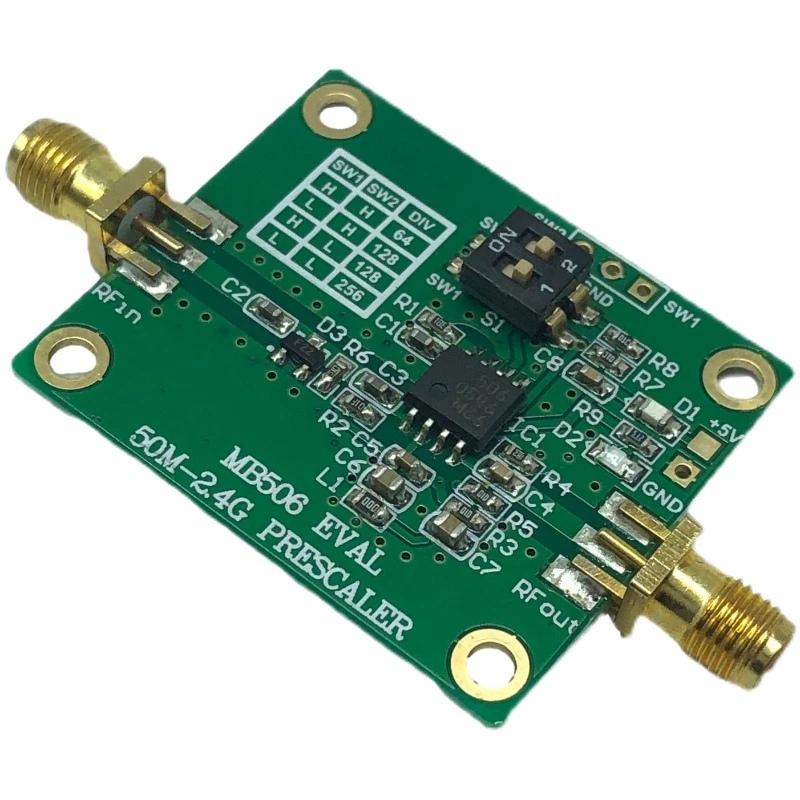

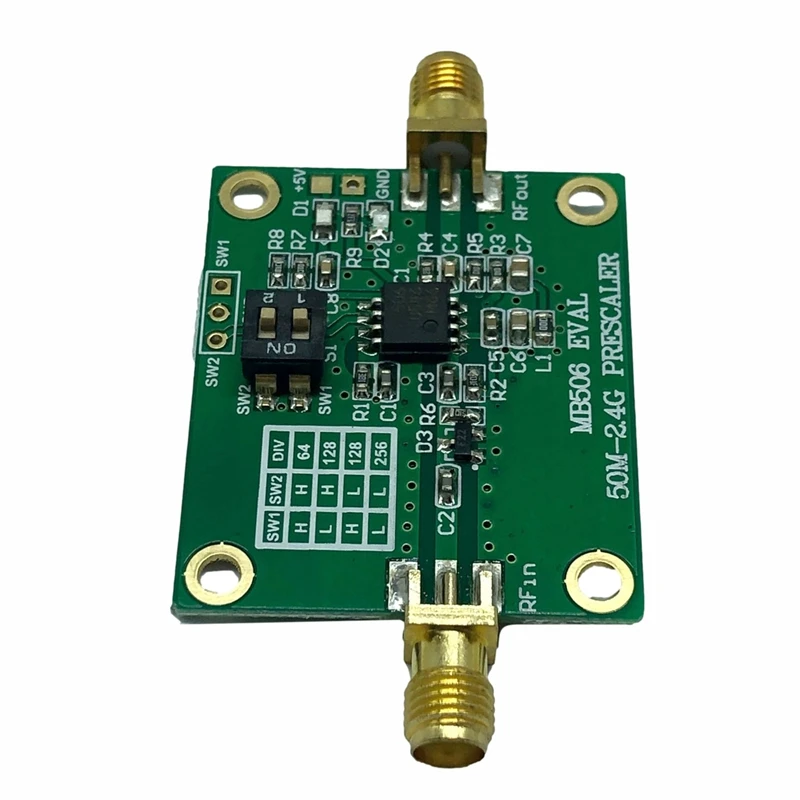

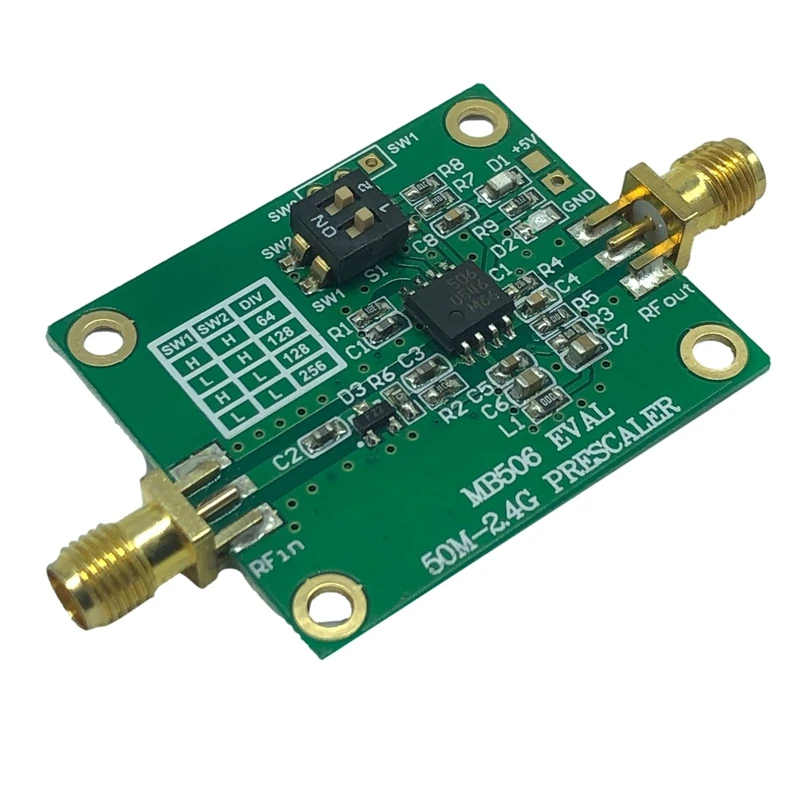

Frequency Divider Module MB506 Frequency Division 2.4GHz Microwave Prescaler 64 128 256

MB506 is a high frequency prescaler with a frequency up to 2.4GHz.
The impedance change is lower, which can get better classification performance and improve the dynamic range.
It divides the input frequency by the modulus of 128 or 256, and the output level is 1.6V at the peak-to-peak value at the ECL level.
The divider ratio can realize 64, 128 and 256 divider by two-digit dialing switch or external interface.
Complete Phase Locked Loop synthesizer circuit with MB87006A, Phase Locked Loop synthesizer IC.

Input frequency:30M-3G,typical:50MHz-2.4GHz
Output amplitude:1.0-1.6Vpp+1/2ACC
Input signal amplitude:-16dBm-5.5dBm(The higher the frequency, the greater the input requirements)
Single power supply:+4.5 to +5.5Vtypical+5V
The frequency division ratio can be realized by two digit dial switch or external interface64 128 256Frequency division of the system
I / O interface:SMABus input impedance50Europe
Colour: green
Material: PCB

Package Contents:
1 x Frequency Divider

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
