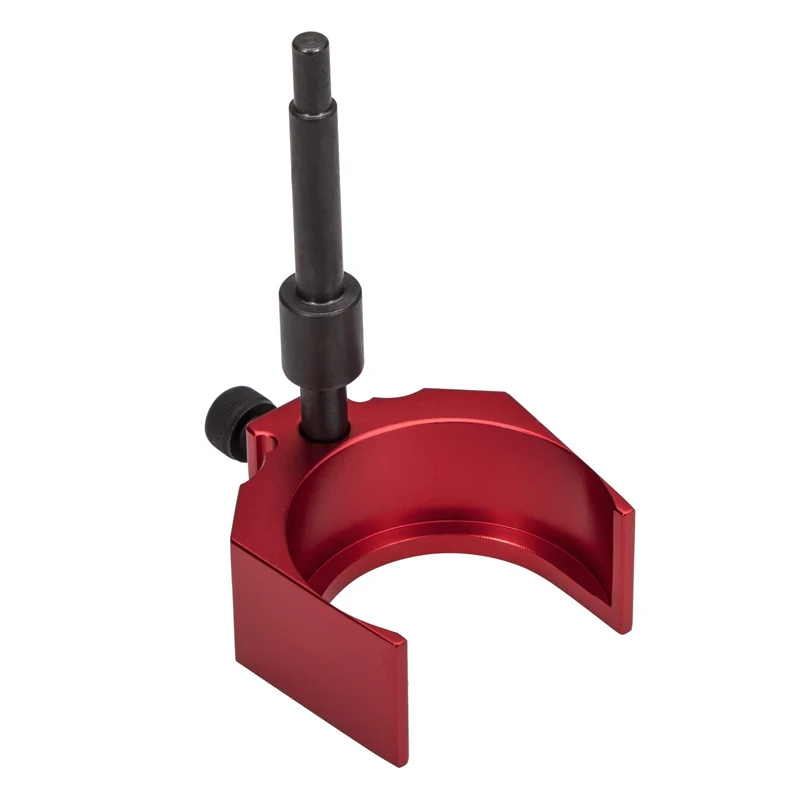

For Caterpillar 3406E 9U-7227 CAT C-15 and C-16 Height Tool Diesel Engine Injector Timing Fixture (Red & Blue） |

For Caterpillar 3406E 9U-7227 CAT C-15 and C-16 Height Tool Diesel Engine Injector Timing Fixture (Red & Blue） |

Product description

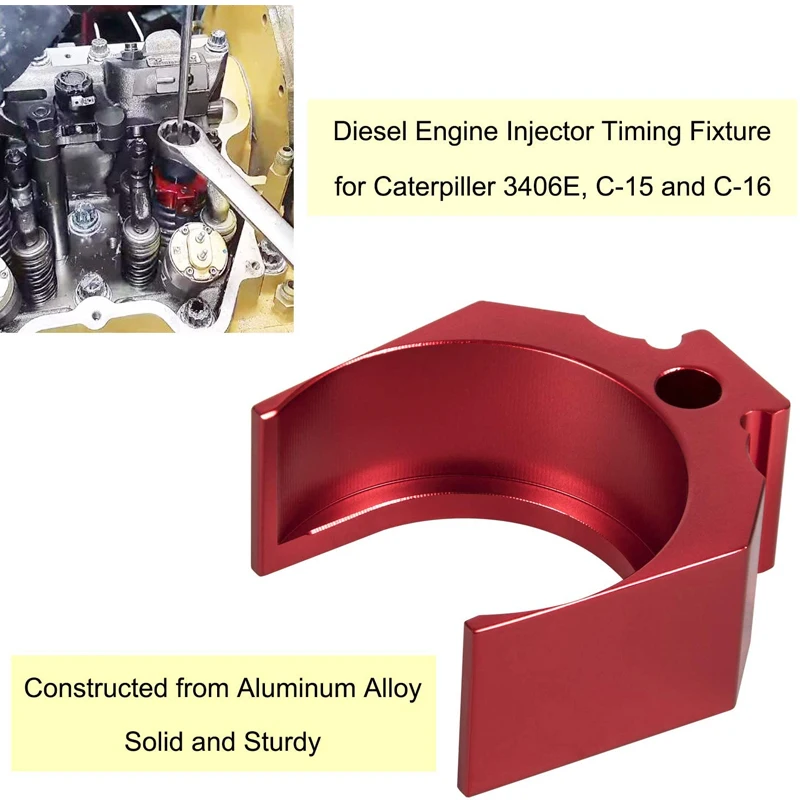

APPLICATION: Diesel Engine Injector Timing Fixture for Caterpiller 3406E, C-15 and C-16

REPLACEMENT: Alternative to 9U-7227，properly maintain the Caterpillar Injector height

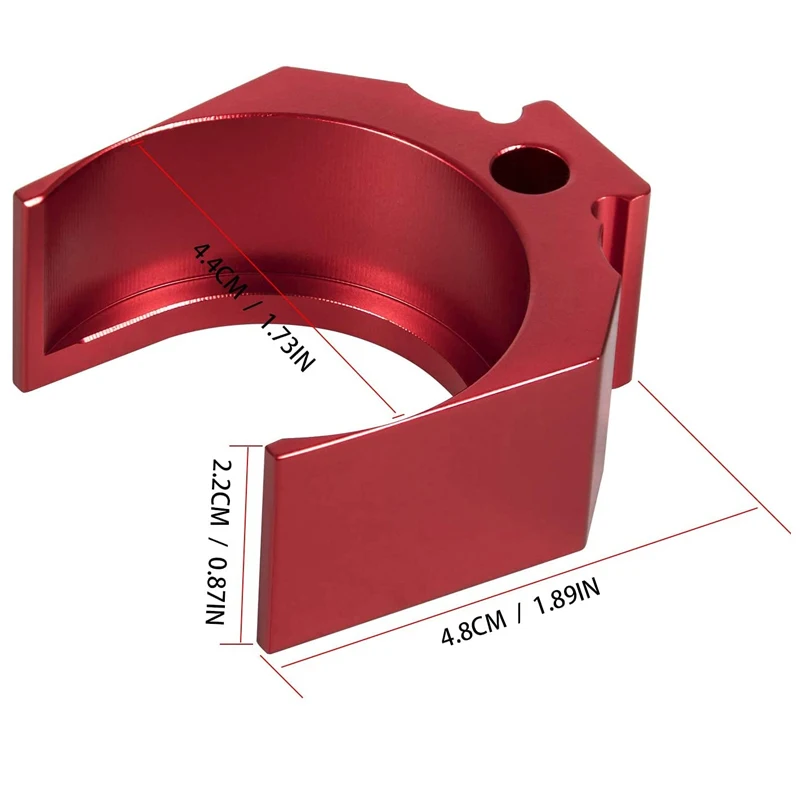

SUPERIOR QUALITY: Constructed from Aluminum Alloy, solid and sturdy; red powder coated is great in resisting rust and corrosion

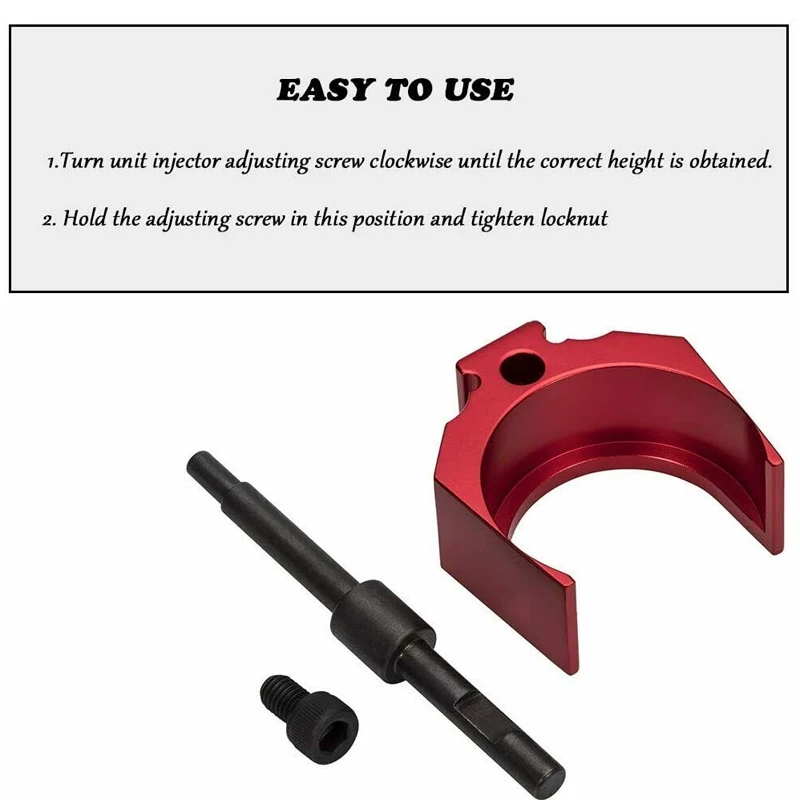

EASY TO USE: Put the tool on the injector to accurately adjust the Injector Height of the engine

SATISFACTION GUARANTEE: If you're not 100% satisfied with Sunluway Caterpillar Injector Height Tool, simply return it for a full refund in 30 days, no questions asked money back guarantee with 15 months’ warranty

Application:

1. Injector height is adjusted by injector height adjusting tool and lock-nut located at the injector end of the rocker arm.

2.After finishing the valve adjustments, you need to adjust the injector height to 78.0 ± 0.2 mm (3.07 ± 0.01 inch) by using our tool. (The dimension is measured from the top of the unit injector to the machined ledge of the fuel injector body)

3.Last, just tighten the lock-nut to a torque of 100 ± 10 N·m (74 ± 7 lb ft)

Package includes:

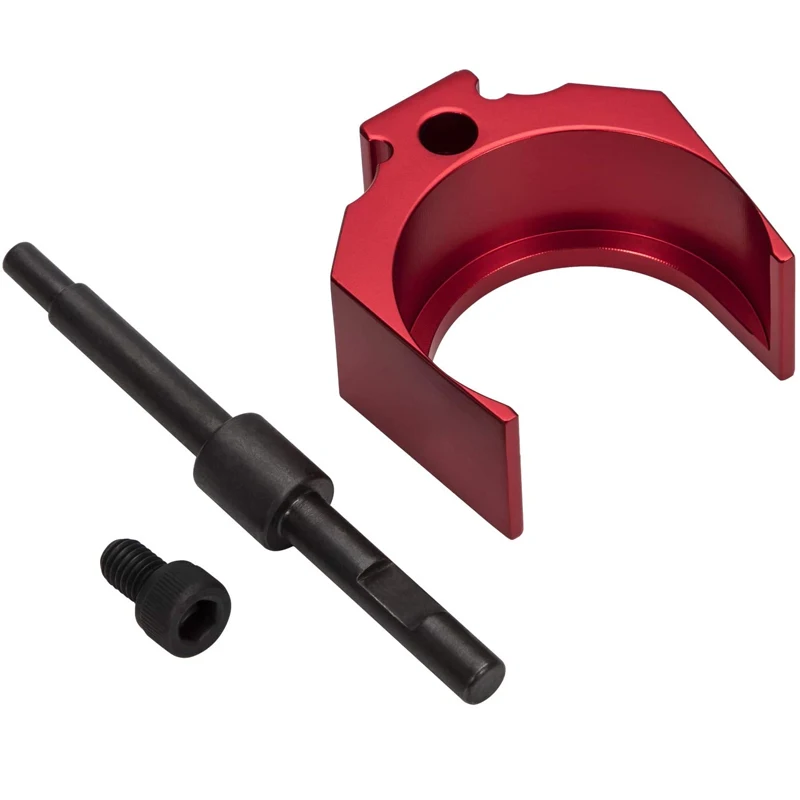

1* Caterpillar Injector Height Tool (3 in 1)

BIUE  RED

Combination is more practical
