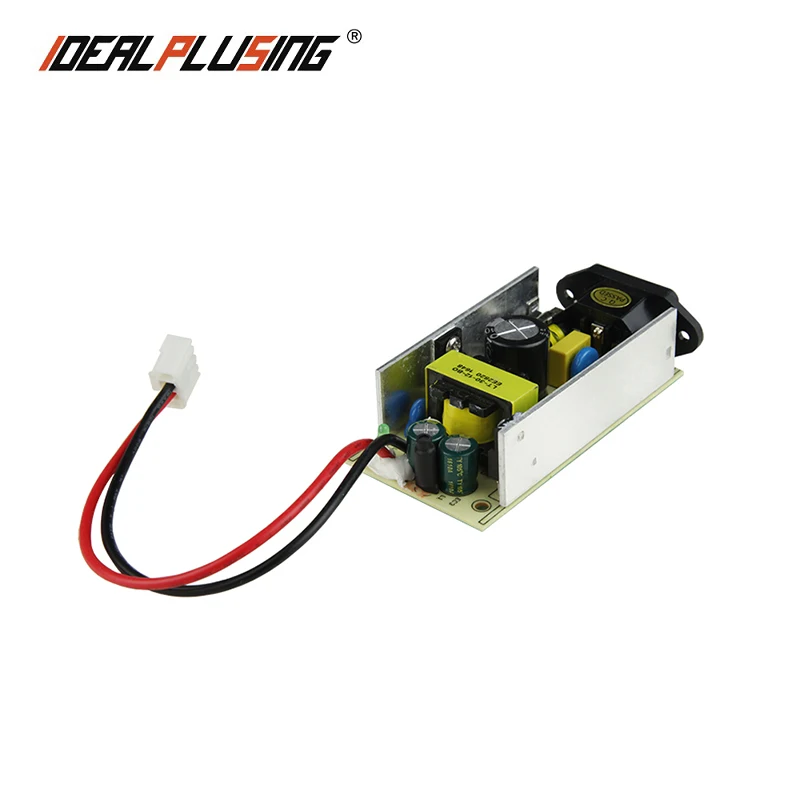

Заводская цена небольшой объем с функцией PFC 5 В 12 24 52 в импульсный источник

Brand

IDEALPLUSING or OEM

Model

IPS-SPB30-12

Output

Channels Of Output

1

DC Voltage

12VDC

Output current

0~2.5A

Ripple Noise

0＜Ta≤55℃

≤50mVp-p

-15≤Ta≤0℃

≤100mVp-p

Stabilized Voltage Precision

±1%

Line Regulation

±1%

Load Regulation

±2%

Temperature Coefficient

±0.03%/℃

Output Start Time

≤3.0S (120Vac input, Full load);

≤2.0S (220Vac input, Full load)

Output Hold Time

≥10mS(120Vac input, Full load);

≥20mS(220Vac input, Full load)

Voltage Overshoot

<5.0%

Input

Input Voltage Range

90VAC~264VAC

Input Rated Voltage Range

100VAC~240VAC

Frequency Range

47Hz~63Hz

Efficiency

85%

Input Current

<0.38A

Inrush Starting Current

<40A@300Vac Cold start;

Leakage Current

input to output less than 0.25mA

Protection

Output

Over Power

36~45W Swing machine (Testing method: Increase the output current until enabling the protection. Protection mode:Swing machine, Self-recovery after over-power released.)

Over Voltage

15-16V Swing machine (Short circuit the Pin1-2 of U8, swing machine. Output recovery to normal after removing the short circuit) Note: Do not use external voltage.

Over Current

3~3.75A Swing machine (Testing method: Increase the output current until enabling the protection. Protection mode:Swing machine, Self-recovery after over-current released.)

Short Circuit

It can be short circuited for a long time and automatically recover after the short circuit is eliminated.

Operation Environment

Operation Temperature And Humidity

-20℃~65℃; 20%~90%RH No condensing

Storage Temperature And Humidity

-40℃~85℃; 5%~95%RH No condensing

Safety And EMC Standard

Security Standard

GB4943/EN60950

Dielectric Strength

Input—Output:3KVac/10mA;

Input--Case:1.5KVac/10mA;

Output---Case:0.5KVDC/10mA

Time for each testing is 1min.

Insulation Resistance

Input-Output: 100M ohms;

Input-Case: 100M ohms;

Output-Case: 100M ohms;

Electromagnetic Interference

EN55022 Class A

Harmaonic Current

IEC61000-3-2 class Aequipment requirements

Electromagnetic interference Immunity

EN61000-4-2,4,5,6,8,11 ENV50204, class Aheavy industry standard

Others

Design MTBF

100,000Hrs AT 25℃, MIL-217 Method 2 Components Stress Method

Dimension

L100*W47*H26(MM)

Notes

If the specification is not specified, all specifications and parameters shall be measured at rated input, rated load and 25 C ambient temperature.

Ripple noise test method: the use of a 12# twisted pair, while the terminal to parallel capacitance of 0.1uF and 10uF, measured at the scope of the oscilloscope 20MHz bandwidth.

The power supply will be installed on the final equipment as a component, and the final equipment will still have to meet the EMC condition.
