Характеристики
Пьезоультразвуковой преобразователь 40 кГц 50 Вт по хорошей цене работает с
История изменения цены
*Текущая стоимость 546.4 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-18-2026 | 650.23 руб. | 683.96 руб. | 666.5 руб. |
| Feb-18-2026 | 644.26 руб. | 676.84 руб. | 660 руб. |
| Jan-18-2026 | 541.14 руб. | 568.35 руб. | 554.5 руб. |
| Dec-18-2025 | 633.45 руб. | 665.60 руб. | 649 руб. |
| Nov-18-2025 | 551.34 руб. | 579.18 руб. | 565 руб. |
| Oct-18-2025 | 622.17 руб. | 653.74 руб. | 637.5 руб. |
| Sep-18-2025 | 617.98 руб. | 648.94 руб. | 632.5 руб. |
| Aug-18-2025 | 612.65 руб. | 643.20 руб. | 627.5 руб. |
| Jul-18-2025 | 606.1 руб. | 636.56 руб. | 621 руб. |
Описание товара
Описание

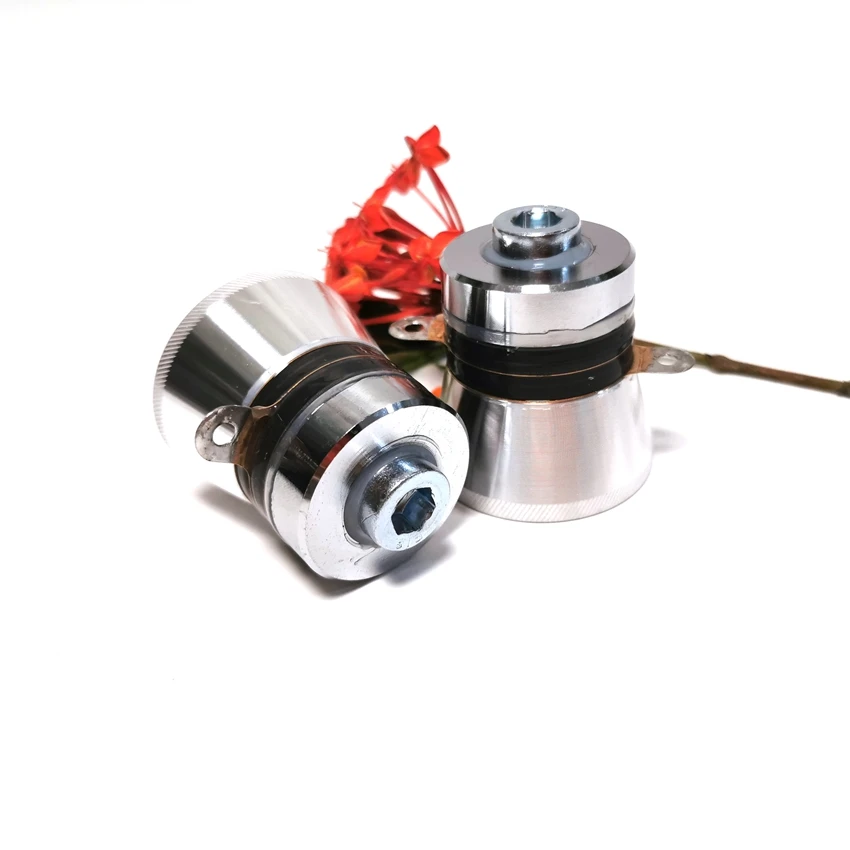

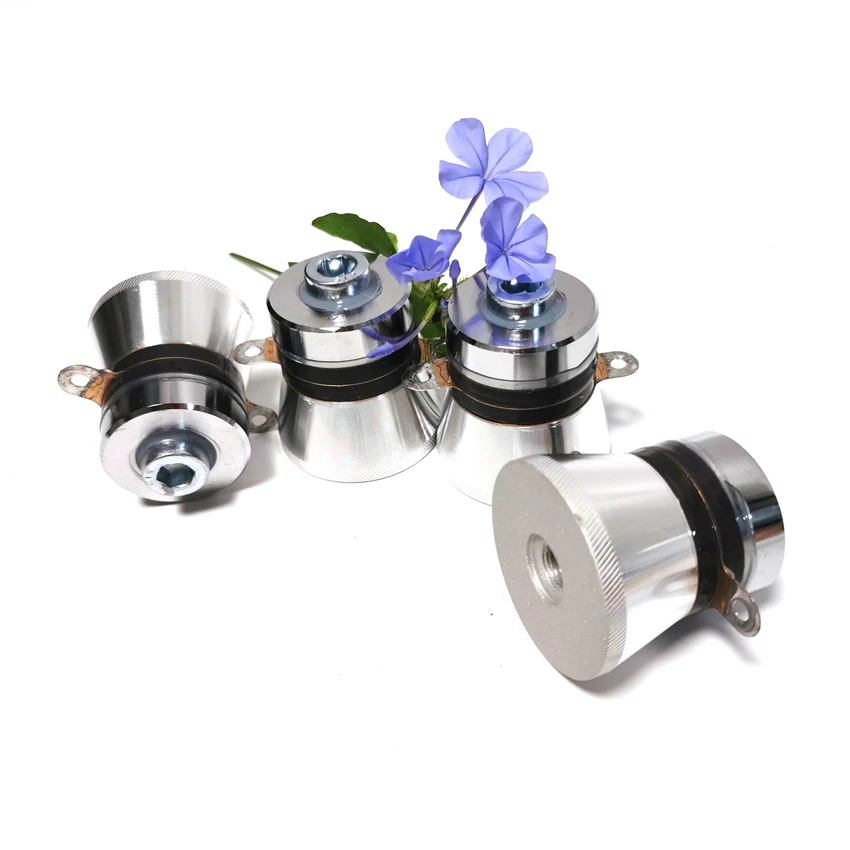

40khz 50w Good Price Piezo Ultrasonic Transducer Work With Generator For Cleaning

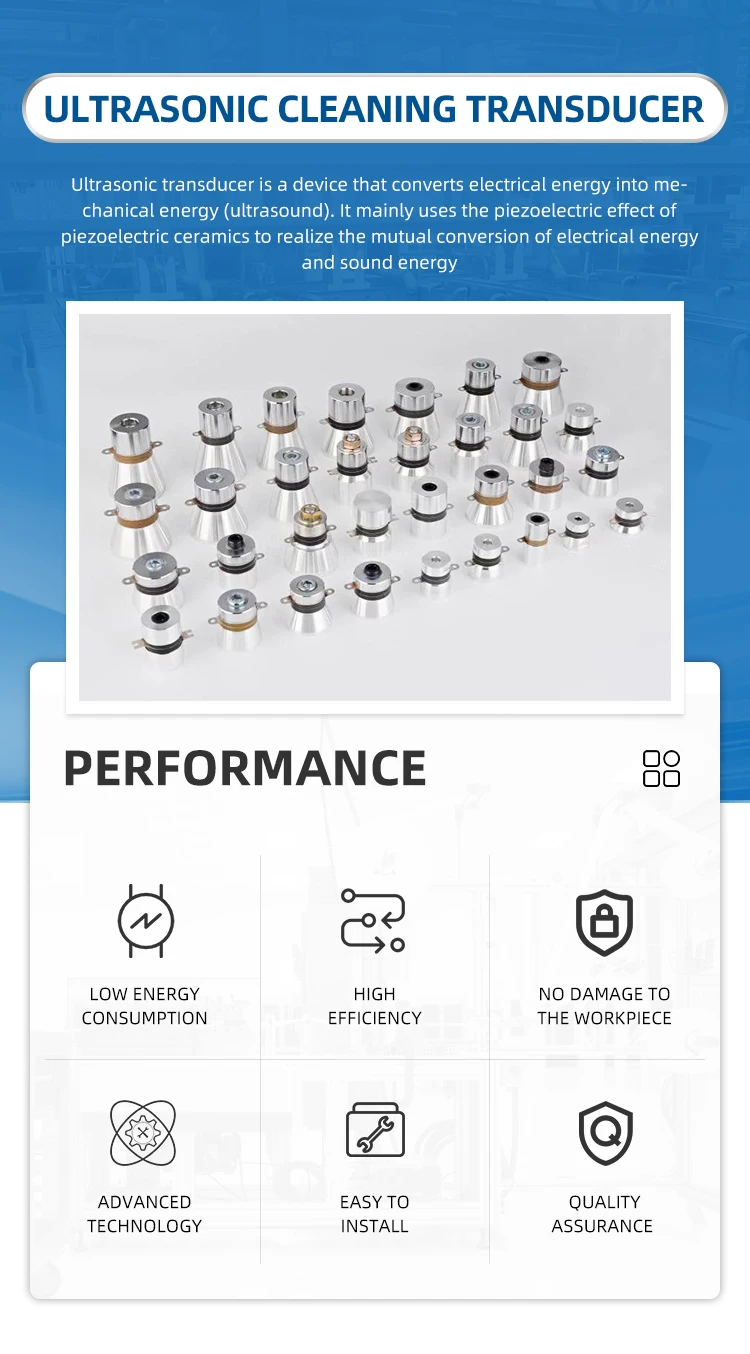

Ultrasonic vibrator, also known as ultrasonic vibrating head, ultrasonic vibrating head, is a kind of ultrasonic transducer and the core component of ultrasonic cleaning machine. We call the whole after connecting ultrasonic transducer and horn as vibrator. Ultrasonic transducer is one of the important components in ultrasonic cleaning machine and ultrasonic vibration plate, which largely determines the quality of ultrasonic wave.
Our company provides professional ultrasonic transducers with stable quality, high-efficiency output and moderate price based on years of experience in ultrasonic cleaning and combined with the opinions and feedback of the majority of users.

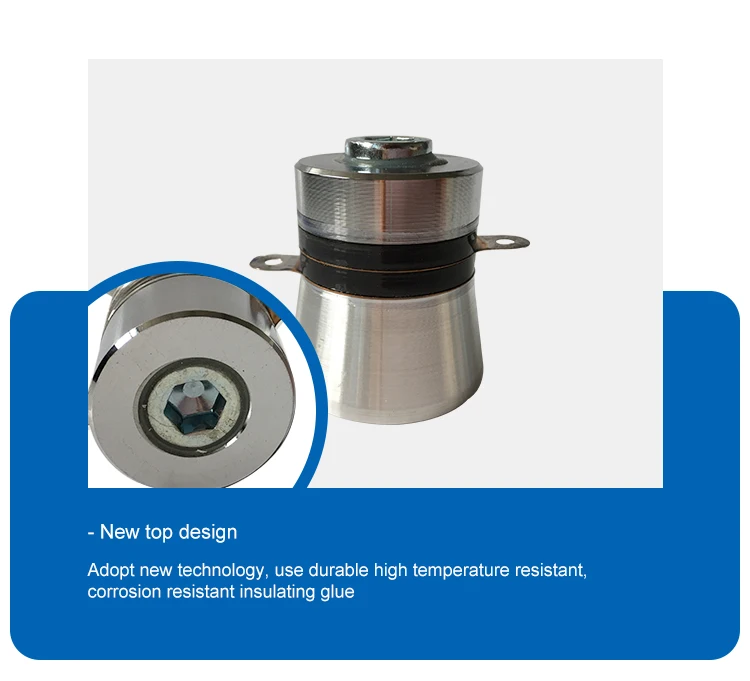

The ultrasonic transducer is a device that converts high-frequency electrical energy into mechanical vibration. The high-frequency electrical energy input by the ultrasonic generator matches the piezoelectric ceramic sheet with the resonant frequency of the ultrasonic transducer, and the electrical energy is converted by the piezoelectric effect of the material. It is converted into mechanical vibration, that is, ultrasonic vibration, and then transmitted to the water medium through the ultrasonic transducer, forming negative pressure bubbles and shock waves in the water, and transmitting it in the tax-based solution to achieve the effect of cleaning the surface of the workpiece. The transducer is mainly composed of aluminum block, piezoelectric ceramic sheet and insulating layer.
Ultrasonic vibrators (ultrasonic transducers) such as 28KHZ/40KHZ/25KHZ/68KHZ/80KHZ/120KHZ/200KHZ are widely used in electronics industry, machinery industry, automobile, electroplating, chemical fiber,
Optical, bearing and other industries. Such as cleaning magnetic cores, oil nozzles, auto parts, electroplating hardware tools, chemical fiber spinnerets, optical lenses, bearings, tools, tableware, medical equipment, precision hardware, watch parts, gold and silver jewelry, electronic components. This frequency has strong vibration and uniform density, which can quickly achieve the purpose of oil removal, sodium removal, decontamination, and scale removal. In addition, it can also be used in chemical experiments to achieve catalysis, stirring, and rapid generator chemical reactions.
Specification List | ||||||
Model | Frequency | Capacitance | Resonance Impedance | Size | Power | Insulation resistance |
（KHz） | （pF） | （Ω） | Radiation head*Height (mm) | （W） | (2500VDC) | |
OKS-8UCT-2540 | 40±0.8 | 3100±10% | ≤30Ω | 25*58 | 20w | ≥100MΩ |
OKS-8UCT-3045 | 46±1.0 | 2400±10% | ≤25Ω | 45*43 | 35w | ≥100MΩ |
OKS-8UCT-3517 | 17±1.0 | 2550±10% | ≤28Ω | 78*93 | 50w | ≥100MΩ |
OKS-8UCT-3820 | 20±0.8 | 3800±10% | ≤28Ω | 59*99 | 60w | ≥100MΩ |
OKS-8UCT-3823 | 23±0.8 | 3800±10% | ≤28Ω | 59*84 | 60w | ≥100MΩ |
OKS-8UCT-3825* | 25±0.8 | 3800±10% | ≤20Ω | 59*80 | 60w | ≥100MΩ |
OKS-8UCT-3828* | 28±0.5 | 3800±10% | ≤20Ω | 59*68 | 60w | ≥100MΩ |
OKS-8UCT-3833* | 33±0.5 | 3800±10% | ≤20Ω | 48*61 | 60w | ≥100MΩ |
OKS-8UCT-3840* | 40±0.5 | 3800±10% | ≤20Ω | 48*51 | 60w | ≥100MΩ |
OKS-8UCT-4520* | 21.5±0.8 | 5600±10% | ≤20Ω | 67*92 | 100w | ≥100MΩ |
OKS-8UCT-4528* | 28±0.5 | 5600±10% | ≤20Ω | 67*68 | 100w | ≥100MΩ |
OKS-8UCT-5028 | 28±0.5 | 7200±10% | ≤20Ω | 67*68 | 120w | ≥100MΩ |
OKS-8UCT-5020 | 20±0.5 | 4650±10% | ≤25Ω | 79*94 | 120w | ≥100MΩ |
OKS-4UCT-2540 | 40±0.8 | 2400±10% | ≤30Ω | 25*58 | 20w | ≥100MΩ |
OKS-4UCT-2540 | 40±0.8 | 2400±10% | ≤30Ω | 30*50 | 20w | ≥100MΩ |
OKS-4UCT-2560 | 60±1.5 | 2300±10% | ≤35Ω | 30*35 | 20w | ≥100MΩ |
OKS-4UCT-2565 | 65±1.5 | 2300±10% | ≤35Ω | 25*31 | 20w | ≥100MΩ |
OKS-4UCT-3055 | 55±1.0 | 3100±10% | ≤35Ω | 30*45 | 35w | ≥100MΩ |
OKS-4UCT-3050 | 52±2.0 | 3100±10% | ≤35Ω | 38*40 | 35w | ≥100MΩ |
OKS-4UCT-3528* | 28 ±0.5 | 4000±10% | ≤20Ω | 45*79 | 50w | ≥100MΩ |
OKS-4AH-3540* | 40 ±1.0 | 4000±10% | ≤20Ω | 45*55 | 50w | ≥100MΩ |
OKS-4UCT-3825* | 25±0.8 | 4800±10% | ≤20Ω | 59*80 | 60w | ≥100MΩ |
OKS-4UCT-3828* | 28±0.5 | 4800±10% | ≤20Ω | 59*68 | 60w | ≥100MΩ |
OKS-4UCT-3833 | 33±0.5 | 4800±10% | ≤20Ω | 48*62 | 60w | ≥100MΩ |
OKS-4UCT-3835 | 35±0.5 | 4800±10% | ≤20Ω | 45*55 | 60w | ≥100MΩ |
OKS-4UCT-3840* | 40±0.5 | 4800±10% | ≤20Ω | 48*51 | 60w | ≥100MΩ |
OKS-4UCT-4520 | 22±0.5 | 7600±10% | ≤20Ω | 67*92 | 100w | ≥100MΩ |
OKS-4UCT-4525 | 25±0.5 | 7600±10% | ≤20Ω | 67*76 | 100w | ≥100MΩ |
OKS-4UCT-4528* | 28±0.5 | 7600±10% | ≤20Ω | 67*68 | 100w | ≥100MΩ |
OKS-4UCT-4540* | 40±0.5 | 7600±10% | ≤20Ω | 55*53 | 100w | ≥100MΩ |
OKS-4UCT-5028 | 28±0.5 | 9600±10% | ≤20Ω | 67*68 | 120w | ≥100MΩ |
OKS-4UCT-3868 | 67±2.0 | 4800±10% | ≤20Ω | 50*65 | 50w | ≥100MΩ |
OKS-4UCT-3880 | 79±1.5 | 4800±10% | ≤25Ω | 40*54 | 60w | ≥100MΩ |
OKS-4UCT-38100 | 100±1.5 | 4800±10% | ≤25Ω | 45*53 | 60w | ≥100MΩ |
OKS-4AS-38120 | 120±1.5 | 4800±10% | ≤25Ω | 40*58 | 60w | ≥100MΩ |
OKS-4UCT-35130 | 129±1.5 | 4200±10% | ≤25Ω | 36*54 | 50w | ≥100MΩ |
OKS4UCT-38160 | 160±1.5 | 4800±10% | ≤25Ω | 40*57 | 60w | ≥100MΩ |
OKS-4AS-35165 | 165±5.0 | 4100±10% | ≤60Ω | 42*61 | 40w | ≥100MΩ |
OKS-4AH-25200 | 200±2.0 | 2300±10% | ≤35Ω | 30*35 | 20w | ≥100MΩ |
OKS-8SE-3828/40 | 28/40±1.0 | 3800±10% | ≤30Ω | 64*62 | 60w | ≥100MΩ |
OKS-8UCT-2540/130 | 40/130±2.0 | 3100±10% | ≤30Ω | 25*58 | 20w | ≥100MΩ |
OKS-4UCT-3840/68 | 38/66±2.0 | 4800±10% | ≤20Ω | 50*65 | 50w | ≥100MΩ |
OKS-4UCT-3840/80/130 | 38/79/128±2.0 | 4200±10% | ≤25Ω | 40*54 | 60w | ≥100MΩ |
OKS-4UCT-3840/60/80 | 38/65/84±2.0 | 4800±10% | ≤25Ω | 40*54 | 60w | ≥100MΩ |
OKS-4UCT-3825/40/80 | 25/40/80±2.0 | 5000±10% | ≤30Ω | 58*77 | 30W | ≥100MΩ |
OKS-4UCT-3828/60/7084 | 28/60/7084±2.0 | 5000±10% | ≤35Ω | 59*81 | 30W | ≥100MΩ |
OKS-8UCT-5020/40/60 | 20/40/60±2.0 | 5200±10% | ≤25Ω | 78*94 | 120w | ≥100MΩ |
OKS-4UCT-3840/100/160 | 38/100/160±2.0 | 4800±10% | ≤25Ω | 40*57 | 60w | ≥100MΩ |
Screw hole size (diameter * pitch * depth)M10*1.0*10 | ||||||
