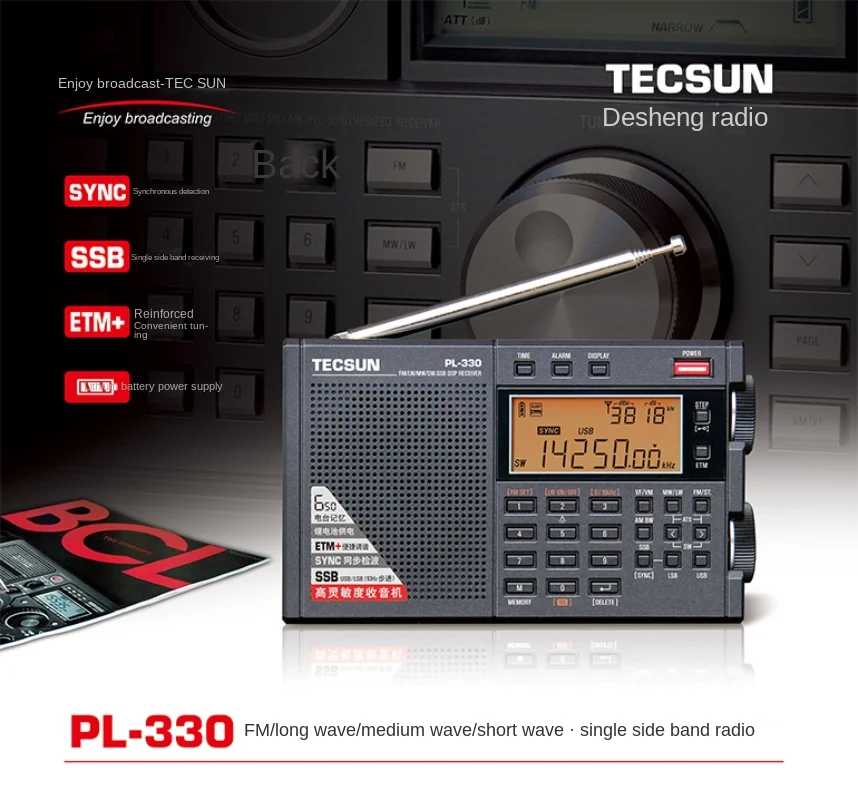

Tecsun PL-330 Radio Firmware 3306 FM /LW/SW/MW - SSB All-band Pl330 Portable |

Description

Tecsun PL-330 Radio Firmware 3306 FM /LW/SW/MW - SSB All-band Radio ,Tecsun Pl330 Portable Radio

Function Introduction:

- Friendly human-machine interface and easy operation

- Can receive FM stereo, medium wave, long wave, short wave, single sideband (SSB) communication signals

- Use modern DSP digital demodulation technology to improve listening sensitivity, selectivity, signal-to-noise ratio and anti-interference ability

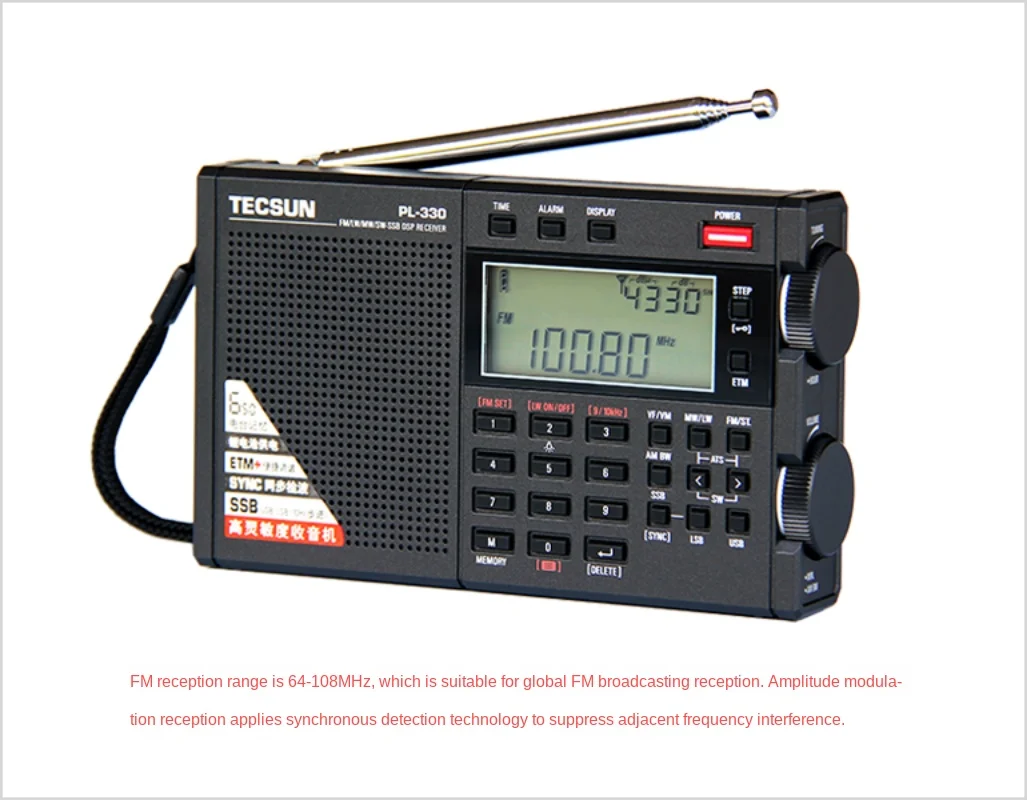

- FM reception range 64-108MHz, suitable for global FM broadcast reception

- Short wave single sideband (SSB) minimum step 10Hz, upper sideband (USB) and lower sideband (LSB) are received independently

- Apply synchronous detection technology to suppress adjacent channel interference

- Seven ways to select channels: convenient tuning (ETM), automatic search and browse radio frequency, automatic search and browse stored stations, manual search for station frequencies (VF), manual search for stored stations (VM), direct input of frequency numbers, direct input of Store station address number

- Easy Tuning (ETM) has a radio frequency schedule function, making tuning more convenient and faster

- It can store up to 650 radio frequencies manually, semi-automatically, and fully automatic (ATS), of which 100 for FM/long wave, 150 for medium wave, and 300 for short wave

- Multi-function display: It can display the working status of radio frequency, electric field intensity, signal-to-noise ratio, battery capacity, etc.

- Adopt high-quality and high-sensitivity speakers, beautiful sound, use headphones to listen to FM stereo broadcasting

- With broadcast timing automatic power-on function

- Very user-friendly power switch function: you can set the automatic shutdown after 1-120 minutes after booting, or cancel the automatic shutdown function

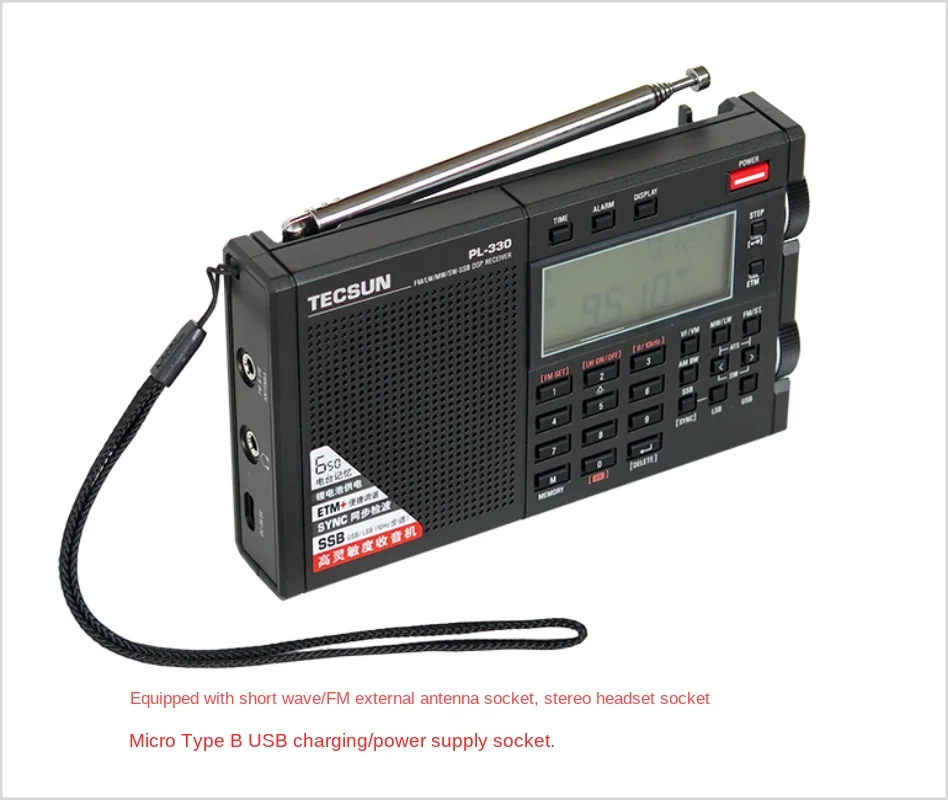

- With shortwave/FM external antenna jack

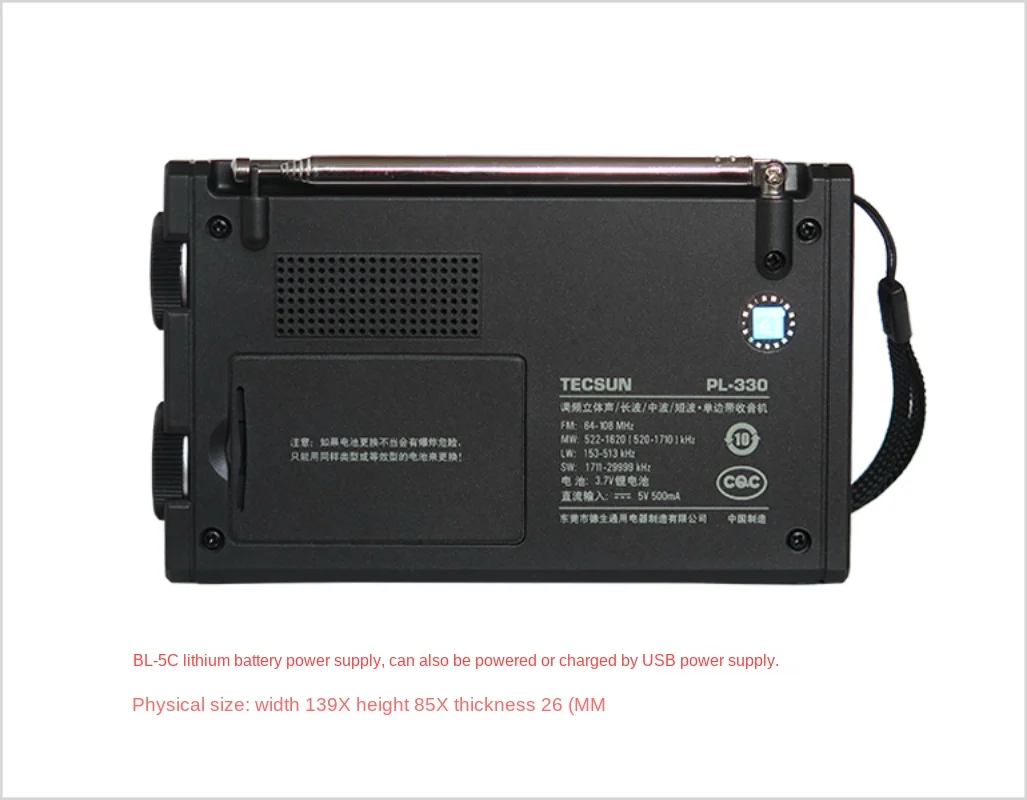

- Lithium battery power supply, USB power supply or charging can also be used

- Physical size: 139 x 85 x 26 mm (WxHxT)

Product Description:

Power Supply:USB 5V DCCertificationCCC

Specifications:

1.Frequency range

FM :( 87 - 108 MHz  ) : Russian:64-108MHz

Japan: 76-108MHz

EU,USA : 87.5-108MHz

Attention:The frequency step of FM is 100kHz,and the fine-tune step is 10kHz

LW: 153 - 513 kHz (9kHz step,fine-tune step 1kHz)

MW: 520 - 1710 kHz [10kHz step,1kHz fine-tuning step(for America)]

SW: 1711 - 29999 kHz (5kHz step,1kHz fine-tuning step)

Attention:When the above band is received in SSB mode,step 1kHz,fine-tune step 10Hz

2.Sensitivity

FM (S/N=30db):Less than 3 uV

MW(S/N=26dB):Less than 1mV/mLW (S/N=26db) :Less than 10mV /m                                    SW(S/N=26dB):Less than 10mV/m


3.Selectivity

FM:>60dB (±150KHz)

MW:>60dB (BW=3kHz,±9KHz)LM:>60dB (BW=3kHz,±9kHz)

S W:>60dB (BW=3kHz,±5kHz)

4.FM Stereo crosstalk:greater than35 dB

5.Output(Distortion 10%):200mW

Dimensions & Weight

Dimensions:139 x 85 x 26 mm

Weight: 210g Without battery installed

Packing List

1 x Radio

1 x BL-5C battery

1 x usb micro Type -b cable,

1 x Special bag

1 x Stereo Earphones
