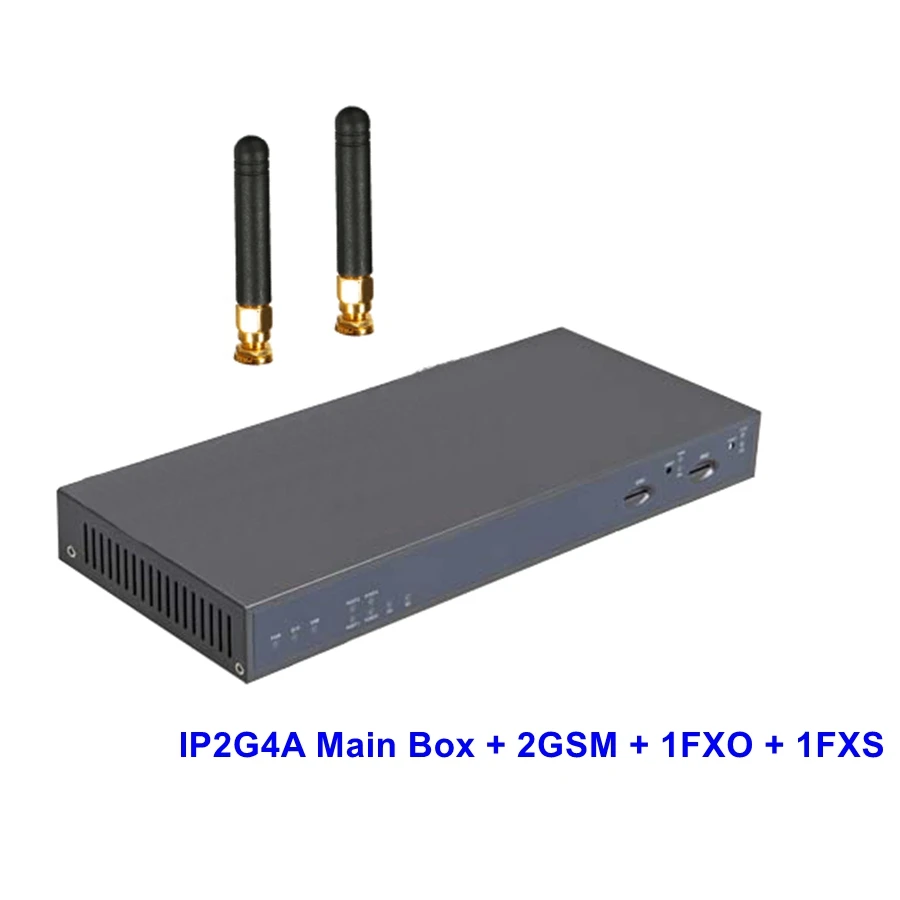

IP2G4A 2G1O1S Asterisk GSM IP PBX Ready Analog SIP IAX2 Server With modules for 2GSM&1FXO&1FXS Supports up to 2GSM 4FXO/FXS |

IP2G4A 2G1O1S Asterisk GSM IP PBX Ready Analog SIP IAX2 Server With modules for 2GSM&1FXO&1FXS Supports up to 2GSM 4FXO/FXS |

The default settings for this is 2 GSM + 1 FXO + 1FXS.

Other settings, please click:

2GSM + 1FXO + 3FXS     2GSM + 0FXO + 4FXS     2GSM + 4FXO + 0FXS    2GSM + 2FXO + 2FXS

2GSM + 3FXO + 1FXS     2GSM + 0FXO + 2FXS     2GSM + 2FXO + 0FXS    2GSM + 1FXO + 1FXS

2GSM + 0FXO + 0FXS     1GSM + 4FXO + 0FXS     1GSM + 0FXO + 4FXS    1GSM + 2FXO + 2FXS

1GSM + 3FXO + 1FXS     1GSM + 1FXO + 3FXS     1GSM + 2FXO + 0FXS    1GSM + 1FXO + 1FXS

About IP2G4A

        IP2G4A is a SIP-based IP voice switch with a small embeded OS and rich GUI(Graphical User Interface), providing a powerful networking and corporate communication function. With it, users can quickly deploy an internal communication system for enterprise, as well as confirgurate conveniently applications and value-added services on IP PBX via its GUI, to fit enterprice's own verious demand.


        Targeting for SOHO user and SMB market with an easy to use graphical interface, IP2G4A provides a cost-saving solution on their telecommunication data needs. With these devices, company with branch offices in different countries can be easily combined together to work like a virtual single office through internet, GSM and PSTN network.

(Please note: This link has an IP2G4A Main Box with 2 GSM Modules + 1 Dual ports FXS&FXO module ( effective 2 GSM channels + 1 FXS port + 1FXO port included), it supports up to 2 GSM channels + 4FXO or 4 FXS ports by using the compatible modules, if you need any other modules, please feel free to contact  us.)

Dual ports FXS Module  -------->  AX210S

http:/store/product/AX210S-Dual-Ports-FXS-module-Wok-with-ATCOM-Asterisk-card-and-IP-PBX-for-VoIP-products/926193_939893152.html

Dual ports FXO Module  -------->  AX210X

http:/store/product/AX210X-Dual-Ports-FXO-module-Wok-with-ATCOM-Asterisk-card-and-IP-PBX-for-VoIP-products/926193_939944675.html

Dual ports FXO+FXS Module  -------->  AX210XS

http:/store/product/AX210XS-one-FXO-channel-and-one-FXS-channel-module-Wok-with-ATCOM-Asterisk-card-and-IP/926193_940155251.html

GSM Module  -------->  G01

http:/store/product/G01-Single-Channel-GSM-Module-Wok-with-ATCOM-Asterisk-card-and-IP-PBX-for-VoIP-products/926193_940190059.html

Features

	Web-based Configuration
	100 Available SIP extension for SMB (Small and Medium Business     customer)
	20 concurrent
	Caller ID, Call Back, Call Waiting, Call Transfer (Blind Transfer &     Attend Transfer),     Call Pickup(Group Pickup & Directed Pickup), Call   Parking, Call Queues, Ring Group, Call     Recording, Call Routing
	Auto Provisioning
	Interactive Voice Response
	Call Detail Records
	Voice Mail
	Voicemail To Email
	Conference Room
	Password Protect for Conference Room
	Personal Web Portal
	Follow Me
	Music on Hold
	Skype for SIP
	BLF Support
	Blacklist Support
	Intercom / Paging
	VPN Client / Server
	DDNS
	Virtual LAN
	IP Restriction
	Storage Quota Privilege
	External Storage
	Authentication before Call Outbound
	Firewall
	Audio Codec:G711u/a,G.729,G722,GSM,Speex,G726,ADPCM
	Video Codec: H261,H263,H263P,H264

Specifications

Hardware

• CPU: 400MHz Blackfin 533 Chip
• Flash: 256 MB
• SDRAM: 128MB
• LEDs x 13
• Programmable Reset Button

Module configuration

• Slots for modules : 4
• GSM module: G01
• Dual port FXO: 210X
• Dual port FXS : 210S
• Dual port FXO/FXS: 210XS

Interface

• 2 X RJ45 ports
• 1 X Power port
• 4 X Analog ports
• 2 X SIM card interfaces

Electrical

• Power Input:DC 12V/2000 mA
