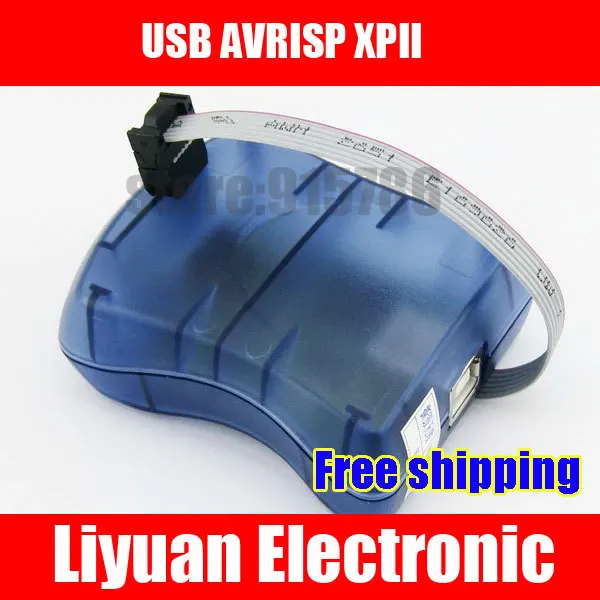

Factory firmware supports AVR Studio 5, can be updated to support AVR Studio 6 or AVR Studio 4!

Introduction

Based on AT AVRISP mkII design
This paragraph AVR ISP Downloader to use the same AT AVRISP mkII Downloader identical. Easy to use, stable and reliable.
To the "AT AVRISP MKII" separate, we named "USB AVRISP XPII".

Firmware using AT AVRISP mkII
In AVRStudio where identified as AVRISP mkII, so inside the AVR Studio is selected mkII. (In order to distinguish with mkII, product named "XPII")

Supported Software
- Direct support AVRStudio, WINAVR (GCC)
- Support IAR, ICCAVR, CVAVR other documents generated programming
(Click here for all kinds of software development processes)

Supported Devices
Download with AT AVRISP mkII device supported the same model, the latest version supports XMEGA.
- Supports all with ISP, PDI interface AVR (AVR with ISP interface mainstream, xmega with PDI Interface)

AVR Studio 5 supports the following device models (ISP):

 ATmega series
ATmega128 ATmega1280 ATmega1281 ATmega1284 ATmega1284P ATmega128A ATmega16 ATmega162 ATmega164A ATmega164P ATmega164PA ATmega165 ATmega165A ATmega165P ATmega168 ATmega168A ATmega168P ATmega168PA ATmega169 ATmega169A ATmega169P ATmega169PA ATmega16A ATmega16HVB ATmega16U2 ATmega16U4 ATmega2560 ATmega2561 ATmega32 ATmega324A ATmega324P ATmega324PA ATmega325 ATmega3250 ATmega3250A ATmega3250P ATmega325A ATmega325P ATmega328 ATmega328P ATmega329 ATmega3290 ATmega3290A ATmega3290P ATmega329A ATmega329P ATmega329PA ATmega32A ATmega32C1 ATmega32HVB ATmega32M1 ATmega32U2 ATmega32U4 ATmega32U6 ATmega48 ATmega48A ATmega48P ATmega48PA ATmega64 ATmega640 ATmega644 ATmega644A ATmega644P ATmega644PA ATmega645 ATmega6450 ATmega6450A ATmega6450P ATmega645A ATmega645P ATmega649 ATmega6490 ATmega6490A ATmega6490P ATmega649A ATmega649P ATmega64A ATmega64HVE ATmega8 ATmega8515 ATmega8535 ATmega88 ATmega88A ATmega88P ATmega88PA ATmega8A ATmega8HVD ATmega8U2
ATtiny series
ATtiny12 ATtiny13 ATtiny13A ATtiny15 ATtiny167 ATtiny2313 ATtiny2313A ATtiny24 ATtiny24A ATtiny25 ATtiny26 ATtiny261 ATtiny261A ATtiny4313 ATtiny43U ATtiny44 ATtiny44A ATtiny45 ATtiny461 ATtiny461A ATtiny48 ATtiny84 ATtiny85 ATtiny861 ATtiny861A ATtiny88
Other models
AT90CAN128 AT90CAN32 AT90CAN64 AT90PWM2 AT90PWM216 AT90PWM2B AT90PWM3 AT90PWM316 AT90PWM3B AT90USB1286 AT90USB1287 AT90USB162 AT90USB646 AT90USB647 AT90USB82
PDI ATxmega Series
ATxmega128A1 ATxmega128A1_revD ATxmega128A1U ATxmega128A3 ATxmega128D3 ATxmega16A4 ATxmega16D4 ATxmega192D3 ATxmega256A3 ATxmega256A3B ATxmega256D3 ATxmega32D4 ATxmega64A1 ATxmega64A3 ATxmega64D3
TPI ATtiny series
ATtiny10 ATtiny20 ATtiny4 ATtiny40 ATtiny5 ATtiny9

Features:
Programming Function: ATMEL Original AT AVRISP mkII Downloader same programming functions can be programmed FLASH ROM, EEPROM, fuse bits, bit encryption capabilities.
Speed Programming: Developing efficiency is greatly improved!
Using USB chip PDIUSBD12, address the use of low-speed serial bottleneck.

Downloader: programmer 12K program, with parity
AVRISP: 5.5S @ 926K (AVRISP set to high-speed 926K)
AVRISP: xpII 2.5S @ 1M (AVRISP xpII set to medium speed 1M)

Description:
(1) Program the greater the longer the programmed absolute time, but the shorter the relative time, which is the starting command, PC reaction velocity caused by such factors.
(2) These tests are based on AVR, if used for burning 51 models, the programming speed is low.
(3) Almost all AVR MCU factory clock source using an internal oscillator 1M, while downloader download speed must be below the AVR MCU clock source 1/4, that is, must be less than 250K. Initial access to the PC, according to the AVR actual clock source, set the appropriate writing speed. For a high-speed clock source AVR, such as ATMEGA168-20AU If the clock source is set to 20M, 4M can be programmed speed, 2 seconds finished 16K FLASH ROM! Fast programming experience!

Using the USB interface to connect PC
- This paragraph AVR ISP Downloader uses PDIUSBD12, high-speed USB communication.
Each device has a unique ID, a PC can be connected to more than one of the devices

Connection interface with the target board
- ATMEL standard interfaces specified ISP_6PIN
- ATMEL specified ISP_10PIN standard interface (using ISP6PIN turn ISP10PIN adapter cable)
- User-defined ISP interface (using colored loose head adapter cable)

Firmware upgradeable
This paragraph AVR ISP Downloader to use the same AT AVRISP mkII Downloader identical:
- Factory firmware directly support AVR Studio 5.
- Firmware updates can update the firmware to support AVR Studio 6 or AVR Studio 4.
- If your PC using AVR Studio 4, you may want to support AVR Studio 4. Reduced AVR Studio 4, you can still upgrade the firmware upgrade to support AVR Studio 5 or AVR Studio 6.
- In the future, ATMEL AVR will introduce more models, the new device will be added to the AVR Studio model list of supported devices. When you need to use in the future development of new models, upgrade AVR Studio, upgrade firmware, would have to be supported by new models.
- Upgrade to automatic upgrades, and the market manually upgrade products, manually upgrade the firmware only lost circumstances require.

USB powered
When a PC using a USB connection, the debugger itself powered by USB, but not external power supply (target board requires power supply)!

Circulation compared to some certain domestic AT AVRISP MKII:
- Support XMEGA. (Some of the domestic MKII still do not support XMEGA.)
- Complete accessories. (Some of the domestic MKII does not provide practical wire, spare wire and so on.)

At present, the factory firmware with AVR Studio 5 matches, but not with the latest version of AVR Studio 6 reasons:
- AVR Studio 5 launch in early 2011, the majority of users use this version; AVR Studio 6 launched in 2012, very few users use this version.
  (With AVR Studio 5 matches, considering that most users)
- AVR Studio 5, AVR Studio 6 supports all AVR, AVR32 part number.
  (Although, AVR Studio 6 support for ARM devices but requires additional hardware development tools used in conjunction with, and, mkII does not support ARM)
