Description

Specifications

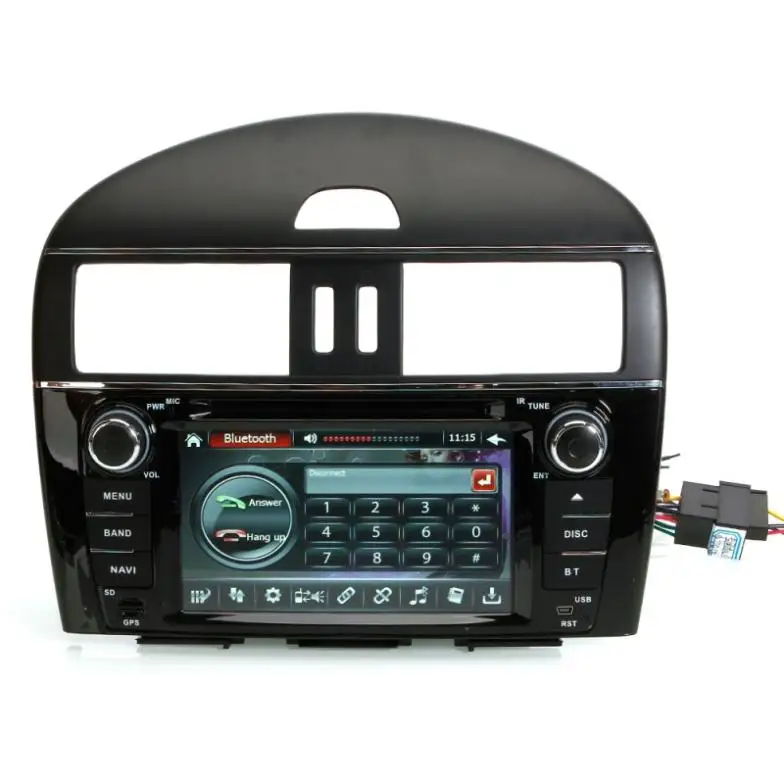

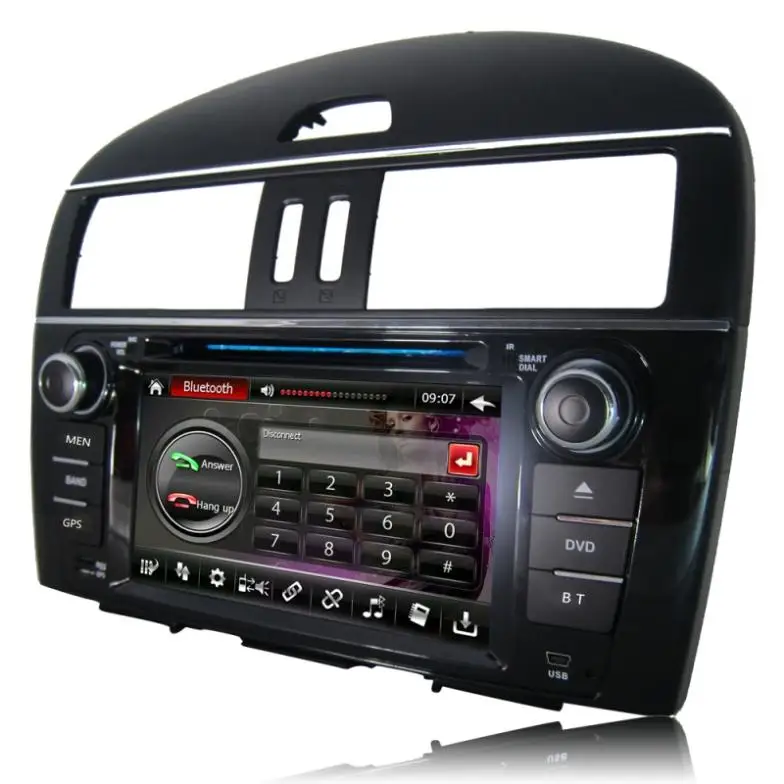

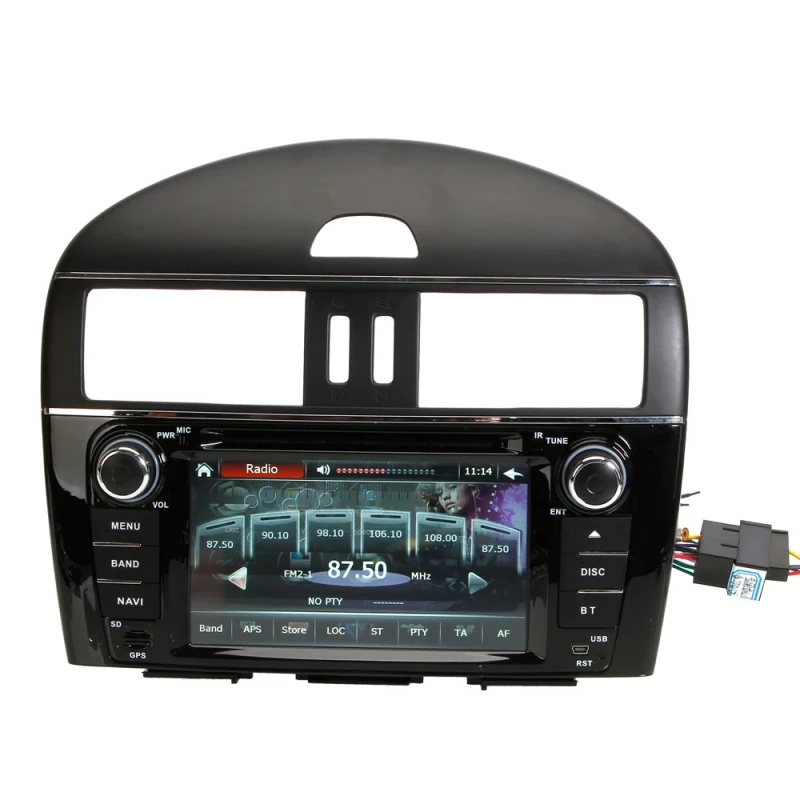

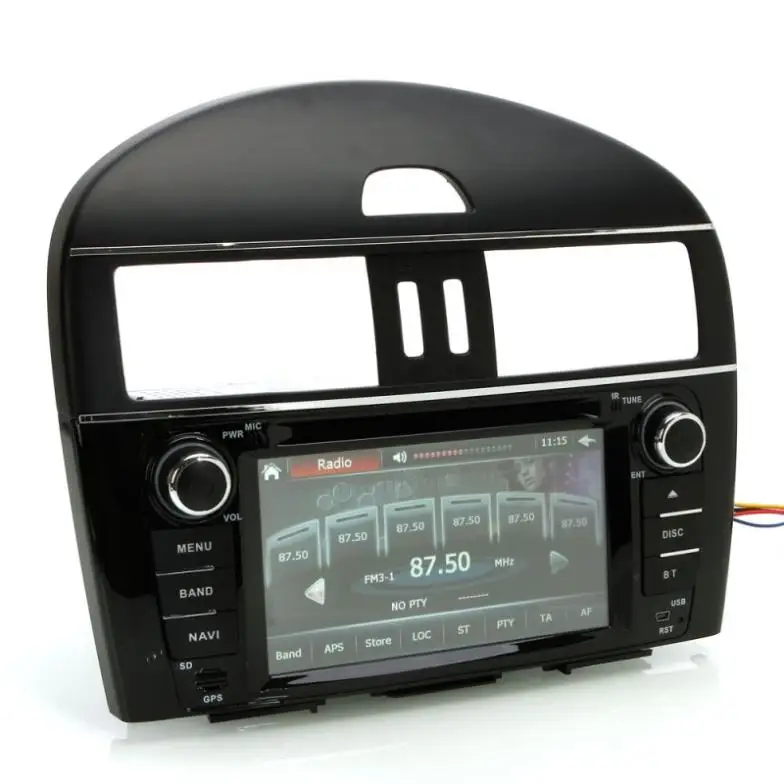

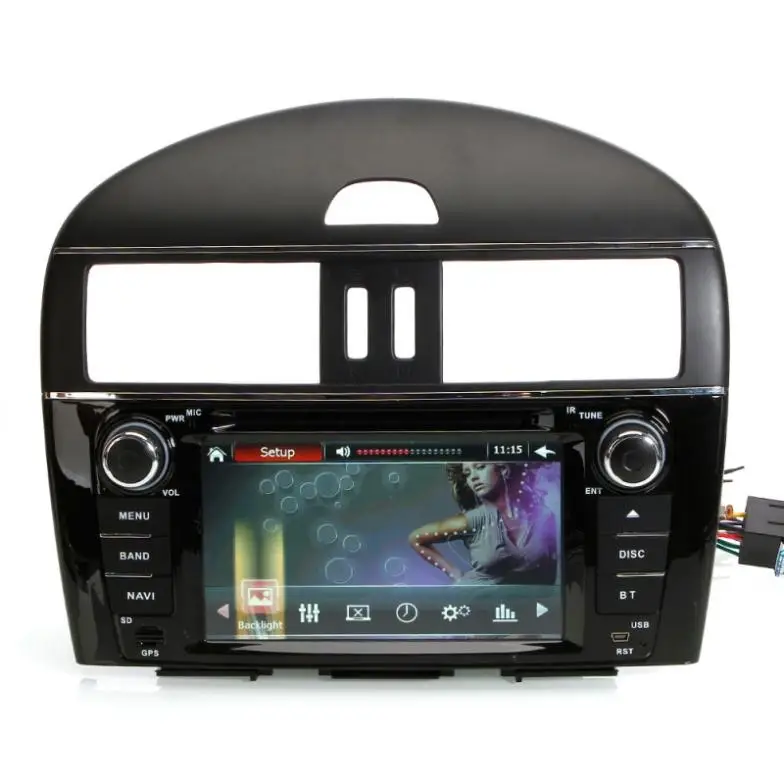

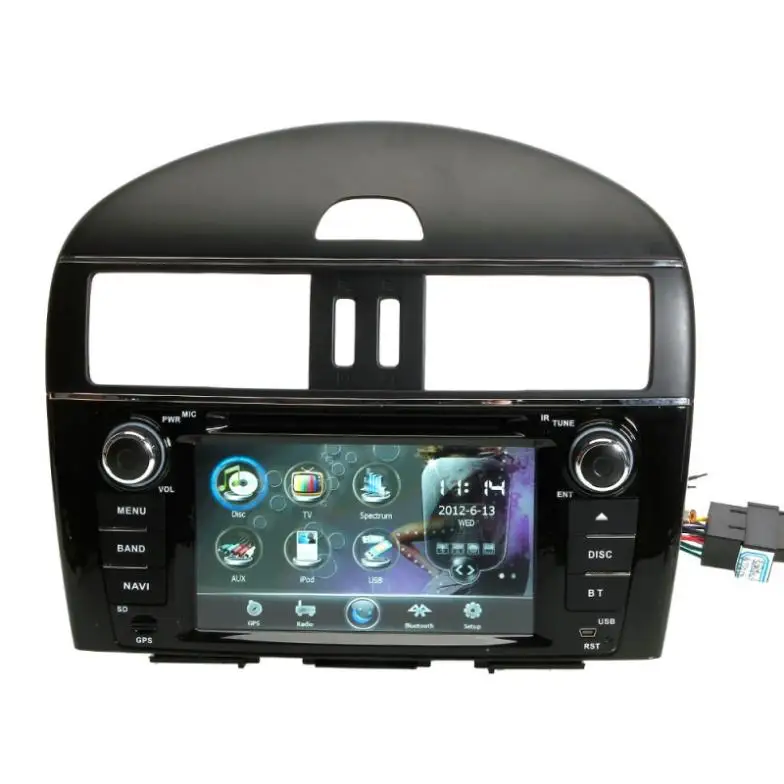

• Primary Function: 2 - DIN 7" touchscreen car dvd player with GPS and DVB - T
• Main System Information
• RISC Microprocessor: Sirf Atlas V
• CPU: ARM11
• Frequency: 500 MHz
• RAM Memory: 128 MB
• Internal Flash Memory: 128 MB
• External Memory (SD card support): up to 32GB
• Default Baud Rate: 9600
• COM Port: 2
• Operating System: Microsoft Windows CE 6.0 (compatible with all major GPS software packages)

GPS Information

• Receiver Module: GRF3i +
• Frequency: 1.575 GHZ
• C / A Code: 1.023 MHZ
• Signal Channels: 12
• Tracking Sensitivity: - 159dBm
• Position Sensitivity: 10m, 2D RMS; 5m, 2D RMS, WAAS enable
• Speed Rate: 0.1m / s
• Data Update Rate: 1HZ
• Hot Startup Time: Average 3s
• Recapture Time: Average 0.1s
• Warm Startup Time: Average 38s
• Cold Startup Time: Average 45s
• Maximum Position Altitude: 18000M
• Maximum Speed Rate: 515m / s
• Built - in Antenna Type: External power source porcelain antenna
• Built - in Antenna Voltage: 3.3V±5%
• Built - in Antenna Current: 15mA
• Built - in Antenna Gain: 27dB
• Interface: Touch Screen
• GUI Interface: YES - 3D type
• Maps: via SD card
• Voice: YES
• GPS Menu Languages: English, Turkey, Spanish, Russian, Simplified Chinese, Traditional Chinese, Deutsch, French, Italian, Portugal, (Actual voice and display language depends on the GPS software being used)
• Discs (Region Zero, Region 0, Region - free DVD Player): DVD, CD, VCD, Super VCD, CD - R / RW, CD + R / RW, DVD - R / RW

Media Formats Supported

• Video: DAT, AVI (DIVX3 codec), AVI (DIVX5 codec), DIVX5, MPEG 1 / 2, VOB, AVI (XVID codec), MP4 (XVID codec)
• Audio: AAC, MP3, WMA
• Picture: JPEG
• External Memory
• USB Drive: YES (max 16GB)
• SD Card: YES (max 16GB)
• Operation: Resistive Touch Screen (with finger or included stylus) or Remote Control
• Display Information
• Screen: 7" TFT LCD
• Resolution: 800 x 480
• Video Systems: PAL, NTSC, AUTO
• Audio Information
• Max Audio Output: 60W x 4
• Signal - To - Noise Ratio (SNR): >85dB
• User adjustable EQ: Bass, Treble, Balance, and Fade
• AM / FM Radio Tuner Information
• AM Frequency Range: 522~1710KHz (Worldwide)
• FM Tuning Range: 87.5~108.0MHz (Worldwide)
• RDS System: YES
• Bluetooth Information
• Pair with mobile phone - then use touchscreen interface
• Dial, Answer, Disconnect
• Call History
• Volume Control
• Touchscreen Keypad
• Steering Wheel Control Information
• KEY1 5V
• KEY2 5V
• Ground
• Media Inputs
• GPS card slot
• SD / MMC card slot
• DVD / CD disc slot
• GPS Antenna port (unit rear)
• Mini USB input (unit rear )
• Controls When Screen Recessed
• EQ / AF
• Reset
• Loud / TA
• Main Menu
• Volume Mute (Short Press)
• Power ON / OFF
• Mode Button
• Remote Control Sensor
• LCD Display
• GPS Navigation
• Eject
• Microphone
• Detach Panel
• Primary AV Cables / Wires
• IPOD input
• USB input
• GPS antenna input
• Radio antenna input
• RCA Audio OUT x2 (front L and R)
• RCA Audio OUT x2 (rear L and R)
• Aux - L IN
• Aux - R IN
• Subwoofer
• Video IN
• Video OUT x2
• Camera IN
• Left Front Speaker x2
• Right Front Speaker x2
• Left Rear Speaker x2
• Right Rear Speaker x2
• Dimensions W: 189mm H: 116 mm D: 170 mm
• OSD Languages: English, Turkey, Spanish, Russian, Simplified Chinese, Traditional Chinese, Deutsch, French, Italian, Portugal
• Warranty: 1 Year

Package Includes

• 1 x Car DVD Player
• 1 x USB Cable
• 1 x GPS Antenna
• 1 x Remote Control
• 1 x Iopd Cable
• 2 x AV Cables
• 1 x Users Manual
• 1 x Stylus
