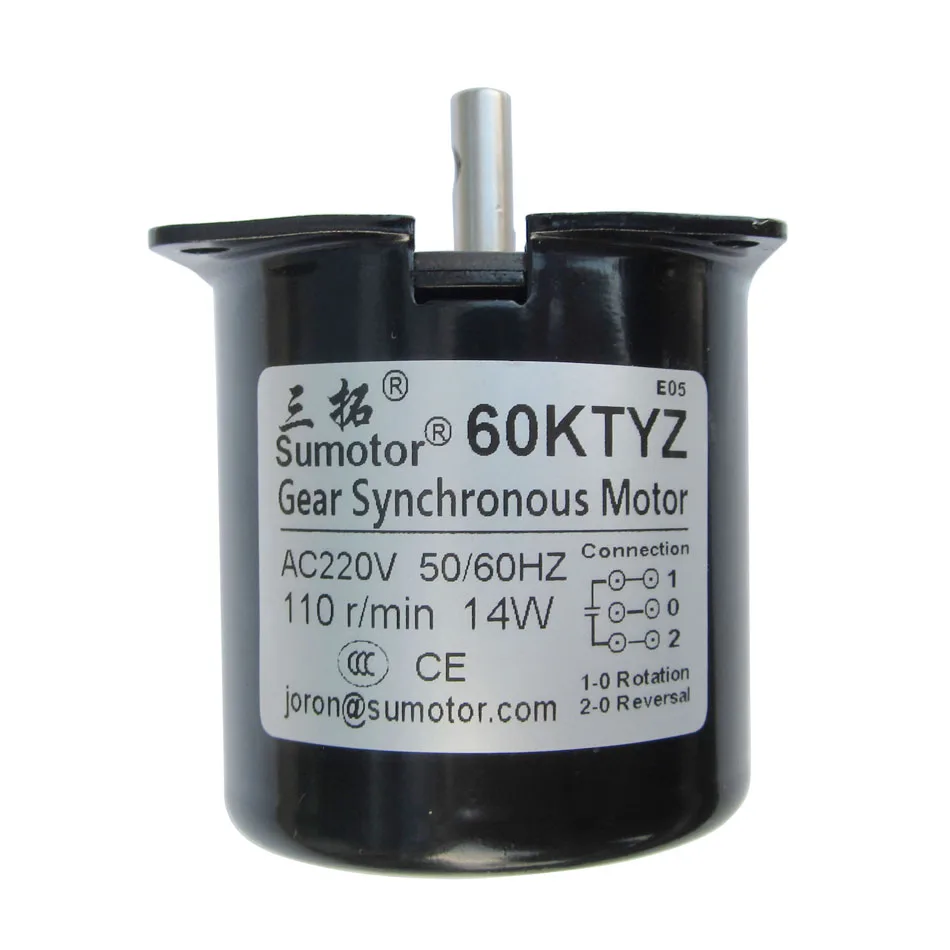

60KTYZ 110rpm  Input rated power 14W 220 - 240V 50HZ 60HZ AC synchronous gear motor, CW/CCW, Reversible, long lifespan high quality, welcome wholesale/retail

 for AD billboard. Automatic instrument and meter, Electric model, Electric advertisement, Mahjong table, Banknote counter, Bill-counting machines, Monitor platform, AD Light,

 Dimension Drawing

This motor with small power consumption, large torque, low noise, small size, light weight, easy to use features.

Bracket for this motor

You may need:

How to select a motor.

You should confirm the Voltage, Torque, Structure, Work rule.

Voltage: DC or AC, Voltage value.

Structure: Right Angle Output Shaft, Straight Output Shaft, Go and Back (reciprocating motor),  Line Working (linear actuator).

Work Rule: How long does it work in a period?

Torque: Constantly Working Torque should not exceed 75% of the motor’s Rated Torque. Instantly Working Torque should not exceed the motor’s Rated Torque.

              When the motor loads with rated torque, the current should not exceed motor’s rated current. You can install an overcurrent protection device if necessary.

Select power supply:

Before operate, check the power supply Voltage if is correct.

For DC motor,  in consideration of starting current is much larger than rated current,  power supply’s Max. Current need at least 67% higher than motor’s Rated Current.

And you should consider Current Flow-backwards when motor stop.

Why does the motor not run?

1). If your motor is an extreme low-speed motor, its rotation should be observed carefully.

2).   Does the connection is correct, or other electric parts are fine?

3). All products from our store were tested before shipping, and with the best package. If it still has a problem, please contact us.

Install and Operate notes:

Don’t store or operate in high temperature or damp environment, and avoid gas environment.

The stress on shaft axial direction and radial direction should not exceed its ability.

When install gears/sprockets/pulleys on the output shaft, don’t unusual strike.

When fix motor, screws length should not be too long or will break the parts inside the motor.

About noise:

DC high-speed motor will produce a little noise, if very care about noise, please kindly contact us.

All Dimension Drawing default Measurement Unit is "mm".
