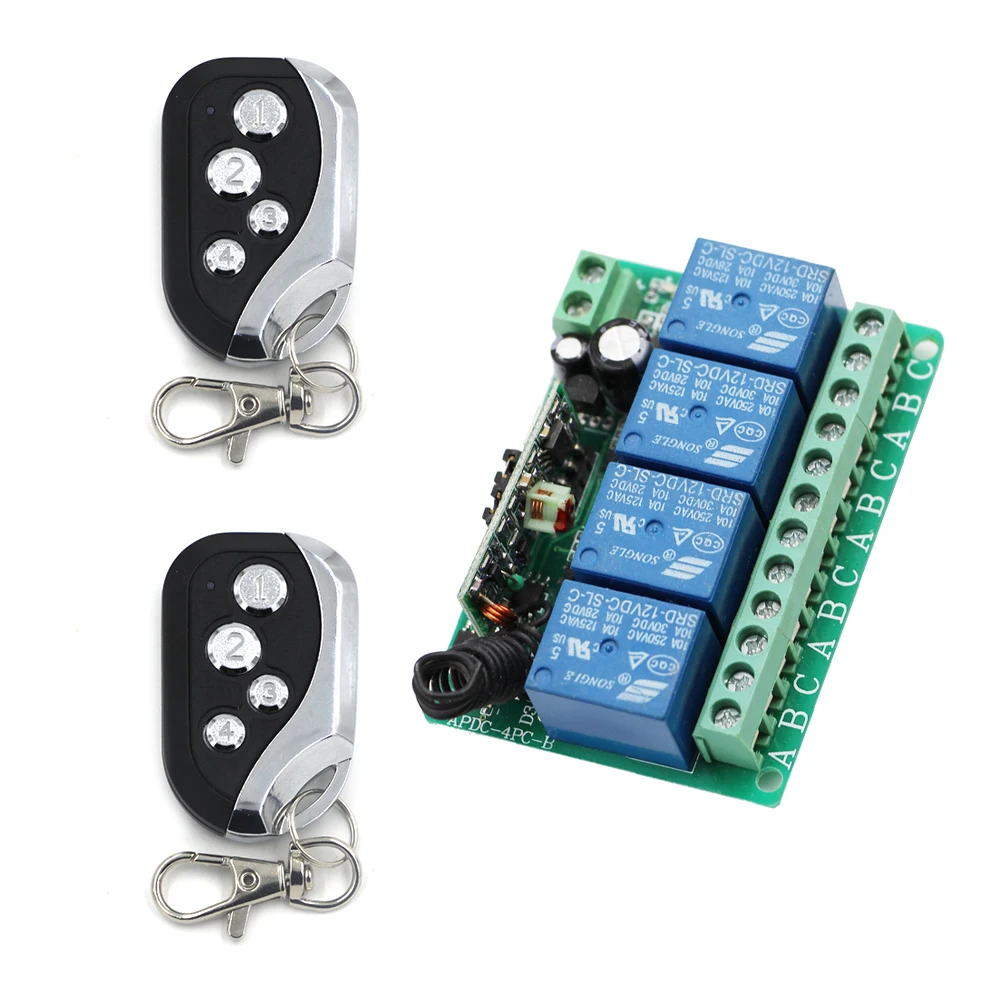

Новейший переключатель дистанционного управления 12 В постоянного тока 4 канала
1 397,97 руб.

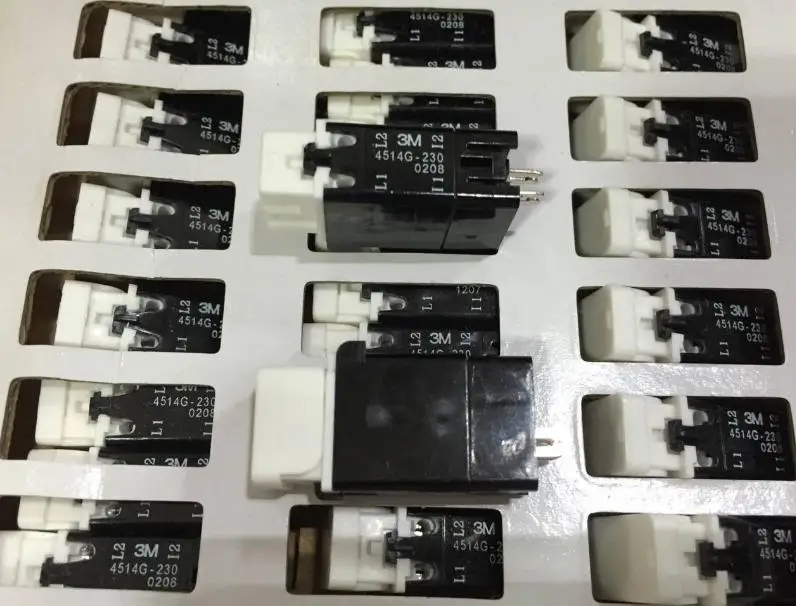

2 шт./лот 3M 230В 4514G-230 молниеразрядник модуль молниезащиты C90810-98551230V может быть
TY 1662 shortest design latching metal push button switch with LED light flat round head blue housing waterproof | Обустройство дома
US $50.22 / lot
FLL-D22 2-позиционный автоматический переключатель управления сбросом
527,44 руб.
1000pcs/lot 3*6 large side buttons Jack switch 3*6*3.5MM touch button micro SMD 3 * 6 3.5 MM | Обустройство дома
1 366,22 - 1 688,15 руб. / lot
QIACHIP 10A 220V Control Panel Light Switch Photo Sensor Operated Auto Photocell Street Z3 |
Характеристики
2015 THC 15A Digital LCD Weekly Programmable Electronic Timer Time Switch AC 220V Relay 04 #20082 THC15A | Обустройство дома
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-18-2026 | 0.83 руб. | 0.4 руб. | 0 руб. |
| Feb-18-2026 | 0.61 руб. | 0.0 руб. | 0 руб. |
| Jan-18-2026 | 0.71 руб. | 0.93 руб. | 0 руб. |
| Dec-18-2025 | 0.17 руб. | 0.84 руб. | 0 руб. |
| Nov-18-2025 | 0.26 руб. | 0.61 руб. | 0 руб. |
| Oct-18-2025 | 0.69 руб. | 0.24 руб. | 0 руб. |
| Sep-18-2025 | 0.42 руб. | 0.86 руб. | 0 руб. |
| Aug-18-2025 | 0.12 руб. | 0.37 руб. | 0 руб. |
| Jul-18-2025 | 0.10 руб. | 0.9 руб. | 0 руб. |
Описание товара
THC15A Digital LCD Weekly Programmable Timer AC 220V Time Relay Switch
other voltage can be choose, if you want o buy other voltage, please remark the voltage
Features:
- Brand new and high quality.
- Voltage rating: AC 220V 50/60HZ.
- Voltage limit: AC 180V-250V.
- Hysteresis: 2 sec/day (25 Centigrade).
- On/off operation: 17on & 17off.
- Power consumption:7.5VA (MAX).
- Display: LCD.
- Service life: Mechanically 107.
- Electrically 105.
- Minimum interval: 1 minute.
- Count down: 1 sec-99 min 56 sec.
- Pulse: 1 sec-59 min 59 sec.
- Load capacity: resistive load: 16A/250V AC.
- Lagging load: 10A/250V AC.
- Lamp Load: 2000W.
- Switching Contact: 1 changeover switch.
- Ambient termperature: -10 ~~ +40 Centigrade.
- Ambient humidity : 35-85%RH.

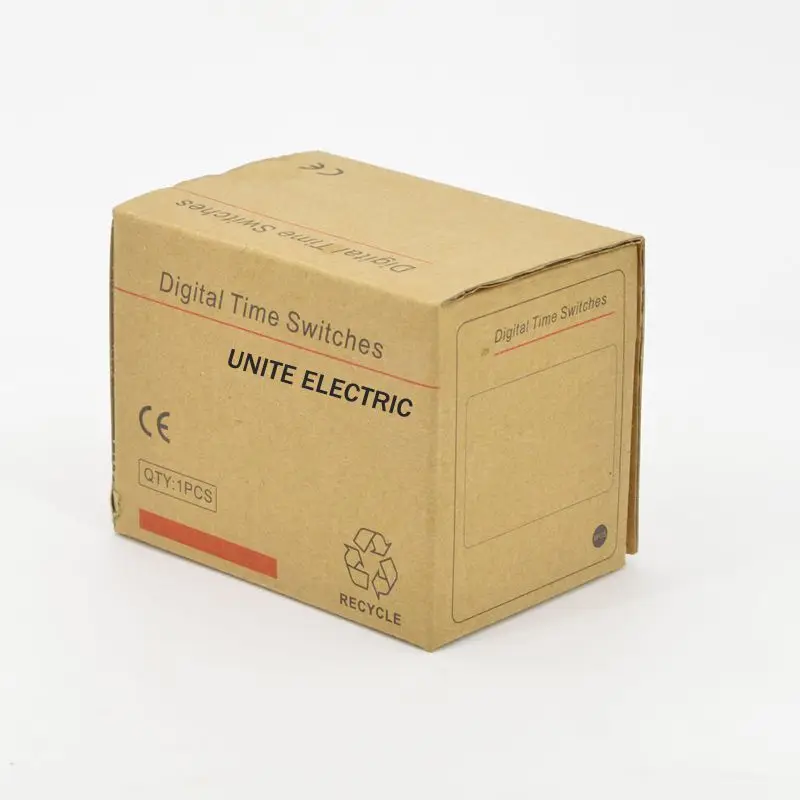

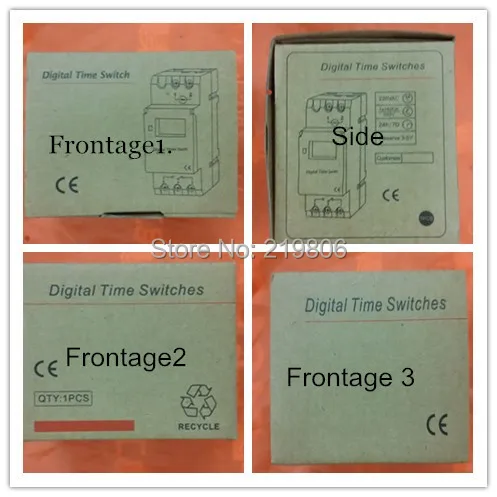

Package Included:
- 1 x Digital Programmable Timer
- 1 x User Manual
Retail Box.
Technical parameters |
Model |
THC15A |
Full Time Range |
1Min-168Hours |
Rated Voltage |
220±10% VAC 50/60HZ |
Contact Capacity |
16A 220VAC |
| Contact Form | 1Z |
Display |
LCD |
Installation |
DIN Rail |
Electrical Life |
107 times |
Mechanical Life |
107 times |
Operate Temperature |
-10~+40°C |
Programmable |
17times/week or day |
minimum interval |
1 minute |
Operating Instructions:
1.Please connect to the rated power supply and press the "reset" button when starting use it.
2.Programmable setting:
| Steps | Key-press |
Programming content |
1 |
press"P" |
Display "on" and "1" setting the first group ON time |
2 |
press"D+" |
Setting the ON time one day or several days of a week |
3 |
press"H+/M+" |
Setting the hour and min of ON time |
4 |
press"P" |
Display "off" and "1" setting the first group OFF time |
5 |
press"P" |
Setting the OFF time one day or several days of a week |
6 |
press"H+/M+" |
Setting the hour and min of OFF time |
7 |
repeat the process of "A" to "F" |
Setting the second to eighth group ON and OFF time |
8 |
press“ |
Complete set |
”4.Full time clock setting (1)press the "
" and "D+" at same time to set the week.
(2)press the "" and "H+" at same time to set the hours.
(3)press the "" and "M+" at same time to set the mins.
(4)press the "MANUAL" will display "AUTO ON" or "AUTO OFF"
(5)press the "MANUAL" can change the status,"ON" is normally open,"OFF" is normally off
