Wifi IP Camera Wireless Outdoor Waterproof Bullet Wi-Fi 802.11b/g/n 150Mbps ONVIF HI3518 XMEYE 720P 1MP IR Cut Filter | Безопасность и

Overview :

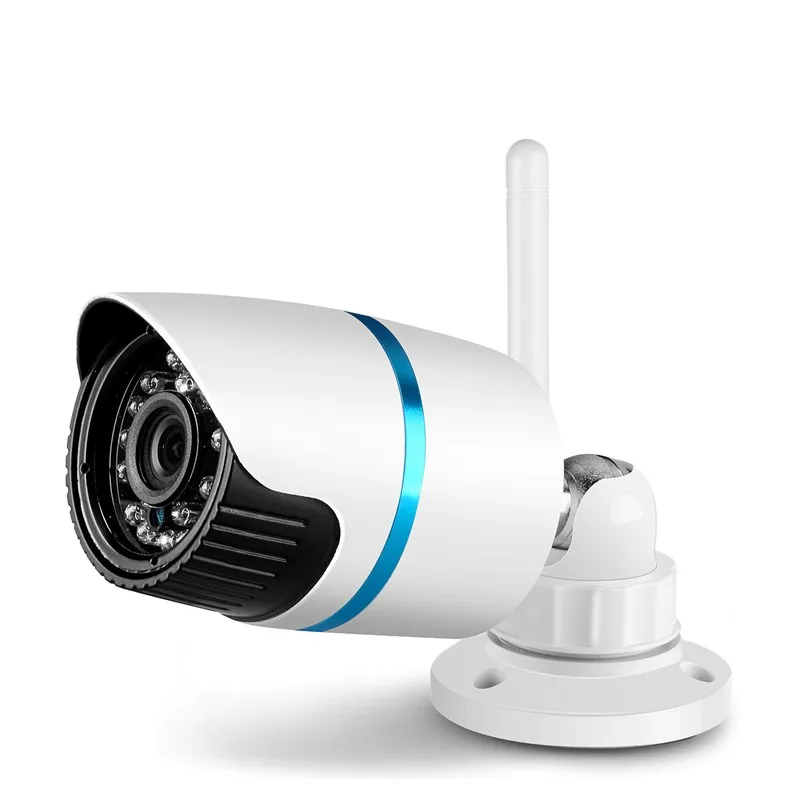

Megapixel HD IR Bullet Outdoor WIFI Wireless IP Camera

Dual H.264/MJPEG/JPEG&dual-stream Enconding

Max 25fps 720P 1280*720 ( Main Stream ) ;Sub Stream : 704*576

IR-CUT filter Built In

24 LED, IR Distance 20 Meters.

Wireless Protocols : 802.11b/g, 150Mbps, 50-100m

^{Specification :}

Package contents:

1 * Camera

1 * CD

Dear customers,

Power supply not included,click below picture to get :

FAQ :

Q:What’s the default ip address of the camera ?

F: Wired Mode 192.168.1.10 Username : admin  Password : null ( empty ) !

   Wifi Mode 192.168.1.12 Username : admin  Password : null ( empty ) !

Q: Does the camera supports Motion Detect,FTP,Email alarm, RTSP and so on ?

F: Yes ! All the IP Cameras we are selling supports these functions .

1) Please Setup the motion detection in the CMS software .

2) We suggest the Sever-U and FileZilla FTP Server to upload the video or image.

3) For the Email alarm,please use Email server which supports SMTP ( Hotmail ,Yahoo not support SMTP ,it not supports Gmail temperately since the server problem ) .

4) ,RTSP URL for VLC media Player :

rtsp://$(IP):$(PORT)/user=$(USER)&password=$(PWD)&channel=$(Channel)&stream=$(Stream).sdp?real_stream

Example : rtsp://10.6.10.25:554/user=admin&password=&channel=1&stream=0.sdp?real_stream

F: What’re the ports information of the cameras ?

Q : ONVIF 2.0 Port 8899 ;RTSP Port 554 ;HTTP Port 80;Media Port 34567

F:Does the camera support IE ,Chrome ,Firefox and so on ?

Q: Since the plug-in problem ,for website interface IP address URL,ONLY IE supports Multi Language . Chrome,Safari just support Chinese .

For cloud server XMEYE.NET ,it supports multi language

Q:When I finish the steps to add the camera to the CMS list,why it notify “ Can’t find the Device “  even I can see the default ip address 192.168.1.10 in the menu .

F: It is the IP Address conflict ,the default ip address is not in the same network segment as your router.

Please click “Edit Device “ to change the camera’s ip address to make them in the same network segment !

For example ,if your router’s ip address is 192.168.0.1 ,then you need to change the camera’s ip address to 192.168.0.XX .

Product pictures:

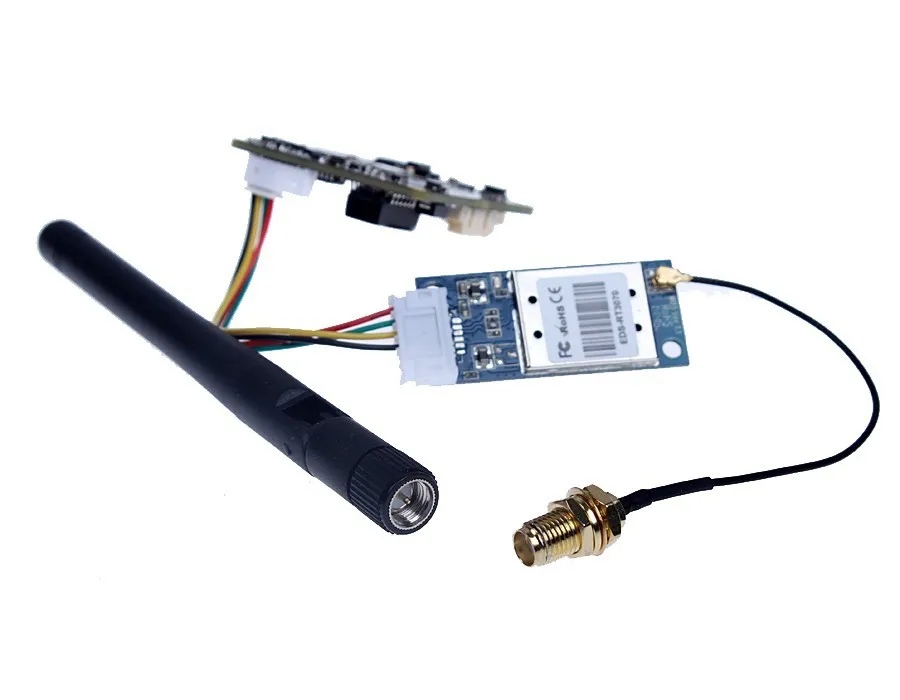

WIFI Module and Antenna INFO ( Built INSIDE the camera )

Importance Notice :

To make the WIFI work,you need to connect the NETWORK RJ45 cable first to ENABLE the SSID and Enter the WI-FI Password .

Below is the STEPS for reference ( MUST operate in CMS Software ):

Operation Overview:

1. IE Cloud Security-Video Management System make it easy to monitor what you care no matter where you are!

2. CMS for local net

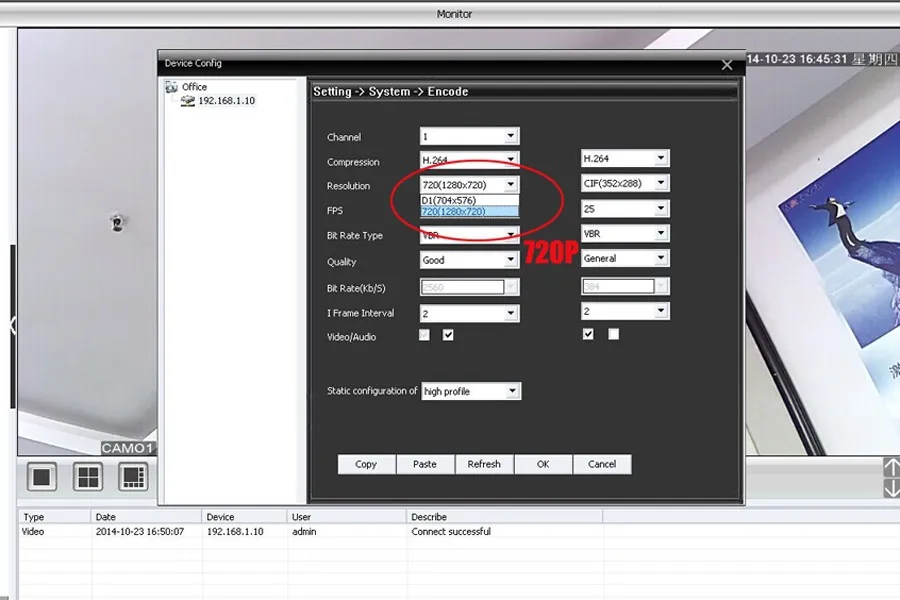

The Usage Of CMS ( Software included in the CD ,or can download online ) :

3. Multi-languages in CMS for your choices

4. Monitor on your mobile phones

5. How to find out the Serial ID which is unique and necessary for online web or mobile phone viewing

A.Right-click the mouse in the CMS menu ,then enter the " Device Config "

B.Click the "info" button :

C. Enter the menu of " Version " ,you can see the Serial ID
