10pcs/lot FCC certified long range 4Km 915MHz | 868MHz sx1276 Lora module LoRa1276 Мобильные телефоны и аксессуары

10pcs/lot long range 4~5Km 915MHz | 868MHz sx1276 Lora module LoRa1276

• 10pcs 100mW 915MHz sx1276 chip Wireless RF Module LoRa1276

• 10pcs spring antennas

(If you need  868MHz, just leave message)

LoRa1276 adopts Semtech RF transceiver chip SX1276, which adopts LoRa TM Spread Spectrum modulation frequency hopping technique. The features of long distance and high sensitivity (-139 dBm) make this module perform better than FSK and GFSK module. Multi-signal won't affect each other even in crowd frequency environment; it comes with strong anti-interference performance.

FCC ID for Lora1276-915MHz: 2AD66-LORAV2

Features:

• Frequency Range:868/915MHz(Customizable 137-1020 MHZ)

• Sensitivity up to -139 dBm

• Maximum output power: 20dBm

• 10.3mA @receiver mode

• Sleep current <200nA

• Data transfer rate:@FSK,1.2-300kbps

• @Lora TM,0.018-37.5kbps

• Lora TM , FSK, GFSK and OOK Modulation mode

• 1.8-3.7 V Power supply

• 127 dB Dynamic Range RSSI

• Packet engine up to 256 bytes with CRC

• Operating Temperature Range: -40 ~ + 85 °C

• Built-in temperature sensor and low battery indicator

• Excellent blocking immunity

Application:

• Remote control

• Remote meter reading

• Home security alarm and remote keyless entry

• industrial control

• home automation remote sensing

• individual data records

• toys control

• sensor network

• tire pressure monitoring

• health monitoring

• wireless PC peripherals

• tag reading and writing

Specifications:

Schematic:

Pin configuration:

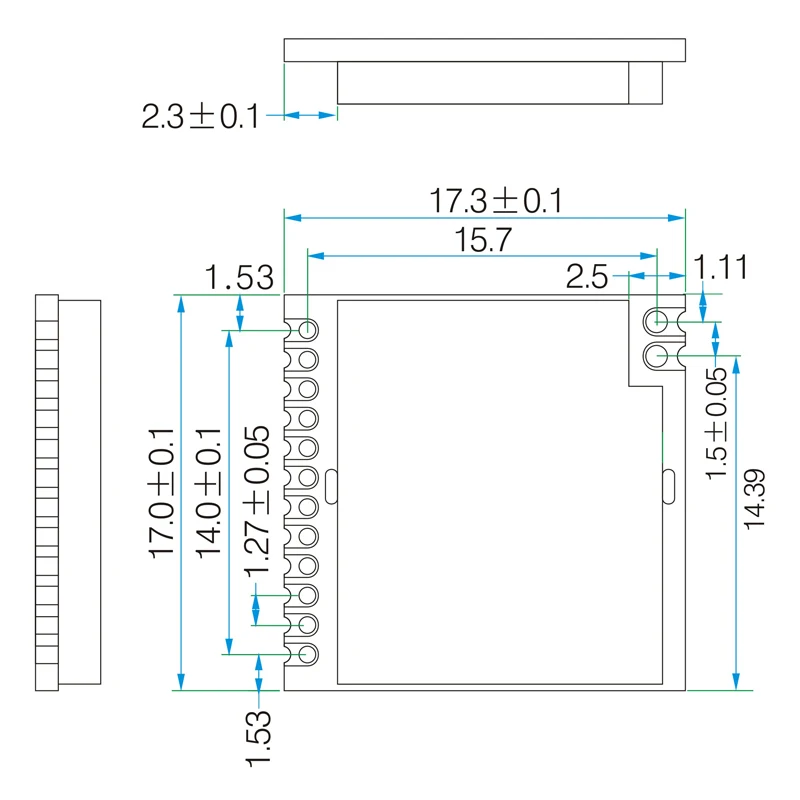

Machanism dimensions:
