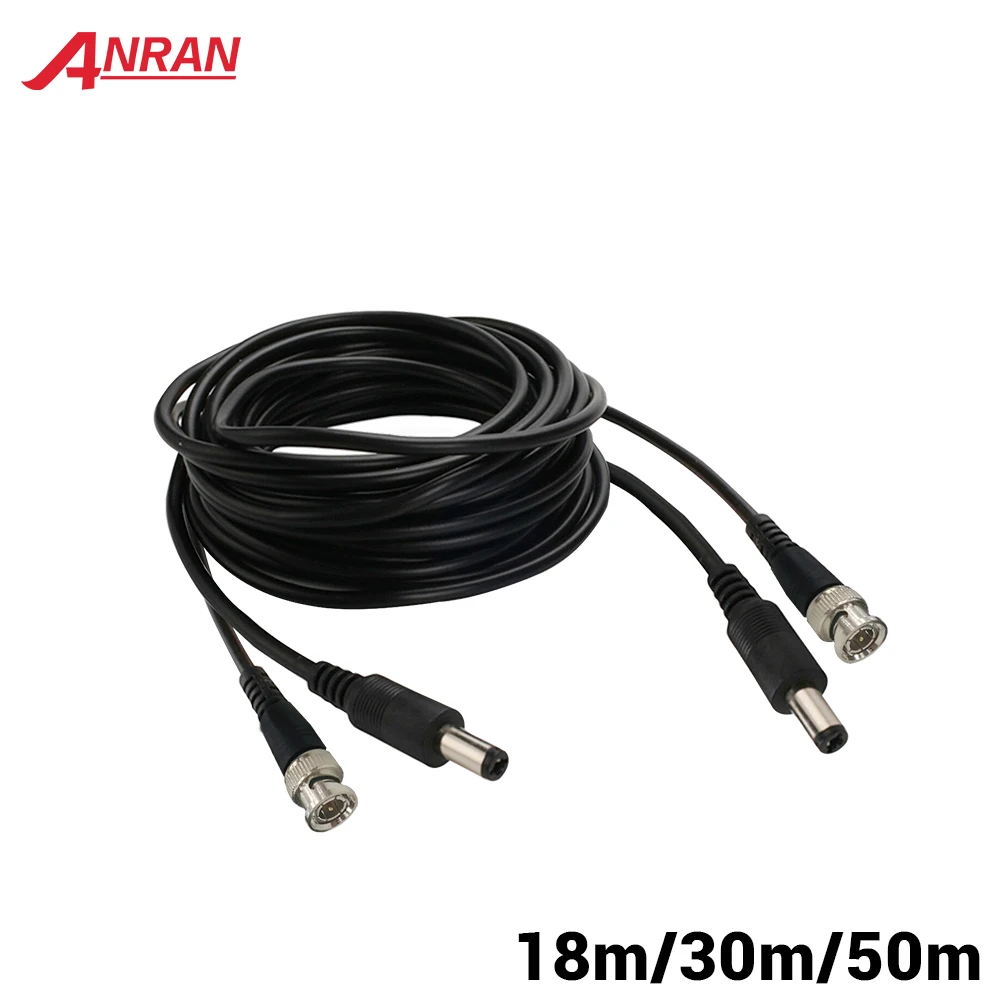

ANRAN 18 м/30 м/50 м источник питания и BNC удлинитель лучшее качество кабель 2 в 1 камера
680,95 - 1 193,37 руб.

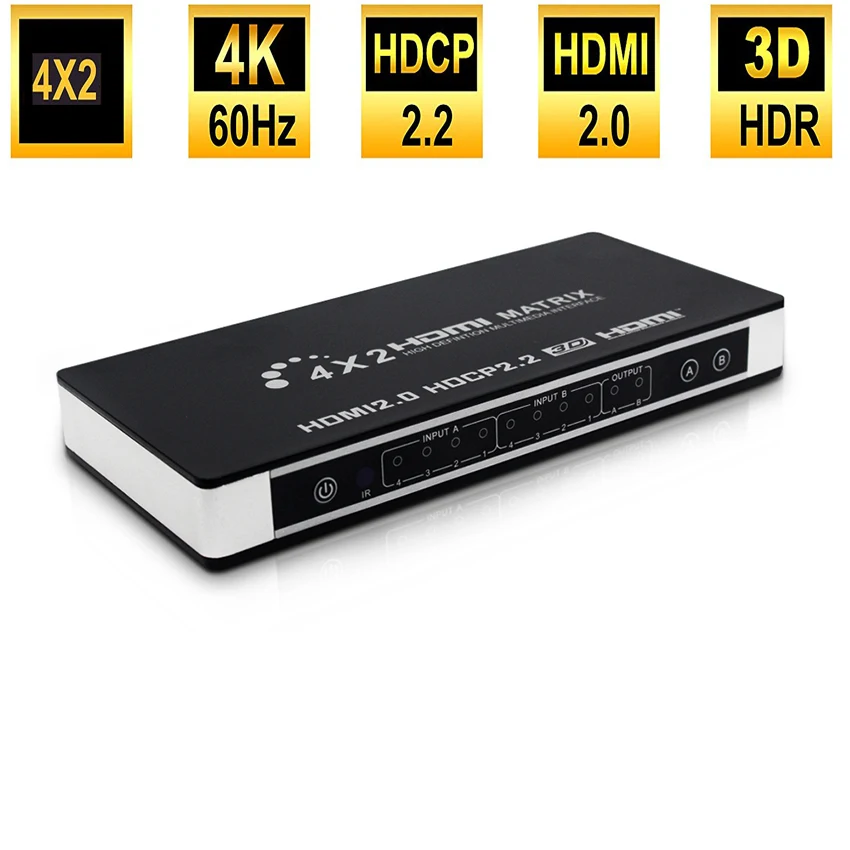

HDMI 2 0 матрица 4X2 4K 60Hz HDCP EDID управление двойной аудио выход волокна L/R коммутатор
3 483,70 руб.

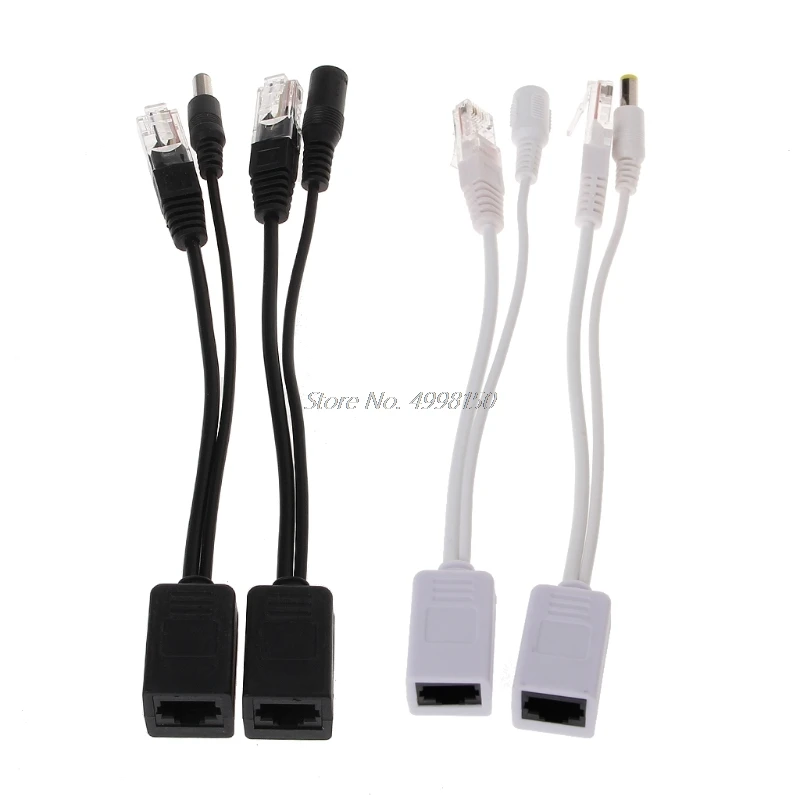

RJ45 инжектор POE сплиттер Кабель-адаптер Комплект пассивного питания по Ethernet 12-48 В
144,24 руб.

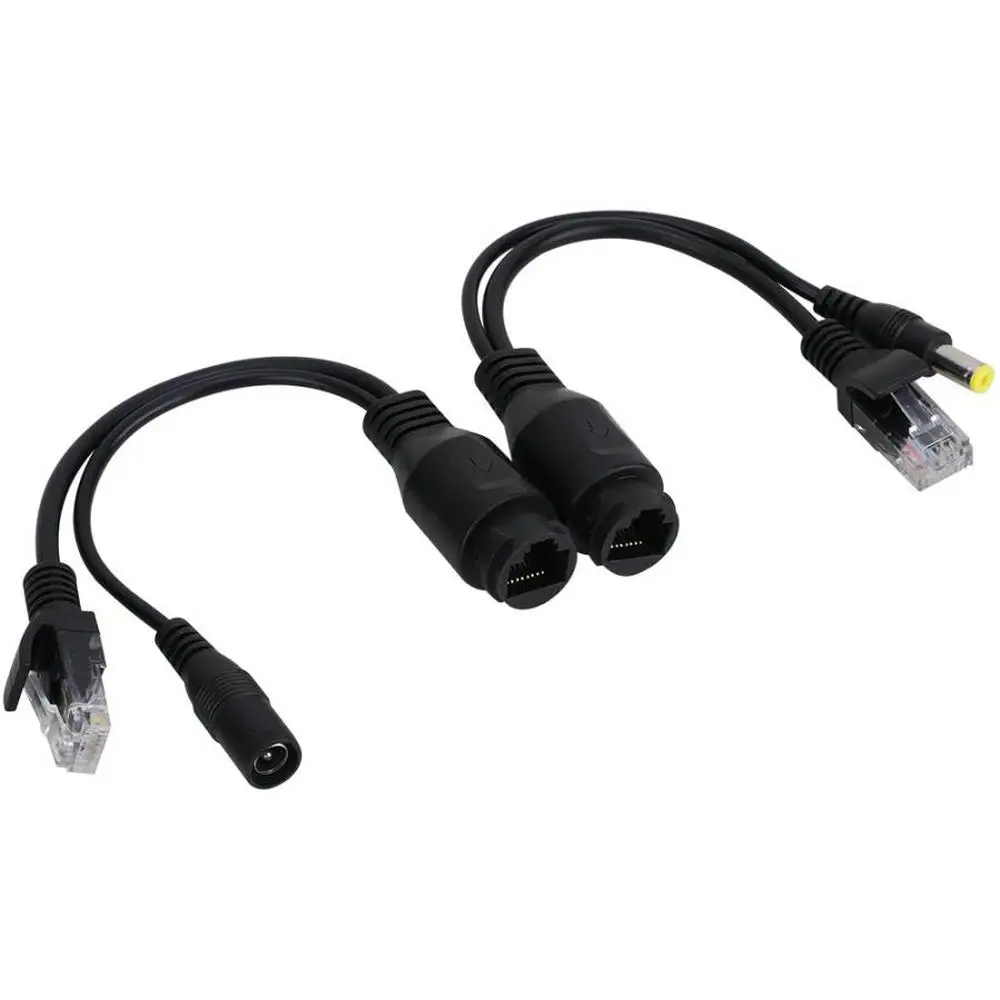

Водонепроницаемый POE-разветвитель адаптер питания через Ethernet для IP-камеры
606,55 руб.

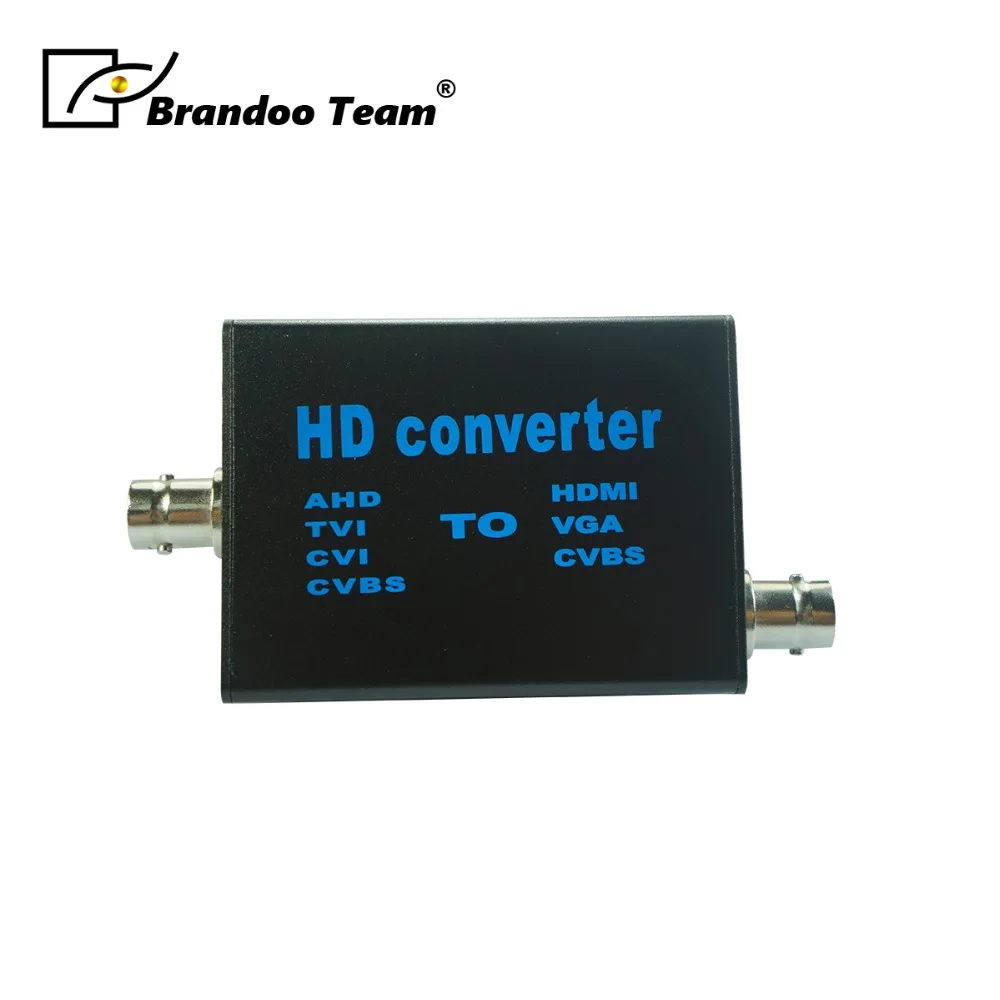

AHD/TVI/CVI/CVBS вход конвертировать в CVBS/VGA/HDMI видео выход HD 1080P BNC конвертер. |

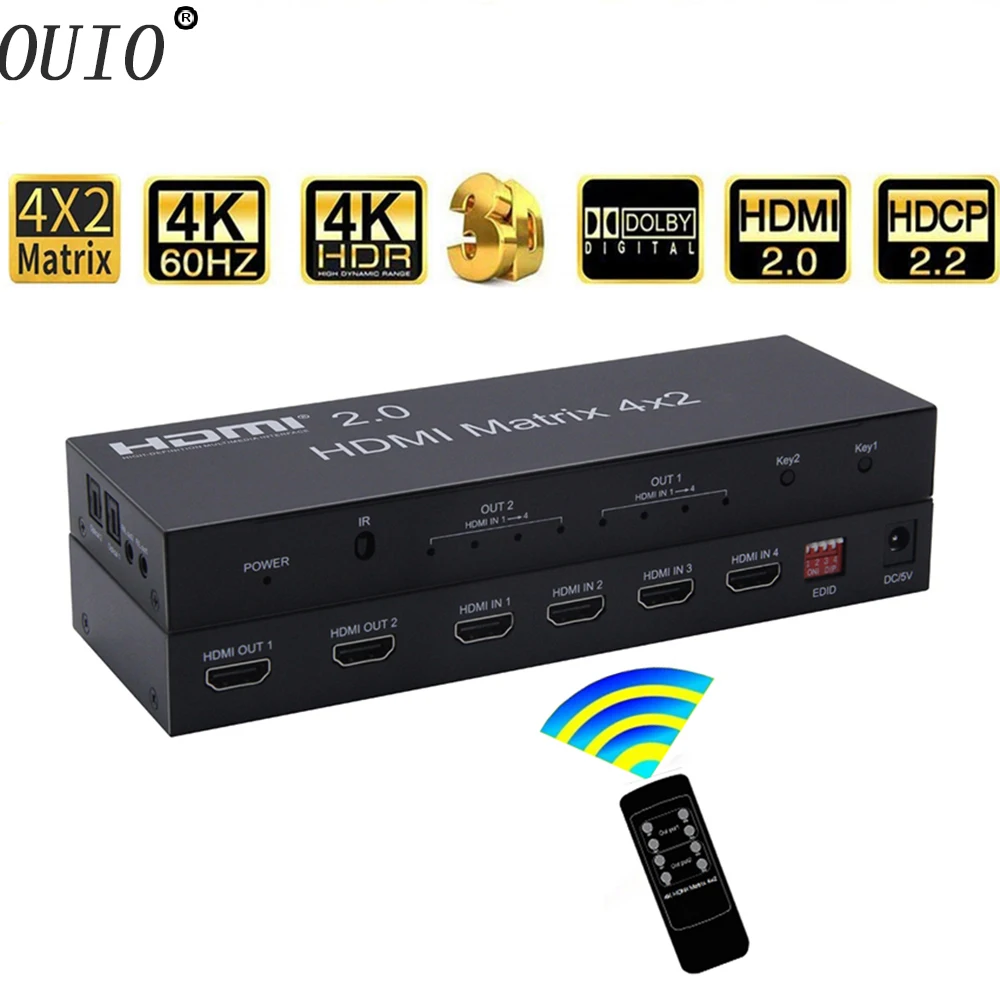

Матрица OUIO HDMI 2 0 4x2 4K @ 60 Гц HDR переключатель сплиттер 4 в выхода оптический SPDIF + 3 5 мм
3 801,78 руб.

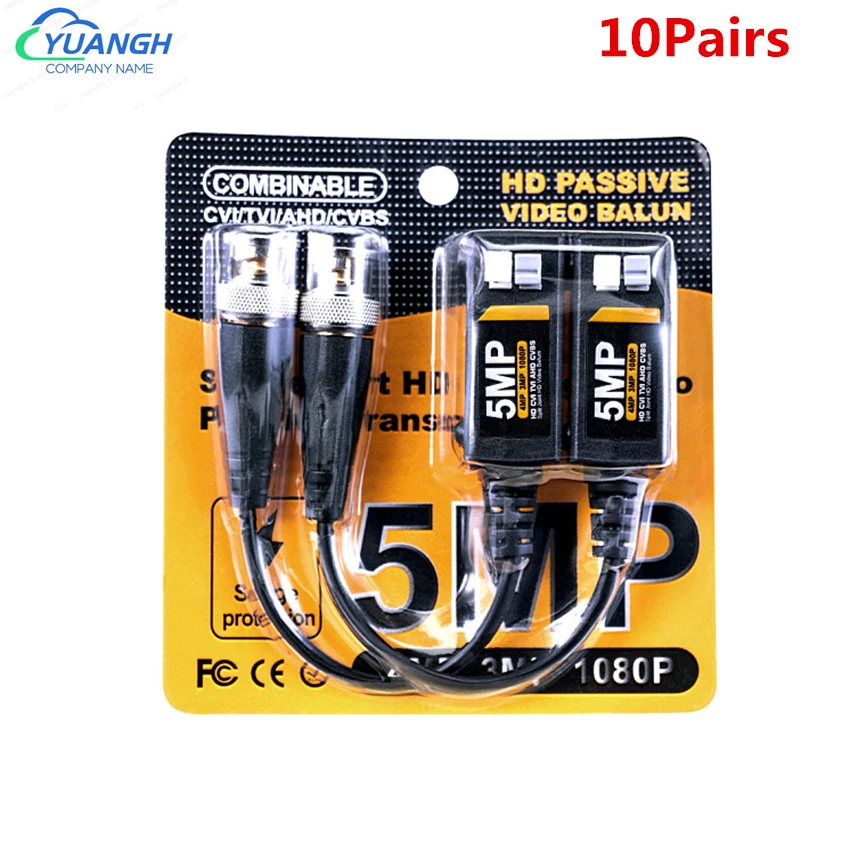

10 пар HD BNC Видео балун 5MP 4MP 3MP 960H 1080P 720P витые трансиверы UTP Cat5 CVI TVI AHD для камеры |
1 440,09 - 2 632,70 руб.
Характеристики

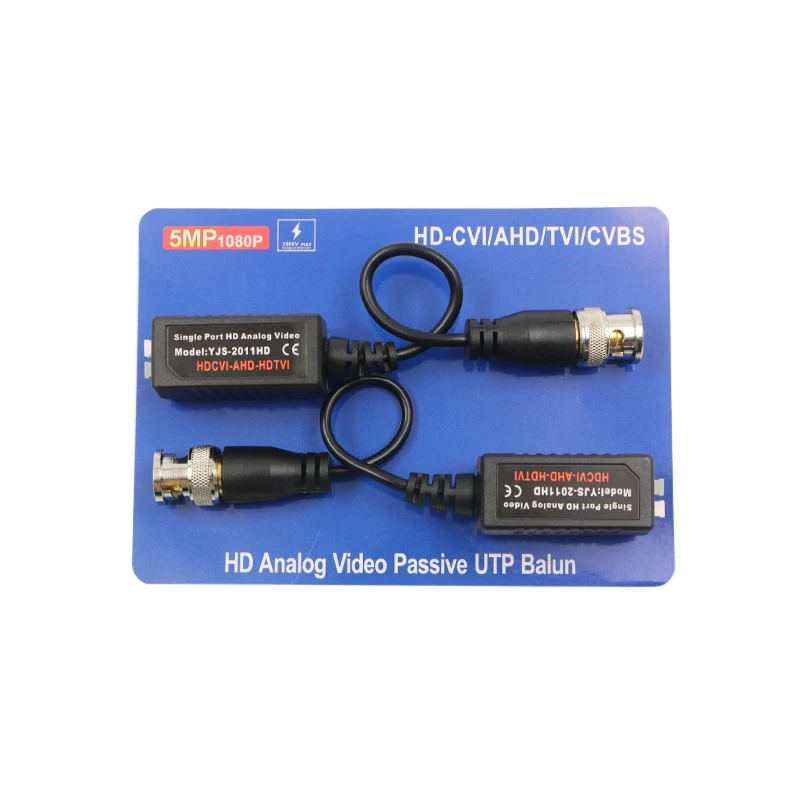

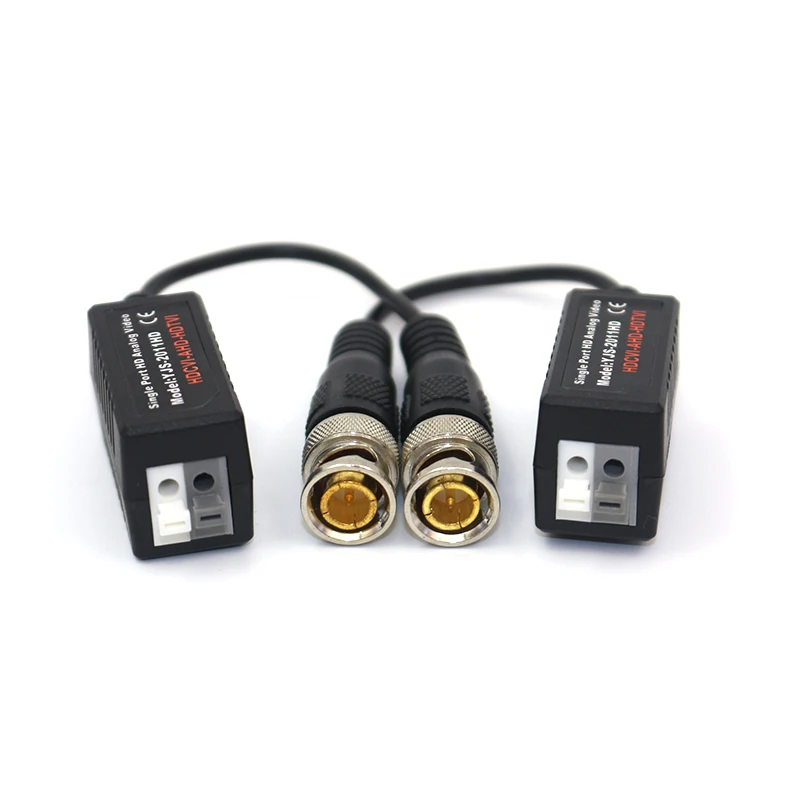

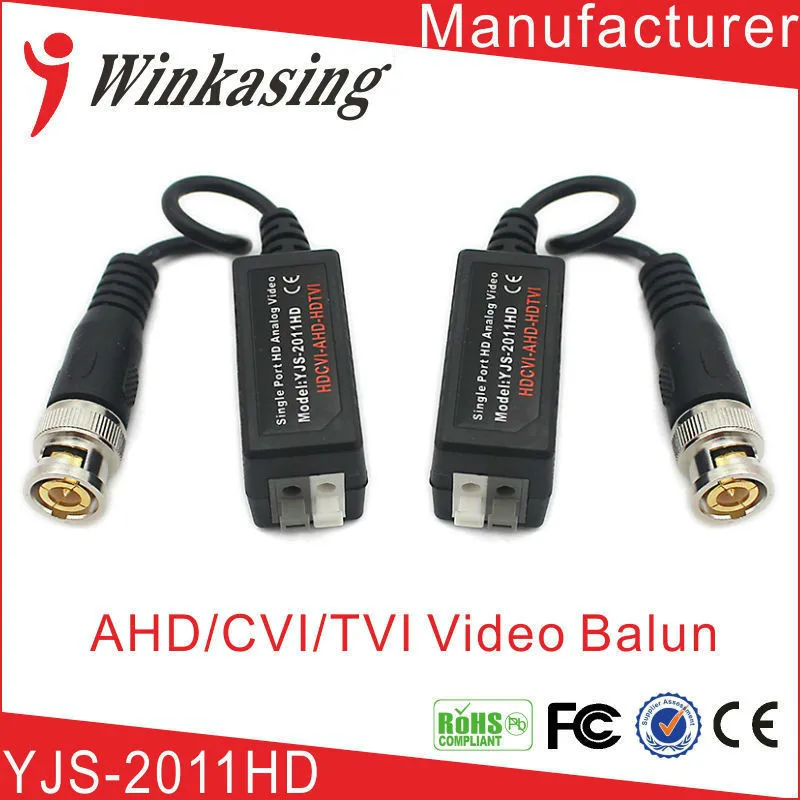

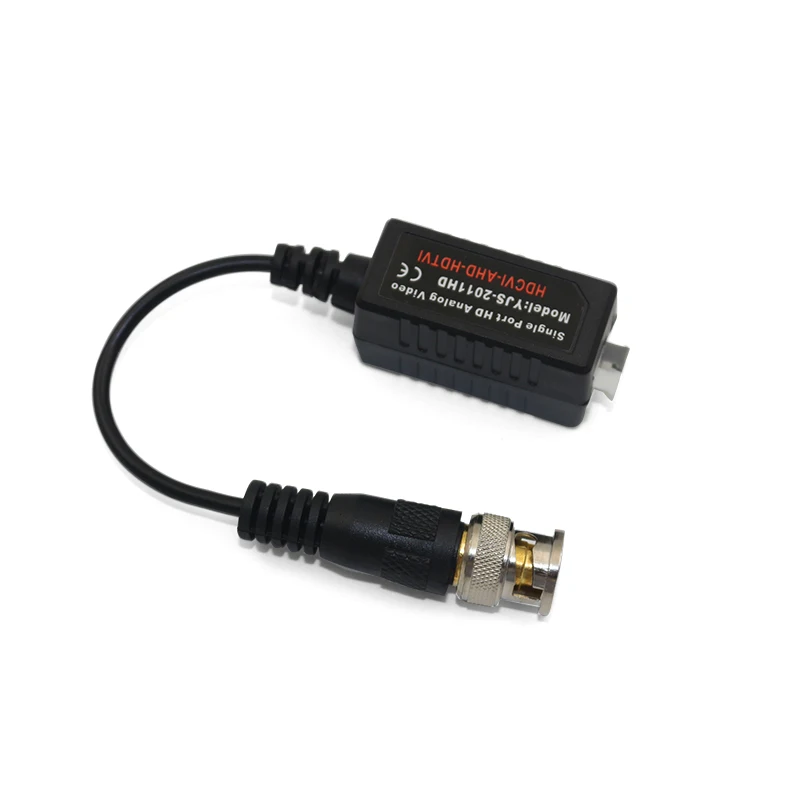

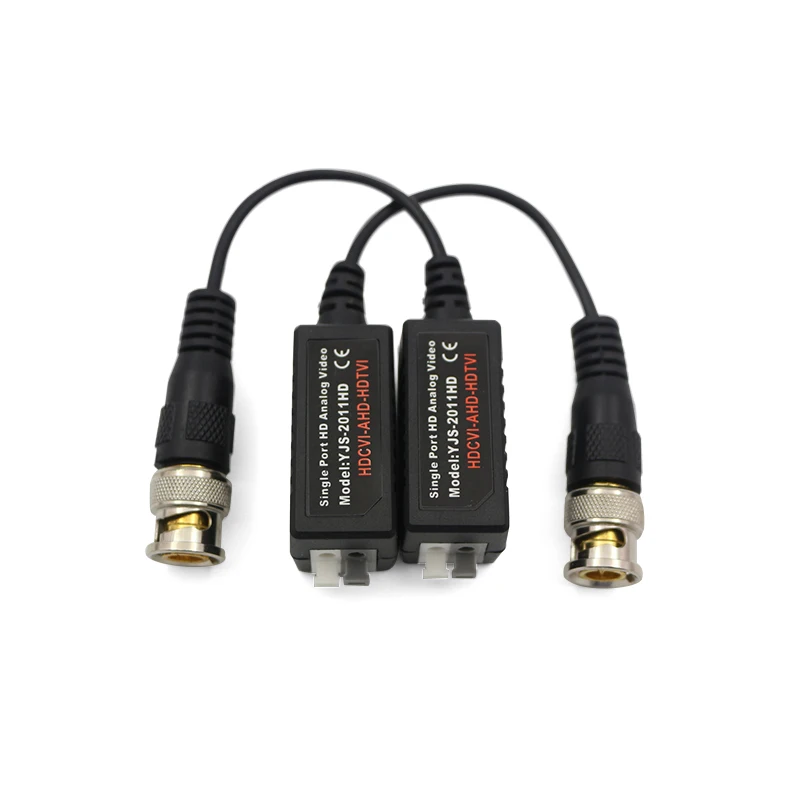

10 шт./5 пар видеонаблюдения UTP CAT5 RJ45 AHD Балун Видео Аудио Мощность для камеры
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-19-2026 | 0.35 руб. | 0.13 руб. | 0 руб. |
| Feb-19-2026 | 0.50 руб. | 0.80 руб. | 0 руб. |
| Jan-19-2026 | 0.13 руб. | 0.32 руб. | 0 руб. |
| Dec-19-2025 | 0.57 руб. | 0.60 руб. | 0 руб. |
| Nov-19-2025 | 0.52 руб. | 0.37 руб. | 0 руб. |
| Oct-19-2025 | 0.42 руб. | 0.70 руб. | 0 руб. |
| Sep-19-2025 | 0.45 руб. | 0.85 руб. | 0 руб. |
| Aug-19-2025 | 0.80 руб. | 0.35 руб. | 0 руб. |
| Jul-19-2025 | 0.30 руб. | 0.60 руб. | 0 руб. |
Описание товара
 | |||
 |  |  |  |
 |  |  |  |
 |  |  |  |
2011HD high quality UTP video balun transmitter
No power required
AHD/HDCVI/HDTVI video format compatible
Real time transmission
Exceptional interference rejection
Wave Filter Design,Anti-Static Design,Lightning Protection
Long-distance transmission and high-quality image
Compact size and easy installation
Cost-effective
| ITEMS | SPECIFICATION |
| Transmission Distance | |
| HDCVI | 720P:600m |
| AHD | 960H/1080P:300m |
| HDTVI | 720P/1080P:200m |
| Video | |
| Compatible Format | AHD/CVI/TVI |
| Resolution | 720P/960H/1080P |
| Operating Frequency | DC to 6MHz |
| Common-mode/Different-mode rejection | 15KHz to 5MHz 60 dB typ |
| Attenuation | 1.5dB typ Max |
| Impedance | Male BNC:75Ω |
| Terminal:100Ω | |
| Wire type | |
| Network Wiring | One Unshield Twisted Pair(for each video signal)24-16AWG(0.5-1.31mm) |
| Category Type | 5 or better |
| Impedance | 100±20ohms |
| DC Loop Resistance | 52 ohms per 1000ft(18 ohms per 100m) |
| DC Loop Resistance | Different Capacitance |
| Power | |
| External power required | No |
| Protection | |
| Surge Protection | Renewable solid state surge protection |
| Video Input | 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999) |
| Video Output | 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999) |
| Connector | |
| Video input/output | Male BNC / Push terminal |
| Mechanical | |
| Housing | ABS engineering plastic |
| Body Color | Black |
| Dimensions | 203*49*105mm(connector included) |
| Gross weight | 72g/pair |
| Environment | |
| Operating Temperature | -20-70 |
| Relative Humidity | 0-95%(non-condensing) |
| Storage Temperature | -40-80 |

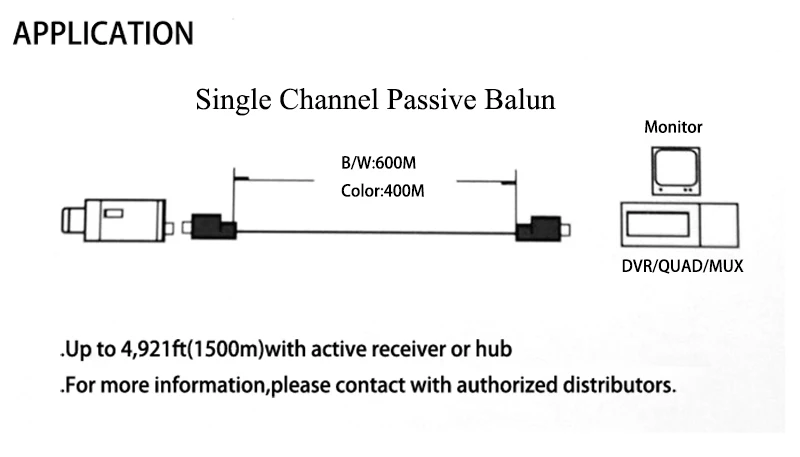

CCTV video baluns, also known as UTP baluns, allow traditional coax cable to be replaced by category 5 and other forms of twisted pair wire in CCTV video camera & surveillance installations. Video baluns allow installers to use more cost effective structured cabling techniques to wire security cameras. By using video baluns, UTP wire such as cat-5 can be run over longer distances easier than coax cable and for less money. Active balun transceivers enable UTP wires for cameras to be run distances up to 5,000 feet. If you are new to the idea of using baluns for video, check out our video balun installation videos. We believes that we supply the best UTP video baluns on the market.
Installation1.Total Absence of Signal
This problem is almost always due a discontinuity in the connection between the camera and the mux. Check the continuity of the twisted pair link.
2.Presence of Signal But No Image
This problem is most likely due to a reversal of the polarity of the wires between the two CCTV Baluns at either end. The pin designated as “Ring” must be connected to the pin designated as “Ring” at the other end.
3.Smearing
Smearing occurs when the edge of an image leaves trail traces similar to smudging a line of ink on a piece of paper. This may occur as the length of twisted pair cable increases.Possible solutions are; a)to shorten the length of cable or b) adjust thecontrast and brightness of the monitor.
4. Flutter
Flutter occurs when the background fluctuates between light and dark. A solution to minimize this effect is to adjust the monitor's contrast and brightness.
5. Ghosting
Ghosting is characterized by a second video image being received after the main image,resulting in a double image that is skewed in relation to the first.In these cases itis best to replace the existing cable with a new one.
6. Loss of Color and Image Detail
Loss of color or image detail may occur if twisted pair cable length exceeds the distance specifications.
Other than using an active device, one can improve the image by shortening the length of twisted pair or by eliminating other contributing signal losses such as splices, cross-connects, low-grade patch cables, etc.
Goods performance
The function of the CCTV Video Balun is to allow the traditional 75-ohm coaxial video cable to be replaced by Category 5E/6 (or better) twisted pair in the CCTV security and surveillance environment, thereby allowing CCTV camera and monitoring equipment to be deployed more cost-effectively using structured cabling techniques.
Trade show
1.Q: Are you a Video Balun factory or Video Balun trading company?
A: We are Video Balun manufacturer.
2.Q: Where is your Video Balun factory located? How can I visit there?
A: Our Video Balun factory is located in Shenzhen City, China. You can fly to Shenzhen Bao'an airport directly, and we will pick you up. Welcome to visit our Video Balun factory.
3.Q: How can I get some Video Balun samples?
A: We are honored to offer you Video Balun samples, pls contact our staff and leave detailed contact information, we promise to keep your information confidential.
4.Q: How does your Video Balun factory do regarding quality control?

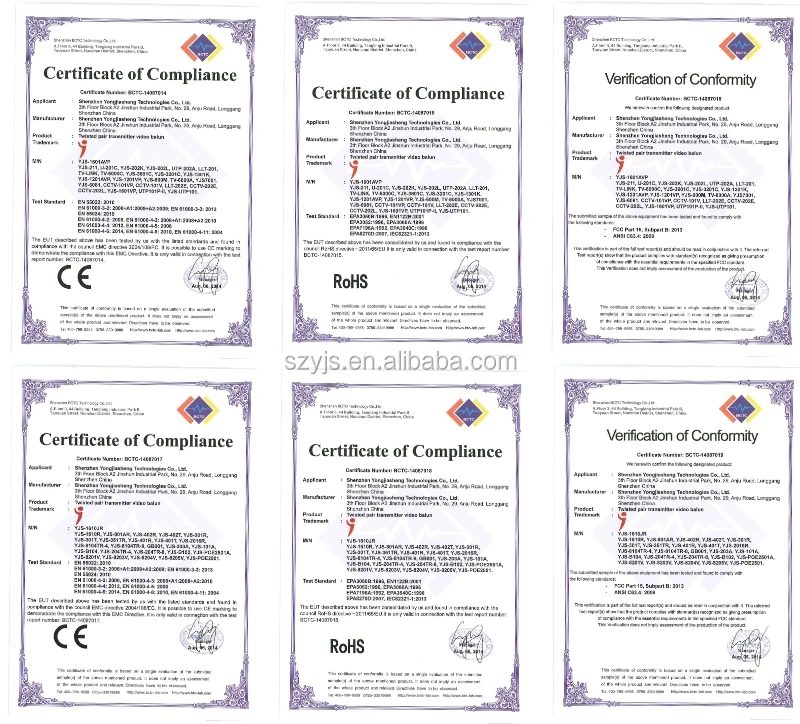

A: Quality is the priority. We always attach great importance to quality controlling from the start to the end. All our Video Balun products have gained CE, FCC, ROHS certification.
5.Q:What can you do?
A:1.All of our Video Balun products have proceeded aging test before shipment and we guarantee safety while using our Video Balun products.
2.Support imprint your logo on Video Balun products and let your logo shine anywhere. 3.OEM/ODM orders are warmly welcomed!
6.Q:Warranty and return:
A:1.All Video Balun products and accessories have been tested by 3 times before ship out.
2.We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
