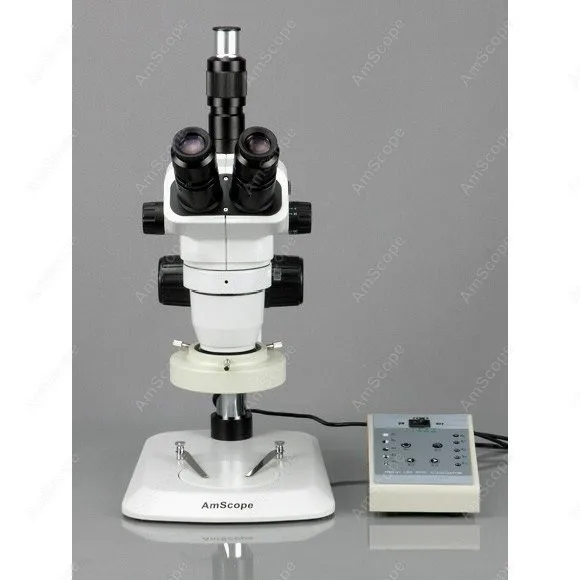

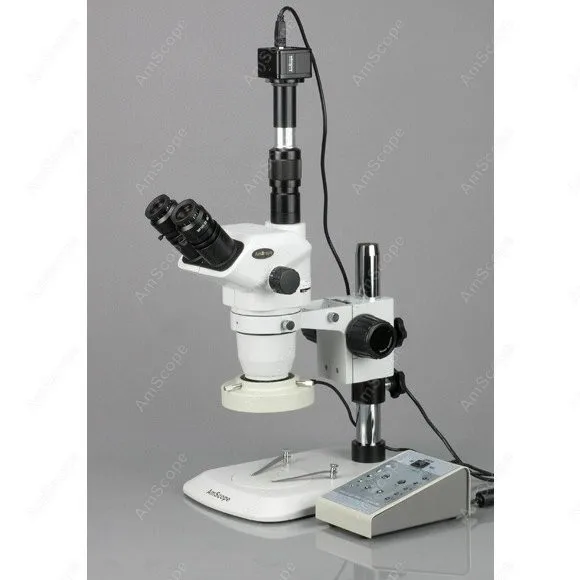

This is a turnkey package of 6.7X-112X extreme widefield LED stereo zoom microscope with 5MP USB2.0 digital camera. It comes with a trinocular 6.7X-112X stereo zoom microscope, a contemporary table stand and a heavy-duty 8-zone 80-LED illuminator with 5 memories. With 30mm extreme widefield eyepieces and auxiliary objective lenses, the microscope offers high resolution, large magnification zoom range, long working distance and super widefield of view. Its trinocular port enables to add photographic or video capability. The 80-LED ring light is lighting-direction changeable and lighting-intensity adjustable, providing cool, even and bright LED illumination. It allows you to turn on/off each portion of the 8 light zones individually as well as change the lighting directions so you may obtain the best images for your stereo microscope. You can save (up to five) the lighting configurations that are the best for your application in the 5 memories that are built in the illuminator.The digital camera captures still microscopy images, streams live videos on your computers, and is compatible with Windows XP/Vista/7/8, Mac OS X, and Linux. The 0.5X reduction lens included gives your computer screens the same field of view as your microscope's eyepiece. The user-friendly software for Windows offers advanced features including Stitching, EDF (Extended Depth of Focus), video recording, and measurement functions. Live video and still image capture can be set in different resolutions simultaneously. You can edit and process images in a manner similar to PhotoShop. This microscopy system is an ideal instrument for manufacturing engineers, gemologists and anyone in semiconductor and electronics industries. It is also a perfect microscope for biological laboratory applications that require low heat release. I arrives brand new in factory sealed boxes with retail value $3,900.

Features :

• An perfect 6.7X-112X stereo zoom microscope with 80-LED illumination and 5MP color digital camera
• Intensity- and light- direction variable cool, even and bright LED illumination
• 6.7X-112X super wide zoom magnification power
• 4" (100mm) large working distance
• Trinocular head with 45-degree inclined 360-degree swiveling eye tubes
• 30mm SUPER widefield high-eyepoint eyepieces with 20 mm field of view
• Super high resolution with great flatness and contrast, giving sharp and clear images
• Sharp stereo erect images with wide field of view
• Crystal clear original true color microscope images
• Dual eye tubes with adjustable diopter
• Contemporary table stand
• Accurate alignment ensuring a fatigue-free long hour viewing
• Full optical glass elements
• Precise ground glass lenses
• Full metal chrome-plated mechanical components
• Adjustable interpupillary distance
• Rubber eyeguards included
• Manufactured Under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Factory Warranty



  Specifications :

• Head: 360 degree rotatable 45-degree inclined trinocular
• Eyepiece: 30mm extreme widefield high-eyepoint WH10X/22MM and WH25X/9MM
• Zoom Range: 0.67X-4.5X
• Diopter Adjustment: +/- 5dp
• Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
• Working Distance: 4" (100mm)

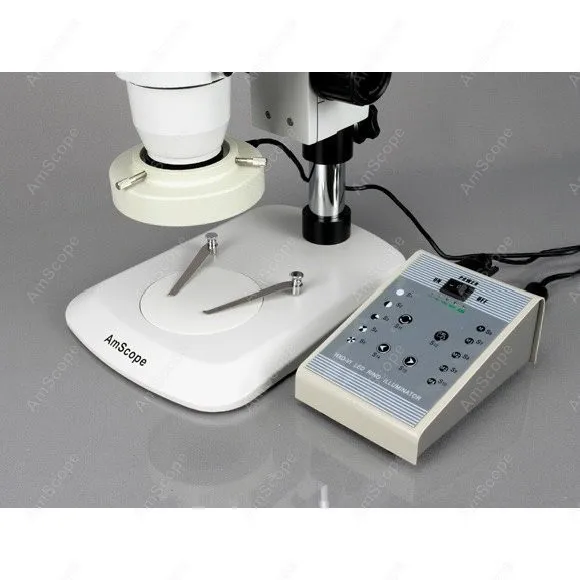

• Illumination: 80-LED variable ring light
• Power Input: 110-240V, 50-60HZ, automatically switching
• Stand: contemporary metal table stand
• Accessories: a pair of eye-caps

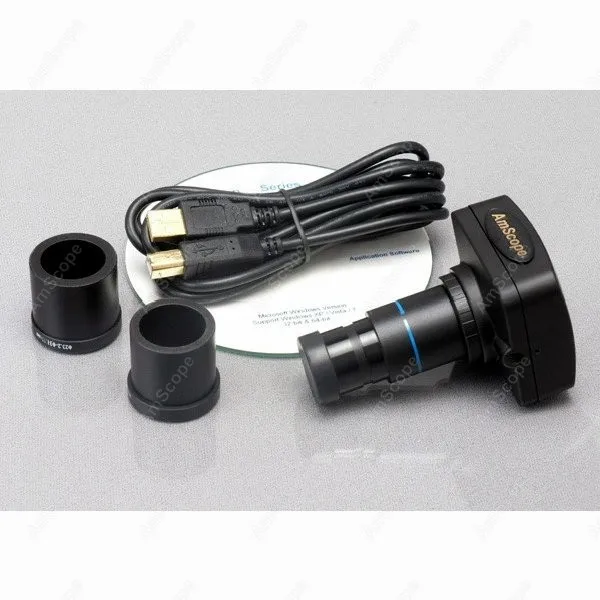

  Camera Specs:

• Sensor: Aptina MT9P001 CMOS (color)
• Sensor Size: 1/2.5" (5.70mm(H) x 4.28mm(V), diagonal 7.13mm)
• Resolution: 2592x1944 (approx.5,040,000 pixels)
• Reduction Lens: 0.5X
• Pixel Size: 3.2µm x 3.2µm
• G Sensitivity: 0.53v / lux-sec (550nm)
• Frame Rate: 60fps @640x480, 18fps @1280x960, 5fps @2592x1944
• Exposure: 0.21~2000ms, ROI Auto & Manual
• Operating System: Windows XP/Vista/7/8 (32 & 64 bit), Mac OS X, Linux
• PC Requirements: CPU equals to Intel Core2 2.8GHz or higher, USB2.0 port
• Advanced software for Windows:
  - offers Stitching, EDF, video recording and measurement functions
  - conducts measurements for lengths, angles, arcs, areas and etc.

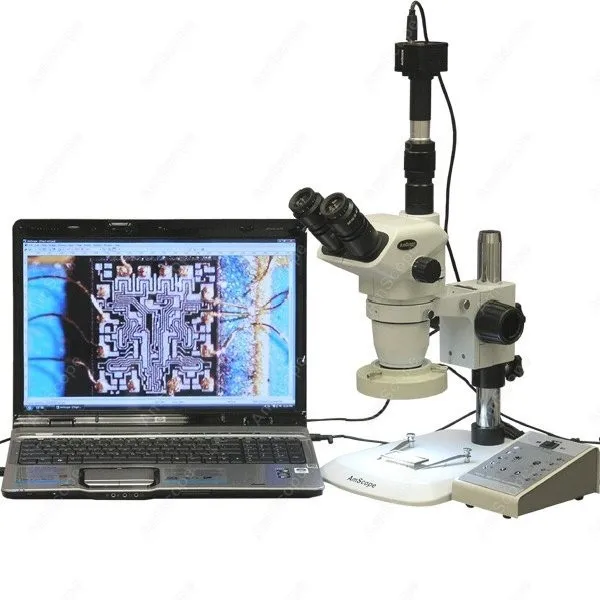

  - gives your computer screens the same field of view as your microscope's eyepiece
  - saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
  - edit and process microscopy images in a manner similar to PhotoShop
  - live video and still image capture can be set in different resolutions simultaneously
• Life-time free software upgrades



  Packing List :

• One Trinocular Stereo Zoom Head
• One Pair of Extreme Widefield WH10X/22MM Eyepieces
• One Pair of Extreme Widefield WH25X/9MM Eyepieces
• One Contemporary Metal Table Stand
• One Focusing Rack
• One Pair of Eye-Guards
• One Pair of Clips
• One Dust Cover
• One 80-LED 8-Zone Ring Light w/ Five Memories
• One Mounting Adapter
• One 5MP USB2.0 Digital Camera with Reduction Lens
• Step-by-Step User's Instructions for the Camera
• Two Mounting Adapters for the Camera

• User's Manual for the Microscope
