Waiter Paging System for bar/pub/restaurant service calling equipment 1 display 4 watches 40 buttons (call;bill;drink;cancel)

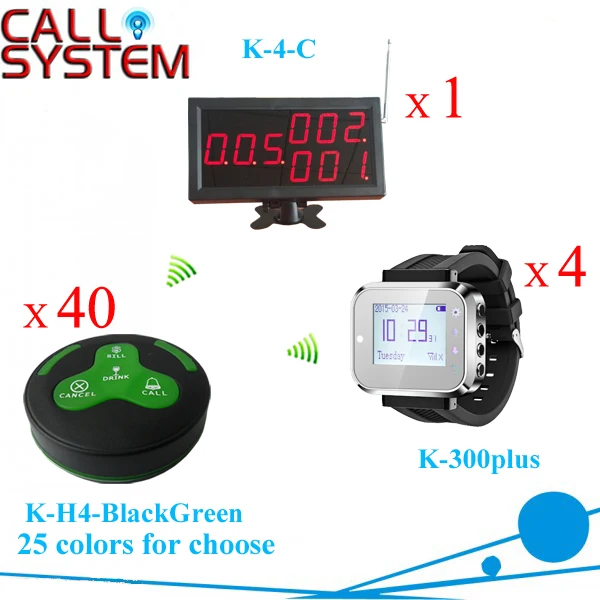

Package included:

4 *K-300plus Wrist Watch

1 * K-4-C Display Receiver

40 *K-H4 button (Color: Black-Green)

(If you need more quantity or other color button, pls inform us when you place the order.)

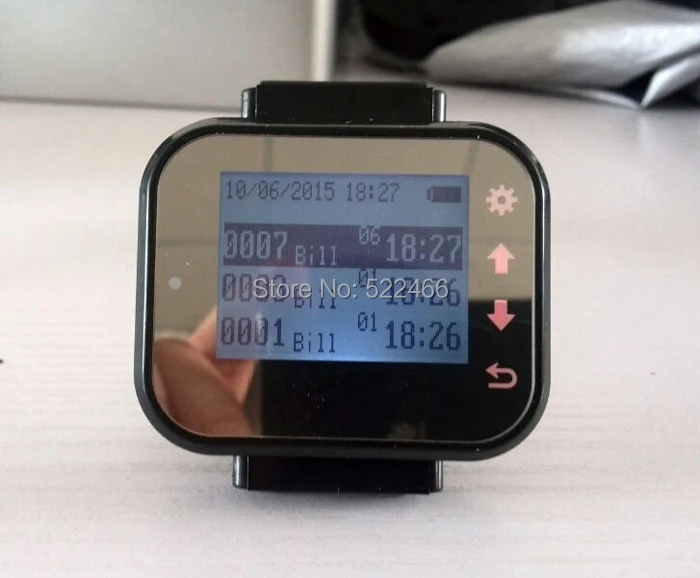

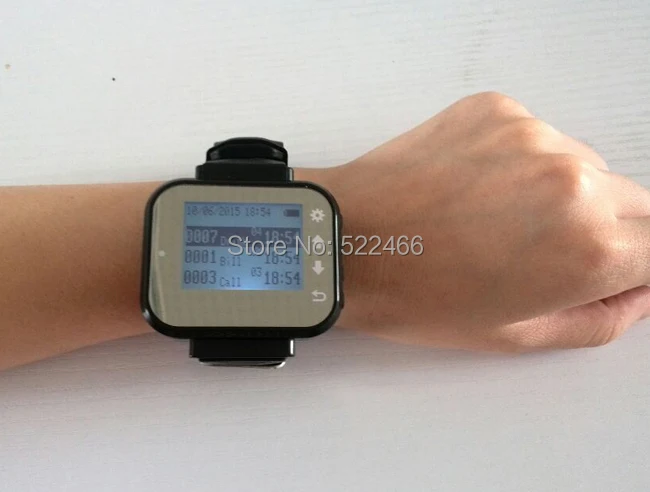

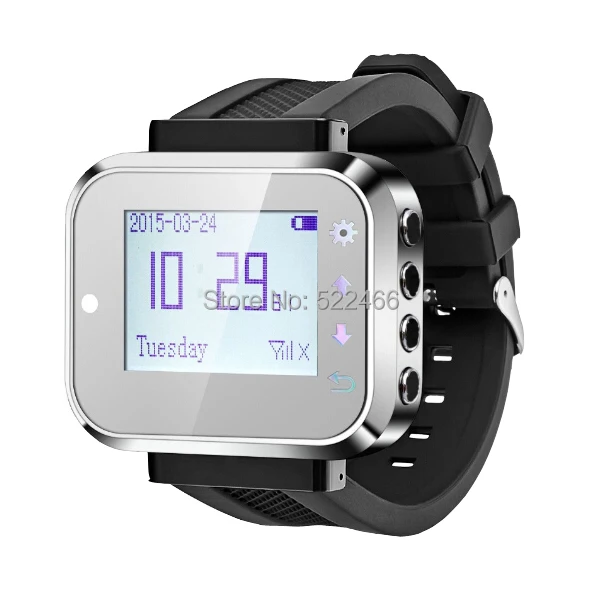

Specification of Watch Wrist Pager Receiver K-300plus

1. Can work with 500pcs 1-key and multi-key transmitter in max
2. Can show 3 group call number in one time
3. Show 4-digit number from 0001-9999 and first letter can be A-Z
4. Can indicate different service type via words or letter.(call;bill;drink; dessert; help etc and A-Z)
5. Can record when call come in and Can count the call times of each number
6. Can store 50 calls and track the history calls up and down
7. Shows current time when stand-by
8. 3 reminder ways:sound promt and vibration or both
9. Battery is rechargeable
10. Dimension:50*41*16mm
11.two display mode:live view and queue view
“live view” means, when No.1 No.2 No.3 call in turn, screen is show 0003 0002 0001. Newest call number show on the top of screen.
“queue view” means, when No.1 No.2 No.3 call in turn, screen is show 0001 0002 0003. Oldest call number show on the top of screen.

Other Color Watch for your choose:

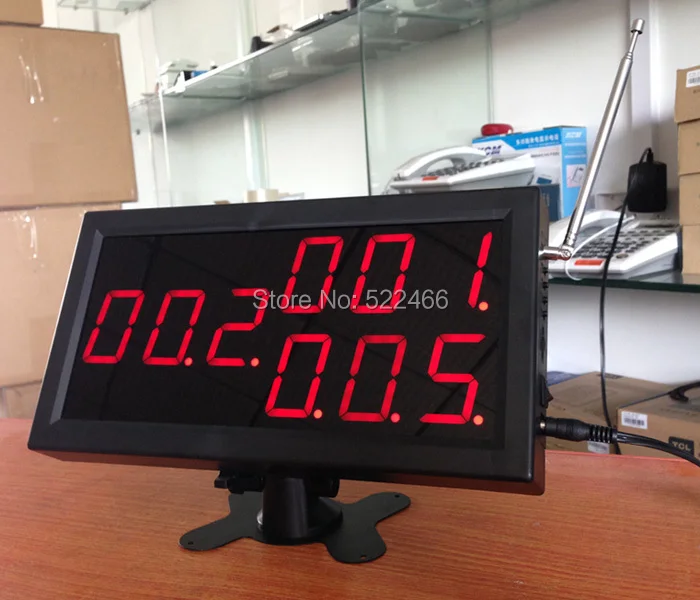

Specification of Display Receiver K-4-C:

1 With high strength ABS shell, durable in use
2 Use digital code technology and the function is steady and reliable
3 Show 3-digit number
4 It can work with 999pcs 1-key or multi-keys call buttons in max
5 It can show different service type
6 It can show 3 groups of number at the same time
7 It can save 30 calling info in turn, and apply in basic service places.
8 Dimension: 282*150*34mm
Technical parameters:
Working voltage: DC 9V
Working current: <20mA
Working Frequency: 433.92mhz

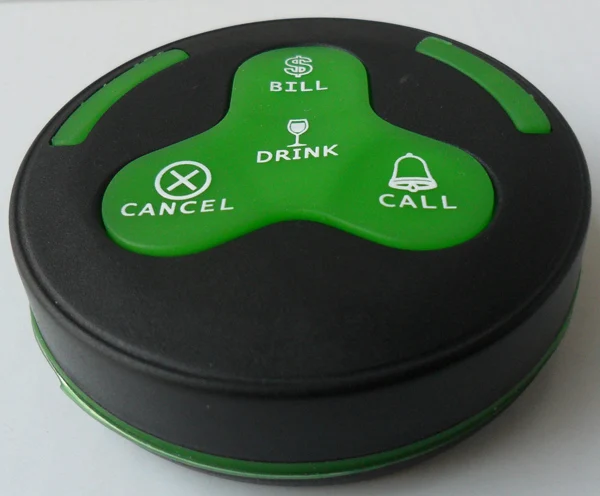

Specification of call Button K-H4

1. 100% Water-proof
2. Work with our receiver to combined the wireless calling system
3. Can be installed on each table, when the customer need help only press the button, the calling no will be shown on the screen, so everyone can easy to know who is calling.
4. 4-key button: Call, Bill, Cancel, Drink
5.Color:

5 colors blue;white,yellow, gray ,black for case
5 color blue ;green;yellow;red;black for silicon dioxide
Technical Parameter:
Working voltage: DC12V
Working current: ≤35mA
Use Frequency: 433.92mhz
Transmitted Power: ≤10mW
Transmitted Distance>300m in open area
Size: 60*60*22mm

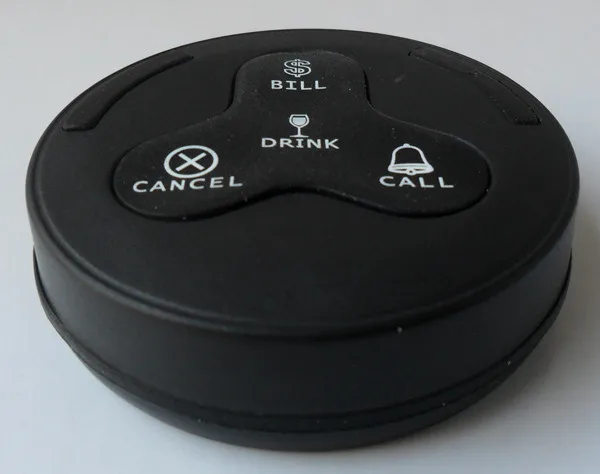

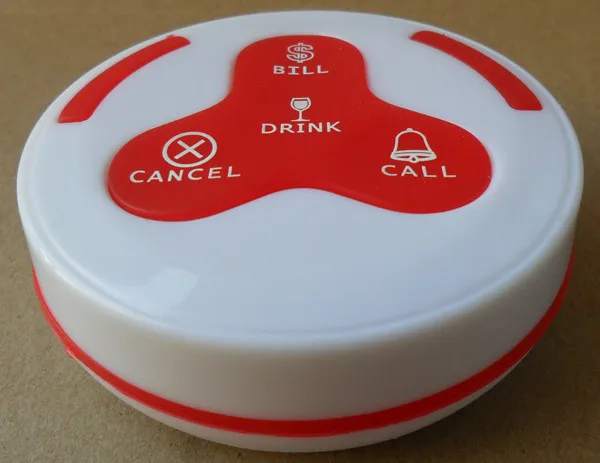

Other Color Button for your choose:

Introduction of Wireless Waiter Call  System

How to work:
It includes transmitting device and receiving device. Press the button on the transmitter, the receiver will receive the wireless signal and display (also can be with voice) which one is calling. So it is very easy used to improve service and efficiency.

Component:
Receiver:Dot matrix LED screen,LED screen,wrist pager(choose)
Remote contoller(optional)
Button:1-key button,2-key button,3-key button,4-key button(choose one or more)
Button stand(optional)
Menu holder(optional)
Pager: Alphanumeric
Signal enhancer:optional

Solution:
1)Revolutionary product to increase staff efficiency,lower labour costs.
2)Simple but elegant,value for money.
3)Improve customer appreciation of your service.
4)Provide a relaxed atmosphere.

Install and Maintain:
·Wireless products, no wiring involved. The Display and Signal Enhancer are operated by 100-240V power supply.
·The buttons number can be defined by the Display Setting,the button can fixed or paste on the wall or table. and the button is waterproof.
·Some of buttons any language and logo is acceptable. Welcome your OEM.

Applications:
Wireless Waiter Call System for service of:

·Tea or Coffee House
·Restaurants
·Hotel Conference Rooms
·Executive Dining Rooms
·Spas and salons
·Health and Fitness clubs
·Hospitals
·Health Clubs
·Offices
·Massage House
·Nightclubs
·Bowling Alleys
·Churches
·Casinos
·Golf and Country Clubs
