Car Key Programmer T300 V19.2 T 300 Auto Transponder Decoder T-CODE T-300 diagnostic blue/black color + Mini Zedbull | Автомобили и

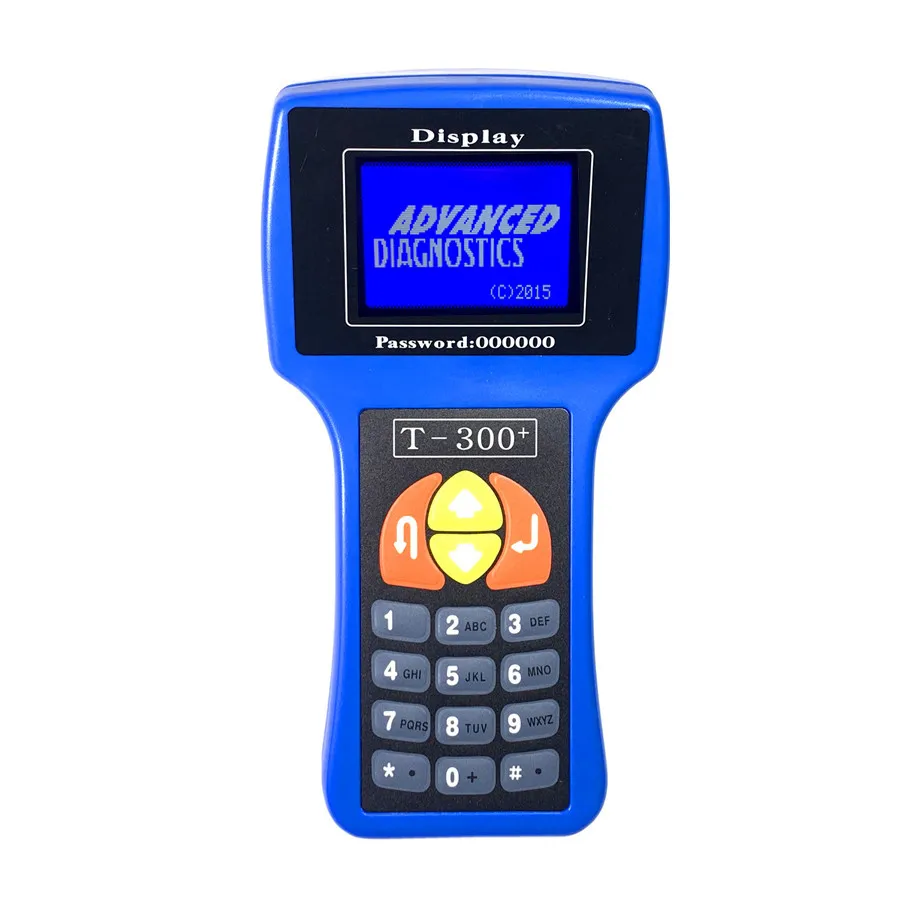

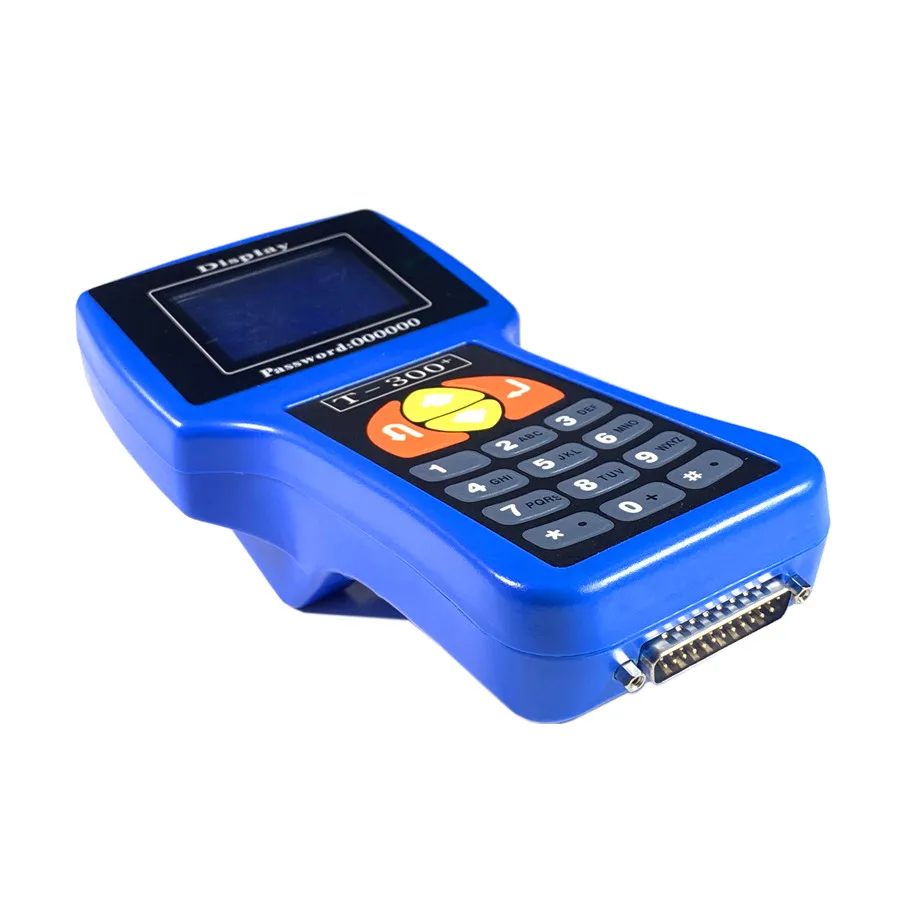

Item 1T300 Key Programmer

Version:V19.2

There are two languages: English, Spanish

Leave me a message about the language version you need,OrEnglishwill be shipped by DEFAULT.

Functions:

Use for key programming. More cars than any other transponder machine .

Function introduces of T300 chip key decoder:

1. Read the vehicle malfunction code

2. Clear the vehicle malfunction code

3. Read the system data stream

4. Read IM-M0/ECU ID

5. Fetch the machinery key code

6. Clear vehicle key memory

7. Program new key

8. Read vehicle key login password

9. Distinguish types of ECU

10. ECU-IMMOBILISER programme

11. Read -E-K-A password

12. Programme new E-K-A password

13. Programme telecontrol implement

Vehicle Coverage:

Model Place of origin

AC--URA Japan

A--U-DI Germany

AL--F-A Italy

B--U-CK

C--H-EVROLET

CI-TR-OEN France

CH--R-YSLER

D-O--D-GE

D--ACI-A USA

D-A---EWOO Korea

F--O--RD

F  ER-R   ARI

F--O--RD USA USA

E--XC-ELLE

FI--AT Italy

GE--NERAL MOTORS USA

G ---M HOLDEN USA
H--O-ND A

H--YUNDAI Korea

I-SUZU

I-V-ECO Japan

IN--FINNITI Japan

IN--FINNITI CAN-BUS Japan

J--AGUAR England

J-EEP

K-I-A Korea

LA--ND ROVER England

L--ANCIA Italy

L--DV

L-EXUS Japan

LI-NICOLN USA

M-AZDA USA Japan

M-AZDA M6 Japan

M--ERCURY USA

VA--LKSWAGEN

M--ITSUBISHI Japan

N-I--SSA--N Japan

P  EUGE0T Franc

R--ENAULT France

P--R-OTON

P--O-NTIAC

R-OVER

S-U-BARU England

S-EAT Spain

S-K-ODA Czech

S-UZ-UKI Japan

S-U-ZUKI

T--OY-OTA Korea

T  OYOTA

V -W Germany

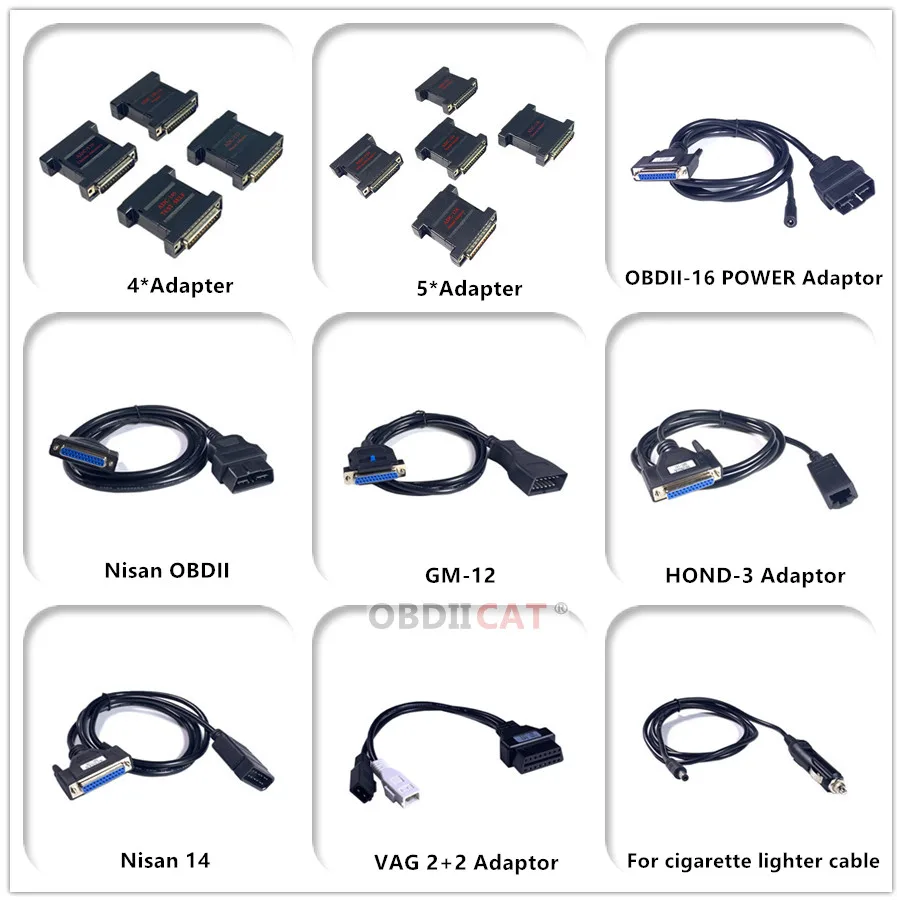

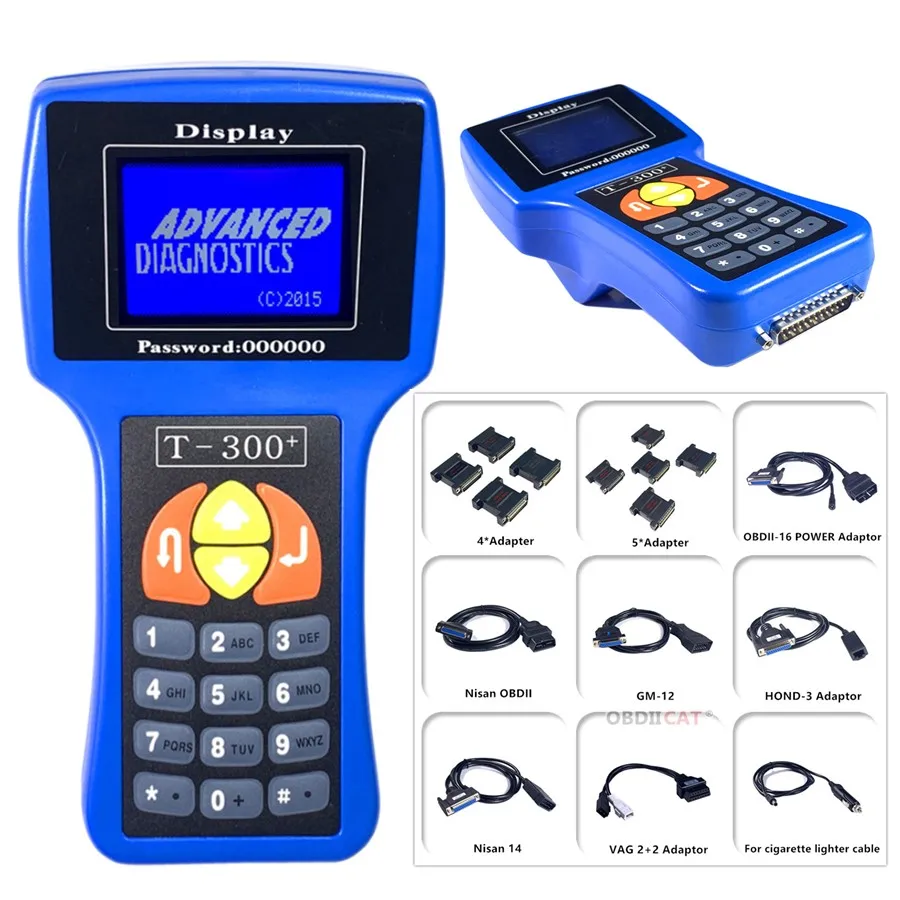

Package contains:

1. H--0ND A-16 Adaptor

2. SU-ZUKI Adaptor

3. M-ITSUBISHI Adaptor

4. O-BDII-16 Adaptor

5. O-BDII-16 POWER Adaptor

6. A--UD-I 2+2 Adaptor

7. H--0ND-3 Adaptor

8. Nis--sa--n OBDII

9. Ni--ss--an 14

10. Ni--ss--an adaptor

11. ch--rysler-1 adaptor

12. Ch--rysler-2 adaptor

13. G---M-12 adaptor
14. OBDII TO BENZ SPRINTER

15. A-DC 45 Adapter

16. P -euge0t Adapter

17. User Manual

Install Steps:

VW Transponder key matching with 5 digits Login Code

Procedure for adding transponder keys to vehicles with separate Immobilizer box:

(German Car A to year 97, G-olf 3, P--assat B4, Transporter, L--upo, Sh--aran)

Switch ignition ON with new key. Select:  Immobilizer -> Login
Enter 5 numbers Login Code (add 0 if you have 4 digits Login Code).
For example, if your Login is 1234, enter 1234.
Save
Go to Adaptation
Enter 01 in "Channel Number"
Enter
The "Stored Value" is the number of keys currently matched.
Enter number corresponding to the total number of keys to be matched, - for ex  2 ;
Enter -> Save
Switch ignition off and remove key
Insert next key to ignition and switch ignition on again
Wait 15 sec. Repeat this step with each key until all keys have been matched.
Select:  Immobilizer -> Login. Enter Login Code. Go to Adaptation
Enter 00 in "Channel Number"
Enter 0 and Save. This will learn ECU with Immobiliser.

Procedure for adding transponder keys to vehicles with Immobilizer in the instrument cluster:
(German Cars A from year 1997, G--ol-f 2004, P--assat B5, B6 )

Switch ignition ON with new key. Select:  Instrument -> Login
Enter 5 numbers Login Code (add 0 if you have 4 digits Login Code).
For example, if your Login is 1234, enter 01234.
Save
Go to Adaptation
Enter 21 in "Channel Number"
Enter
The "Stored Value" is the number of keys currently matched.
Enter number corresponding to the total number of keys to be matched, - for ex  2 ;
Enter -> Save
Switch ignition off and remove key
Insert next key to ignition and switch ignition on again
Wait 15 sec. Repeat this step with each key until all keys have been matched.
Select:  Immobilizer -> Login. Enter Login Code. Go to Adaptation
Enter 00 in "Channel Number"
Enter 0 and Save. This will learn ECU with Immobiliser.

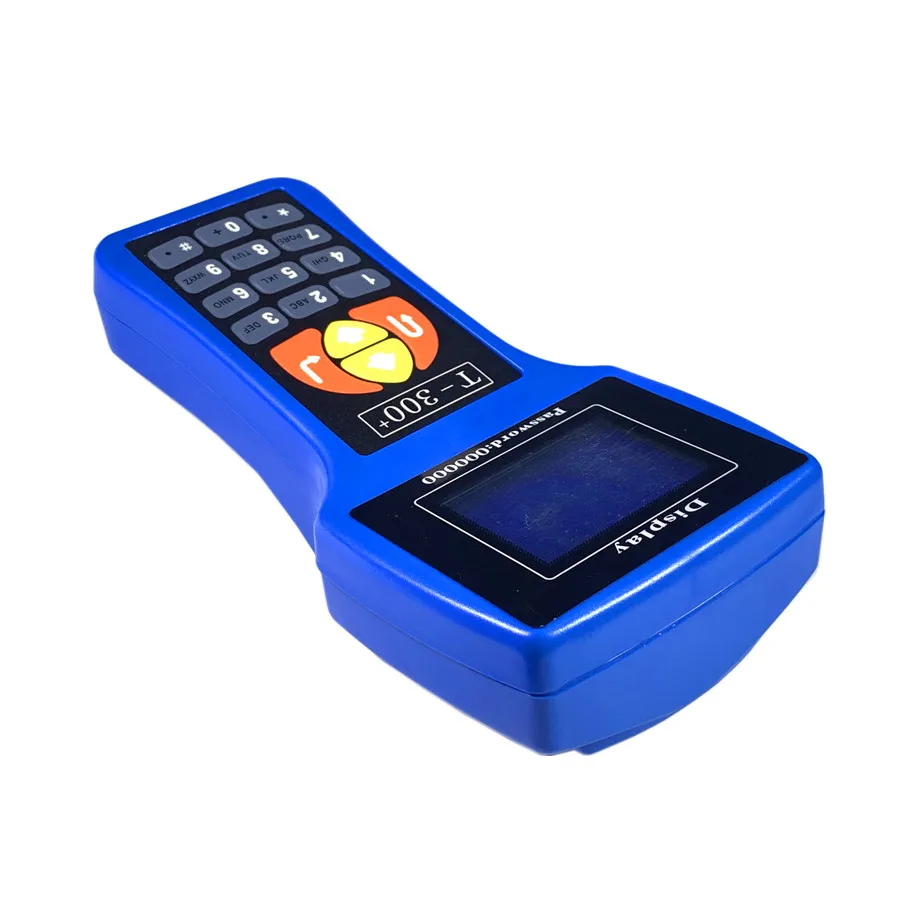

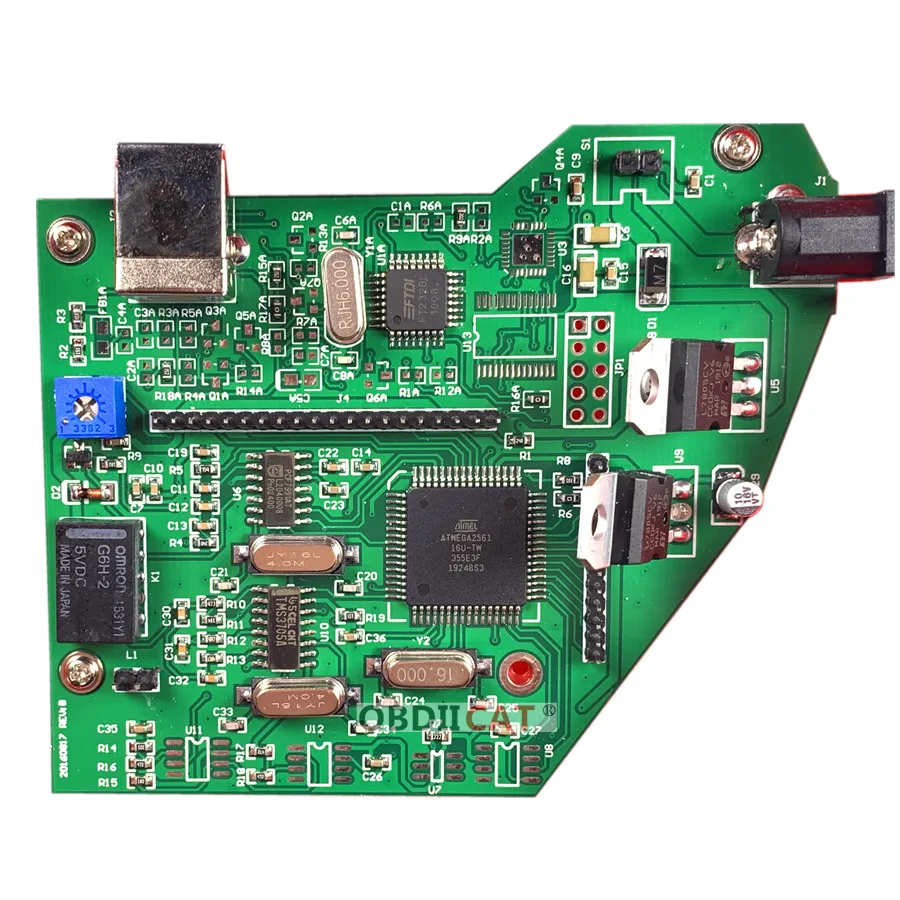

  Real Photo Show:

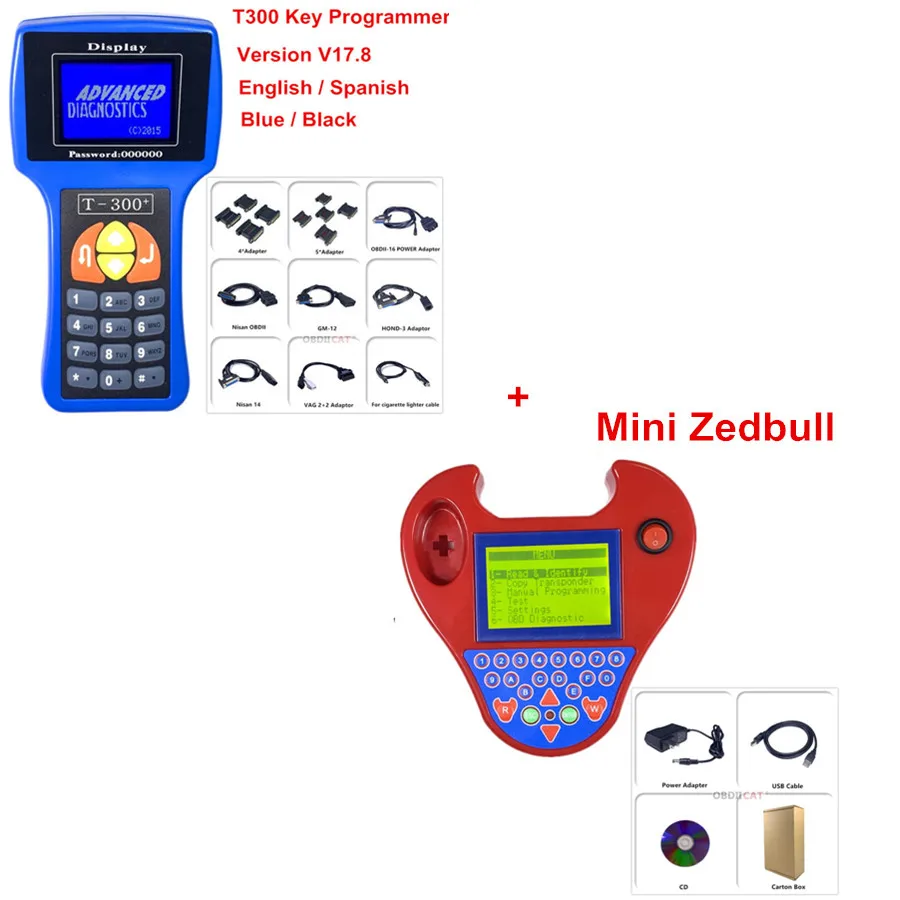

Item 2

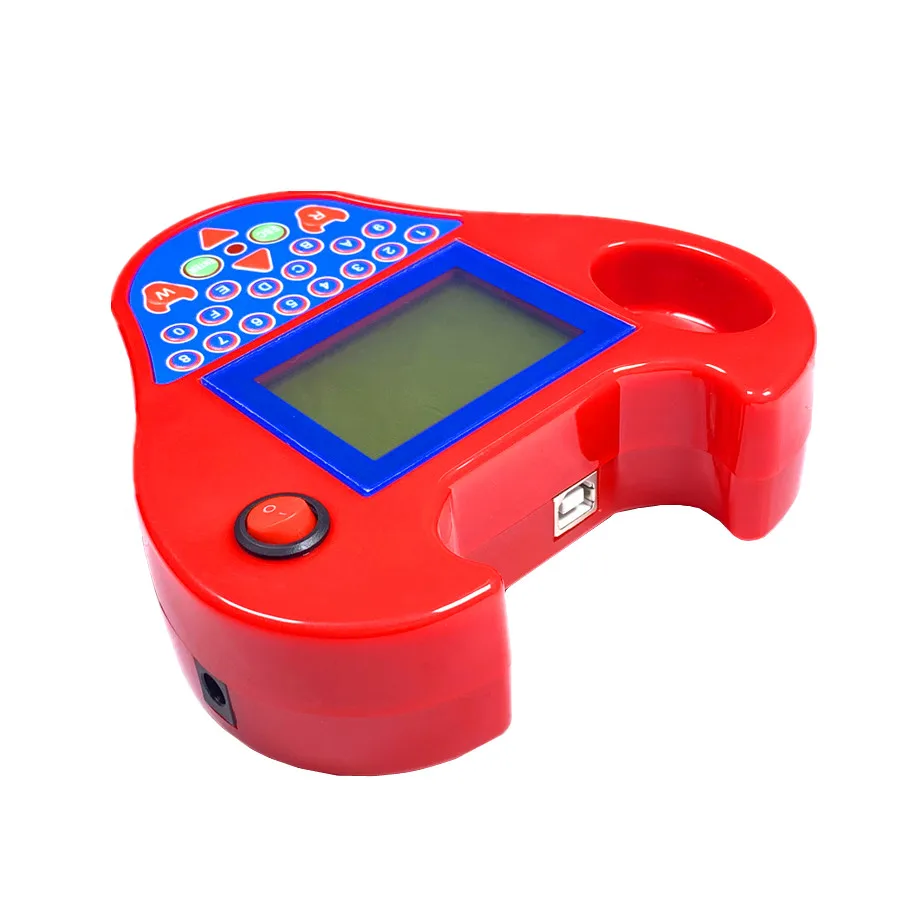

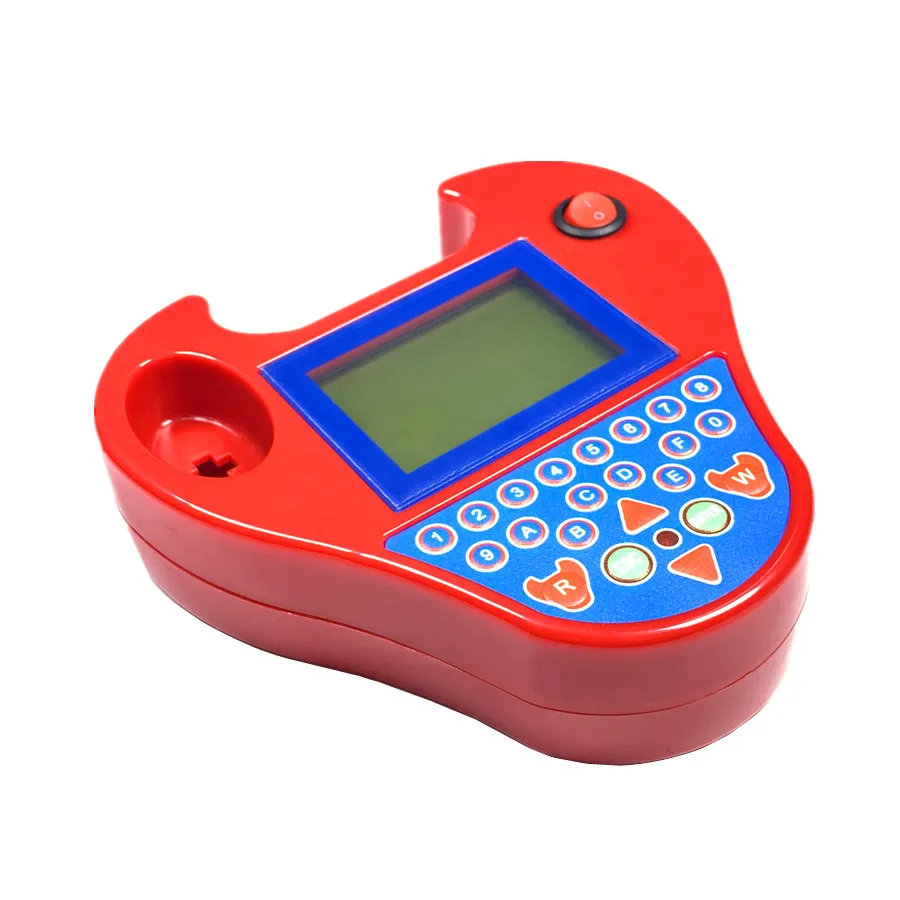

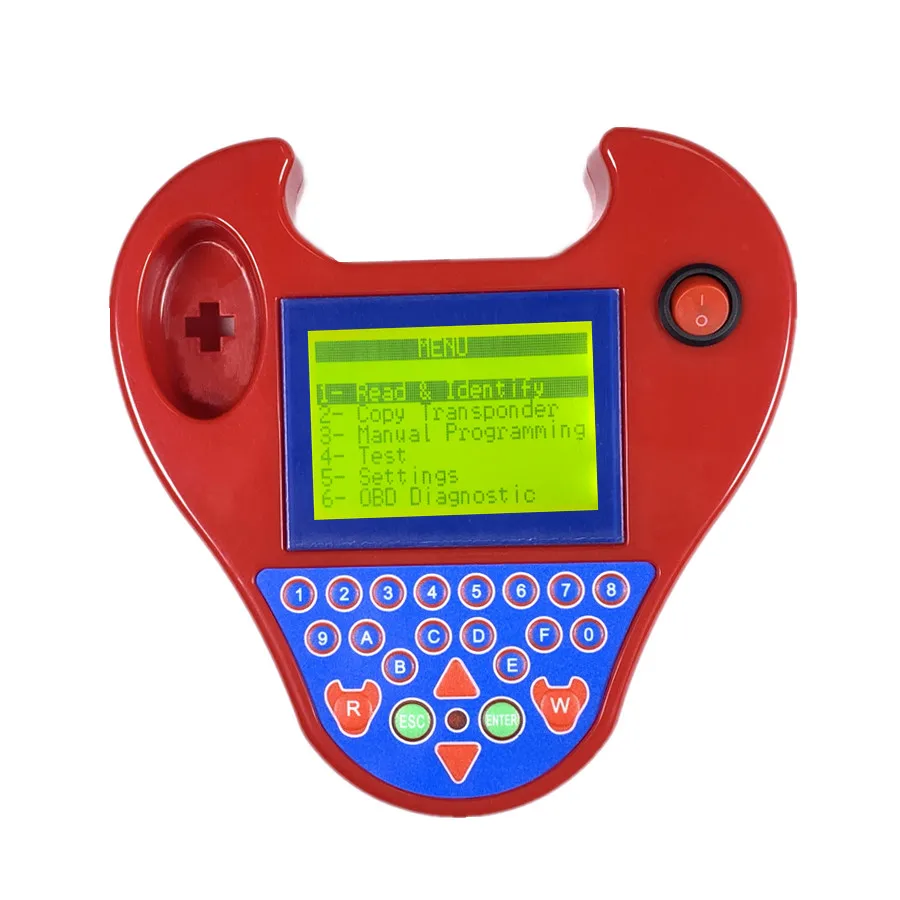

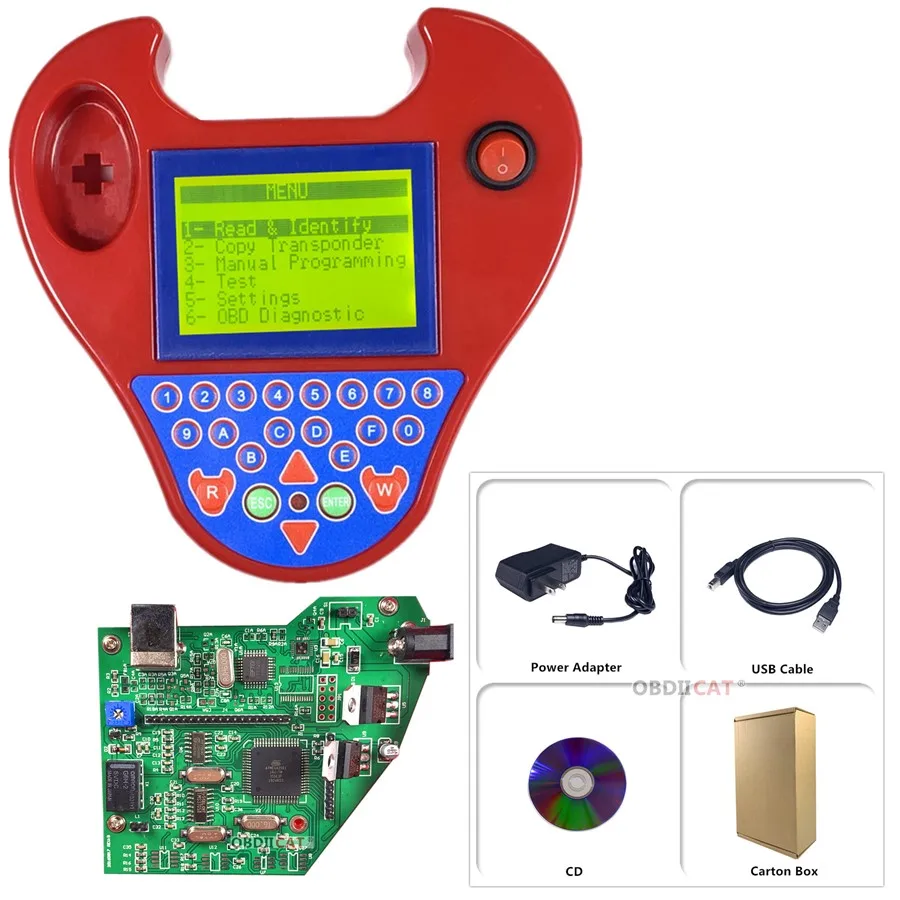

Mini Zedbull

Highlights

Compare SMART ZED-BULL with ZED-BULL: SMART ZED-BULL gain 30% reading and writing speed. SMART ZED-BULL improve the success rate up to 99.99%, which will eliminate the waste of chip.(As we all know, some chip can be written only once)

NO TOKENS NEEDED ANYMORE!!! (New feature)

NO LOGIN CARD NEEDED!!!

Description:

1.New: support 8C and 8E chips distinguish function

2.Language: English, Turkish, Italian, Spanish and Portuguese

3.Zed-BULL will fulfill all of your requirements as professional on Immobilizer Systems;

4.Zed-BULL is a transponder cloning device which contains all of Zed-Qx's features and also has more additional features.

Main feature of ZED-Bull:

1. Finding PIN Code, preparing precoded transponders and programming transponders from EEPROM and MCU.

Zed-BULL PC software is excellent features will help you while using EEPROM applications. ECU pictures, which ECU has which M-C-U or E-EPROM and the location of mcu or e-e-prom on the board, which type transponder will be used... These kind of information will ease your work. With Automatic Module Finding (A-M-F) feature, when you select the E-EPROM file, the module will be recognized automatically

Another revolution of Zed-BULL is programming transponders when there is no key from ECUs. For now, Zed-BULL has 55 different applications and it is increasing... With this feature, you can program transponders, find pin codes and prepare precoded transponders for the cars which need precoded transponders like fiat doblo 48. For this feature, you don't need expensive precoded transponders priced about 8-10 Euro. You can use blank transponders.

2. Transponder Cloning:

11, 12, 13, 33, 73, 4C (writing to 4C electronic key and battery less TPX1 transponder), C-rypto 40 (some), 41(all), 42(all), 44(all unlocked VAG), 45(all), T-exas crypto 4D(all 60-61-62-63-64-65-67)to battery less T-PX2 and Silca electronic heads.

Until now, common transponder cloning tools could only copy fixed transponders. But the revolution that we started with our device, Zed-Qx, is increasing with Zed-BULL. 41(N   ISS             AN), 42(VA// . .. G), 44(Unlocked V.A..-- G) and 45(P- EUGE0-T) transponders which normally known as can not be copied, can be copied with Zed-BULL. Also you can copy 4C transponders onto batteryless TPX1 4C glass transponders

3. Producing Transponders for OBD Programming

If you have an OBD device like T-Code Pro, you will need special precoded transponders for some cars. Instead of buying these special transponders for high prices, you can produce them with Zed-BULL using blank transponders. And you don't need expensive precoded transponders priced about 8-10 Euro... The transponders that you can produce: 40, 41, 42, 44 Mi--tsubishi, 44 V../A   - G, 45, 73 M-i-tsubishi, 61, 62, 65 and 46 for B--M--W, A-UDI, PO  RSCH   E, CH--RYSLER, R--ENAULT... etc. For now, Zed-BULL has 24 different transponder production applications.

4. USB communication and fast update

You can update your Zed-BULL in less than 30 seconds and use your Zed-BULL with PC via USB

5. Hitag2 Transponder Programmer

If you want to buy a hitag2 programmer as standalone device, you have to pay around 1000-1500 Euro. But when you have Zed-BULL, you will get this hitag2 programmer feature for FREE. You can work on h-it-ag2 transponders and improve yourself on your job.

6. Easy Use with Wide Graphic LCD Screen.

Wide screen of Zed-BULL will show you much more.... With Zed-Bull is wide screen, you can see more information like, VIN number and kilometer info for B--  M-W cars, detailed information for 46 and 48 transponders ... etc.

7.Additional function:

1) Reading kilometer, VIN number and key number information from original B--M-  -W key and writing to original B-  M--W remote key

2) Finding PIN code from VIN number for H--YUNDAI and K--IA

3) PC software includes a wide-range transponder catalog, key fob procedures and more information

4) PIN code finding for 33 Renault and 45 P --euge0t from transponder

5) Unlocking the 48(magic II) type locked transponder and make it re -usable

6) Saving transponder information into database including crypto transponders

7) 3 different device case color alternatives (red, black and white).
