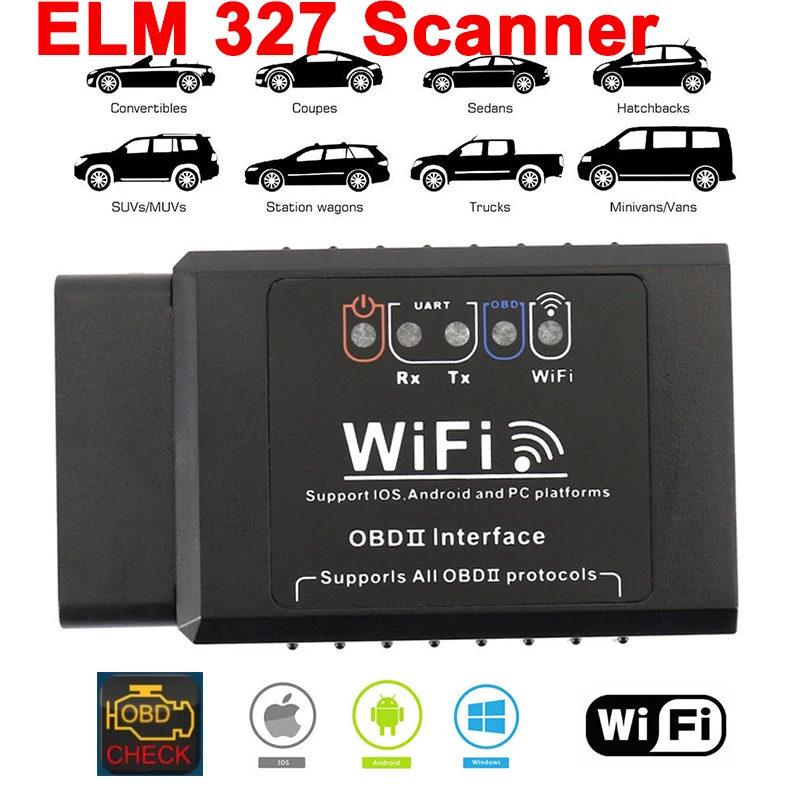

Black Version Wireless ELM327 WIFI V1.5 Work For Android IOS Windows

New Model,no need USB Connect.

If customer want by ELM327 WIFI USB,please kinldy click this link to buy :

http:/store/product/Newest-Version-ELM327-WIFI-USB-Supports-iOS-Android-Windows-USB-ELM-327-WIFI-Wireless-BY-Cable/2133041_32656708783.html

Highlight:

• Connection: Wireless WIFI by Smart Phone
• Hardware V1.5,software V2.1
• Supported Platform: Android Torque/IOS System/PC(WinXP; Win7 32bits)--Pay attention: No support Win7(64bits) and Win8 or up version(close anti-virus program when install software on PC)
• Supports 12V gasoline, Doesn't supports diesel&truck.
• Supports most OBDII standard protocols
• Multi-Languages:Czech, Danish, German, English, Spanish, French, Croatian, Hungarian, Italian, Polish, Serbian, Turkish
• If CD broken in shipping way or unreadable,please feel free to contact us ,we will send u link to download,sorry for that.

For iPhone Setting:

Description:

WIFI OBD AUTO CHECKER is able to detect and interpret these protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, iPhone, iPod touch, iPad and so on). There are plenty of software packages available, which are fully compatible with WI-FI OBD AUTO CHECKER. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained.

Wifi OBD VGATE Technical Specifications

SSID: WiFiOBD

IP: 192.168.0.10

Subnet: 255.255.255.0

Port: 35000

Range: 50 ft (Line of sight)

Antenna: Internal

Power Consumption: 0.75 Watts (With Power Switch)

Wifi Standard: 802.11a/b/g

Operating Temperature: -15 to 100 Deg Celsius

Plastic: Automotive Grade

Features:

CLK is capable of communicating with vehicles which adopt following protocols:

ISO 9141

ISO 11898(aka. CAN)

ISO 14230(aka. KWP2000)

ISO 15765(aka. CAN)

SAE J1939

J1850 VPW

J1850 PWM

 Functions:

1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2.Clear trouble codes and turn off the MIL ("Check Engine" light)

3.Display current sensor data

4.Engine RPM

5.Calculated Load Value

6.Coolant Temperature

7.Fuel System Status

8.Vehicle Speed

9.Short Term Fuel Trim

10.Long Term Fuel Trim

11.Intake Manifold Pressure

12.Timing Advance

13. Intake Air Temperature

14.Air Flow Rate

15.Absolute Throttle Position

16.Oxygen sensor voltages/associated short term fuel trims

17. Fuel System status

18.Fuel Pressure

Multi-Language 12kinds:

Czech,Danish,German,English,Spanish,French,Croatian,Hungarian,Italian,Polish,Serbian,Turkish

Vehile list:

It supports 12V Gasoil cars, can not supports Diesel Cars&truck.

But we do not test it on all cars, we can not make sure whether it can be used on your car.

Maybe you can buy one to have a try.As this is cheap elm327 wifi,but it has powerful function for your car !

Package:

1 x ELM327 WiFi

1 x Software CD

Q:What version of this ELM327 WIFI?

A: 100% Hardware V1.5,Latest Software is V2.1

Q:How many language of this device software?

A:Czech,Danish,German,English,Spanish,French,Croatian,Hungarian,Italian,Polish,Serbian,Turkish

Q:Does it supports Russian Language?

A:Sorry,the software has no Russian yet.

Q:Does it supports WIFI and iOS?

A:yes,it is wireless WIFI, supports WIFI with android torque /iOS system Smart Phone and windows XP/WIN7 32bits

Q:Does this device works diesel car or truck?

A:No,it works only 12V gasoline cars ,supports most OBDII Standard protocols.

Q:How can i know if this device works my car or not ?

A:this ELM327 works most 12V gasoline car brand model,but we can not sure if your car supported,we have no test each car .You can buy one to test. (If you dont sure and also do not want to buy one to try ,please do not buy ,we do not want any negative feedback about no supports your car else ! thanks in advance .)

Q:My smart phone connect to my old ELM327 before ,do i need delete previous informations?

A:Yes,please delete all old informations ,so make sure you can connect your new ELM327.
