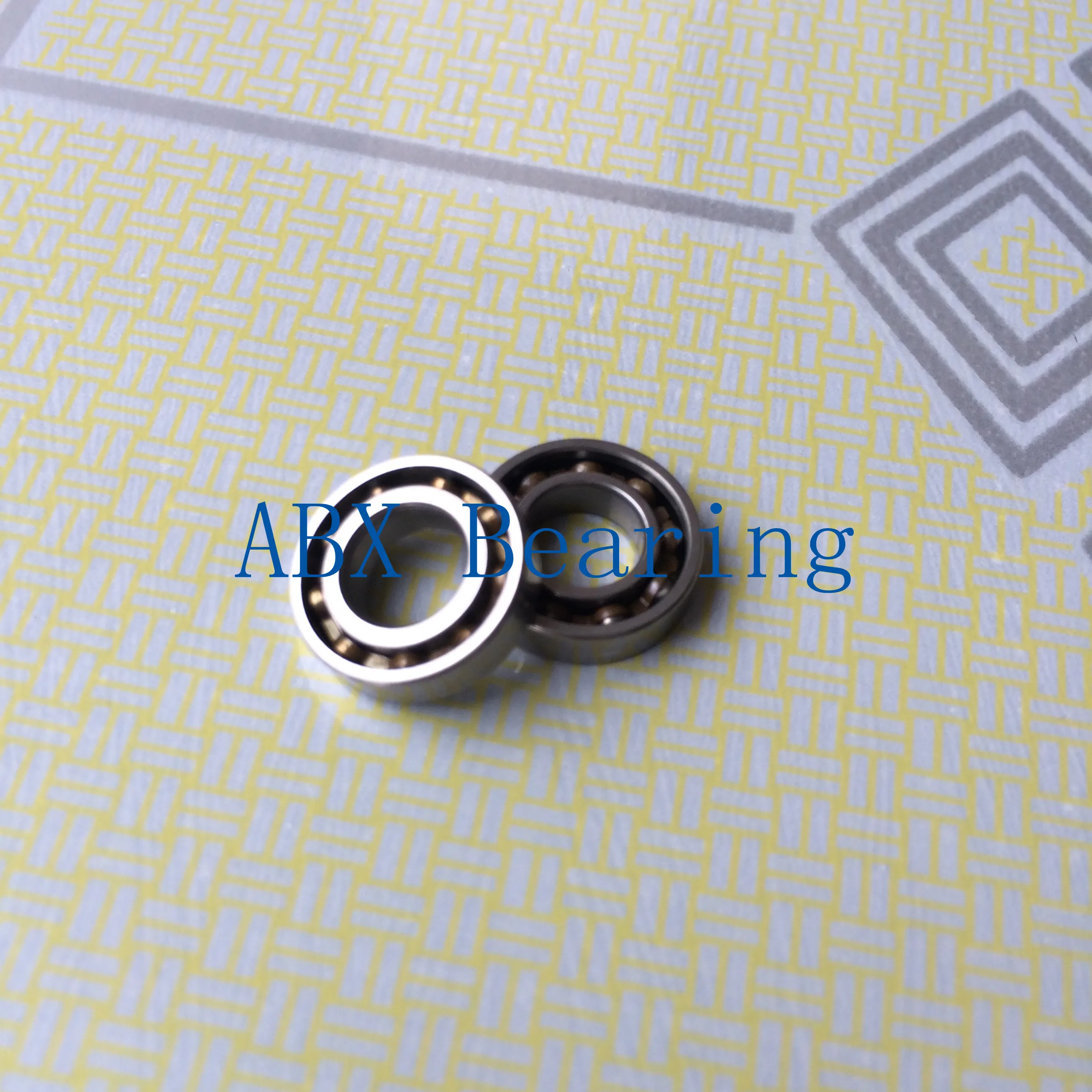

10 шт./лот MR63 L630 617/3 673 открытого типа радиальный шарикоподшипник 3x6x2 мм Миниатюрный

---

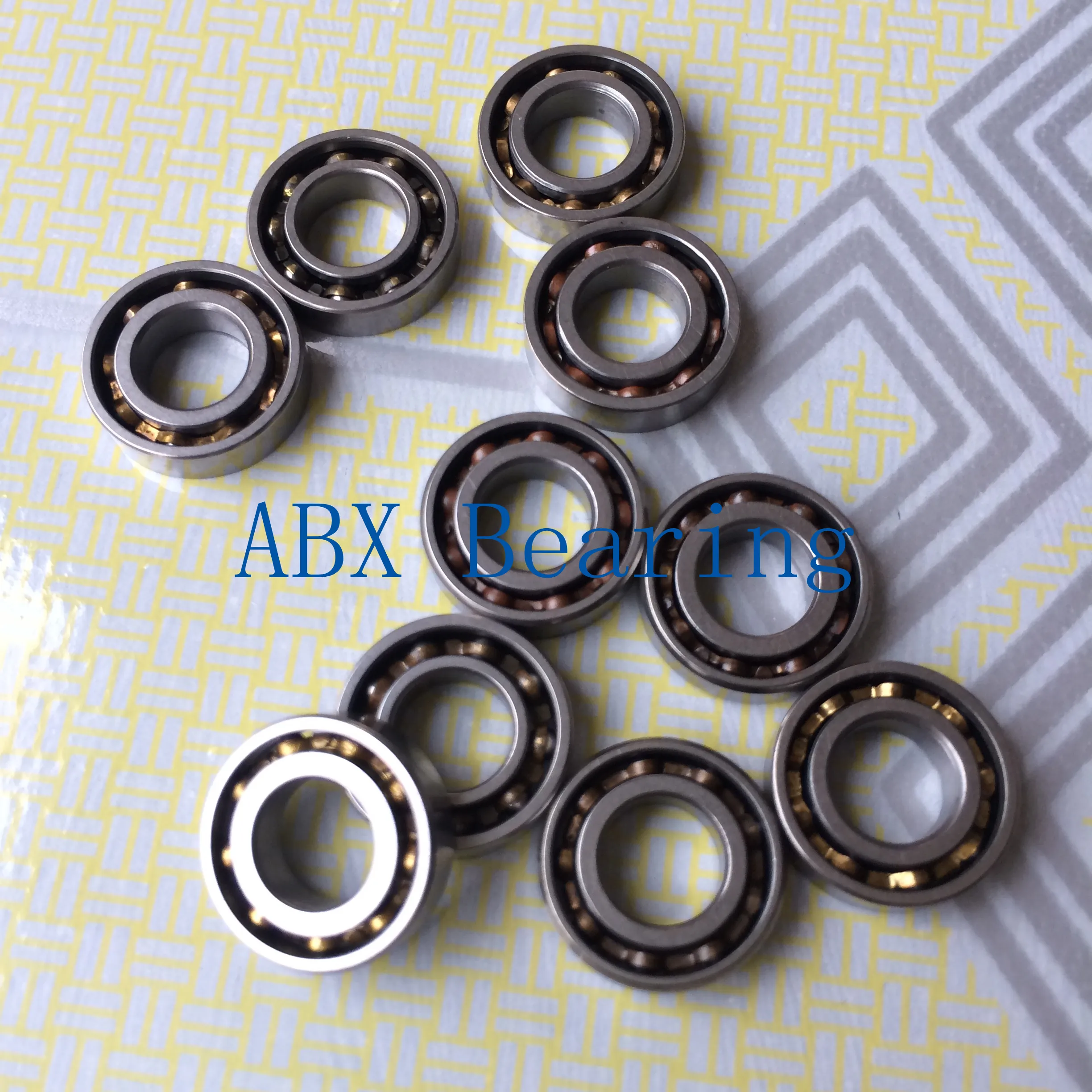

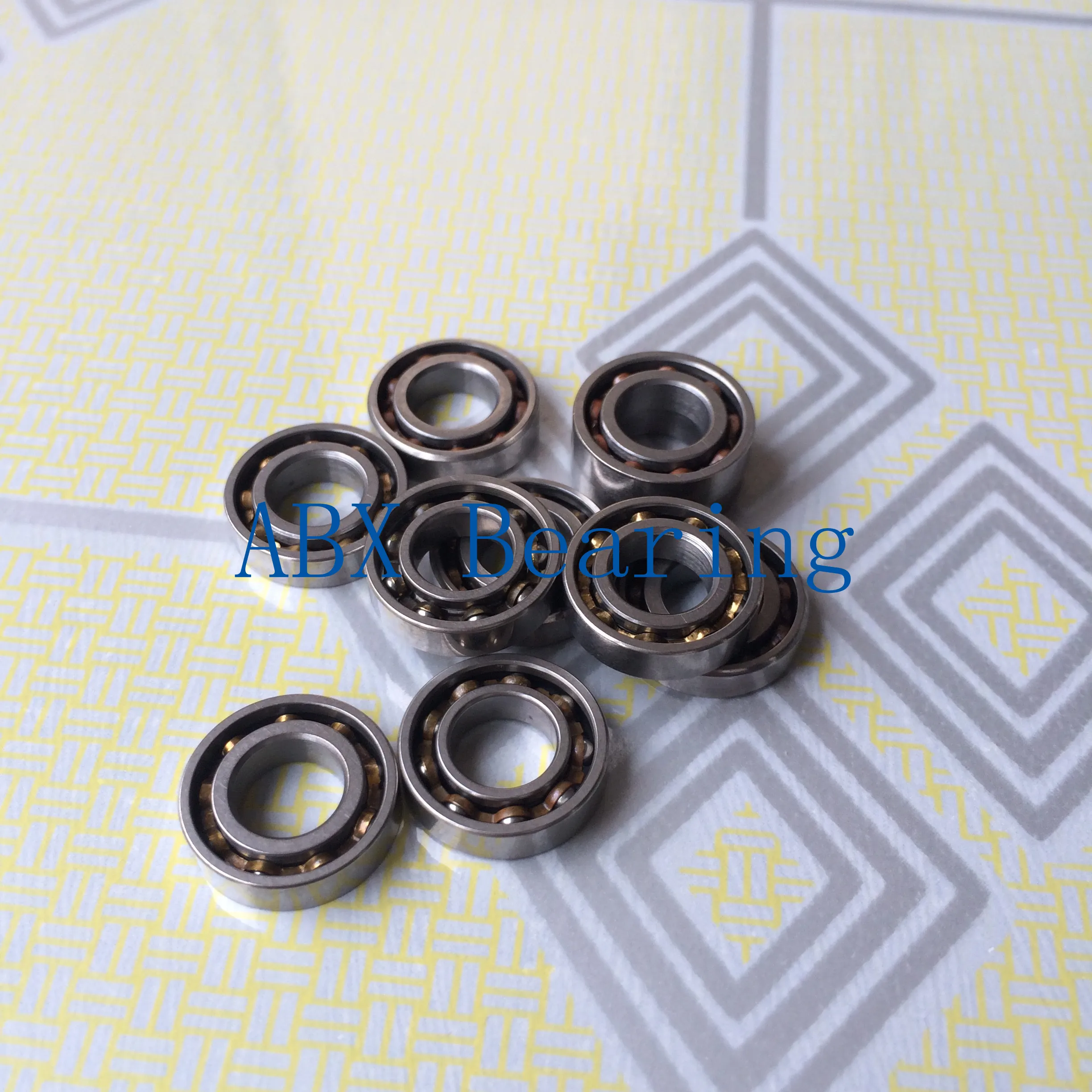

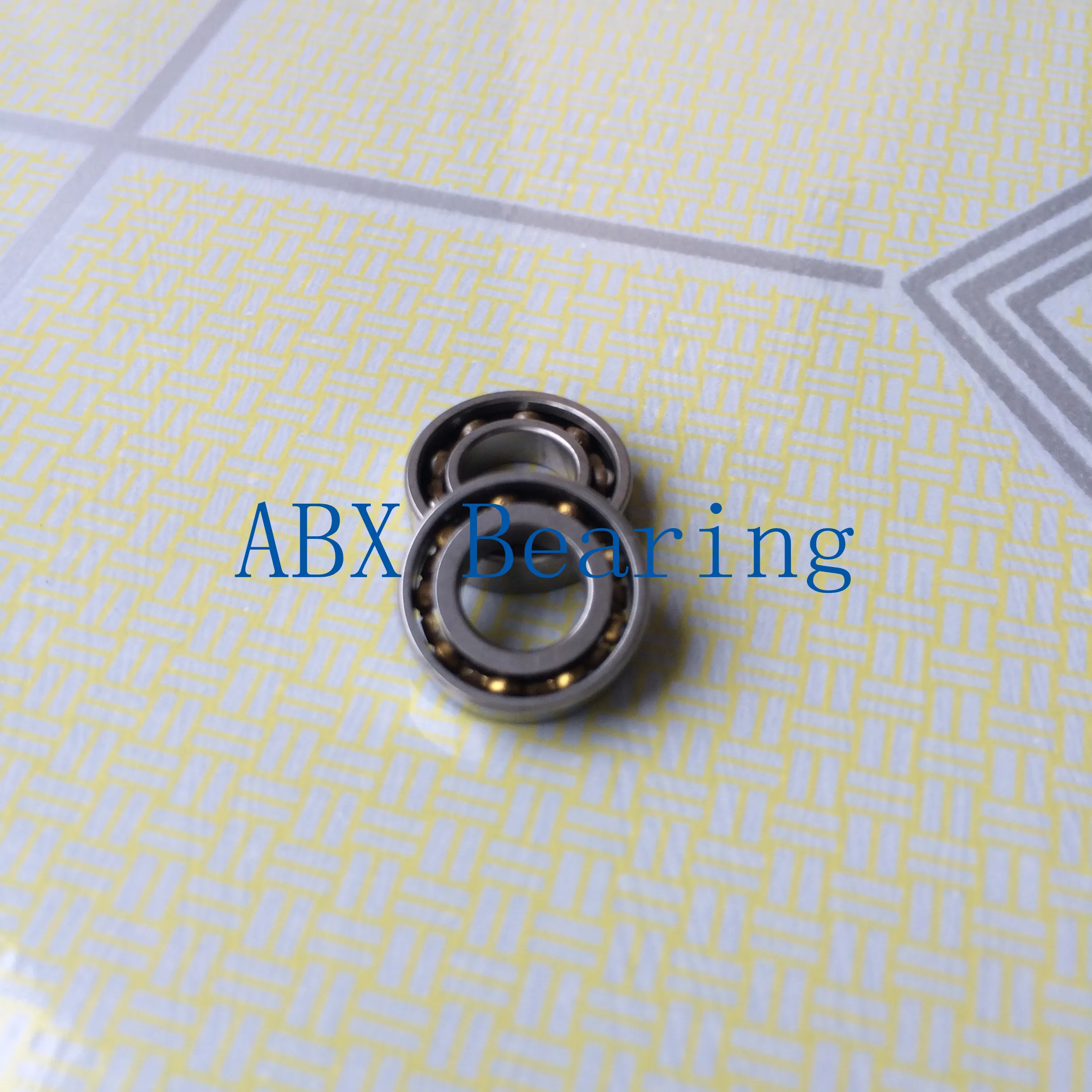

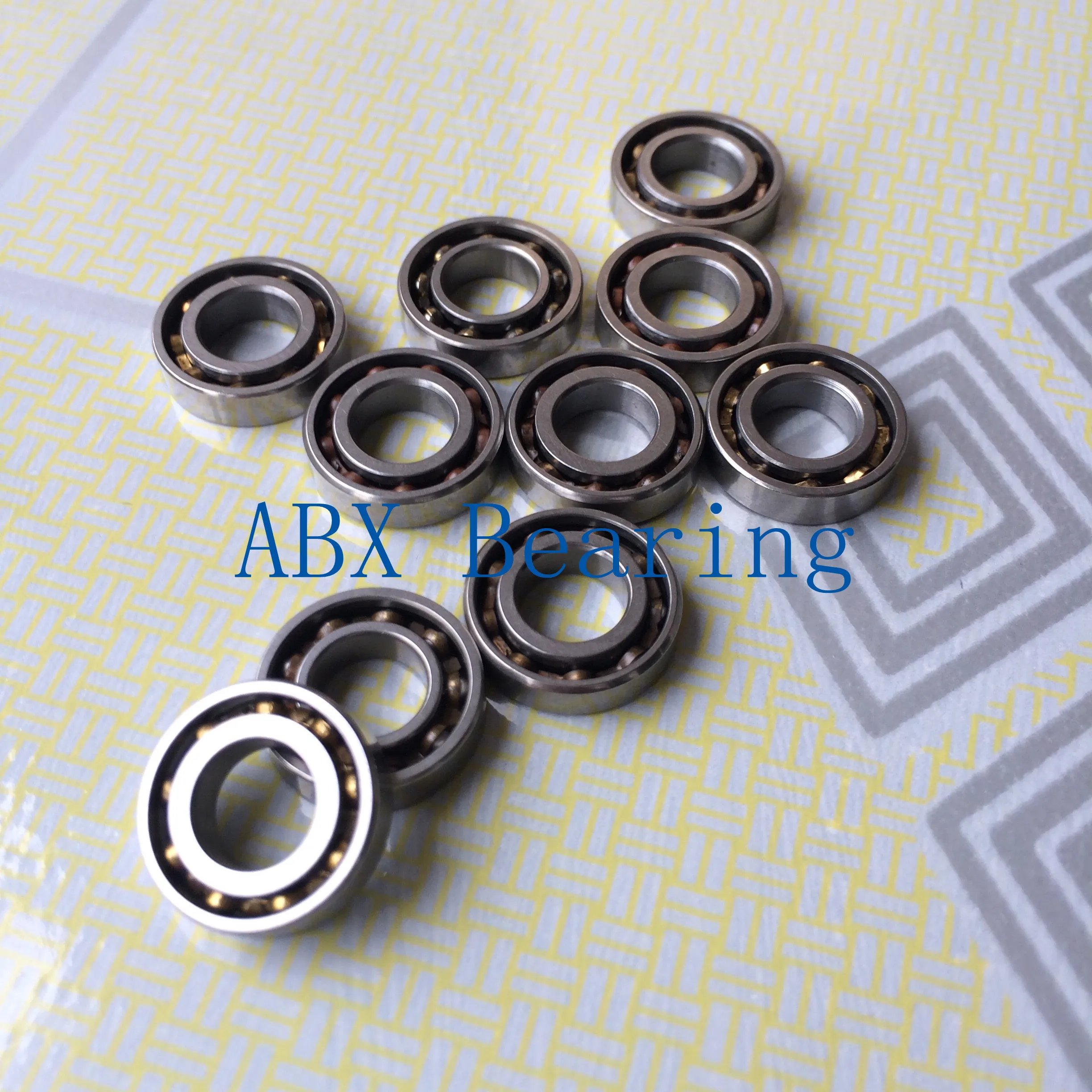

10pcs/lot MR63 L630 617/3 673 open type deep groove ball bearing 3x6x2 mm miniature bearing ABEC3

Material: chrome steel GCR15
Inner diameter is 3mm
Outer diameter is 6mm
Thickness is 2mm



MR Series
PN.	d	D	Thickness H		r	Cr(N)	Cor(N)	Speed (x1000rpm)
			open	Sealed ZZ
								grease	oil
MR52	2	5	2	2.5	0.1	167	49	94	106
MR62	2	6	2.5	2.5	0.15	333	98	83	93
MR72	2	7	2.5	3	0.15	382	127	73	82
MR63	3	6	2	2.5	0.1	206	74	73	82
MR83	3	8	2.5	3	0.15	392	137	60	67
MR93	3	9	2.5	4	0.2	568	186	56	62
MR74	4	7	2	2.5	0.1	255	108	60	67
MR84	4	8	2	3	0.15	392	137	55	62
MR85	5	8	2	2.5	0.1	216	88	51	57
MR95	5	9	2.5	3	0.15	431	167	47	53
MR104	4	10	3	4	0.2	588	206	47	53
MR105	5	10	3	4	0.15	431	167	44	49
MR115	5	11	3.5	4	0.15	716	294	41	46
MR106	6	10	2.5	3	0.15	500	216	41	46
MR126	6	12	3	4	0.2	715	294	37	41
MR117	7	11	2.5	3	0.15	451	206	37	41
MR137	7	13	3	4	0.2	539	274	33	37
MR128	8	12	2.5	3.5	0.15	539	274	33	37
MR148	8	14	3.5	4	0.2	813	382	30	34

Because of the most models are not in shop, please contact me for more price lists.
