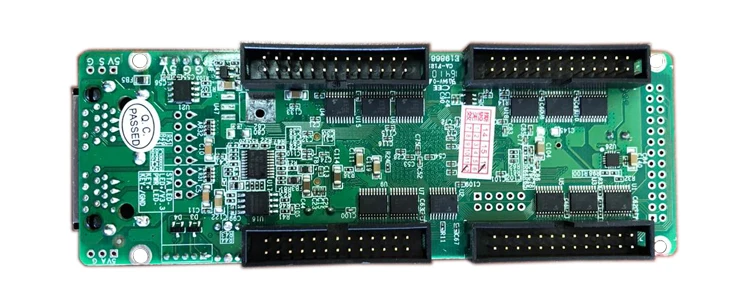

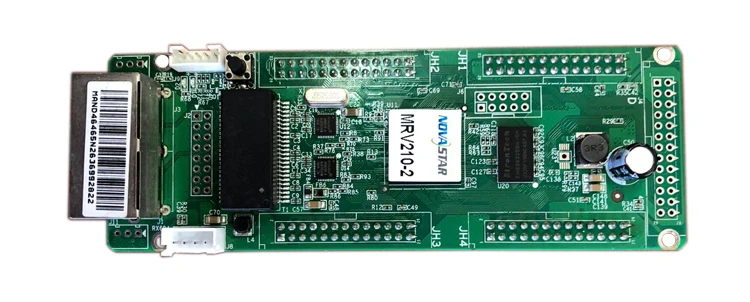

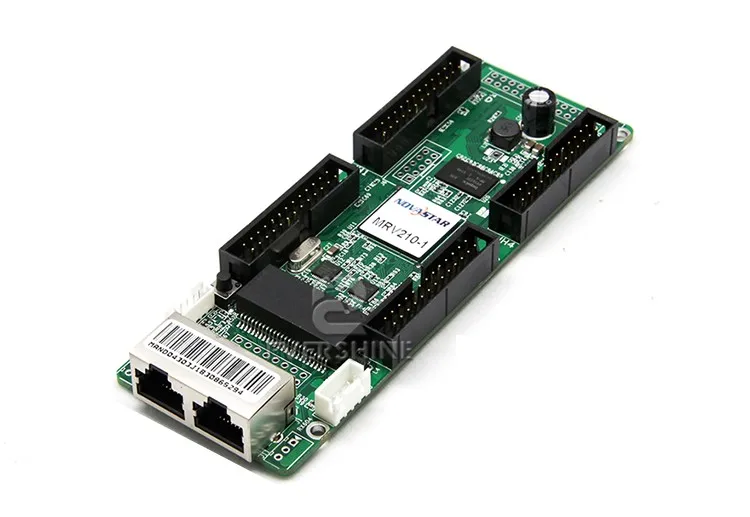

4pcs/lot Novastar MRV210-1 LED receiving card RGB LED display synchronous receiving card CE-EMC standard MRV210
MRV210 is the receiving card with 24-group data mode of Nova M3, Its characteristics as follows:
1) Single card outputs 16-group of RGBR 'data;
2) Single card outputs 20-group of RGB data;
3) Single card outputs 64-group of serial data;
4) Single card support resolution 256x226;
5) Support configuration file readback;
6) Support temperature monitoring.
7) Support Ethernet cable communication status detection;
8) Support power supply voltage detection;
9) Support pixel by pixel brightness and chromaticity calibration. Brightness and chromaticity calibration coefficients for each LED;
10) Support pre-store picture setting;
11) Comply with EU RoHs standard;
12) Comply with EU CE-EMC standard.
13) Comply with EU CE-EMC standard.
Under all the three different working modes of it, three 26P interface can output different data, and only one common program and software is required, no customized program necessary; interface is defined as follows:
1.16-group data mode
Support 16-group of RGBR 'parallel data, defined as follows:
It support 1/32 scan mode in 16-group data mode, and R4B,R8B,R12B,R16B are decoding
signal E. Pin 9 is decoding signal Ctrl below 1/16 scan mode(contain 1/16 scan). Pin 8 is
decoding Ctrl signal in 1/8 scan and below.

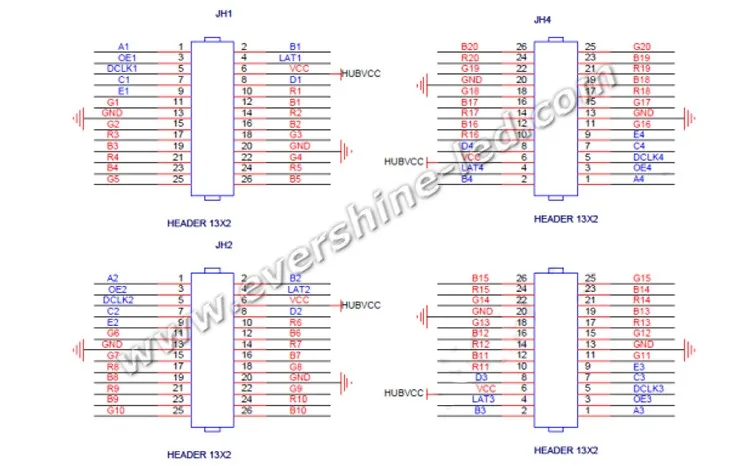

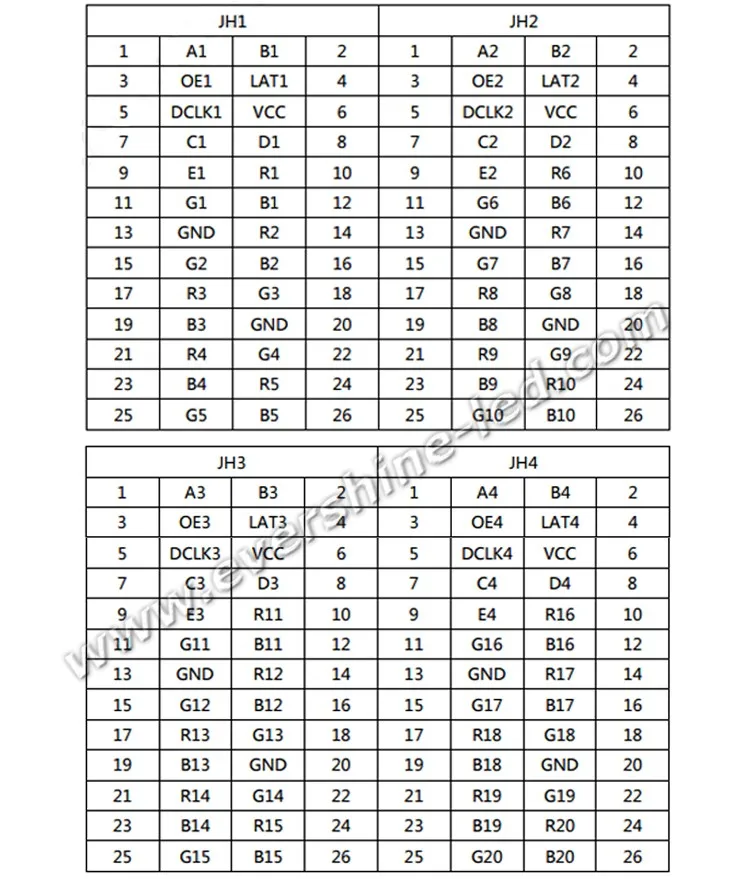

2. 20-group parallel data mode
Support 20 sets of parallel data, defined as follows:
Pin9 is Ctrl signal in 1/16 scan and below, and Pin 8 is decoding Ctrl signal in 1/8 scan and below
3.24-group data mode

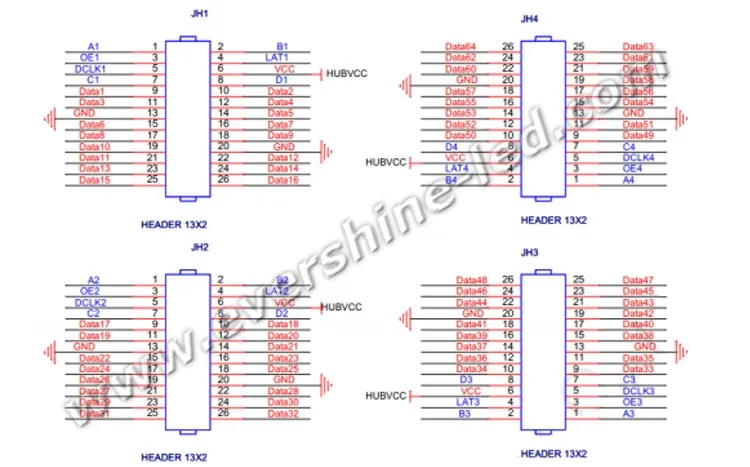

Support 64 sets of serial data, defined as follows:

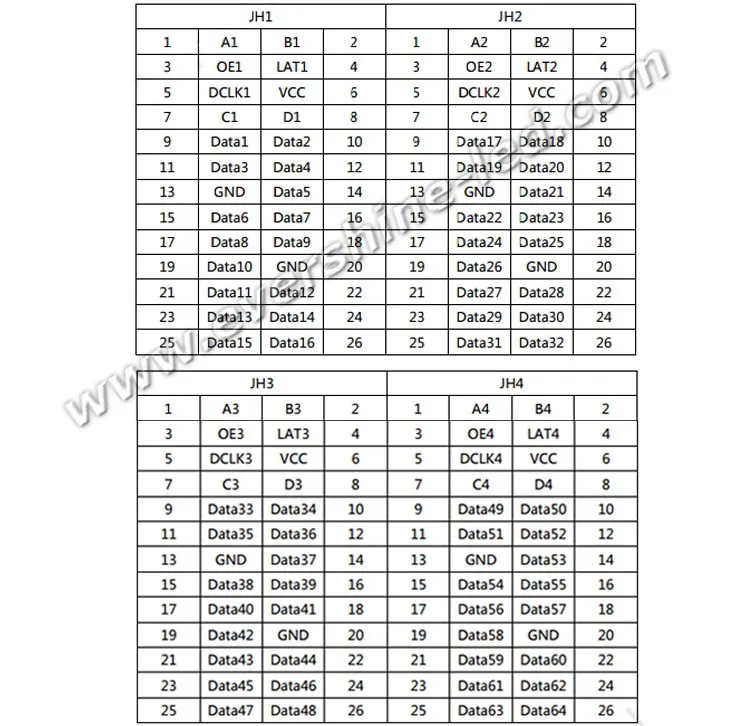

4.64-group serial data mode
Support 64 sets of serial data, defined as follows:
Under serial mode, there are 64 data cables totally. Each cable can drive one LED bar independently. In case of horizontal LED bar, the default is, Data1 drives the first row from the top, and Data64 drives the 64th row. In case of vertical LED bar, the default is, Data1 drives the first column of from the left, and Data64 drives the 64th column

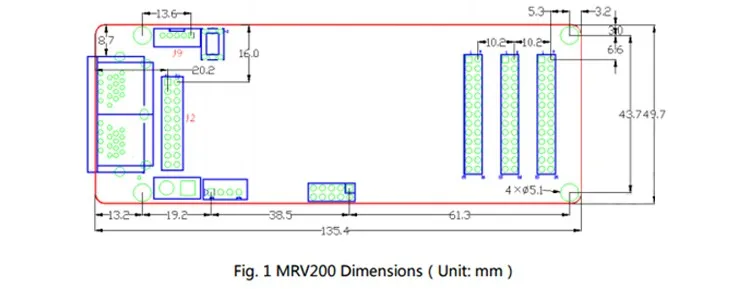

J2: Connector interface of the network ports
J9: Indicator light Socket

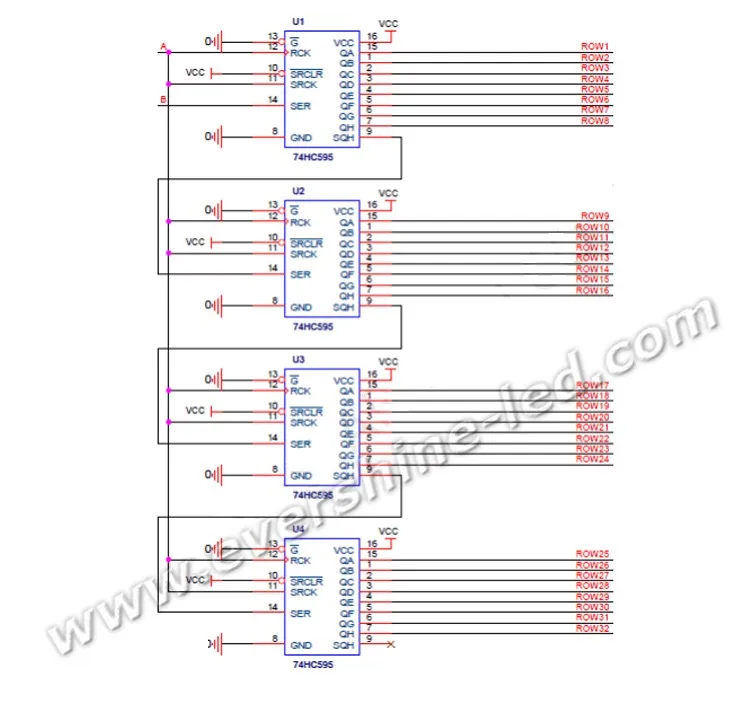

Serial data decoding circuit:
