Features:

1. Software Version: Newest V2018

2. D900 has CAN Protocol, reads and clears all generic, and some manufacturer, specific DTCs, powered via detachable OBD2 cable from cars directly.

CAN/KWP 2000/ISO 9141-2/J1850 VPW/J1850 PWM

Supports ISO, VPW and PWM bus systems as well as CANBUS systems

3. Can test car till 2015,add 2000 fault code in. Over 3000 new Customized diagnostic trouble code was added supports latest 2015car models. Optimized data stream make the data output   even faster and more accurate. Even in bright sunlight,the new designed display delivers clear, crisp text and images with no gla-re.

D900 Scanner Description:

1. An essential piece of kit for all car and van owners save time and money with this hand held OBDII scan tool which enables you to troubleshoot any problems in your vehicle.  by reading the Diagnostic Trouble Codes (DTC) that appear when the "check engine"light is showing.

2.DTCs are codes that are stored by the car's in-board computer system in response to a vehicle issue. Codes relate to a particular problem and are made up of a 5 digit alphanumeric sequence and are used as a guide to help locate the fault in order for you to fix the vehicle.

3.This scanner It It resets the check engine lights, reads and clears all generic, and some manufacturer specific, DTC,   displays the I/M readiness status, views OBD II freeze frame data, displays pending codes, retrieves vehicle information (VIN), and determines the status of the malfunction indicator (MIL) lamp.

4.Help prevent costly future engine trouble and identify problems when buying or selling a used vehicle with the MULT-OBD scan tool.

5.The D900 CanScan is brand new and is supplied with: scanner unit OBD II connector cable, disc with comprehensive user manual, OBD information and compatibility list and   padded storage case with wrist strap.

D900 Scanner Functions:

1. Displays the DTC definitions on screen unlike previous models

2. Wider coverage: works with CAN-equipped vehicles

3. Reads and clears all generic, and some manufacturer, specific DTCs

4. Erase codes and reset MIL

5. Views OBD II Live data

6. Views OBD II freeze frame data

7. Displays I/M readiness status

8. Retrieves the Vehicle Identification Number (VIN)

9. Determines the malfunction indicator lamp (MIL) status

10. Hand held and easy to use with one plug-in only

11. Highly reliable and accurate

12. Safely communicates with the onboard computer

13. No batteries needed for operation powered via detachable OBD2 cable

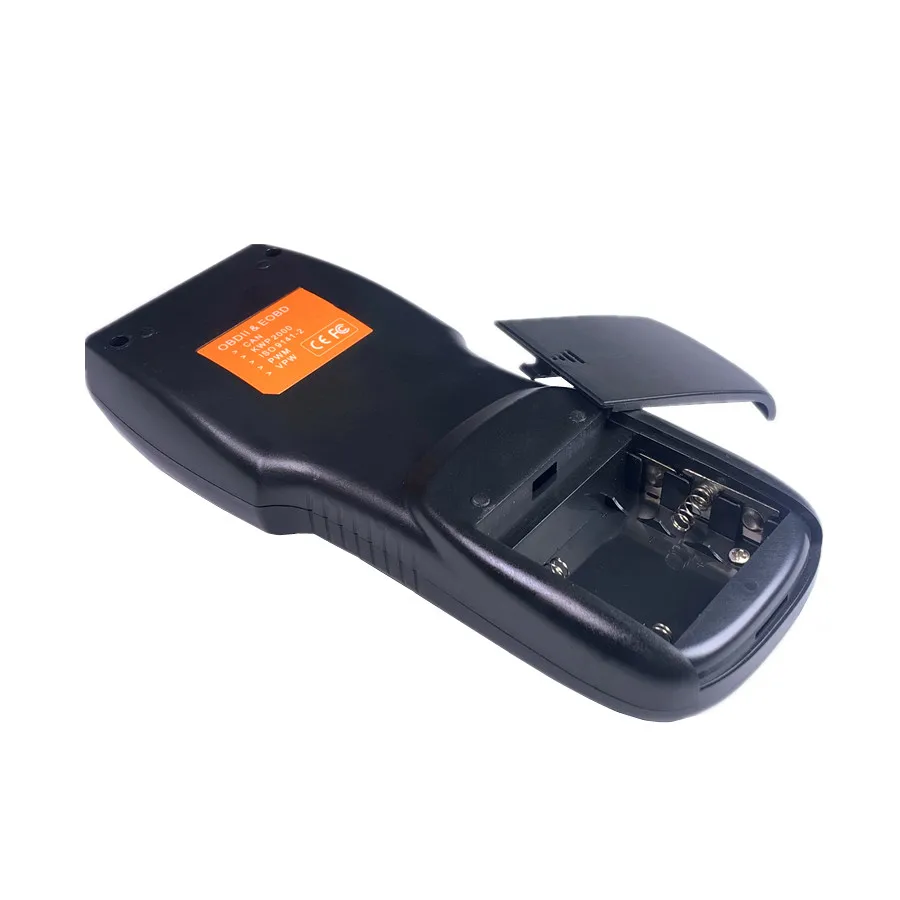

14. Battery compartment for off-vehicle reviewing or for when upgrading from PC

D900 Scanner Supported Protocols & Vehicles:

This is an OBDII and EOBD scanner which supports the following protocols:

CAN/KWP 2000/ISO 9141-2/J1850 VPW/J1850 PWM

Supports ISO, VPW and PWM bus systems as well as can bus systems

U.S. Models - European - Japanese - Asian - German - Korean:

Suitable for almost all cars after 1996 .

G-M '96 - now (OBD-II)

Fo-rd '96 - now (OBD-II)

Chr-ysler '96 - now (OBD-II)

Toy-ota '96 - now (OBD-II)

Hon-da '96 - now (OBD-II)

NIS-SAN '96 - now (OBD-II)

D900 Scanner Using Procedures:

1. Turn the ignition off.

2. Locate the vehicle’s 16-pin Data Link Connector(DLC).

3. Connect the Scan Tool cable connector to the vehicle’s DLC. The cable connector is keyed and will only fit one way. (If you have problems connecting the cable connector to the DLC, rotate the connector 180°and try again.)

4. Turn the ignition on. But do not start the engine.

5. When the Scan Tool cable connector is properly connect to the vehicle’s DLC, the LCD display shows instructions for select New Scan.

6. Press the New Scan button. A sequence of message showing the OBDIIprotocols will be observed on the display until the vehicle protocol is detected.

Notice:

If the Scan Tool fails to communicate with the vehicle’s computer, an “Unable to establish a link with the vehicle” message shows up on the display.

1. Turn the ignition off.

2. Locate the vehicle’s 16-pin Data Link Connector(DLC).

3. Connect the Scan Tool cable connector to the vehicle’s DLC. The cable connector is keyed and will only fit one way. (If you have problems connecting the cable connector to the DLC, rotate the connector 180°and try again.)

4. Turn the ignition on. But do not start the engine.

5. When the Scan Tool cable connector is properly connect to the vehicle’s DLC, the LCD display shows instructions for select New Scan.

6. Press the New Scan button. A sequence of message showing the OBDIIprotocols will be observed on the display until the vehicle protocol is detected.

7. After successful connection, please wait until the main menu shows up.

D900 Scanner Specifications:

1.Display: backlight 128 x 64 pixel display with contrast adjustment.

2.Easy-to-read screen and also saves up to 15 scans for later viewing.

3. Operating temperature: 0-50 C (-32 to 122F)

4. External power: 8.0 to 15.0 volts provided by vehicle battery

5. Internal Power: 3 AAA battery (included)

6. Power: directly from the vehicle or by X3 AA batteries

7. Unit dimensions: 9 x 20 x 3cm / 3.3 x 8 x 1.2" (W x L x D)

8. Screen dimensions: 6 x4.5cm / 2.3 x 1.6" (W x L)

9. Cable length: 109cm /43"

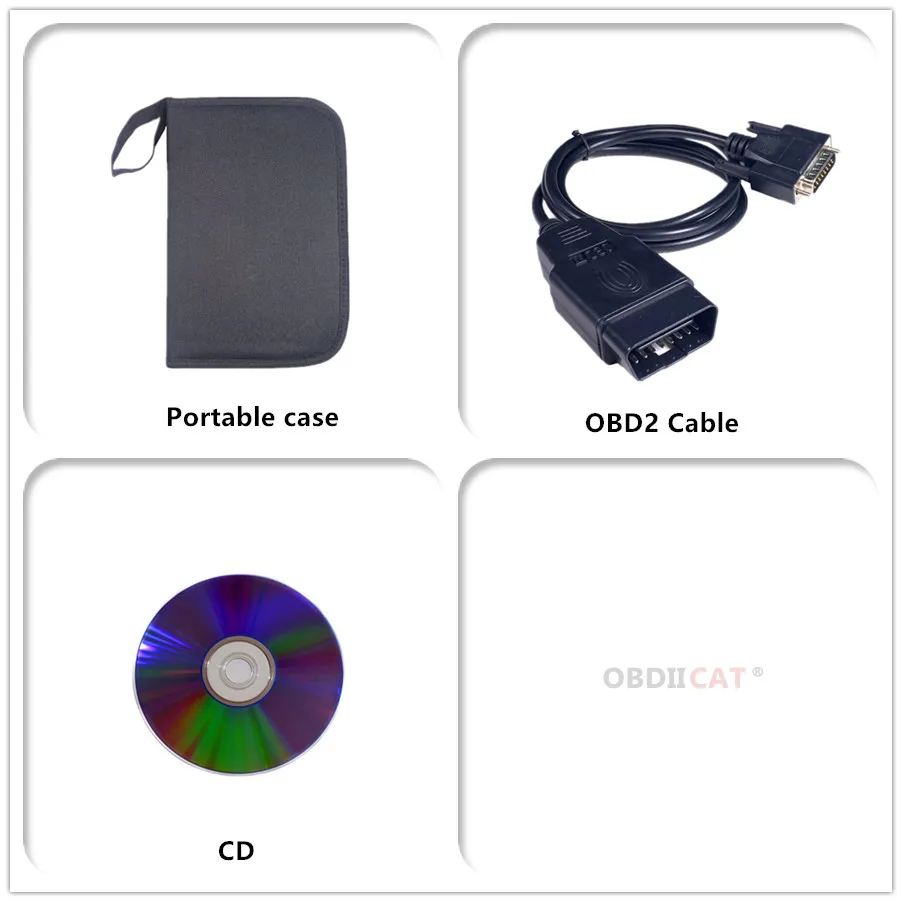

Package List:

1pcx D900 code reader

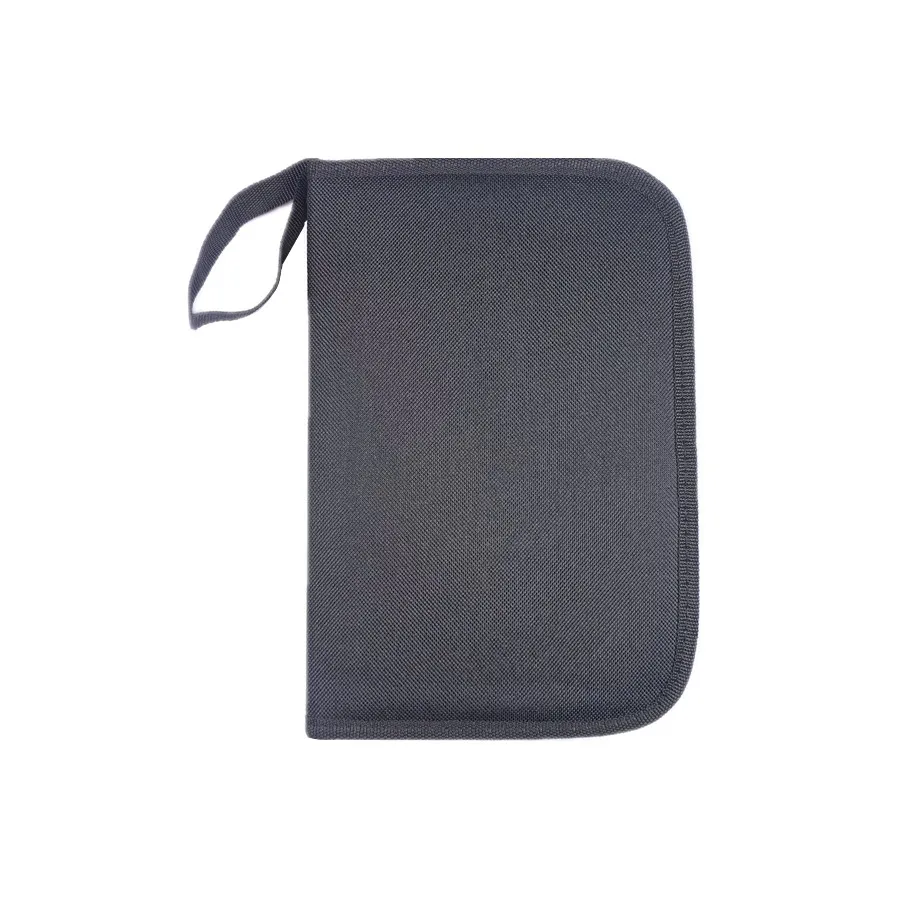

1pc x Nylon carry pouch for transportation of the tool and it's accessories

1pc x CD-ROM that includes User Manual

Real Photo Show:
