Multi-Users Portable Interactive Whiteboard



Outstanding Features

1. Smaller body, more portable

2. Breakthrough type installation method

3. Auomatic Calibration

4. New pen-Rechargeable

Specifications

Signal Receiver
Movement Detection Technology	infrared
Active Area(max projection size)	150 inch diagonal
Active Area(horizontal angle)	33+/-2 degrees
Active Area(vertical angle)	0-30degrees
Calibration Technology	Infrared Positioning
Active Distance(from projection screen)	0.2-3m
Connectivity Interface	1 x USB Cable (connection distance up to 24 m)
Power Requirement	4.5 ¨C 9 W (from USB port)
Power Consumption	<1.5 W
Weight	140g

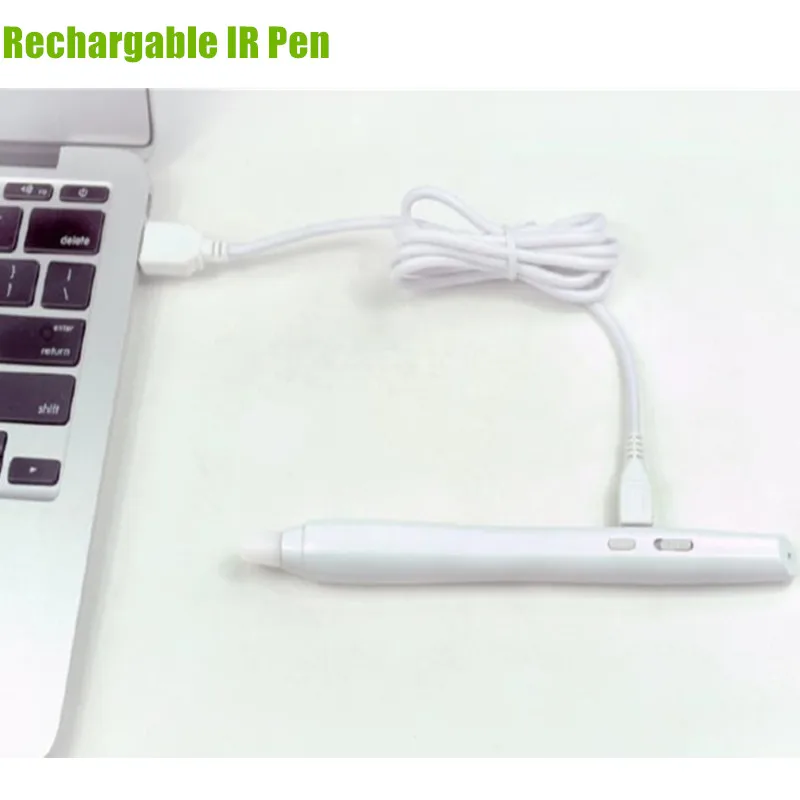

E-pen
Movement Detection Technology	LED light
Power requirement	3V CR 123A x1
Pen Body Dimension	13.2cm(length); 2cm(diameter)
Weight	45g
Projection Size	Distance between Receiver and Projection Surface
60 inch	160cm
80 inch	197cm
100 inch	238cm
120inch	350cm





Applications:   1.Education: interactive classroom teaching   2.Business meeting: interactive demonstrate   3.Enterprise training, research project   4.Interact media, entertainment   5.Long-distance education, multi-locations interactive

How to install it:

  1. Install the right software on your PC ( the same model number)   2. Connect the signal receiver to PC by the USB cable   3. Connect the projector to PC by the VGA cable   4. Start the portable IWB server   5. Input the product key   6. Choose auto-calibration or hand-calibration   7. Click the icon of e-note to start drawing

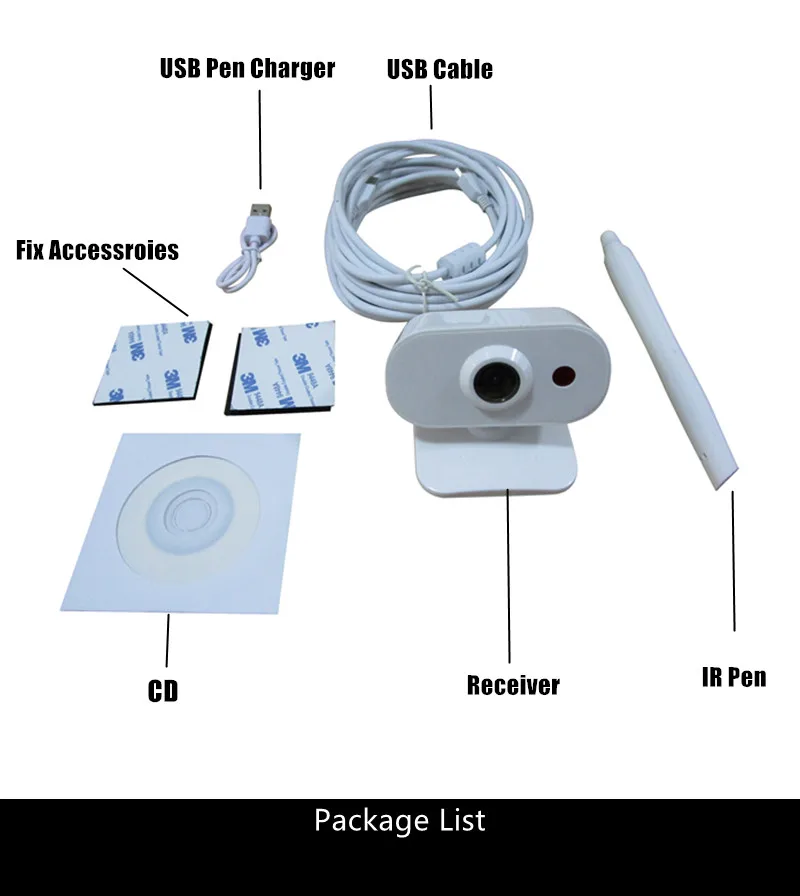

Packages:

FAQ

  Q1.How many operating system does our products support?   A:it support Windows XP , Win7,Win8, Vista .   Q2.where is our main source markets?   A:Mainly are in Middle East Iran and surrounded country, south east Asia and south America brazil.   Q3. What’s our product line?   A: According to the idea of Research and Development Department and design department, we buy the needed parts in the market for the production and produce it in our own factory. Finally, we sell it to you.       Q4. In what kind of environment our products can work properly ?   A: Our products adopted Anti-light interference technology. It can be used in any normal classroom, but do not use it directly under the sunshine.   But when you calibrating , you have to be aware of not being disturbed by strong light.   Q5.How many language does our software provide ?   A: There are ten languages in total. There are Arabic language, Chinese, English, French, Korean,Portuguese, Russian, Spanish, Turkish, Vietnamese.   All the languages are in the software, when you install the software, it will read the system language ,if there is corresponding language in our software , it will be installed automatically according to your system language, so no need to install it by yourself.   But if there is no corresponding language in our software ,it will install default English automatically.   Pay Attention: the product is a whole set F-35 whiteboard with one e-pen, not including e-pointer, no projector no pc.    Delivery Information:    The item will be delivered as soon as your payment is confirmed. Shipping time will be depended partly on the courier company and local customs/duties, the following are only for your reference.   1. DHL: 3-5business days   2. UPS: 3-5 business days   3. EMS: 7 business days   4. HK post air mail: 15-40 business days.   5. China post air mail: 20-45 workdays.   Special Attention About the customs problems and tax:   1. Please kindly tell us what is the BEST Value to declare for the package.So that you can avoid to pay high tax or pay less. We always declare below USD$100 to save tax. Please leave us message if you have special requests for the declaring cost.   2. As far as we know, France, Brazil,Turkey have strict import policy. If your package is going to those countries, and the customs require to pay high tax.We are not responsible for it due to your country's import policy because we could control it.   3. If you are from Brazil,Please leave your CPF number or tax number on the order so that it's easier for you to get your package!   4. If your address is remote area, we will write to ask your decision before sending goods.   5. We have professional shipping company and there is no any failed customs experience before. Thanks for your understanding.   Attention For Russian Clients: 1. Please fill in your full name including your first name, middle name and last name when making the payment.:)   2. Please fill in your correct address including your Apartment No., Street, City, Region and country.     Otherwise post office would not deliver your package in Russian !
