Wireless CCD Track Car Rear View Camera For Citroen C5 C4 2010-2013 Parking Assistance Trackline Night Vision LED Light | Автомобили и

Wireless  CCD Track Car Rear View Camera For Citroen C5 C4 2010-2013 Parking Assistance Camera with Trackline

Night Vision LED Light Waterprof

Suitable For Car:

For Citroen C5 C4 2010-2013

Features:

• High definition CCD Camera
• Color night vision
• Waterproof
• Shock-proof
• 170 Degree Wide viewing angle
• Environmental & Durable
• 1-year warranty to every customer

Specification:

· Image Sensor: 1/3 "OV Color CCD

· Horizontal Resolution: 600 TVL

· Minimum Illumination: 1.0Lux F=1.2 (0Lux with IR on)

· Night Vision: 5-10meters

· Lens: 2.8mm

· Diagonal Viewing Angle: 170 degree

· Synchronization: Internal synchronization

· Signal to noise ratio: >48db

· Signal System: PAL/NTSC

· Electronic Shutter: Auto

· Video Output: RCA interface, 1.0Vp-p, 75Ohm

· White Balance: Auto

· Backlight Compensation: Auto

· Power: DC 12V

· Current Consumption: 50-60mA, Max 130mA with IR on

· Operating Temperature: -20C~ +60C, RH95% Max

· Storage Temperature: -30C ~ +80C, RH95% Max

· Video cable length: 6m

· Power supply cable length: 150cm

Package Content:

There are two options ( A and B) you can choose when you place the order.

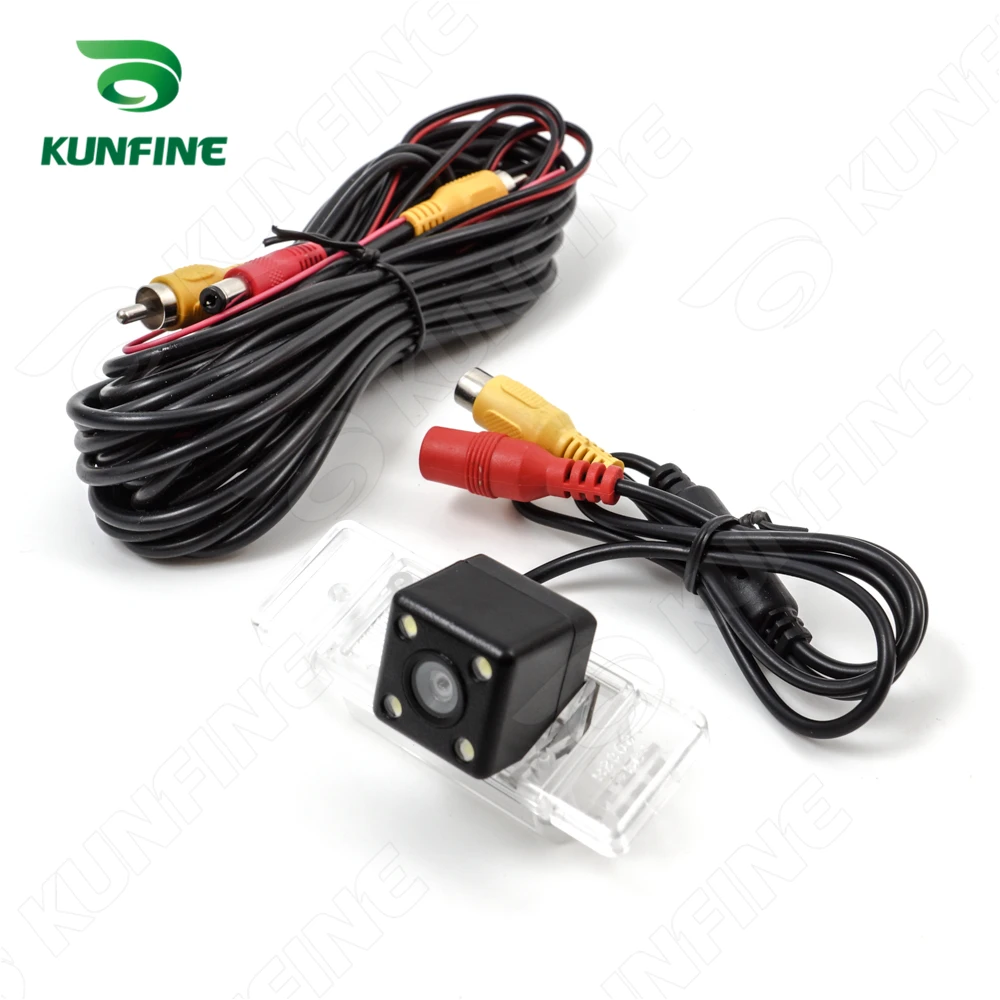

A. Wire CCD Track Car Rear View Camera

· 1x Car Rear View Camera

· 1x 6m Video Cable

· 1x1.5m Power Cable

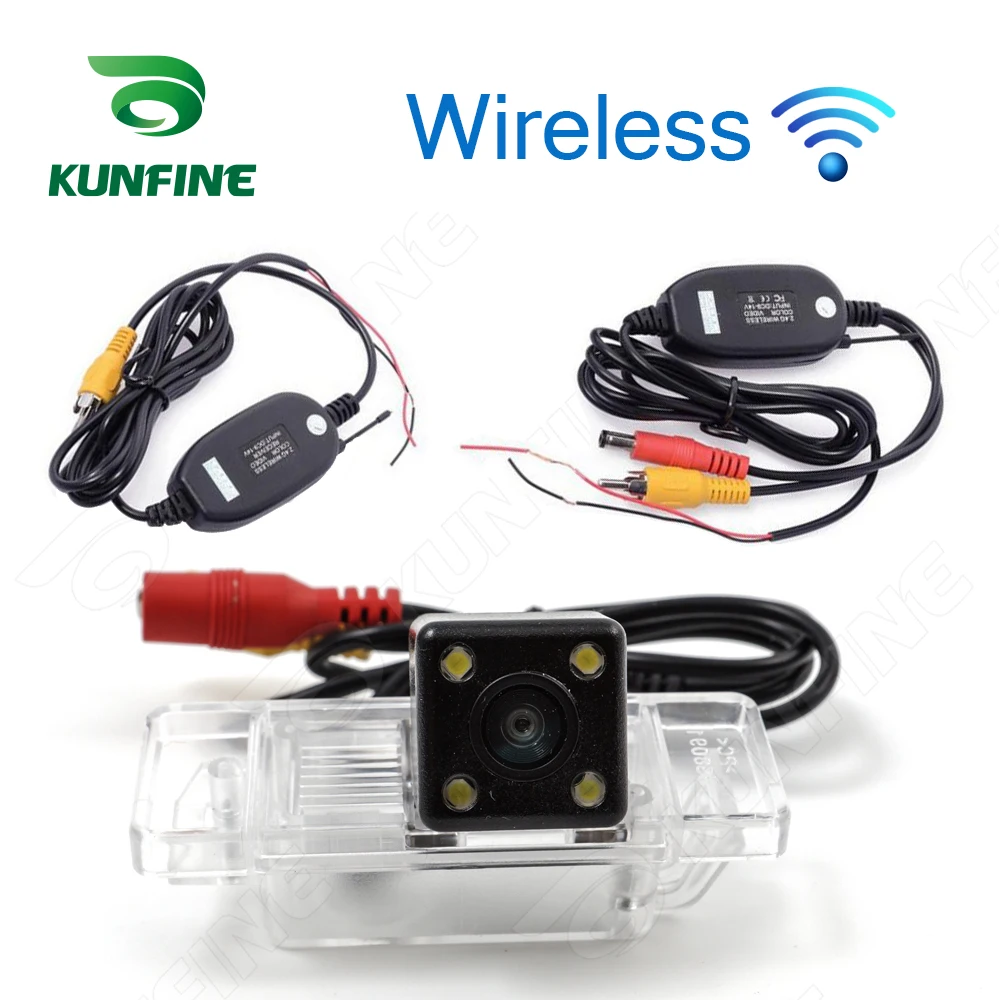

B.Wireless CCD Track Car Rear View Camera

How to Install

Take out your stock license plate light at the back of your car.

Fix the camera to where the stock license plate light was.

Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power

Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative.

Connect the video cable of the camera to the extension cord.

Connect the extension cord to your car monitor.

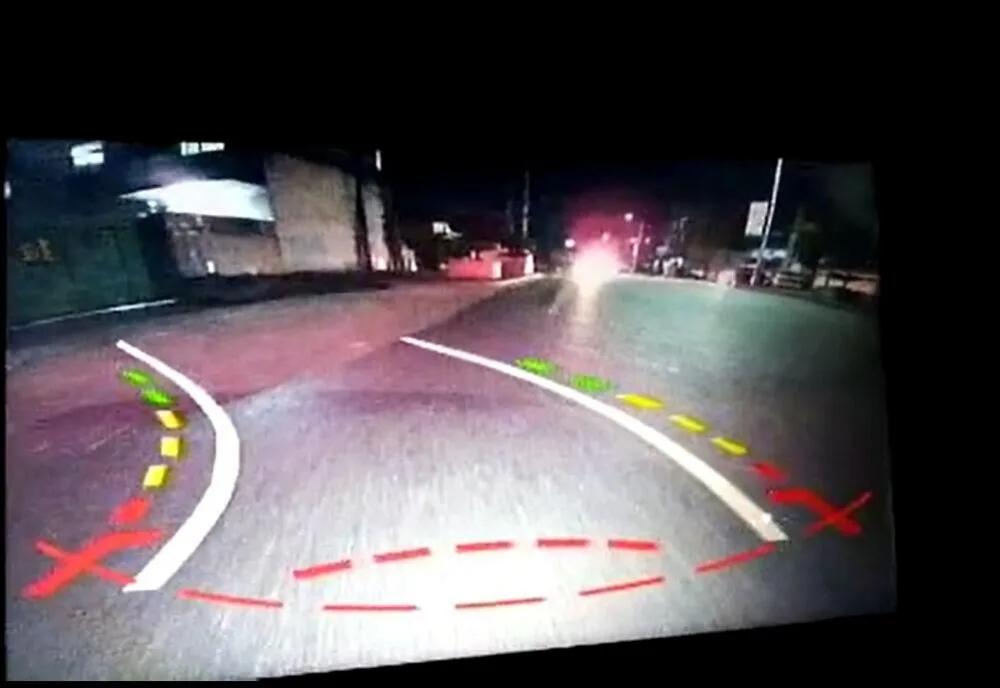

You will see the images when your car is in reverse shift.
