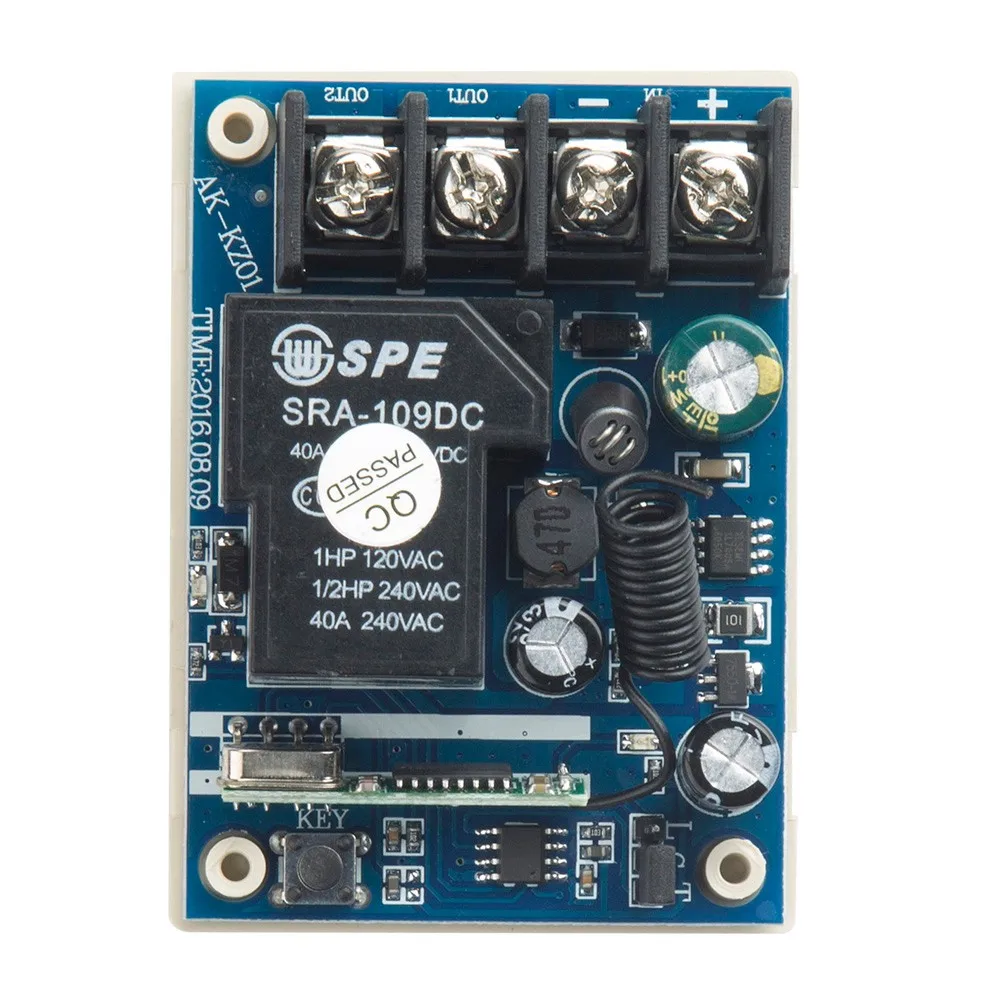

  This product is typically applied to the multi-channel electric doors and windows, ordinary electronic lock, switch, electric garage door, window, hoisting equipment ,industrial automation and control, all kinds of anti-theft alarm ,security and other fields .The remote controller supports the use of forming a complete set of wireless intelligent remote control system .It has a wide range of uses.

Feature:

Operating Voltage: DC12-48V

maximum load: ≤40A
Operating Frequency: 315 MHz/433MHZ
(here is in set .we have made it working together .so you don't have to care about what frequency are they )
Receiver Sensitivity: -100dBm
Encoding Type: learning code
 Note: the product has two kinds of output modes, 1. The output load voltage is DC12-48V ;2. No voltage output .Please order indicate the need what kind of pattern, if not sure, I will be no voltage output safe mode by default, thank you
Output working way:
Self-locking: Connect the jumper on T ( Self-locking control mode
:Press the switch is on the load, press the same switch again is to disconnect the load .Need one channel switch and a one-button remote controller.)
Jog---The cutting out cap is not occupied, jumper do not connect . Press the switch is on the load ,loosen is to disconnect the load. Also need one channel switch and a one-button remote controller.)
Inter-lock------- Connect the jumper on L (Press one switch is on the load , press another switch is to disconnect the load . (Need one channel switch and 2-button remote controller.)

ILearning and removing method:
1 .There is a learning button on the control panel of touch switch, the button is used to learn and remove the code.
2 .Press and hold the learning button for three seconds. When the indicator light flashes, we enter the learning state. Press any key on the remote controller to emit signal, the light flashes two times and off .It means you learn it successfully.
3 .It can learn more than 12 PCS 2262 or 1527 chip with the different code wireless remote controller.
4. Delete remote control method: hold down the learning button for about 8 seconds, the indicator light turns on to off, then the code you learned before will be deleted.

Note: 433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequency

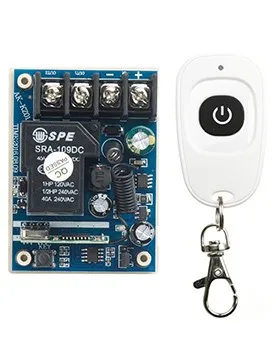

Package Includes:
1x  Receiver

1x  Transmitter
