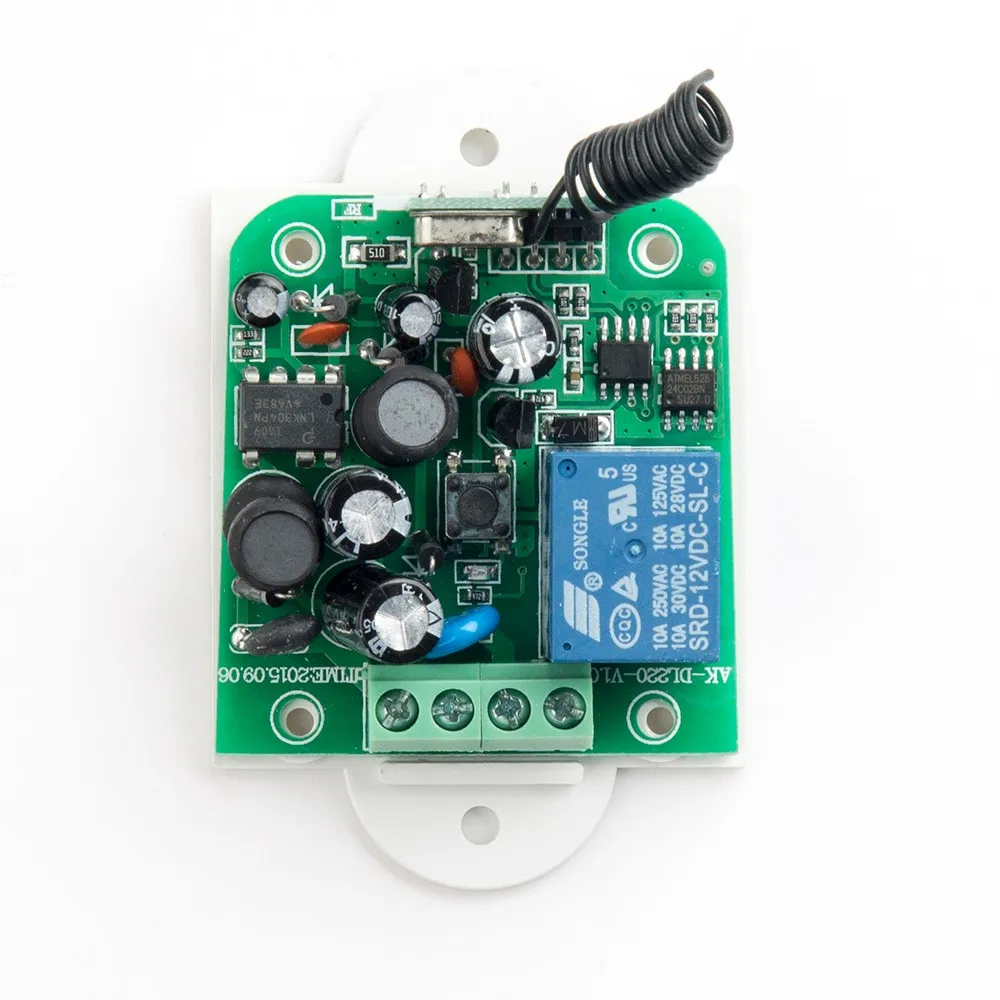

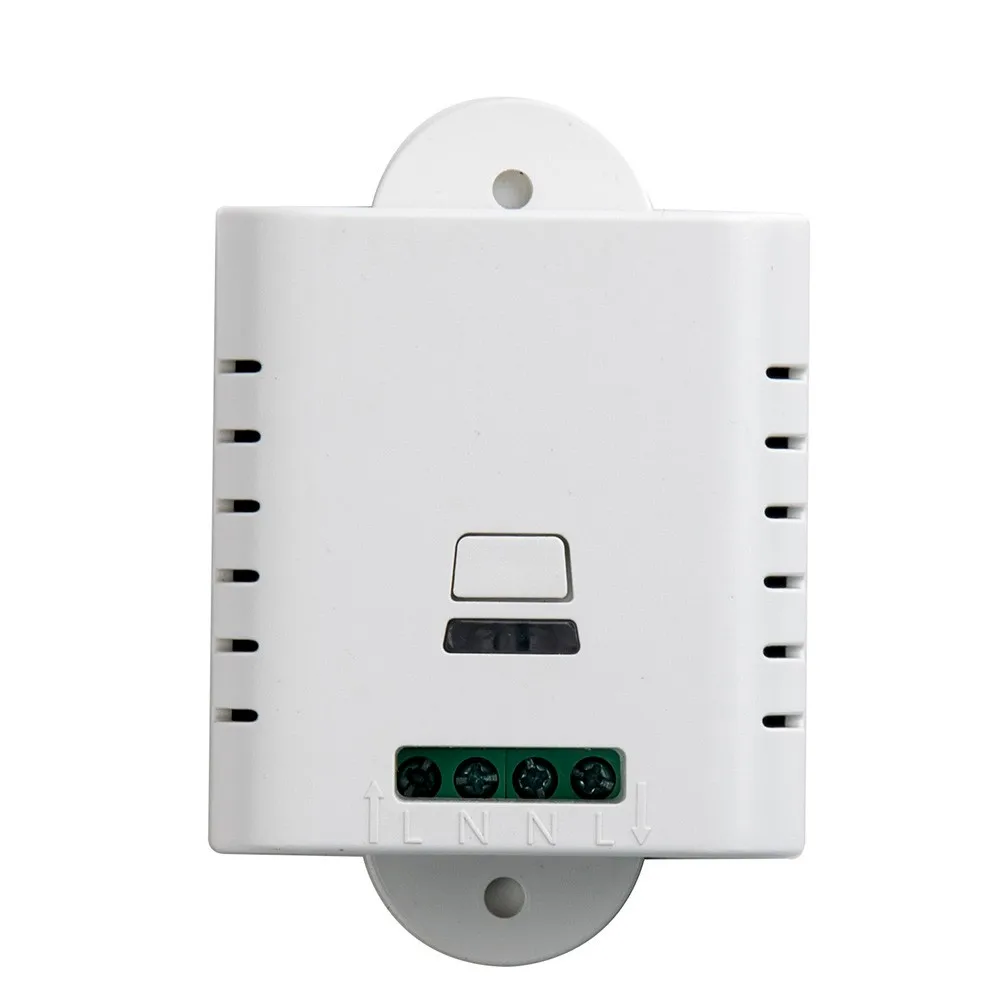

85V 110V 220V 250V 1CH Wireless Remote Control Switch Receiver+3*Wall Panel Transmitter Sticky Smart Home | Электроника

This wireless remote control switch design with manual and remote control two working mode, the buttons on the interface is a manual switch open key and  it  also is  a learning button matched with the remote control .Remote work mode has two work modes can be adjusted (self-locking and interlock), through the study of interface button to switch, and can be matched with more than 10 wireless remote control in any combination.

Self-locking working mode: study with the same button on the remote controller, press a button ON, press again  OFF;
Interlock work mode: study with two different buttons on the remote controller, press a key ON, press another key OFF;

Working voltage: AC85V-AC250V

Working frequency:  315MHz

Receiving sensitivity: - 110 DBM
Works mode: self-locking, inter-locking (adjusted by  learning mode )
size: 55 * 51 * 25 mm

Max ixum load:2000W

current : 10A

Self-locking learning  code method: first,   power supply plug in a manual click appliances remote control switch is normal electricity work. press the learning button about 3 seconds,  learning indicator light on , loosen the hand, press any key on the remote control 2 times. learning lights flashing three times , study successfully.

Remove code method: ( if you need to change the way please remove code frist  and  learn code )
press learning button  15 seconds , LED light  from on to off.remove code successfully.

Interlock learning  code method:  the power supply plug in a manual click appliances remote control switch is normal electricity work. press learning button about 3 seconds, learning indicator light on , loosen the hand, press any button on the remote control (or unlock button) 1 time, then press another button on the remote control (or lock button) 1 time, learning lights flashing three times,  study successfully.

 Package Included:

1 x Receiver
3x Transmitter
