Free United States Shipping Free Tax 48V 20AH Rear Carrier Lithium Battery 5A Charger + 48V 1000W 26" Ebike Conversion Kit

Very Important Attention:

Wheel Size: 26" Rear Wheel with 26x1.95" Tire and Tube

Rear Wheel Dropout with 7-Speed Gear: 135mm

Customs Duty:

Product is already in United States, it is TAX FREE for all US states

Delivery Time:

Normally we only need 2 working days to send out the kit and battery. it usually takes 4-7 days to arrive.

Delivery method:  FREE SHIPPING TO ALL STATES IN US

Warranty:

One year quality warranty (warranty is invalid for natural wearing or any damage due to wrong operation)

If you meet any problem, please firstly kindly check wiring diagram and FAQ below or communicate with us.

Do you support wholesale or drop ship?

Yes, we support both wholesale and drop ship sales.

This kit include all you need to convert a bike to an E-bike!

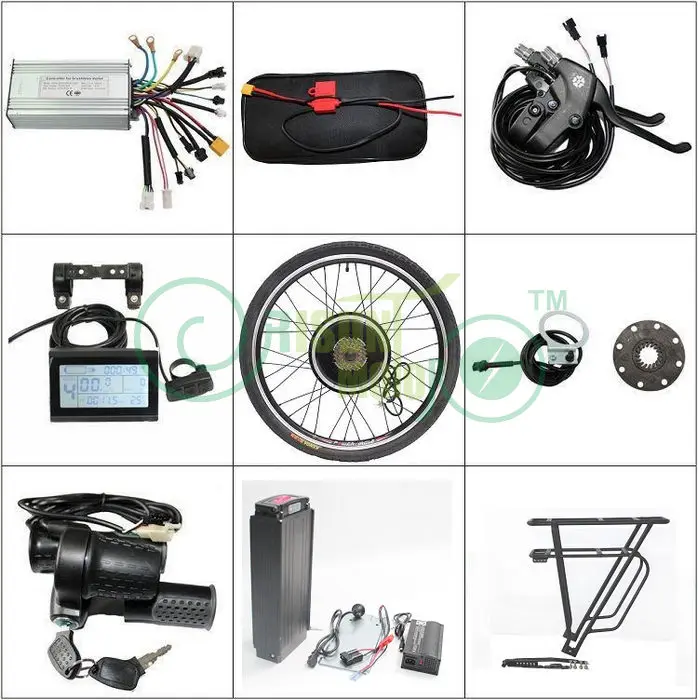

Parts Including in package:
(1). 48V 1000W 26" Threaded Motorized Rear Wheel with 7-speed freewheel
(2). 48V 26A 12 MOSFET Controller + Controller Bag
(3). 2 x Black Brake Levers
(4). Half-bar Twist Speed Throttle with Electric Key Lock 2ea. Handlebar Grips
(5). LCD3 Display
(6). Pedelec Sensor
(7). Battery Connecting Cable (connect controller to battery)

(8) 48V 20AH Rear Carrier Lithium Battery (OEM cell) + BMS+ 5A charger

(9) Battery rear carrier

Motor Specification:

(1). Brushless and Gearless Rear Hub Motor

(2). High Motor Efficiency: max can be 85%
(3). Magnet quantity: 46 pcs

(4)  Speed: 0-50km (different battery current, road&weather condition and rider's weight will have different speed)

(5). Hub Width (dropout): 135mm for 7-speed

(6). Motor Cable:  (3xPhase) 3x2.5mm2 + (5xHall Sensor) 5x0.2mm2,  Length 85cm, out from left side

(7). Motor Weight: 7kgs

Controller Specification:
(1). 12 MOSFET
(2). Rated Voltage: DC36V/48V universal

(3). Rated Current: 13A
(4). Max Current: 26±1A

(5). Speed set: 1-4.2V

(6). Brake Input: Low-Level

(7). Low Voltage Protection: DC30/40±0.5V
(8). Compatible with LCD Display or without Display (need to plug connector)
(9). Size: 193x84x43mm

(10). Weight: about 560g

LCD Specification:
(1). 24V, 36V or 48V universal (max 58.4V)
(2). Function: 5-speed level PAS, turn on/off PAS, speed display, speed limit, Cruise, 5-speed level throttle, max current setting, optional Regenerative braking function
(3). Size: 96*65*20 mm

48V 20AH Rear Carrier Battery Specification:

Installation Guidance:
1) Unscrew the existing front or rear wheel screws, remove wheel;
2) Install the motorized wheel and fasten screws;
3) Attach LCD, Brake lever and throttle;
4) Put Controller at suitable position and connect all wires.
5) Turn on battery, throttle key and LCD, set correct value from LCD
Correct wheel size setting: according to your wheel size
Correct max speed setting: set it at max value 72
Correct P1-P5 setting: P1=46,P2=0,P3=0,P4=0,P5=12

FAQ:

(1). Does your front or rear wheel support disc brake?
Yes, our motor wheel support standard 6-hole type disc brake


(2). Why can't turn on power
Please kindly check whether battery poles connect with controller is correct;
Please kindly check whether all connection correct and tight
Please kindly check whether you connect electric lock plug and turn on throttle key
Please kindly check whether you turn on LCD Display

(3). Why after I turn on power and turn throttle, motor doesn't work
Please kindly check whether all power already turned on
Please kindly check whether throttle connection is correct (Throttle is red/black/blue wires)
Please kindly check PAS speed level on LCD, whether it is not 0 (0 will turn off PAS and throttle)

(4). Why my speed display is not correct
Please kindly check whether you have correct setting:
Correct wheel size setting: according to your wheel size
Correct max speed setting: set it at max value 72
Correct P1-P5 setting: P1=46,P2=0,P3=0,P4=0,P5=12

(5). How can I disable cruise function
Please turn on power
Please remove cruise plug (small black plug of Black/Blue wires)
Turn off power
Turn on power again

(6). Why after turn on, LCD show "03_Info"
This is because of hall sensor abnormal, and most time is because hall sensor wires connection doesn't contact well, please kindly check the 5-wire hall sensor connector and also inside whether any pin bent doesn't contact well. If use quick release wire, please kindly check whether connector plugged very tight. If every connection is ok, then the most possible reason is hall sensor burned. (Very important: during installation, if need to remove the white hall sensor plug, please don't let hall sensor connector ends touch phase connector ends, otherwise hall sensor is very easy to be burned)

(7). LCD C4 setting

C4=0: PAS 0 level will turn off both PAS and Throttle, PAS 1-5 speed level only valid for PAS but not for Throttle

C4=3: PAS 0 level will turn off only PAS, Throttle still work, PAS 1-5 speed level only valid for PAS but not for Throttle

C4=4: PAS 0 level will turn off both PAS and Throttle, PAS 1-5 speed level is valid for both PAS and Throttle

(8). Which battery shall use

You need to choose suitable voltage, capacity and discharge current battery, otherwise battery will cut off due to over load discharge current. (You can also enquire us for advice).
