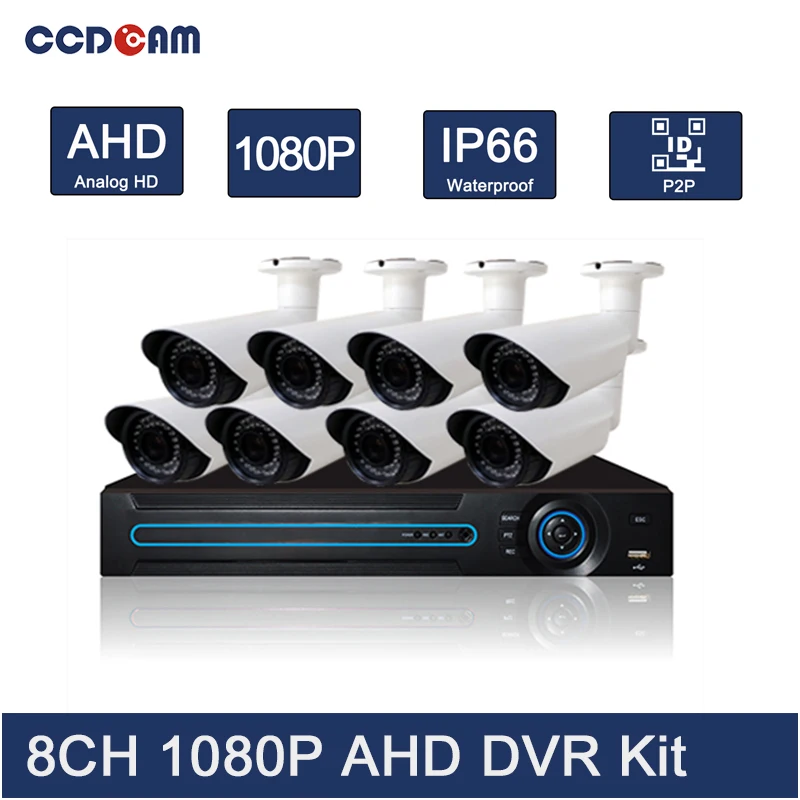

CCDCAM 8CH 1080P AHD DVR Kit Security CCTV System Full HD 2MP Camera with | Безопасность и защита

---

       Key Feature: >1080P AHD Camera (6MM Lens,  42PCS LEDs with IR Distance 40M )

>1080P 8CH AHD DVR (Video output 8CH, Playback 4CH, support 1 PCS HDD Up to 4TB capacity)

>Support Audio input 8CH.

>With HDMI, Support Cloud, P2P.

>Free CMS, P2P Software.







NVR SPEC:



Model	AHD8408PL
Support embedded Linux OS
Support BNC and IPC Sync Input
Support VGA, HDMI video output
VGA,HDMI image resolution Max to 1920*1080
Support HD preview, all channels support Main stream
Support Zoom function of preview and playback
Support event,playback,backup recording ,support picture playback and search
Support One-key recording
Support fast playback
Support P2P
Support 8ch 960H/8ch 1080P/4ch 5MP/1ch 1080P AHD simultaneous playback
System
Main processor	High performance embedded microprocessor
Operating system	Embedded LINUX OS
Video spec
Video compression format	H.264
Display Image Resolution	1.AHD: 8CH*1080P            (compatible with 720P AHD/960H analog)  2.AHD+IP:8CH*720P+8CH*1080P 3.IP: 16CH*1080P 4.IP: 9CH*3MP 5.IP: 4CH*5MP
Playback Image Resolution	960H/5MP 30FPS
Motion Detection	can setup 192(16x12)pcs motion detection area
	each channeland multi-level sensitivity(1-6 levels adjustable)
Privacy Masking	Support
Audio spec.
Audio compression format	adpcm, G711
Two-way audio	N/A
Recording Mode
Recording Mode	Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording
Recording storage	HDD,Network
Frame rate	30 fps NTSC; 25fps PAL
Playback	Max support 4ch 5MP synchronously playback
Backup Mode	Support HDD,USB Flash Disk store & backup
Video
Video Input	8CH BNC, RJ45
Video output	1ch VGA and 1ch HDMI
Audio
Audio Input	8ch BNC
Audio Output	1ch
Alarm
Alarm Input	N/A
Alarm Output	N/A
Other
Network	1x100Mbps,RJ45 port;
RS485	Standard 485 port,support half-duplex, green terminal port
USB	2 USB 2.0 ports
HDD	support 1 SATA HDD max4TB
Power	DC +12V
Power consumption	16W-18W(not include HDD)
Operation temperature	0°C-+55°C
Operation humidity	10%-90%
Demension	252*213*42mm(0.8U hight)
Weight	1.8KGS(not include HDD)

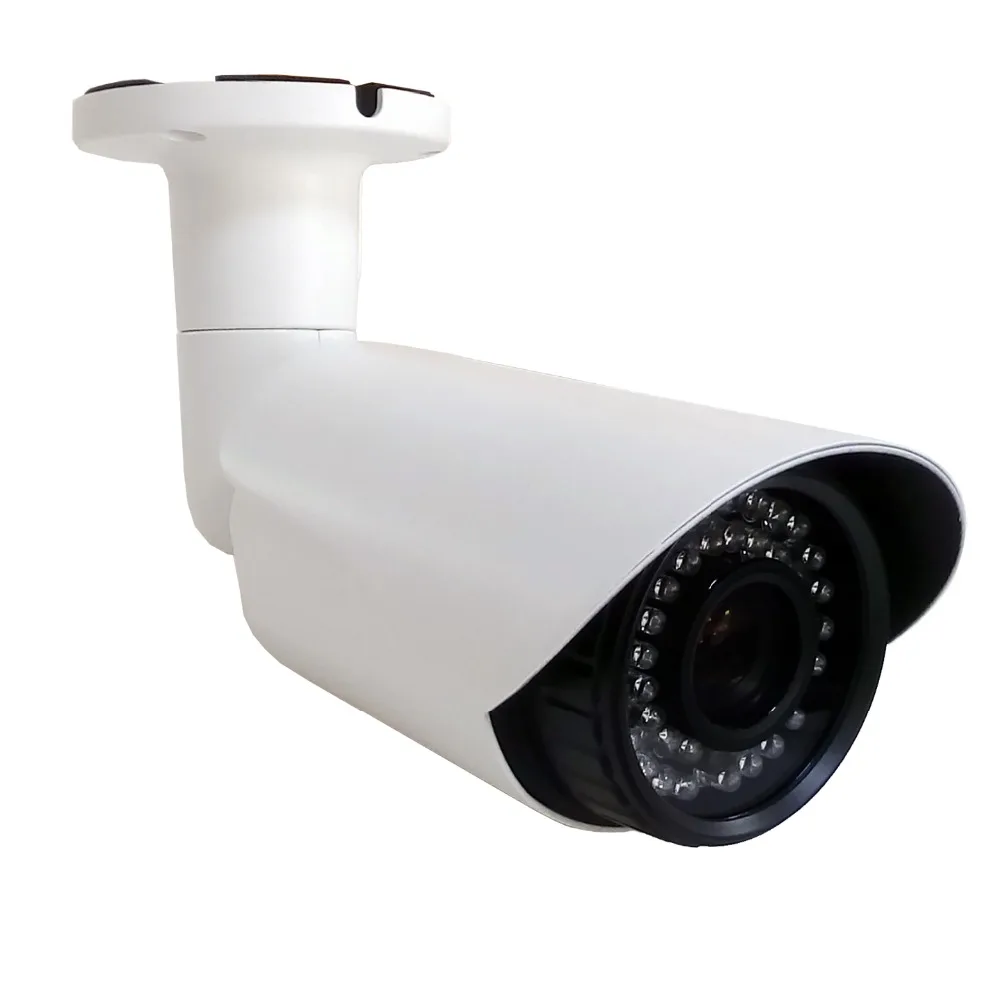

Camera SPEC:



Model	EC-AHW2002B
Camera type	1080P AHD camera
Image Sensor	2.0 megapixel 1/2.8'' SONY IMX222
	Low Lux Sensor
Effective Pixels	PAL:1920x1080@25fps
	NTSC:1920x1080@30fps
Resolution	1920x1080
IR-LED	42pcs 5mm IR Leds
Illuminate Distance	40m IR Distance
Day/Night	IR-CUT filter
Min.Illumination	Color 0.1Lux/F1.2, B/W 0.01Lux/F1.2
Electronic Shutter	4/25-1/45,000s
Lens	6mm Fixed Lens
Lens Mount	C/CS
Video output	1CH AHD Video output
Work environment	-10°C~60°C 90%RH
Power supply	DC 12V+-10%
BLC	Auto BLC
White Balance	Auto White Balance
Max tansmission distance	common 75-3 lines can be up to 300 m
other function	D-WDR,3D-DNR.
	OSD Optional
Waterproof Criterion	IP66
Package Size	24x14x12cm
Gross weight	0.8kg
