Мини промышленного наклейка принтер машины godex BP500L тепловой линии и передачи

Print Method

Thermal Transfer / Direct Thermal

Resolution

300 dpi (8 dots/mm)

Print Speed

5IPS (127 mm/s)

Print Width

4.25" (108 mm)

Print Length

Min. 0.16” (4 mm)**; Max. 68” (1727 mm)

Processor

32 Bit RISC CPU

Memory

128MB Flash (60MB for user storage) / 32MB SDRAM

Sensor Type

Adjustable reflective sensor. Fixed transmissive sensor, central aligned

Media

Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Width: 1” (25.4 mm) Min. - 4.64” (118 mm) Max.
Thickness: 0.0024” (0.06 mm) Min. - 0.01” (0.25 mm) Max.
Label roll diameter: Max. 6” (152 mm)
Core diameter: 1”, 1.5”, 3" (25.4 mm, 38.1 mm, 76.2 mm)

Ribbon

Types: Wax, wax/resin, resin
Length: 981’’ (300 m)
Width: 1.18” Min - 4.33” (30 mm - 110 mm) Max
Ribbon roll diameter.: 2.67“ (68 mm)
Core diameter: 1” (25.4 mm)

Printer Language

EZPL, GEPL, GZPL auto switch

Software

Label design software: GoLabel (for EZPL only)
Driver: Windows 2000, XP, Vista, Windows 7, 8.1 and 10

DLL: Win CE , .NET , Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Android

Resident Fonts

Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
TTF fonts:TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable

Download Fonts

Bitmap fonts: 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Asian fonts: 16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001)90°,180°,270°, rotatable and 8 times expandable in horizontal and vertical directions
TTF fonts:TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable

Barcodes

1-D Bar codes:
Code 39, Code 93, EAN-8, EAN-13, EAN 8/13 (with 2 & 5 digits extension), UPC-A, UPC-E, UPC-A and UPC-E with EAN 2 or 5 digit extension, Interleaved 2-of-5 (I 2 of 5), Interleaved 2- o-f 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Postnet, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, ISBT -128, Code 32
2-D Bar codes:
PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code, Code 49, Codablock F , TLC 39

Code Pages

CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257
Unicode UTF8, UTF16BE, UTF16LE

Graphics

Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software

Interfaces

USB

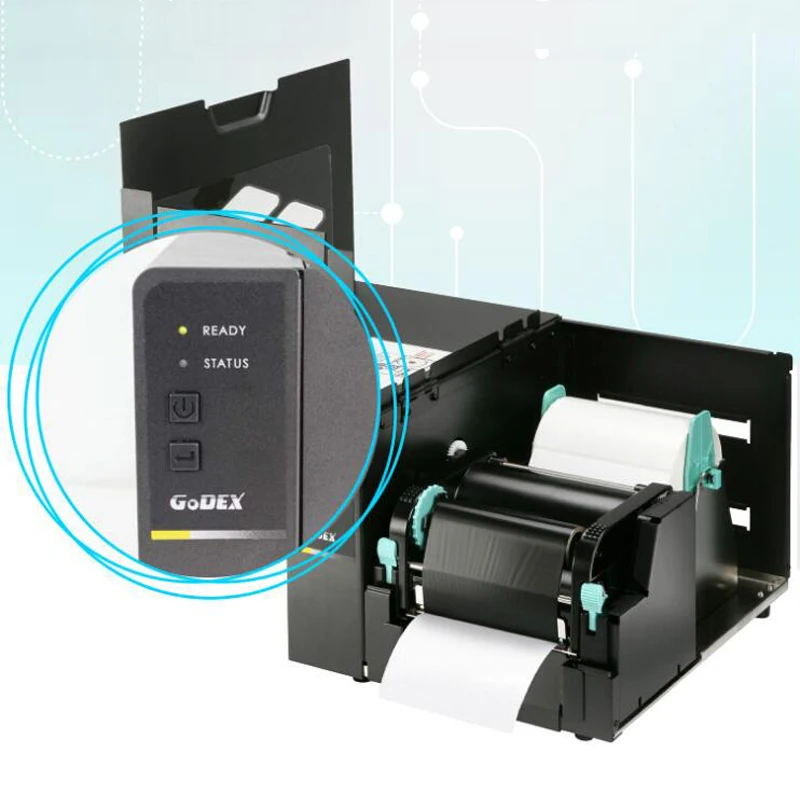

Control Panel

Two bi-color status-LEDs: Ready, Status
Control key: FEED

Power

Auto Switching 100-240VAC, 50-60Hz

Environment

Operation temperature: 41°F to 104°F (5°C to 40°C)
Storage temperature: -4°F to 122°F (-20°C to 50°C)

Humidity

Operation: 30-85%, non-condensing.
Storage: 10-90%, non-condensing.

Agency Approvals

CE (EMC), FCC Class A, UL, CCC, cUL, KCC, BIS,CB

Dimension

320*275*220mm

Weight

3.5KG
