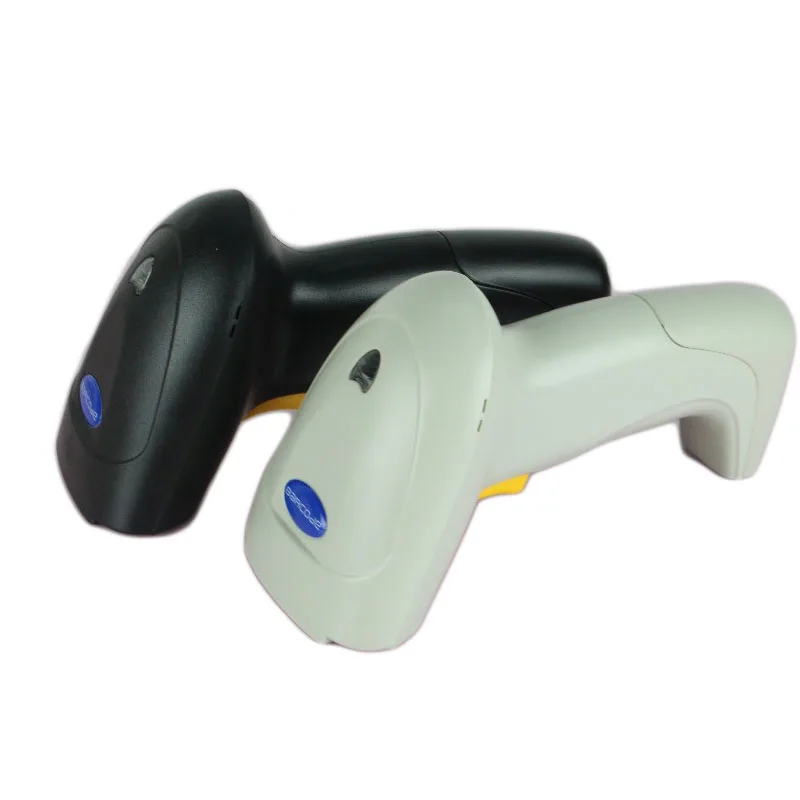

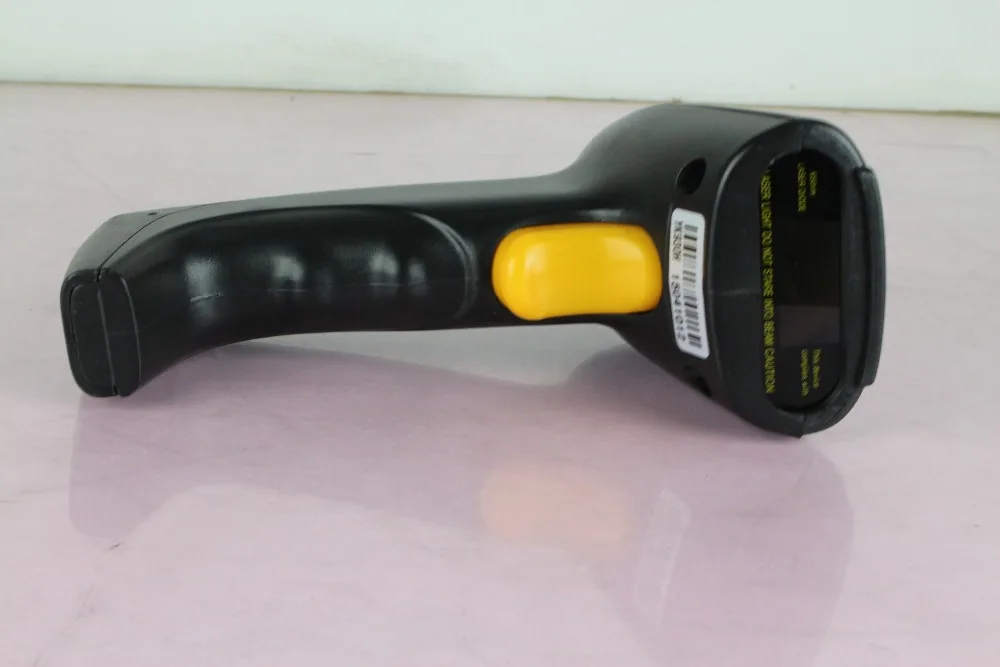

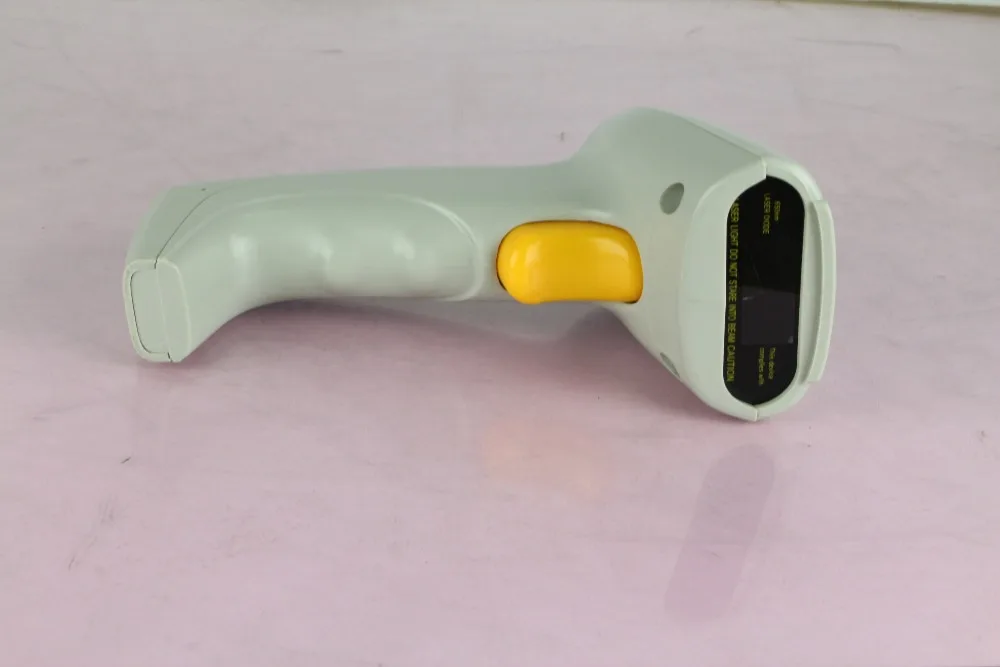

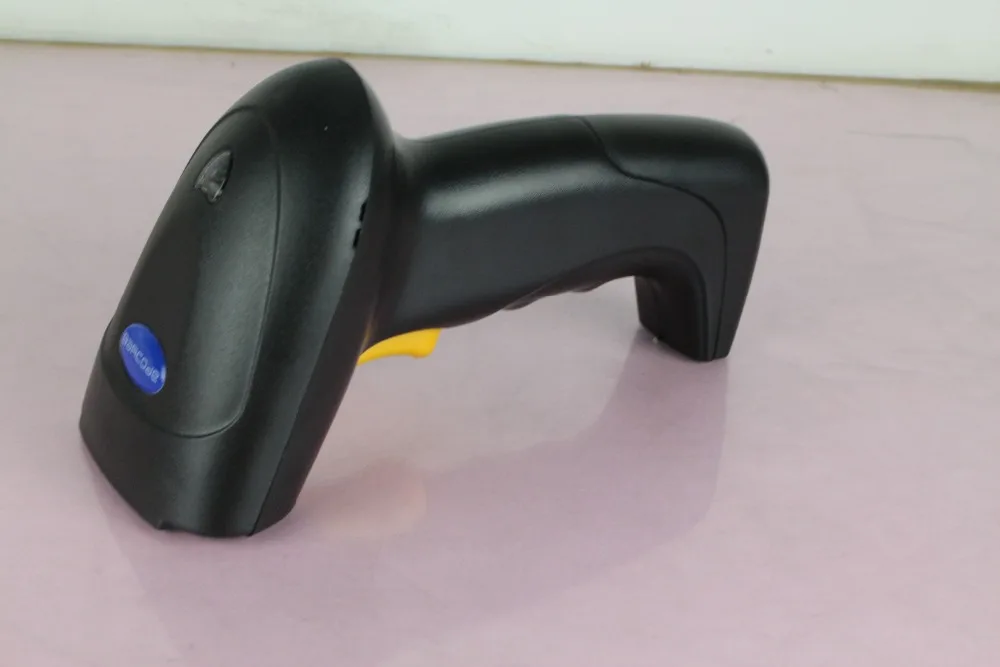

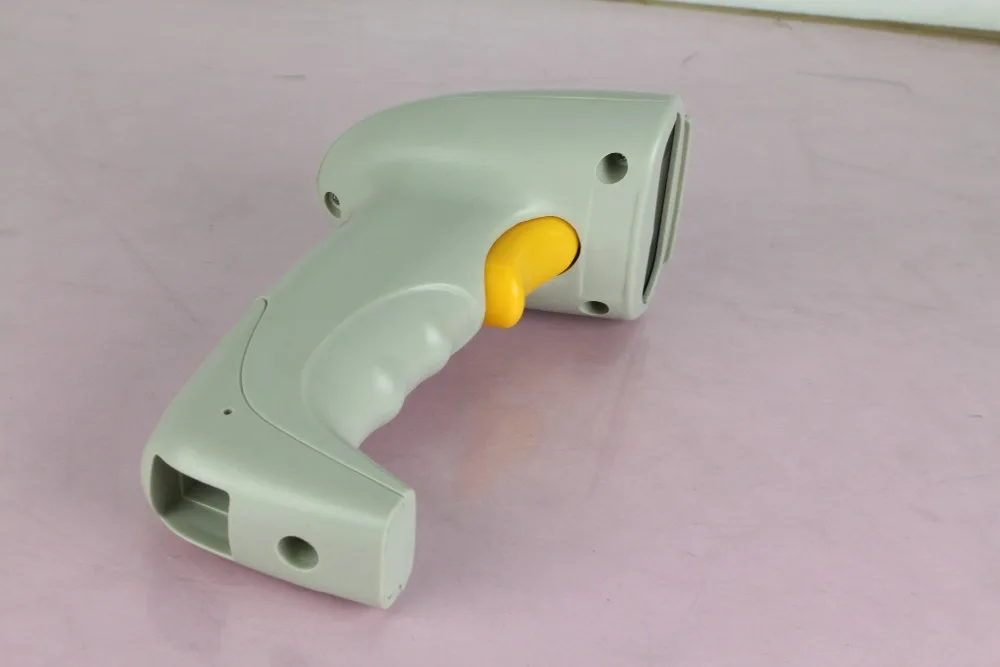

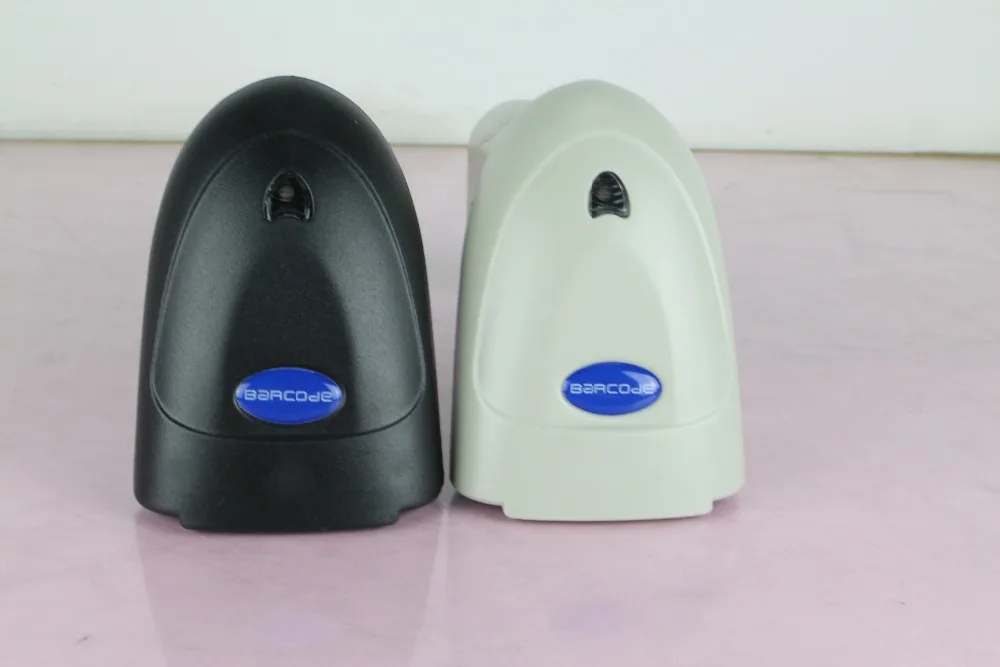

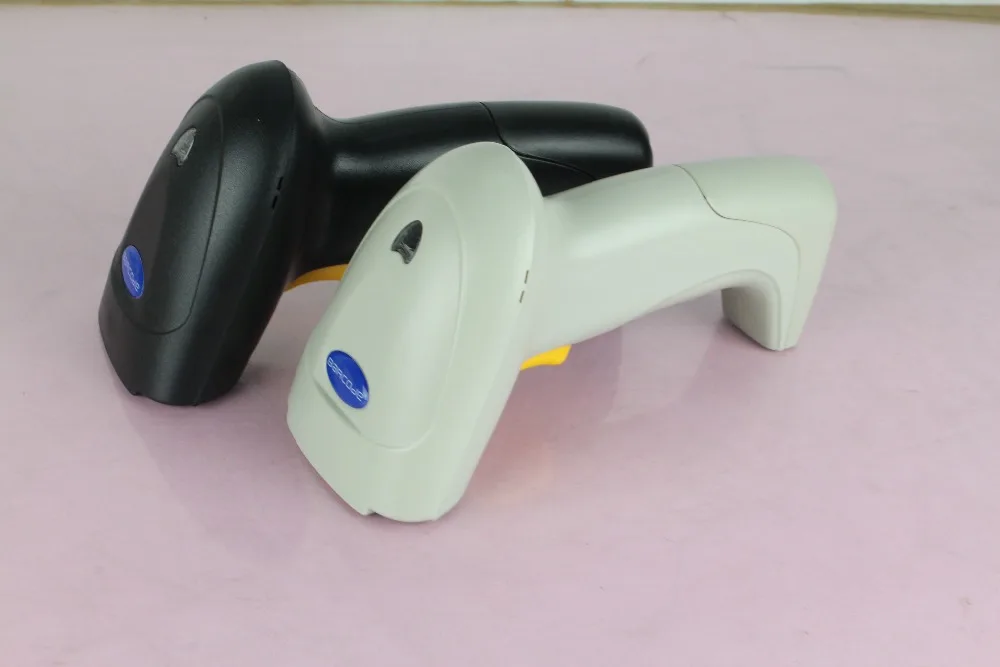

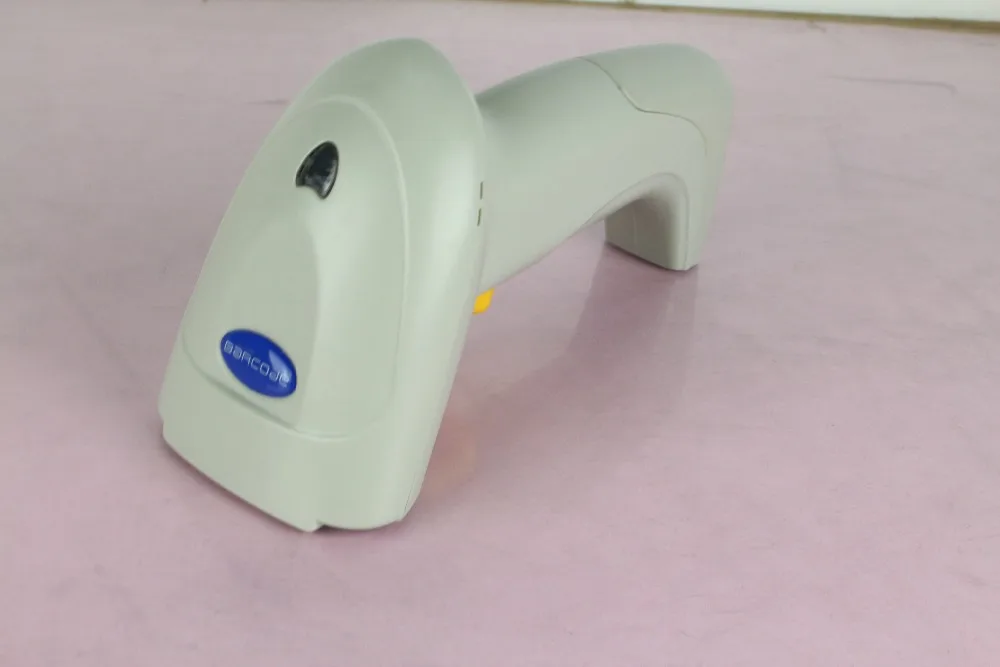

Z930 USB barcode scanner laser wired readerbar code reader handheld | Компьютеры и офис

---



PERFORMANCE PARAMETERS Scan Pattern: Single-Line Scan Speed: 130 scan lines per second Symbol Contrast 35% minimum reflectance difference Scanning Angle  Horizontal : 72°    Vertical:82° Decode Capability EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN 128, Codabar, Code 25 non-interleaved, Code 25 interleaved , Matrix 2 of 5, MSI, PostBar, etc  Light Source Wavelength:  650±8nm red laser Optical Coating Technique Gold-Plated Optical Technique Level V-V1 (Aerial Cameras)  Host System Interface USB2.0, PS/2,RS232, USB Virtual RS232 RJ45(Can be Customized) & Second Development LED Indicator Buzzer and bi-color light( Red-power, Blue-decoding Successfully) ENVIRNMENTAL PARAMETERS Drop  Design to withstand 1.5M drops to concrete Environmental Sealing IP54 Operating Temperature 0degrees to 40 degrees  Storage Temperature -40degrees to 60 degrees Temperature Humidity 10% to 92% Relative humidity, Non-condensing Storage Humidity 10% to 92% Relative humidity, Non-condensing Light Levels 450 foot-candles PHYSICAL PARAMATERS Weight (pcs) N.W: 130g/pcs  G.W:303g/pcs  Dimensions(L*W*H) Host: 97mm×64.8mm×171.8mm  Package:190mm×115mm×80mm ELECTRICAL PARAMETERS Input Voltage 5V Operating Power 85mA Standby Power 36mA Laser Grade Standard China national laser safety standards level II EMC
