Описание товара
* Supports Asterisk / FreePbx / Issabel / Elastix 4 / Trixbox ...
with Low Profile for 2U Computer
Purchase Notice:
The asterisk card is with 4 FXO/FXS modules installed,please specify what 4 modules you need ,you may select 4 FXO,3 FXO+1 FXS , 2 FXO + 2 FXS , 1 FXO+3FXS or 4 FXS, If you don't specify it, we will ship the 1 FXO+3 FXS as default .
The card is with low profile for 2U computer.
Description :

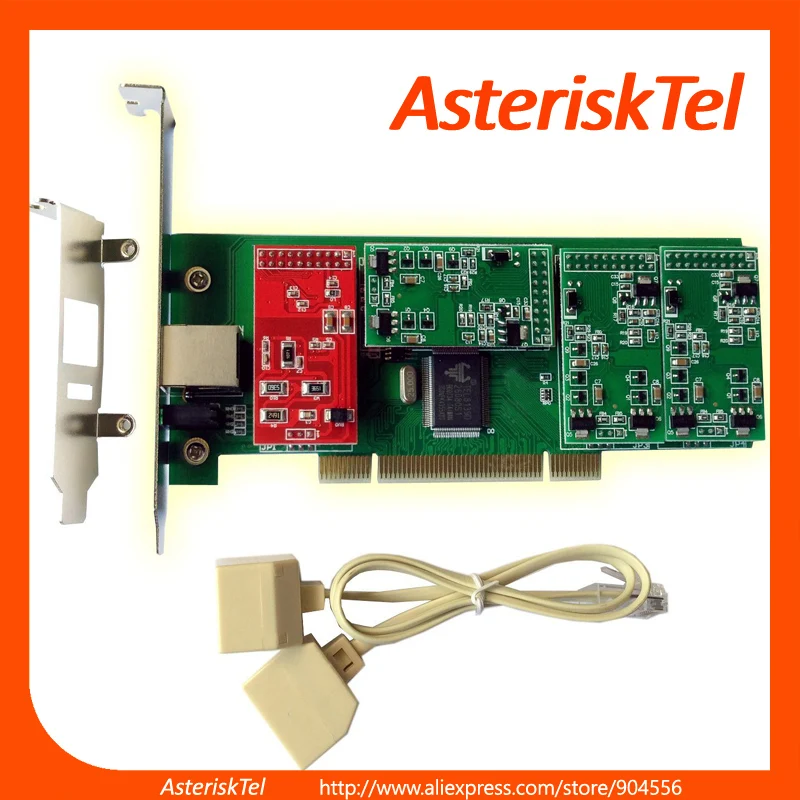

TDM400P Asterisk card supports up to four FXO/FXS ports, plug and play.
Using TDM400P analog card, open source Asterisk PBX and stand alone PC, users can create their SOHO telephony solution include all the sophisticated features of traditional PBX, and extend features such as voicemail in IP PBX.
It supports standard dahdi / zaptel drivers , can work with Asterisk / FreePbx / Issabel / AsteriskNow..
Specification:
The asterisk card is bundled with 4 FXO or FXS modules.

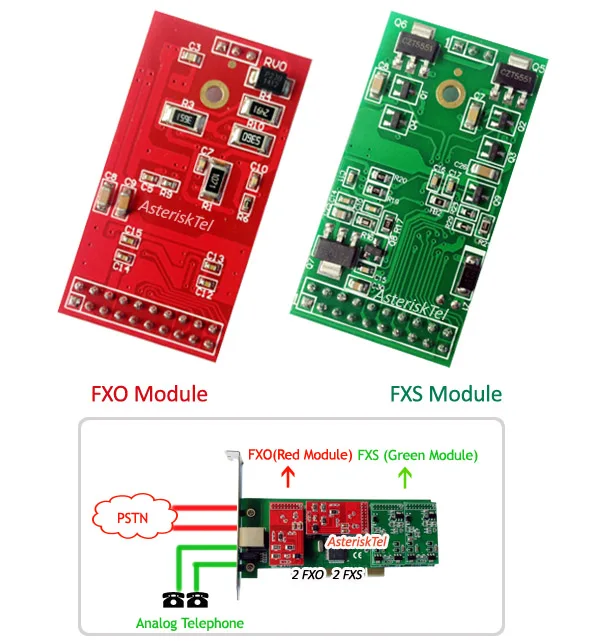

The FXO module is in red and the FXS model is in green .
FXO port connects to PSTN line and the FXS port connects to the telephone.
You can get any combination of FXO & FXS modules with the same price,no any additional cost.
Please specify what configuration you need when purchase.
Model # FXO FXS
-----------------------------------
TDM410P-40 4 0
TDM410P-31 3 1
TDM410P-22 2 2
TDM410P-13 1 3
TDM410P-04 0 4
------------------------------------
Issabel / AsteriskNow / Freepbx
[ asterisk card .localdomain ~]# dahdi_genconf
[ asterisk card .localdomain ~]# dahdi_cfg -vvvv
DAHDI Tools Version - 2.2.0
DAHDI Version: 2.2.0
Echo Canceller(s): MG2
Configuration
======================
Channel map:
Channel 01: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 01)
Channel 02: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 02)
Channel 03: FXO Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 03)
Channel 04: FXO Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 04)
[ asterisk card .localdomain ~]# asterisk -vr
asterisk card *CLI> dahdi show channels
Chan Extension Context Language MOH Interpret Blocked State
pseudo default en default In Service
1 from-pstn en default In Service
2 from-pstn en default In Service
3 from-pstn en default In Service
4 from-pstn en default In Service
Asterisk*CLI> dahdi show status
Description Alarms IRQ bpviol CRC4 Fra Codi Options LBO
Wildcard TDM410P Board 1 OK 1 0 0 CAS Unk YEL 0 db (CSU)/0-133 feet (DSX-1)
---------------------
Type: Asterisk Card
Brand Name : RobyTechSys
Driver:Dahdi zaptel
-----------------------
