*Текущая стоимость US $20.00 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-18-2026 | 24.94 руб. | 25.9 руб. | 24.5 руб. |
| Feb-18-2026 | 24.37 руб. | 25.87 руб. | 24.5 руб. |
| Jan-18-2026 | 20.41 руб. | 21.0 руб. | 20.5 руб. |
| Dec-18-2025 | 23.90 руб. | 24.89 руб. | 23.5 руб. |
| Nov-18-2025 | 20.34 руб. | 21.49 руб. | 20.5 руб. |
| Oct-18-2025 | 23.39 руб. | 24.83 руб. | 23.5 руб. |
| Sep-18-2025 | 23.40 руб. | 24.50 руб. | 23.5 руб. |
| Aug-18-2025 | 22.5 руб. | 23.26 руб. | 22.5 руб. |
| Jul-18-2025 | 22.1 руб. | 23.81 руб. | 22.5 руб. |
Описание товара


Tips:
Each item have been tested critically before shipment effected ,We have
build several testing stations specially for CPU ,please buy it with worry-free.
See before installing CPU:
1, remove the original CPU, clean up the dust on the fan and heat sink, clean up the residual heat sink in the original grease, especially hard grease must be thoroughly cleaned, this is very important!
2, in the correct direction into the new CPU, and at the top of the CPU coated with a thin layer of grease. Don't put too much, just can fill the gap between the top of the CPU metal contact and heat sink. The most ideal (in packets we presented silica gel as an example, squeeze appropriate 1/2 grease)
3, put it back to the heat sink, the first finger pressed fins move up and down a few times, so that the inside of the grease evenly spread and exhaust air, then according to the digital sequence tagging screw fins on (or diagonal) gradually tightened, each rotation laps screwed under a screw, not a put a screw in the end, the successive rotation until the fixed balance.
4, if the CPU in the machine after the point is not bright, can use the eraser to wipe the metal contact CPU plate (sometimes CPU floor dust or sweat may contact), or to the motherboard (the motherboard BIOS discharge clearance data). The memory can also be used on no eraser.
Note: for CPU, such as the discovery of CPU temperature is too high, or when the temperature is high and low instability, CPU and memory is not bright, please carefully check the above 4 to check, the vast majority of the problems can be solved.

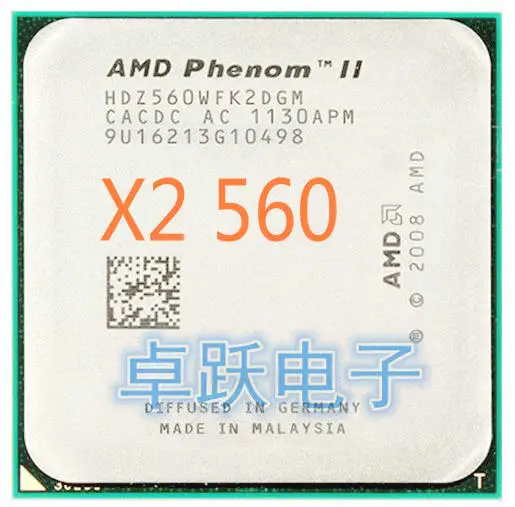

| General information | |
| Type | CPU / Microprocessor |
| Market segment | Desktop |
| Family | AMD Phenom II X2 |
| Model number ? | 560 |
| CPU part numbers |
|
| Stepping codes | AACAC AC CACAC AC CACDC AC |
| Frequency ? | 3300 MHz |
| Bus speed ? |
667 MHz Memory controller One 2000 MHz 16-bit HyperTransport link (4 GT/s) |
| Clock multiplier ? | 16.5 |
| Package | 938-pin organic micro-PGA |
| Sockets |
Socket AM2+ Socket AM3 |
| Weight |
1.4oz / 38.7g (CPU) 12.1oz / 343.3g (box) |
| Fan/heatsink | CMDK8-7G52C-A1-GP |
| Introduction date | Sep 21, 2010 |
| End-of-Life date | December 2012 |
| Price at introduction | $105 |
| Architecture / Microarchitecture | |
| Microarchitecture | K10 |
| Platform | Dragon |
| Processor core ? | Callisto |
| Core stepping ? | RB-C3 |
| CPUID | 100F43 |
| Manufacturing process | 0.045 micron silicon-on-insulator (SOI) technology |
| Die | 258mm2 |
| Data width | 64 bit |
| The number of CPU cores | 2 |
| The number of threads | 2 |
| Floating Point Unit | Integrated |
| Level 1 cache size ? |
2 x 64 KB 2-way set associative instruction caches 2 x 64 KB 2-way set associative data caches |
| Level 2 cache size ? | 2 x 512 KB 16-way set associative exclusive caches |
| Level 3 cache size | Shared 6 MB 48-way set associative cache |
| Cache latency [1] |
3 (L1 cache) 15 (L2 cache) 55 (L3 cache) |
| Multiprocessing | Uniprocessor |
| Features | |
| Low power features | |
| Integrated peripherals / components | |
| Integrated graphics | None |
| Memory controller |
The number of controllers: 1 Memory channels: 2 Channel width (bits): 72 Supported memory: DDR2-1066, DDR3-1333 DIMMs per channel: up to 2 Maximum memory bandwidth (GB/s): 21.3 |
| Other peripherals | HyperTransport 3 technology |
| Electrical / Thermal parameters | |
| V core ? | 1.225V - 1.425V |
| V NorthBridge | 1.15V - 1.25V |
| Maximum operating temperature ? | 55°C - 70°C |
| Thermal Design Power ? | 80 Watt |
