F Type Galvanized Coating Thickness Gauge with multifunctional Zinc Chrome Rubber Paint Measurement tester CM-8826F | Инструменты

---

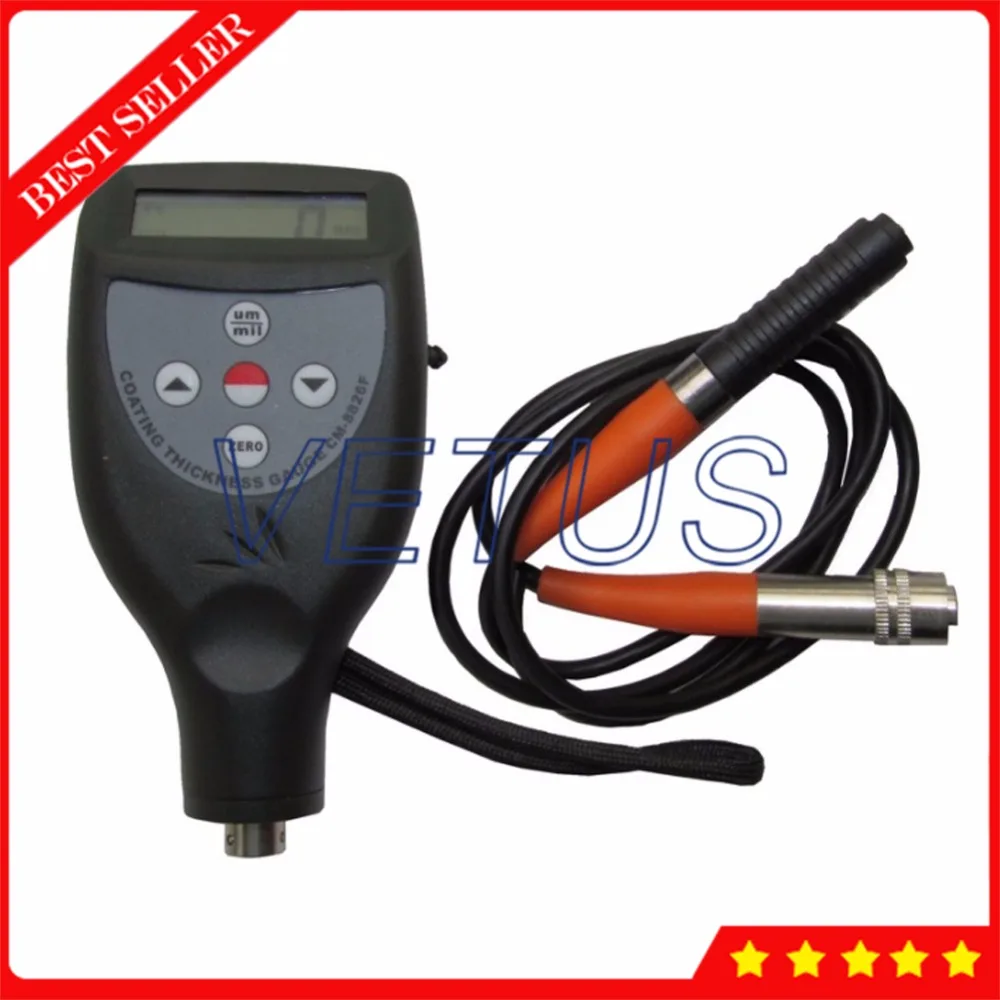

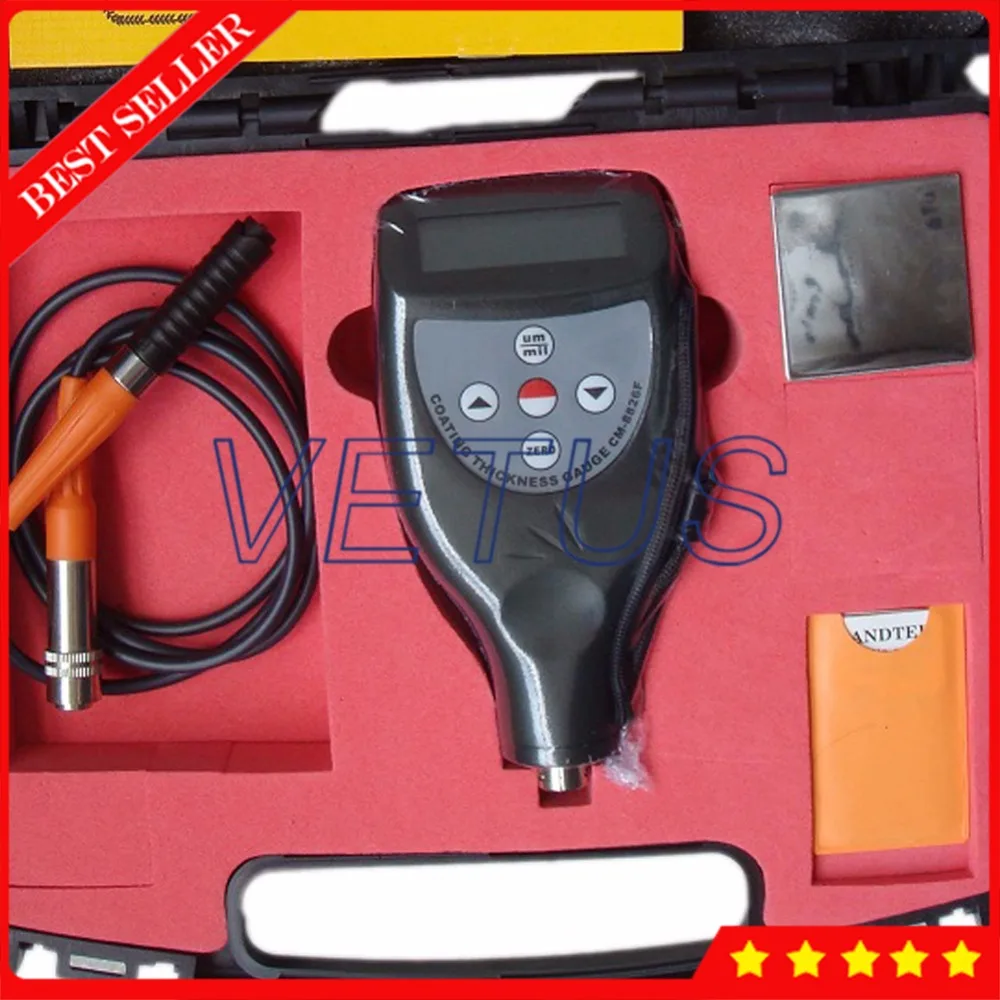

F Type Galvanized Coating Thickness Gauge with multifunctional Zinc Chrome Rubber Paint Thickness Measurement tester CM-8826F

Application:   The F probes measure the thickness of non-magnetic materials on magnetic materials. The N probes measure the thickness of non-conductive coatings on non-magnetic metals.     1.Features:  * Two measuring methods: magnetic induction (F) and eddy current (N)  * Two measurement mode: Single and Continuous（Notice：Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.）  * Metric/imperial system selectable.  * Manual or automatic shut down.  * Automatic memory of calibration value,and automatic recognize the substrate.  * Operation process have buzzing reminder,while no buzzing in continuous mode.  * Use USB/RS-232 (OPTIONAL)data output to connect with PC.  * Provide Bluetooth (OPTIONAL) data output choice.  * Separate Type can provide several type probe, measure can be more flexibility.

Principles	Applications	Examples
F Type Magnetic Induction (Iron Base)	Measure the thickness of non-magnetic materials on magnetic materials	Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc
NF Type Eddy Current (Aluminium Base)	Measure the thickness of non-conductive coatings on non-magnetic metals	Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc



Specification
Principle	NF Type Eddy Current / F Magnetic Induction
Range	0~1250µm/0~50mil
Resolution	0.1µm/1µm
Accuracy	±1~3%n or ±2.5µm
Min.Radius Workpiece	F Type:convex 1.5mm/concave 25mm
	NF Type:convex 3mm/concave 50mm
Min.Measuring Area	6mm
Min.Sample Thickness	0.3mm
Metric/Imperial	Convertible
Battery Indicator	Low Battery Indicator
Automatic Power Off	√
Operating Conditions	Temperature:0~50ºC
	Humidity:<80%RH
Power Supply	4x1.5V AAA (UM-4)Battery
Dimensions	126x65x27mm
Weight	81g(Not Including Batteries)
