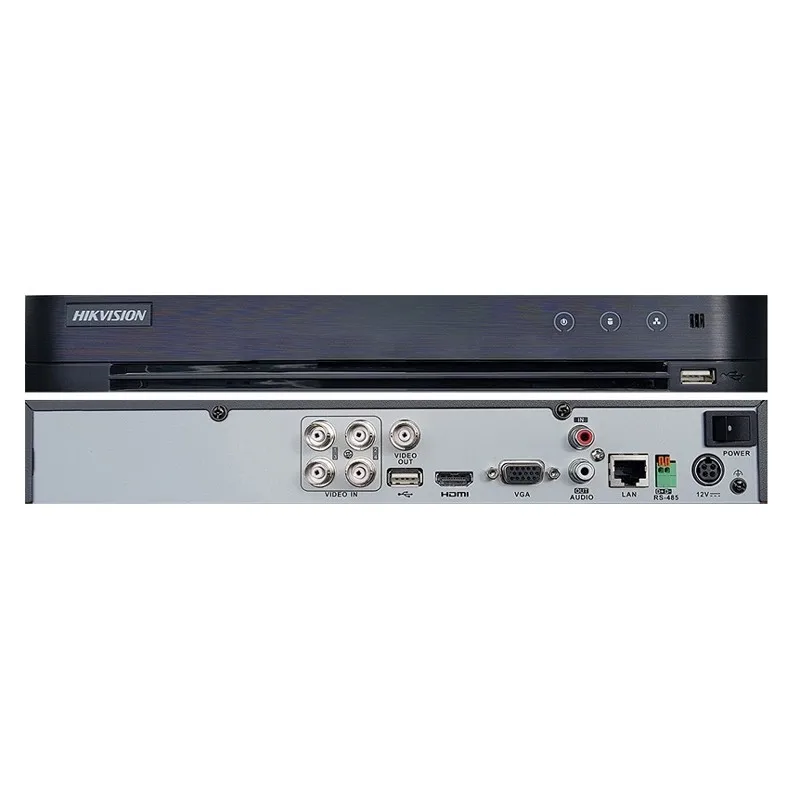

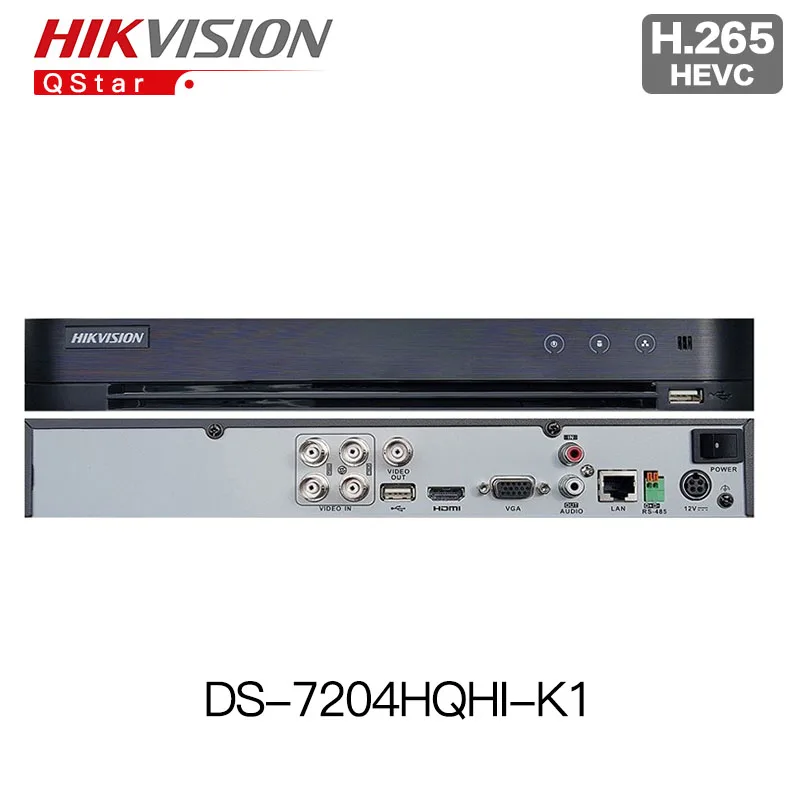

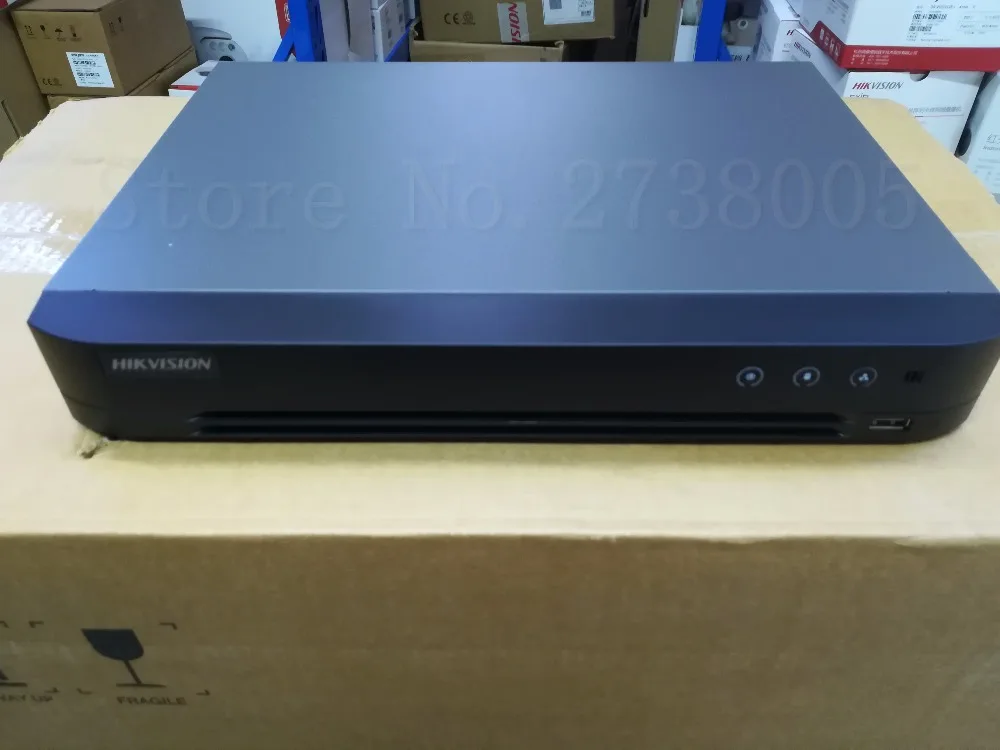

HIKVISION DS-7204HQHI-K1 H.265 TURBO 4 DVR replace DS-7204HQHI-F1/N 4ch up to 3MP Turbo HD TVI Self-adaptive HDTVI/HDCVI/AHD |

HIKVISION DS-7204HQHI-K1 H.265 TURBO 4 DVR  4 Channels replace DS-7204HQHI-F1/N up to 3MP Turbo HD TVI Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input

4 Channel DS-7204HQHI-K1 Hikvision 3MP DVR, 1x4MP IP, Turbo 4

HIKVISION DS-7204HQHI-K1 Fourth Generation TURBO 4 DVR
4 Channels up to 3MP Turbo HD TVI
IP Camera Support : 1 Channel up to 4MP IP Cameras (ONVIF)

Connection to the internet is a breeze with the Hik-Connect Setup without any technical or port forwarding knowledge or expertise required.
FREE iPhone, iPad, Android, PC & MAC remote viewing software (iVMS 4200 & Hik-Connect)

This DVR also has the additional benefit of supporting an additional 1 IP cameras of up to 4MP Resolution.
- IP cameras will need to be powered seperately and connected to your LAN (e.g. Router)

Key Feature

DS-7204HQHI-K1

Turbo HD DVR



• H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras

• Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input

• Connectable to H.265+/H.265/H.264+/H.264 IP cameras

• Up to 3 MP resolution for recording

• Long distance transmission over UTP and coaxial cable

• 4-ch synchronous playback

Specification

Video/Audio Input
Audio Input:		1-ch
Video Compression:		H.265+/H.265/H.264+/H.264
Analog and HD-TVI video input:		4-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types:		Support HDTVI input: 3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVBS input
Video Input Interface:		BNC (1.0 Vp-p, 75Ω)
Audio Compression:		G.711u
Audio Input Interface:		RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio:		1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)

Video/Audio Output
CVBS Output:		1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480
HDMI/VGA Output:		1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution:		When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode enabled: 1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame Rate:		Main stream: When 1080p Lite mode not enabled:  For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled:  3 MP@15fps 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream:  WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bit Rate:		32 Kbps-6 Mbps
Stream Type:		Video/Video&Audio
Two-way Audio:		1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output:		1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:		64kbps
Dual Stream:		Support
Playback Resolution:		3 MP/1080p/720p/VGA/WD1/4CIF/CIF
Synchronous Playback:		4-ch

Network management
Remote connections:		128
Network protocols:		TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF

Hard Disk Driver
Interface Type:		1 SATA Interface
Capacity:		Up to 6 TB capacity for each disk

External Interface
Network Interface:		1; 10M / 100M self-adaptive Ethernet interface
USB Interface:		2 USB 2.0 Interfaces
Serial Interface:		1; standard RS-485 serial interface, half-duplex

General
Power Supply:		12V DC
Consumption:		≤ 6W(without hard disks)
Working Temperature:		-10 oC to +55 oC (14 oF to 131 oF)
Working Humidity:		10% to 90%
Dimensions:		315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight:		≤ 1.16 kg (2.6 lb)
