    Item Description Specification:

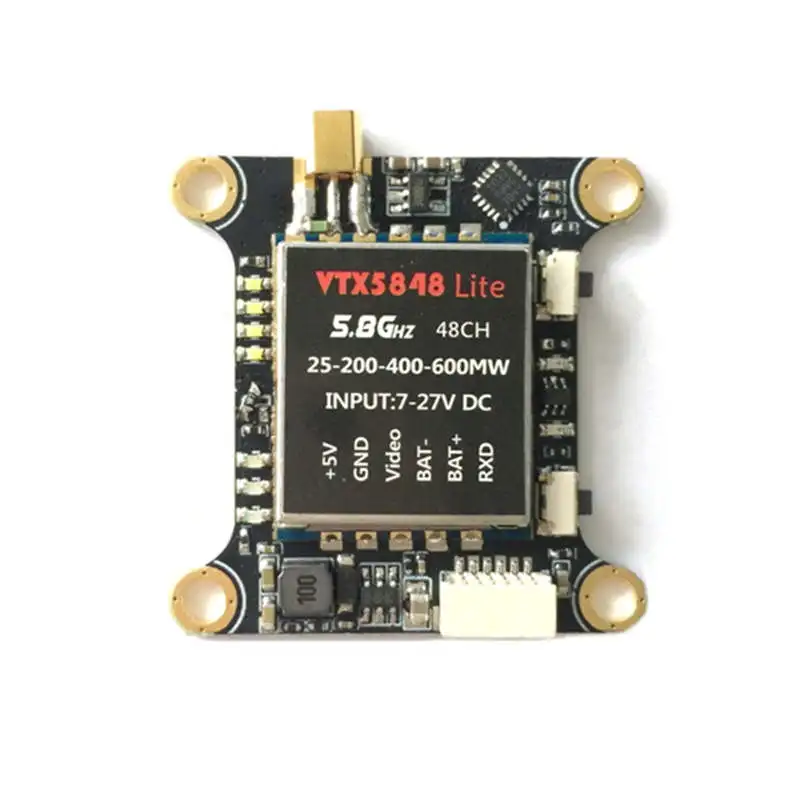

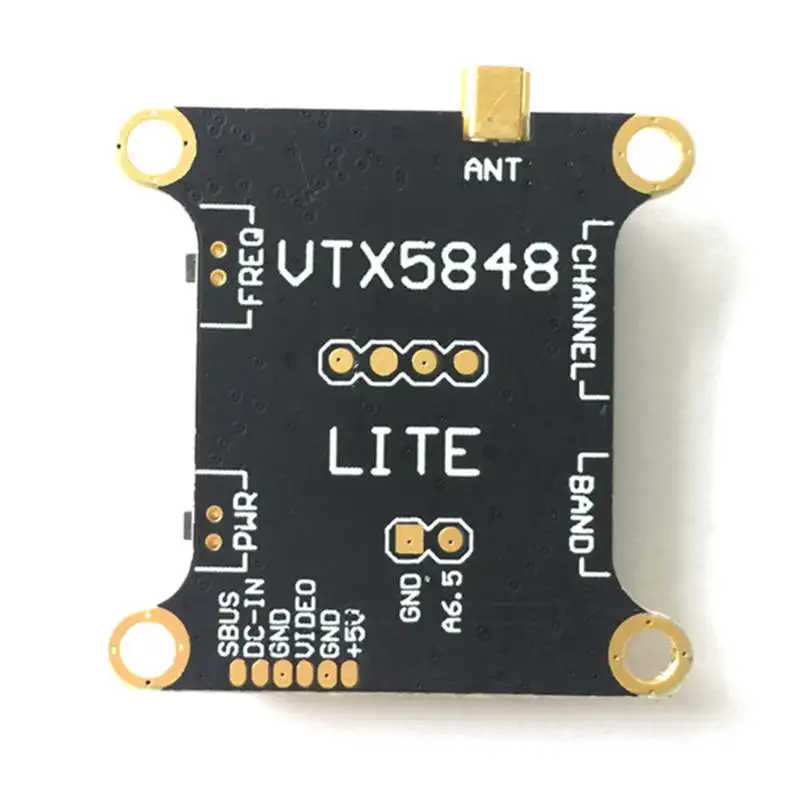

Item name: VTX5848 LITE FPV video transmitter
Input voltage: DC 7-27V
Input current: 16.4V(4s), 600mW=360 MA±10MA
Output voltage: DC 5V 1A
Output power: 25/100/200/400/600mW switchable
Channel: 48CH
Frequency switch: manual button/OSD (simultaneous support)
Connector: MMCX (with sma extension cable)
Size: 36x36x9mm
Mounting hole: 30.5x30.5mm, M3

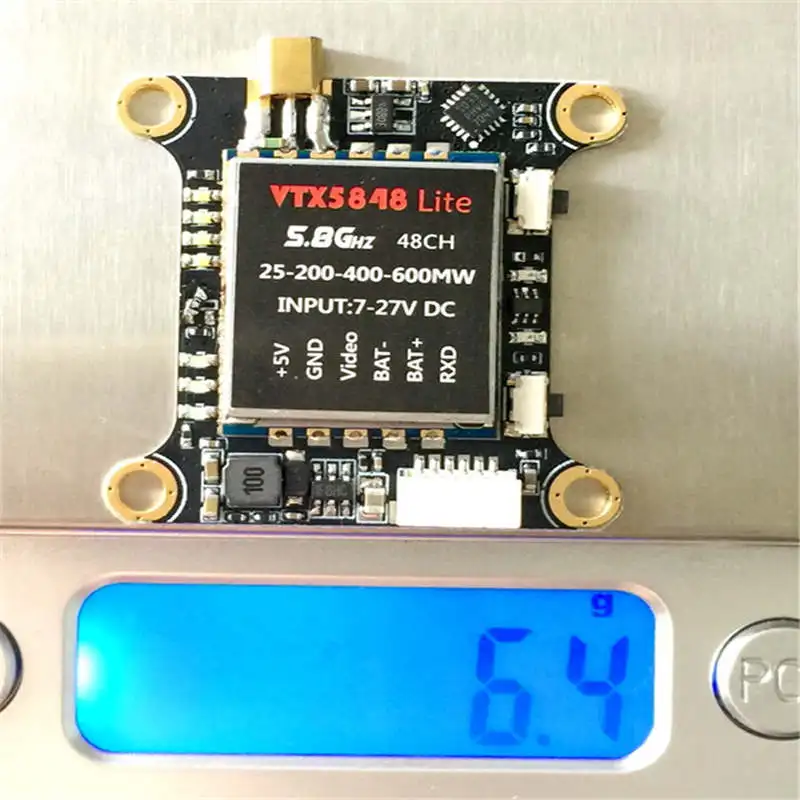

Weight: ≤6.4g (without antenna and connector)

Features:
-Stable output power, long transmission distance

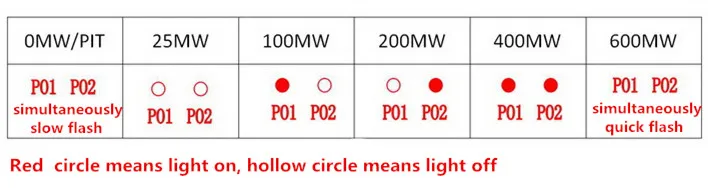

-Fast 5-speed power switch, independent two red indicator, indicating the current output power 25/ 200/ 400/ 600MW
-Using 4*3 LED display 48 channel

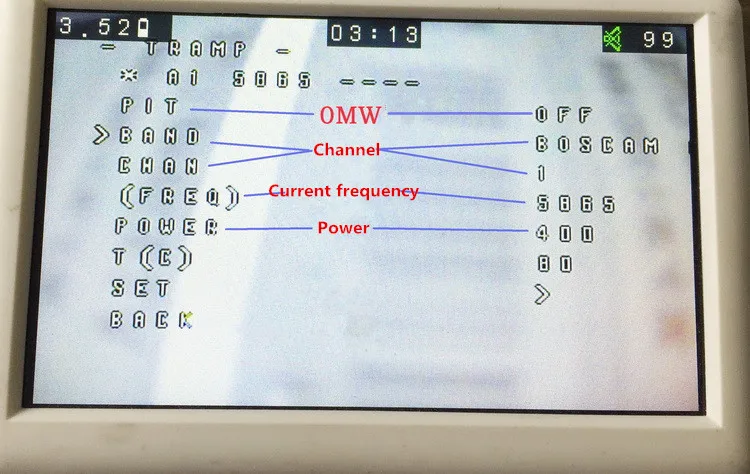

-Support OSD signal remote frequency control, support PIT mode ( omW output power only can be open in OSD)
-With power filter
-Antenna using MMCX to SMA (with 100MM extension cable), reducing the space
-Strong power chip, input up to 27V, output 5V/1A low ripple, less interference
-Do not install antenna to power up, and it will not burn the VTX
-30.5mm*30.5mm mounting hole distance, suitable for CC3D, NAZE32, F3, F4, F7 flight controller

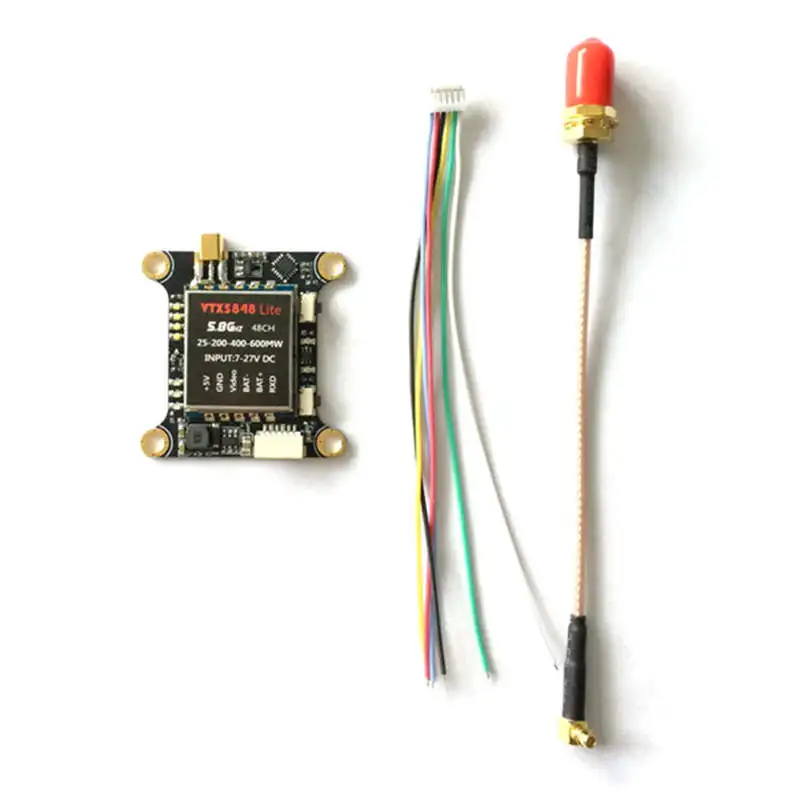

Package included:
1x VTX5848 LITE FPV video transmitter
1x 6P*1.0mm Connector cable
1x MMCX-SMA coaxial cable Item Pictures

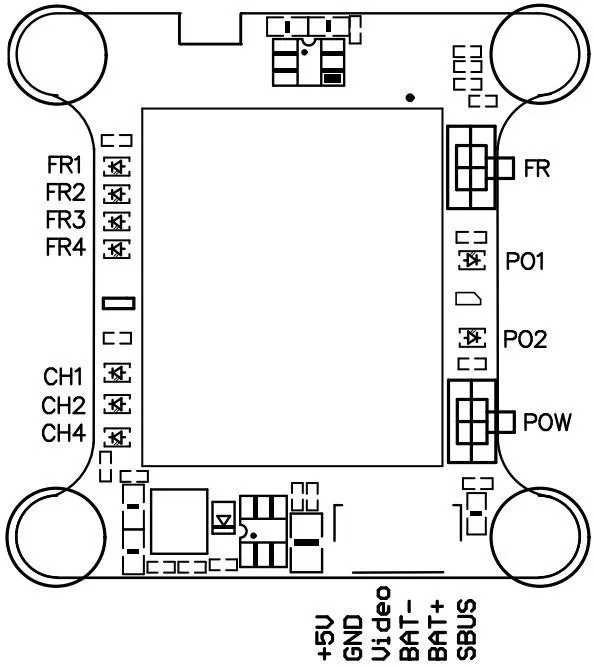

  Frequency adjustment:
1. manual adjustment ------RF button, switching frequency
   Short press, switching channel, 4 white LED lights indicate channel
   Long press(2s), switching group, 3 blue LED lights indicate group

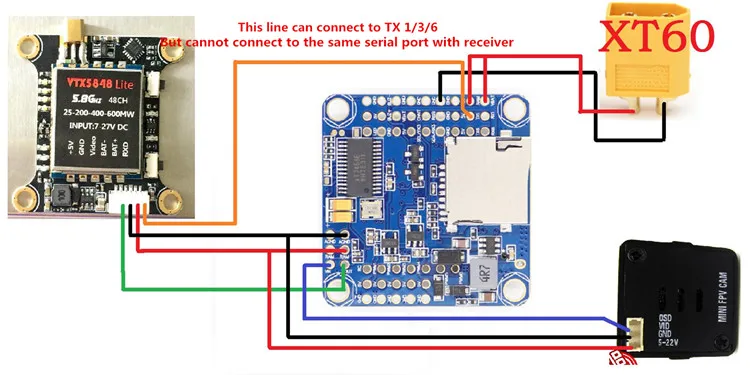

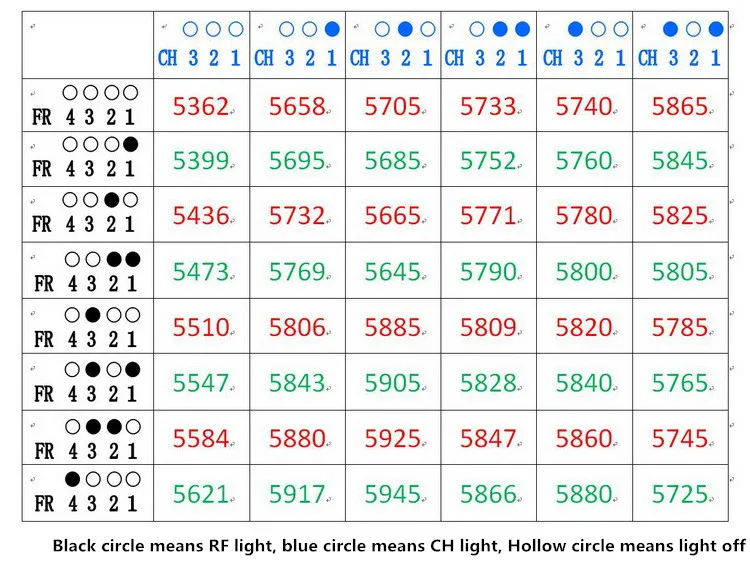

48CH channel list: 2. the wiring diagram of OSD adjustment Power switching:
POW button------power adjustment
 Press once, switching one power (25mW, 100mW, 200mW, 400mW, 600mW)
 600mW in default.
