Application range:

High confidentiality, large storage , stable performance and dispensing with traditional jumpers or switches coding, just wireless remote control will be fired the receiving signal controller, make this controller receive and store the signal from remote control.

Apply in many kinds of wireless devices – including hand-held and portable units, window/door transmitters and a variety of detectors and other devices.

Commonly used to control those wireless products in family, office, hotel, hospital, shopping malls, warehouse etc.

Specifications:

Operating Voltage: DC12V/24V

Operating Current: 6Ma

Operating Frequency: 315,433 MHz

Operating Temperature: -40C ~ +80C

Receiver Sensitivity: -105dBm

Output Voltage:  DC

Output Current: 10A

Code :Learning code .(jog/Non-Latched .inter-lock/Latched .self-lock /Self-Latched )

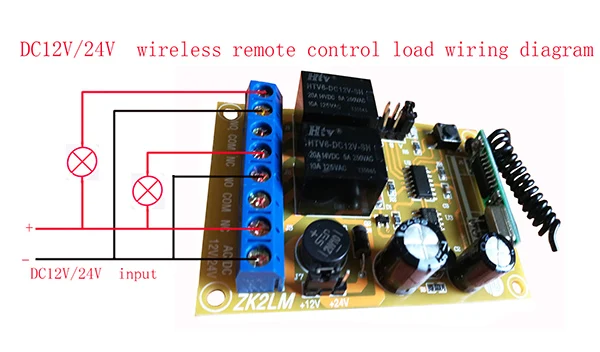

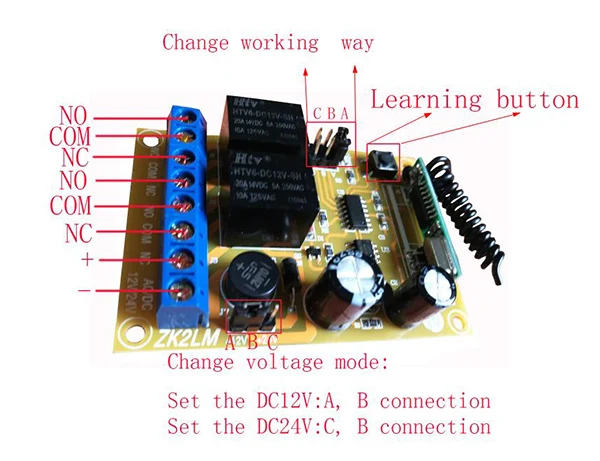

 Output working way:

Self-locking: Connect the jumper 1 with the cutting out cap. ( Self-locking control mode

:Press the switch is on the load, press the same switch again is to disconnect the load

.Need one channel switch and a one-button remote controller.)

Jog---The cutting out cap is not occupied, jumper 1 and jumper 2 do not connect either.

Press the switch is on the load ,loosen is to disconnect the load. Also need one channel

switch and a one-button remote controller.)

Inter-lock------- Connect the jumper 2 with the cutting out cap (Press one switch is on the

load , press another switch is to disconnect the load . (Need one channel switch and 2-

button remote controller.)

2 Channel is self-locking and 2 channel is jog ,connect the jumper 1 and jumper 2 with the

cutting out cap .)

working ways :self-lock , jog or self-lock and jog together.

Learning method:

press the learning button 1 time  ,the LED indicator flash then press the transmitter button A , until the LED indicator stop  ,it mean button A learning successfully

press the learning button 2 times  ,the LED indicator flash then press the transmitter button B , until the LED indicator stop  ,it mean button B  learning successfully

press the learning button 3 times  ,the LED indicator flash then press the transmitter button C, until the LED indicator stop  ,it mean button C  learning successfully

Remove Code:

Keeping press the learning button 8 second  , until the LED indicator stop  ,it mean remove code successfully

pacote inclued:

A:

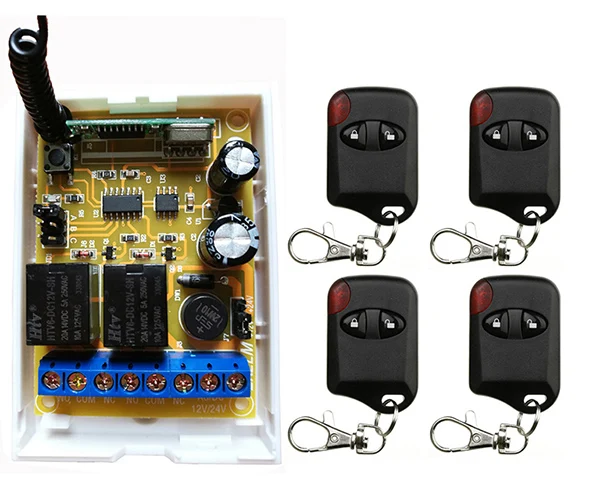

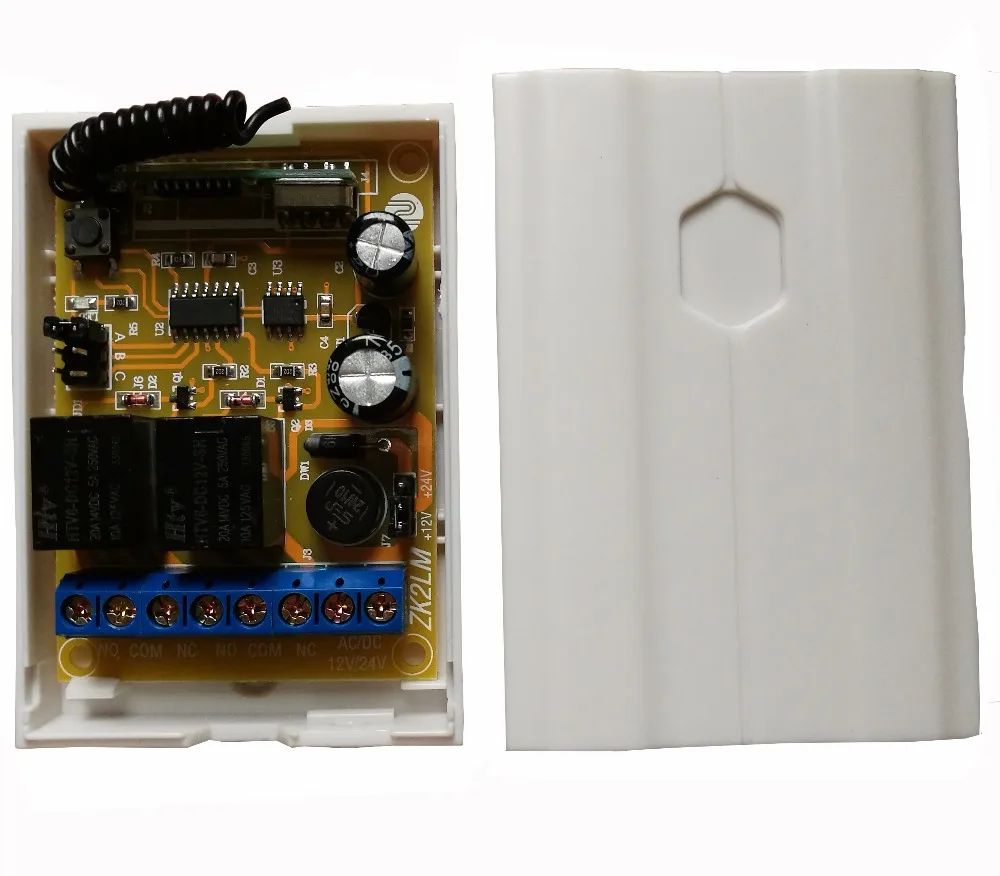

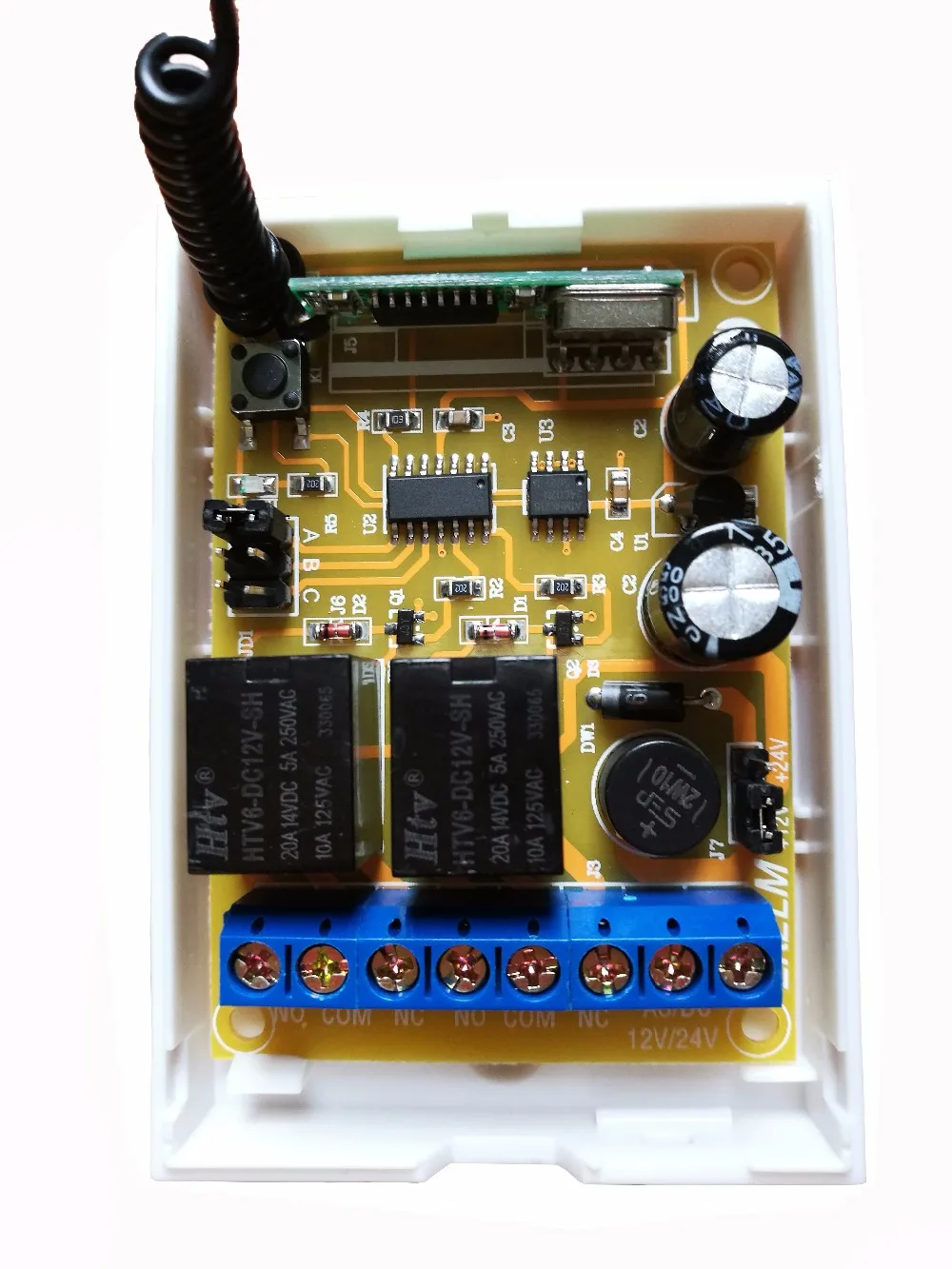

1 x Receiver(with cover)

4 x Transmitter(with battery)
