Описание товара

Low Lux 2MP Sony IMX290 WDR IP Camera Module 5-50mm Motorized 10x Zoom LensWiFi POE TF/Micro SD Card Slot DIY SIP-E290DML-0550 |Low Lux 2MP Sony IMX290 WDR IP Camera Module 5-50mm Motorized 10x Zoom LensWiFi POE TF/Micro SD Card Slot DIY SIP-E290DML-0550 |Low Lux 2MP Sony IMX290 WDR IP Camera Module 5-50mm Motorized 10x Zoom LensWiFi POE TF/Micro SD Card Slot DIY SIP-E290DML-0550 |Low Lux 2MP Sony IMX290 WDR IP Camera Module 5-50mm Motorized 10x Zoom LensWiFi POE TF/Micro SD Card Slot DIY SIP-E290DML-0550 |




LG

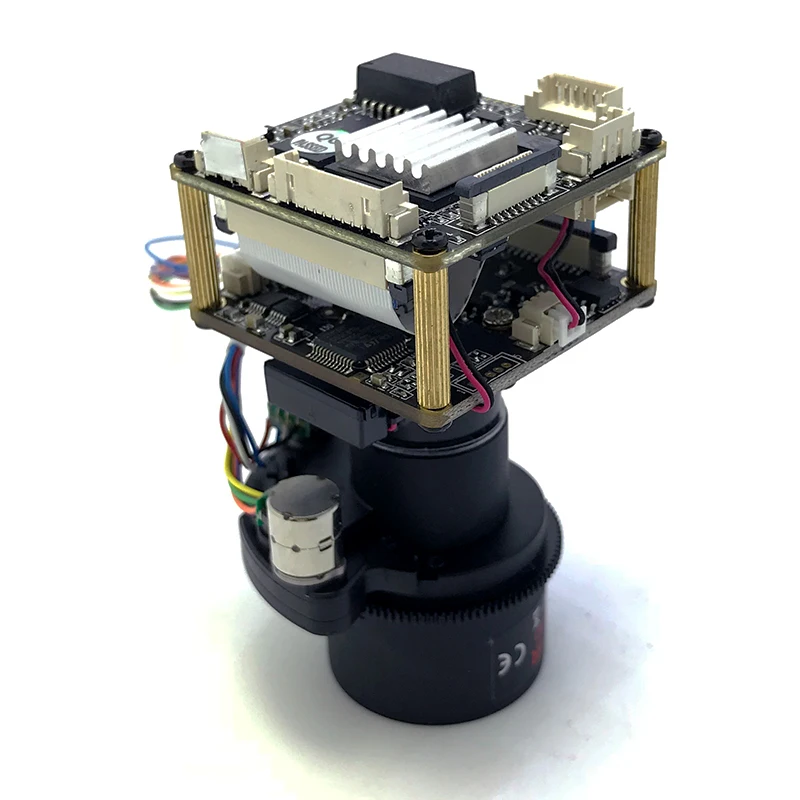

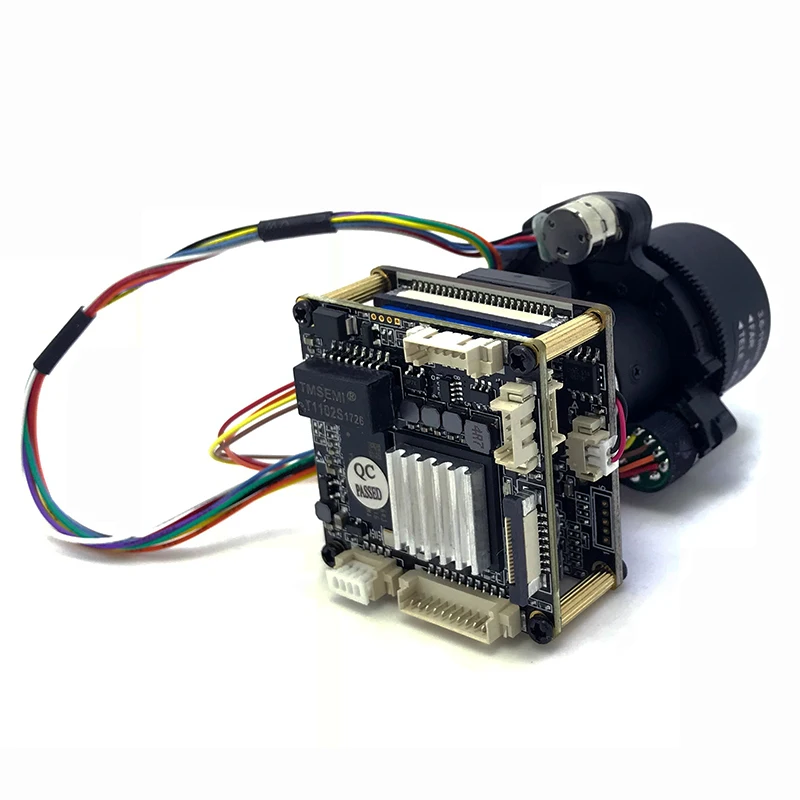

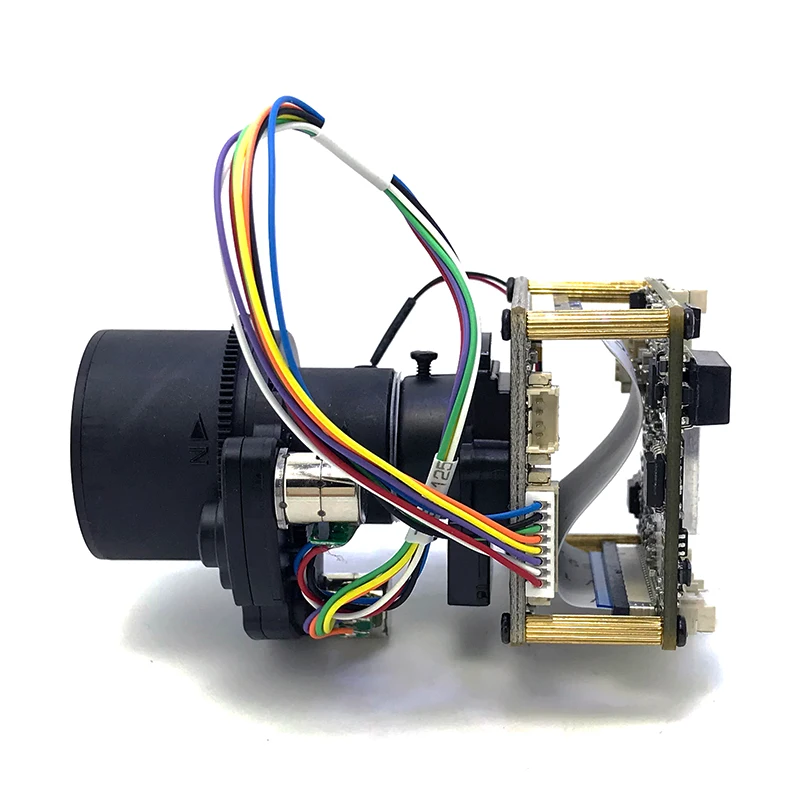

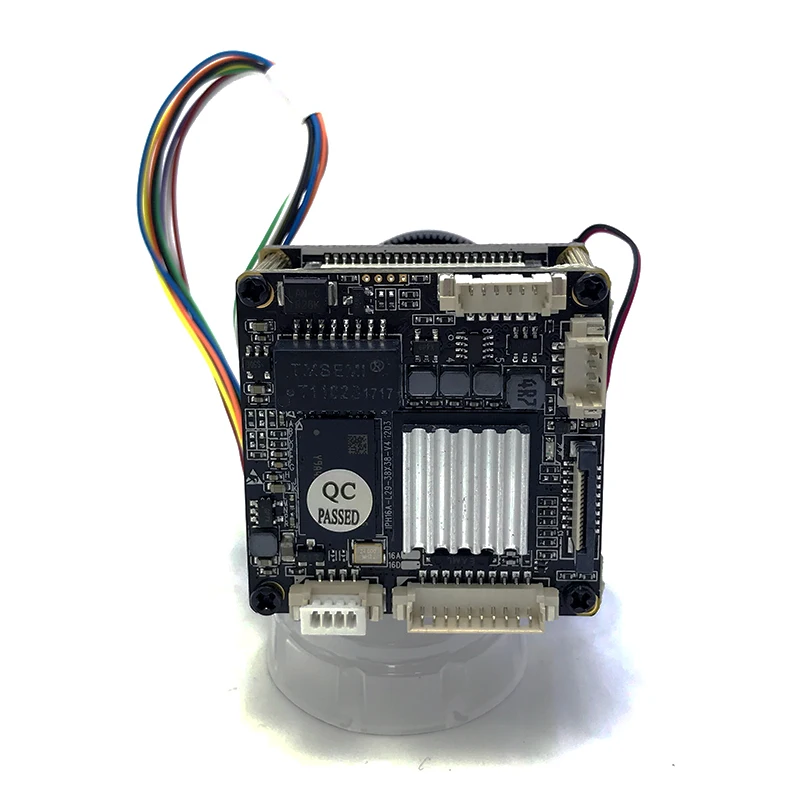

Low Lux 2MP Sony IMX290 WDR IP Camera Module 5-50mm Motorized 10x Zoom Lens;WiFi,POE,TF/Micro SD Card Slot DIY

Model: SIP-E290DML-0550

jianjie

1

What is WDR?

    Many users may not understand exactly what WDR is or what it does and have misconceptions about what it is supposed to do. Furthermore, most manufacturers also have their own set of definitions and terms for the different forms of WDR technology available today. Many times, one manufacturer's definition of a type of WDR technology will most likely be in direct conflict with what another manufacturer will consider it as under the same term (i.e. digital WDR, True WDR, etc.). Simply put, WDR is the ability to simultaneously and clearly display the details of both the brightest and darkest areas in a scene. In other words, WDR technology is able to display details in a scene where there are elements of high contrast. When a strong light source (sunshine, lights, reflection) and shadows, backlights, and other areas of low light source exist simultaneously in a scene, the brighter areas may suffer from overexposure and show up as a blob of white in theimage. Vice versa, the darker areas in the scene will show up as a pool of black due to underexposure. Both situations can negatively affect the image quality. However, there are limitations to what a camera can display in circumstances of extreme brightness and darkness. This limitation is often referred to as the dynamic range.

WDR1

2



Model SIP-E290DML-0550
Camera Type 5-50mm Auto Focus Lens+2MP WDR IP Camera Module
Camera
Image Sensor  1/2.8" Square Pixel Array Color CMOS Image Sensor IMX290
DSP Hisilicon 3516D
Effective Pixels 1945 (H) X 1097 (V) approx. 2.13M pixels
Scanning System Progressive
Electronic Shutter Speed Auto (1/25 ~ 1/10000s)
Min. Illumination 0.001Lux/F1.2
S/N Ratio 50dB(AGC OFF)
IR-Cut Support
Day/Night Auto(ICR)/Color/B/W
WDR WDR  >120db
White Balance Auto
Gain Control Auto
Noise Reduction 3D-DNR
Privacy Masking Up to 4 areas
Image parameter Bir/Con/Hue/Sat/Acu/Gamma
Image basic Mirror/Flip/LSC/CTB/AntiFogging
Lens Type 3MP 5-50mm motorized focus auto zoom lens
Video/Audio
Video Compression H.265+/H.265/H.264 dual-stream encoding
Resolution Main Stream:1920X1080, 1280X720  (1~25/30fps)
Sub Stream:D1,VGA,CIF,  (1~25/30fps)
Frame Rate 1~25/30fps
Bit Rate 30Kbps~16Mbps, support VBR, CBR
Text Overlay Channel, Date & Time, Bit Rate
Audio Compression G.726/G.711A/G.711U
Audio bit rate 16000
Sampling rate 8K
Network
Data Storage Video record, Picture format
Trigger Manual, Automatic(motion detection, alarm, schedule, cycle )
Alarm data transmission FTP, E-mail, Browser, CMS
Protocol TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP
ONVIF ONVIF V2.4
Max. User Access 8 users, IE, Google, Firefox
Smart Phone Support iPhone, iPad, Android View
Interface
Audio 1ch Audio MIC input/ line input, 1ch output
BNC Video out 1CH Analog Video output, Support CVBS standard, PAL/NTSC Optional
RS485 1ch
USB 1ch (Support 128G USB flash/WIFI/3G Extended)
Alarm 1ch input
Reset Support
Optional function#
Memory Card# Micro SD/TF card slot, max128GB (with Alarm 1ch output)
WIFI # 802.11b/g/n
POE # IEEE802.3af
General
Power Supply DC12V
Power Consumption <3W
Working Environment  -20°C~+55°C , Less than 90% RH
Product Size 38 x 38 x 25mm
Net Weight 0.2kg
#Remark: WiFi,POE,TF Card functions are optional,If need,please consult with us.

-(8)-(9)-(13)-(14)

optionalt

1. the UG Cable

RJ45+BNC+DC+USB+Audio input+Audio output +RS485+Alarm

UG-cable-(11)UG-cable-(222)



2.the POE Module

38X38mm PoE module   IEEE802.3af/at protocol

POE power: 12W (12V/1A) POE: 1,2+/3,6- and 4,5+/7,8- adaptive transmission

POE-1A-(2)POE-1A-(4)



3.the TF/SD Memory Card Slot Board

Expansion  TF Card, alarm out

Support 128G TF Card

TF-(4)TF-(7)



4.the WiFi Board

80mW, WIFI module (3dBi containing small antenna, feeder, SMA interface), IPEX antenna interface, support 802.11BGN

WIFI-M-(2)WIFI-M-(1)
