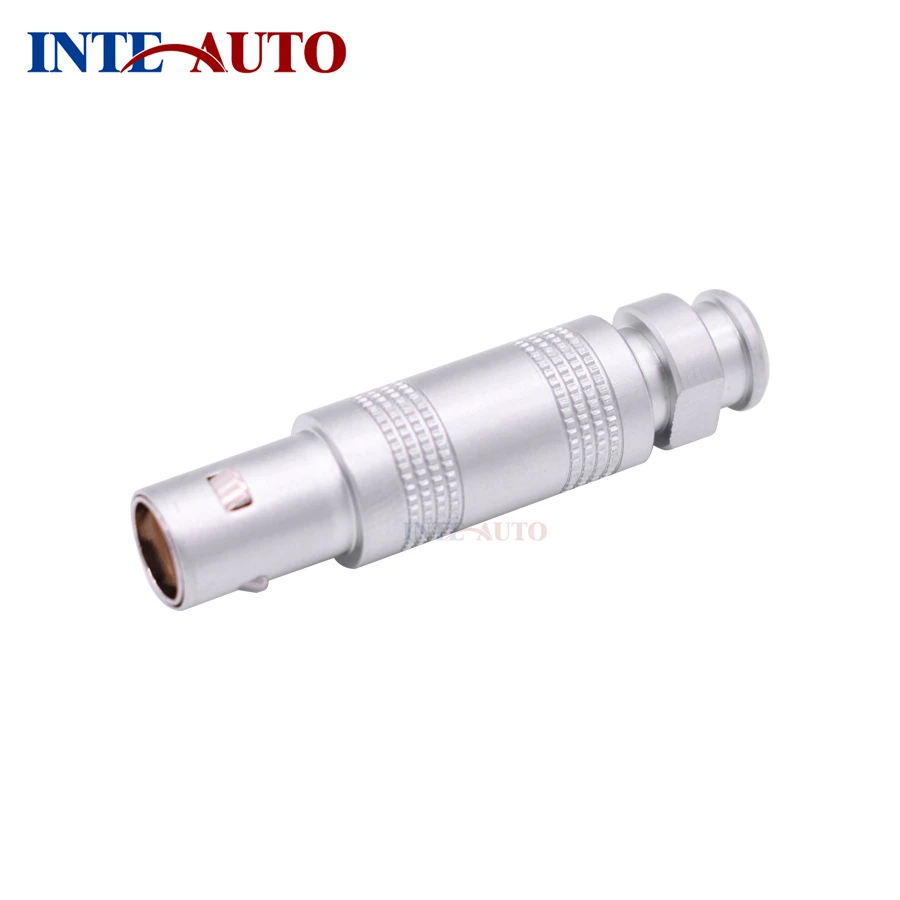

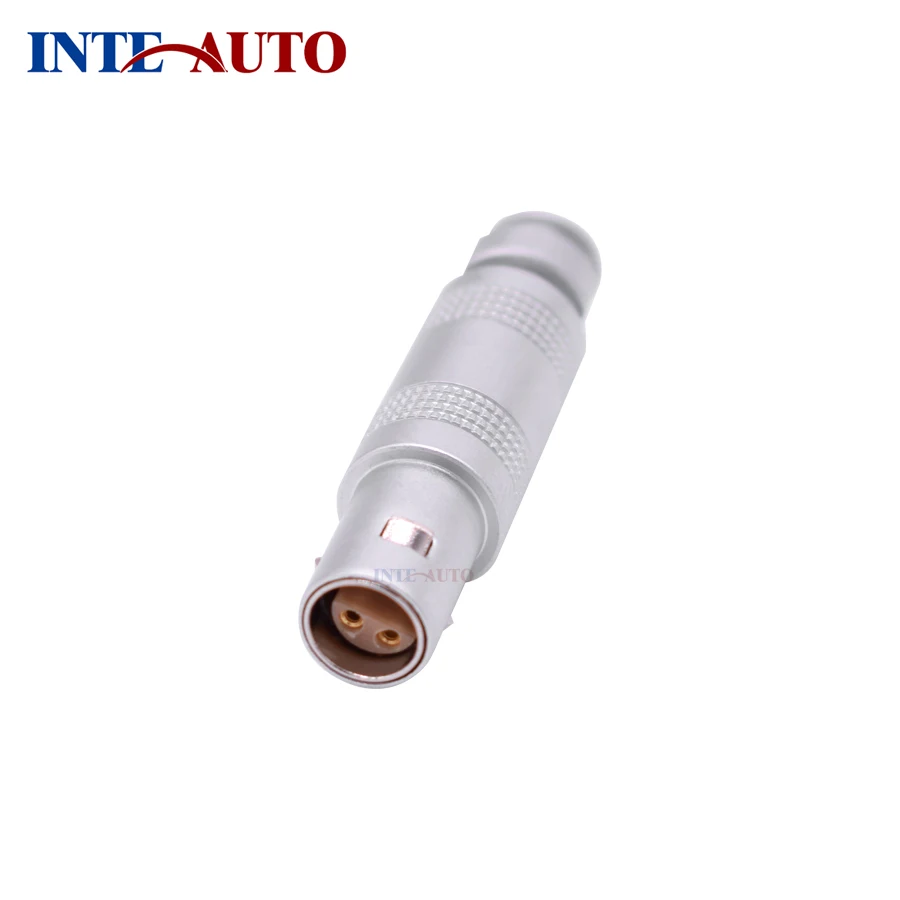

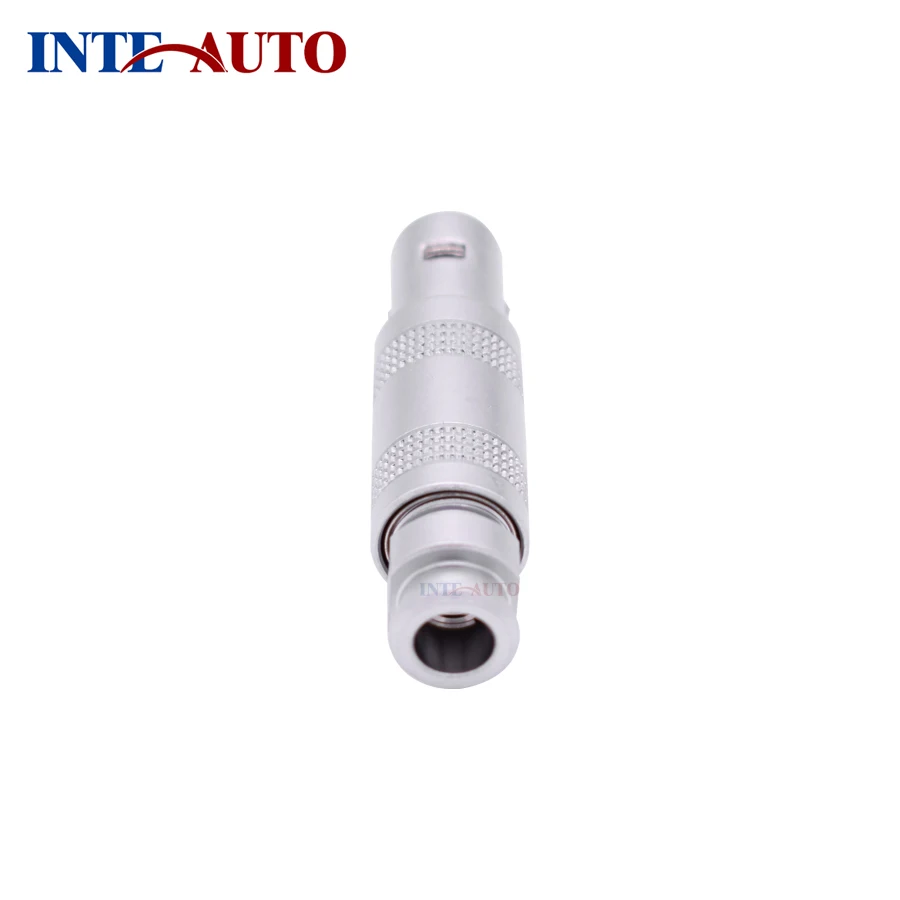

4 Pins M9 Size Circular Push-pull self-locking advanced audio connector half-moon stepped male plug TFA.0S.304 | Обустройство дома

S series connectors have main features as follows:

1.Security of the Push-Pull self-latching system
2.Solder or print contacts (straight or elbow)
3.Unipole types transmitting current up to 230 A and multipole types with up to 6contacts
4.Polarization by stepped insert (half-moon) fitted with male and female contacts
5.60° screening for full EMC shielding.

Technical characteristics:
Mechanical and Climatically
1. Endurance: > 5000 mating cycles;
2. Humidity : up to 95% at 60 ºC;
3. Temperature range: -45 ºC, +125 ºC;
4. .Resistance to vibration : 15 g[10 HZ-2000HZ];
5. Shock resistance: 100 g ,6 MS;
6. Salt spray corrosion test : > 48h;
7. Protection index (mated) : IP 50.

Industry Application:
This connector is widely used in test and measurement, industry control, AV system, Broadcast and communication, Audio, Video multimedia and other fields.

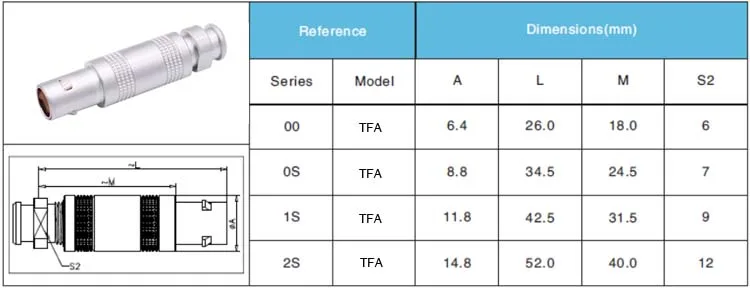

Product size:
