Product Description

This Digital protractor uses angle sensor technology to calculate exact angles simply by tilting it to the desired angle. The LCD provides reading that is always displayed in upright position in any angle. It measure angles within4 x 90°(0~360°)  range. It also has Absolute Angle Measurement to  test whether the working surface is on the level to  check roof slopes, wheel alignment, etc. With simple  self calibration no other fixtures is needed.

It can converts to different unit from degrees (°) to mm/m, to percent slope (%), to pitch (in/ft) plus it hasbacklightfunctions that allows you to read and work in the dark.It is easy to use with compact & portable design.

Applications:

• Automotive

  • Drive line Measurement

  • Race car wing & chassis adjustment

  • Wheel alignment

  • Frame straightening

• Industrial

  • Machine tool set up

  • Lathe and mill alignment

  • Quality Assurance verification

• Medical

  • Range of motion measurement

  • Drive shaft alignment

• Setup of precision machines

• Road or rail-track layout

• Satellite or aerial alignment

• Drainage angles and run-off slopes

• Tool setting on Lathes

• Setting blade angle of Circular Saws

• Setting blade angle of Miter Saws

• Setting work piece angle for milling

• Grader and tractor work alignment

• Platform monitoring

• Suitable for Built wood and metalwork projects

• Create straight edges when assembling furniture

• Ensure wallpaper and cornices are level for decoration

• Measuring and adjusting alignment of sliding carriages and extension tables to cast saw benches

• Check drill press table setting, table saw, jointer table, band saw, jointer fence or band saw table

• Favored by cabinetmakers & furniture workshops for setting up machinery such as saw benches, planer thicknesses, spindle molders and lathes to ensure that they are set true

Features:

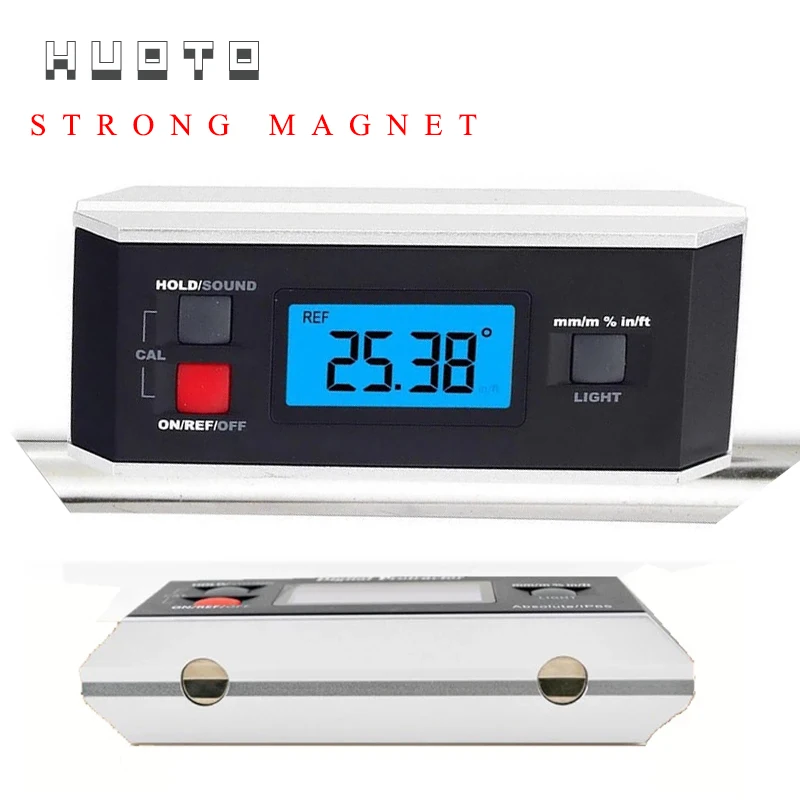

• V-groove base plate with strong built-in magnets

• Full range 360° measurement allows you to work both horizontal and vertical planes

• Dynamic measuring tool:Angle Finder,ProtractorandLevel

• WithBeeper / Sound Functionthat can be set

• Converts angles to different units: degrees (°) to mm/m, to percent slope (%), to pitch (in/ft)

• Measuring range of 4 x 90°

• BacklightFunctions to be able to use it in the dark place

• Display remains upright enabling viewing at all angles

• Fast and accurate measurement

• Factory Calibrated

• Compact & portable design

• Absolute and relative measurement conversion

• Powered by 1.5V or AAA Alkaline battery 2000 hours in continous use (included in the set)

• WithCE,RohS,PAHSMarking

Specifications:

• Measuring Range : 4 x 90° , mm/m : 1000mm/m,% : 100%, in/ft : 12in/ft

• Accuracy : 0° and 90° ≤0.1°, the rest ≤0.2°

• Resolution : 0.05°

• Working Temperature : 32 ~ 104°F (0 ~ 40°C)

• Working Humidity : ≤85%

• Protection Grade : IP65

• Dimensions : approx. 151 x 60 x 32mm

• Weight : approx. 292g

• Power Supply : 2 x AAA alkaline battery (included on set)

Set Includes:

• 1 x Digital Protractor

• 2 x 1.5V AAA Alkaline Battery

• 1 x Protective Pouch

• 1 x English Instruction Manual

• Standard Factory Package
