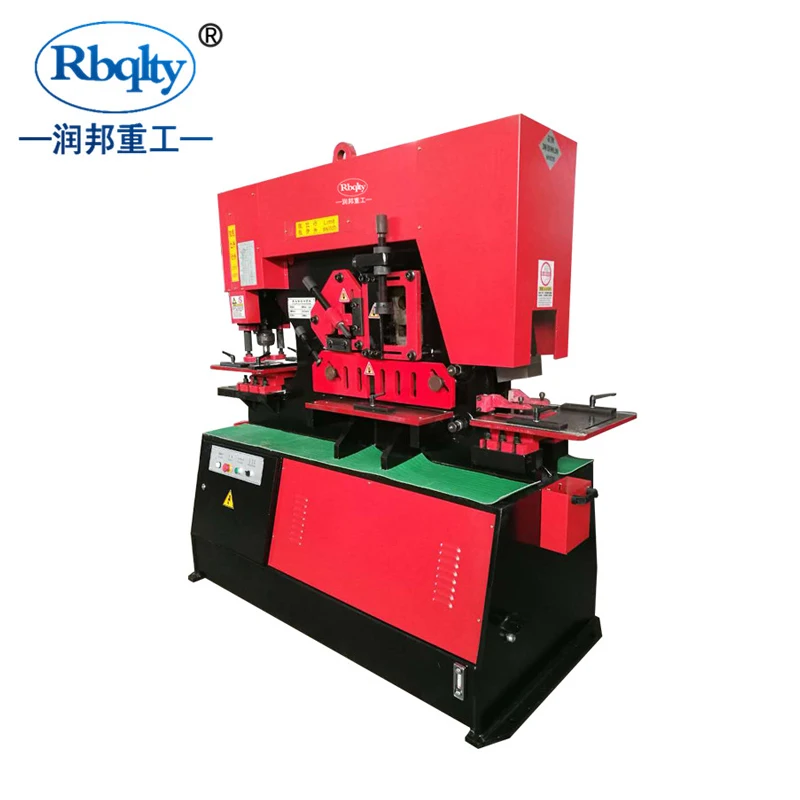

China supplier Q35Y-50ton hydraulic ironworker machine price

1. Robust and accurate steel frame

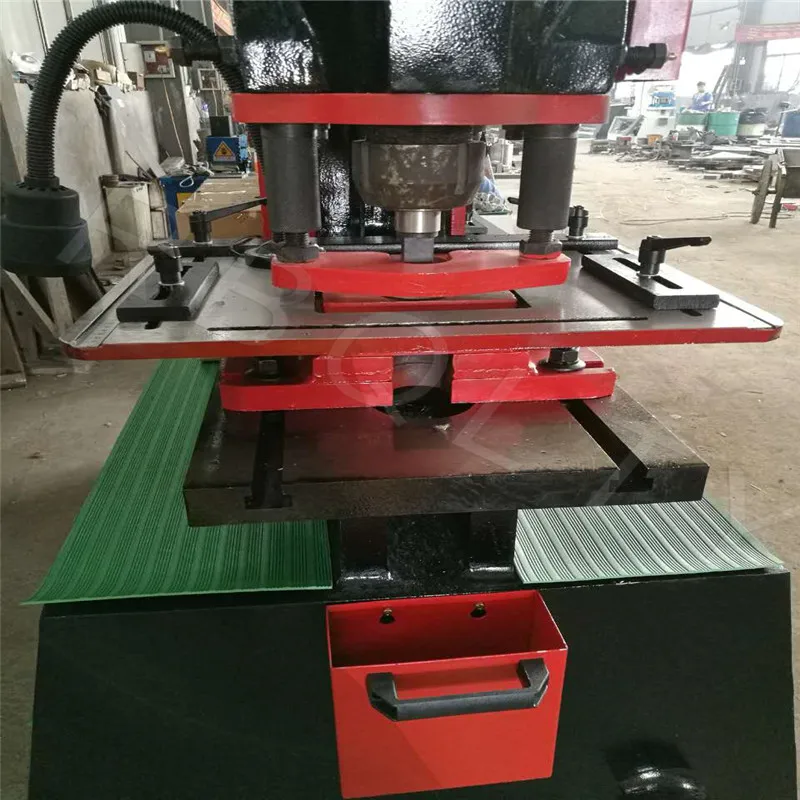

2. Large punch table with scales

3. Removable bolster for punching flanges and channel and beam

4. 2 independent hydraulic cylinders

5. 2 shielded foot controls

6. 2 Separate Die Openings for oversized punching

7. 5 working stations for wide applications

8. power inching on all 5 work stations

9. plate shear support table and notching table

10. adjustable stroke controls with indicators on both cylinders

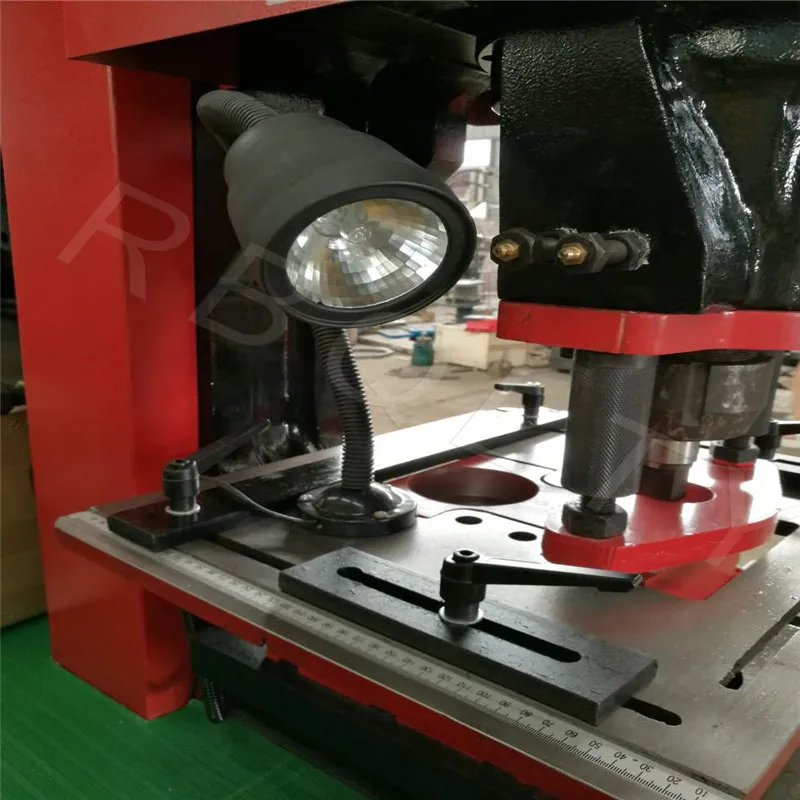

11. punching machine: Movable work light

12. overload protection on hydraulic system

13. electric back gauge


14. optional bending attachment


Machine parameters for reference

Model

No.

Q35Y-16

Q35Y-20

Q35Y-25

Q35Y-30

Q35Y-40

Q35Y-50

Punching Pressure

Ton

60

90

120

160

200

250

Max. Plate Cutting Thickness

mm

16

20

25

30

40

50

Plate Strength

N//mm²

≤450

≤450

≤450

≤450

≤450

≤450

Shearing Angle

°

OneStroke Cutting Size (Thick*Width)

mm

16*250  8*400

20*330  10*480

25*330  16*600

30*335  20*600

40*335  30*600

50*335  40*600

Stroke Length

mm

80

80

80

80

100

80

Trips Frequency

Times/Min

9~25

10~28

9~18

7~16

6~16

8~12

Throat Depth

mm

300

355

400

600

530

600

Punching Depth

mm

16

20

25

26

35

50

Max. Punching Hole Diameter

mm

25

30

35

38

40

35

Main Motor Power

kw

5.5

7.5

11

11

15

22

Overall Dimensions (L*W*H)

mm

1640*730*1770

1860*800*1900

2355*960*2090

2680*1100*2300

2900*1150*2500

3000*1150*2600

Machine Weight

kg

1800

2400

4200

7000

9000

12000

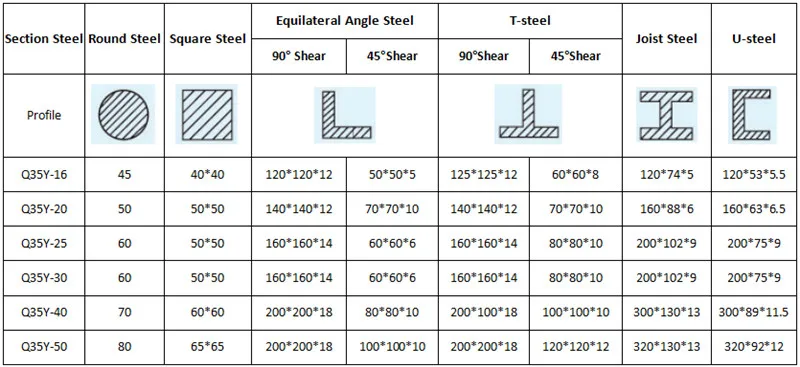

Section steel cutting size

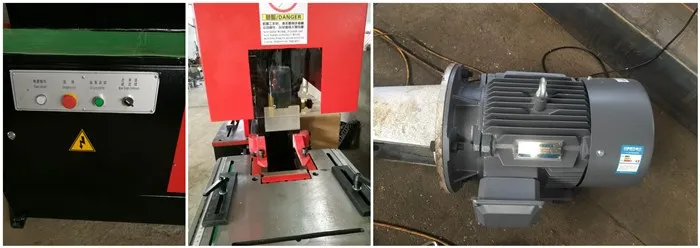

Images

Workpiece

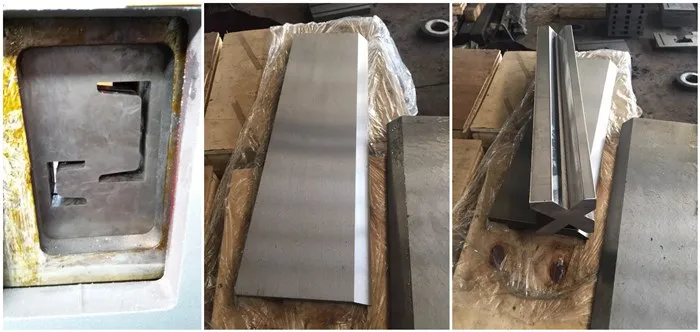

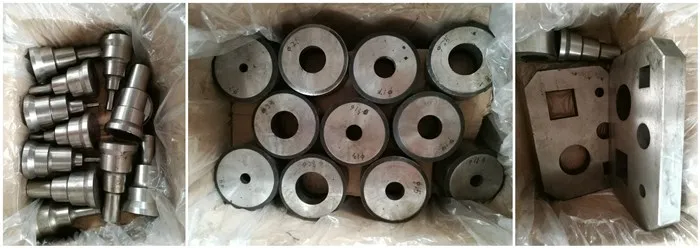

Molds

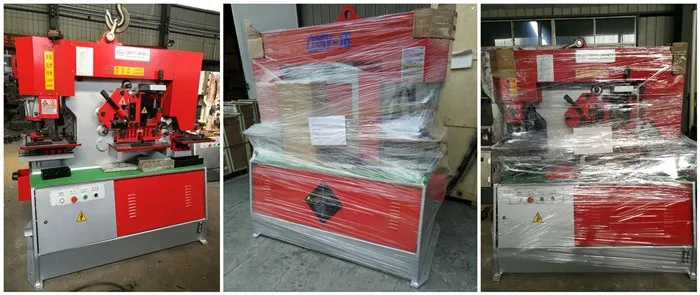

Packaging and delivery


Customer visiting






Pre-sales services

  • Min.Order Quantity:1 set.

  • Certicate: CE or ISO certificate.

  • Lead time: some in stock, some half month

  • OEM & ODM support

  • Response in 12 hours

  • 72 hours running test before delivery

After-sales services

  • 24 hours hotline 0086-0553-7568159

  • Online installation and operation instruction

  • Onsite service fee: 100 dollars per day except air ticket and hotel

  • Lifetime maintainence support

Warranty

  • 1 year for main parts except accessaries.

  • Do not cover wrong operation, careless maintenance, deliberate damage

Runbang Heavy Machine Co.,Ltd

We make sheet metal fabrication machine like bending machine, shearing machine, iron worker, hydraulic press, punching machine, duct making auto line, cutting machine and so on.


Expert Team


RB has an expert team of 16 technicians, factory has area over 30,000 square meters,

20 years experience in machine tool

Runbang is able to supply best quality machines.


Contact Number

Tel: 0086-0553-4816998

Mob/ Whatsapp/Skype: +8613339035076

Wechat:Wy18895707635

Email: rbsales3@ rbqlty.com

Website:www.rbqlty.com

Company name:Anhui Runbang Heavy Machinery Co.,ltd


Factory Address:Industrial Zone, Bowang Area, Maanshan, Anhui, China (Mainland)


We can pick you up atNanjing Lukou Airport or Nanjin South Station
