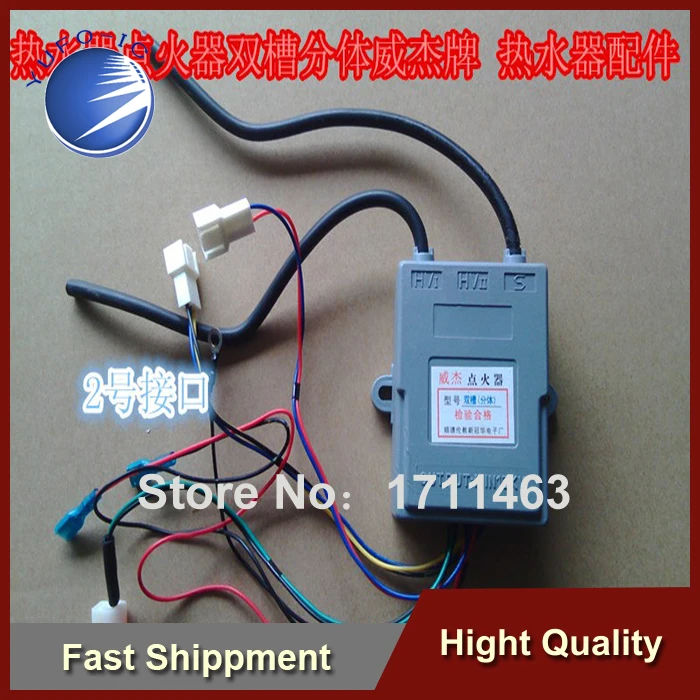

Free Shipping 2PCS Weijie water heater ignition wire without a split-slot battery box Million and accessories two lines YF0913 |
2 180,39 руб. / lot
Новое поступление

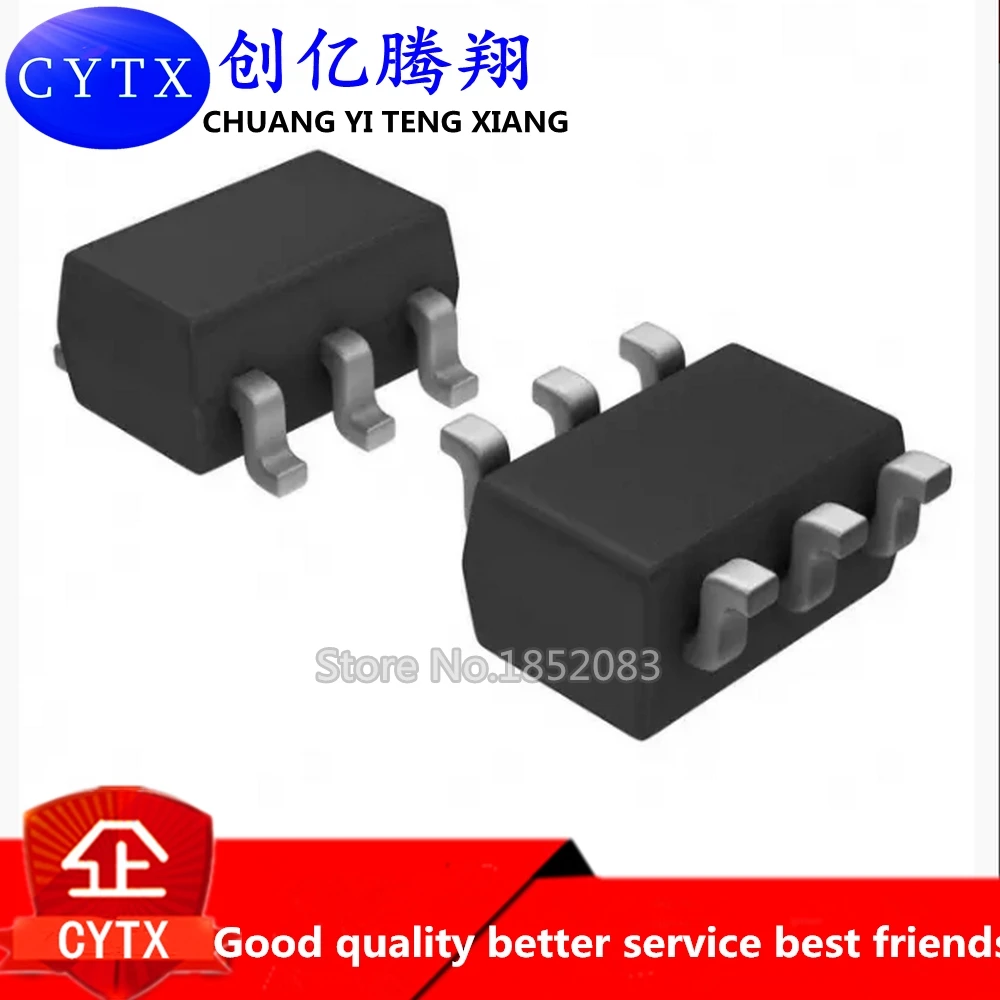

1 шт. модель SY7152ABC SY7152 SOT23-6 | Электронные компоненты и принадлежности
14,36 руб.

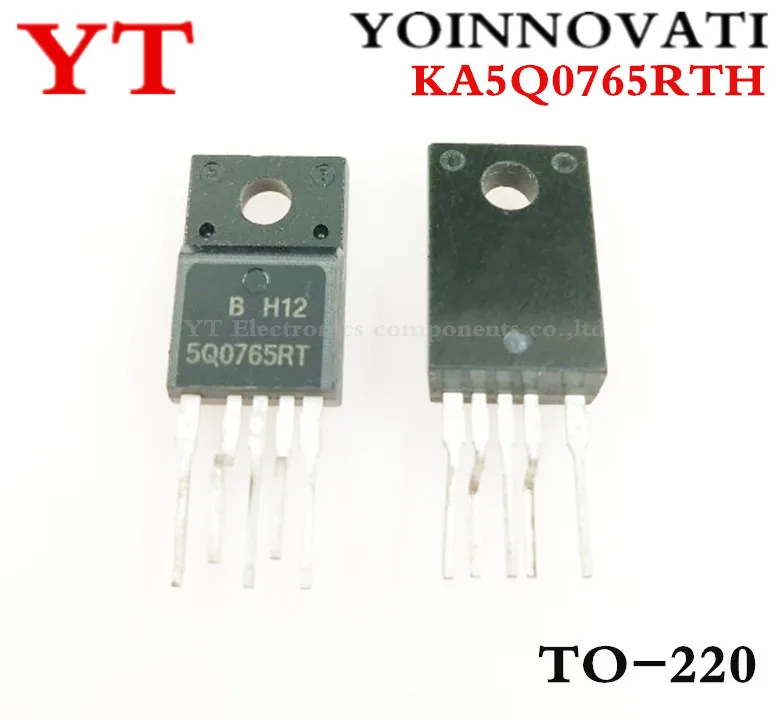

20 шт./лот KA5Q0765RTH KA5Q0765 5Q0765 0765 5Q0765RT IC FPS SWITCH CTV TO-220F-5 | Электронные компоненты и
1 267,62 руб. / набор

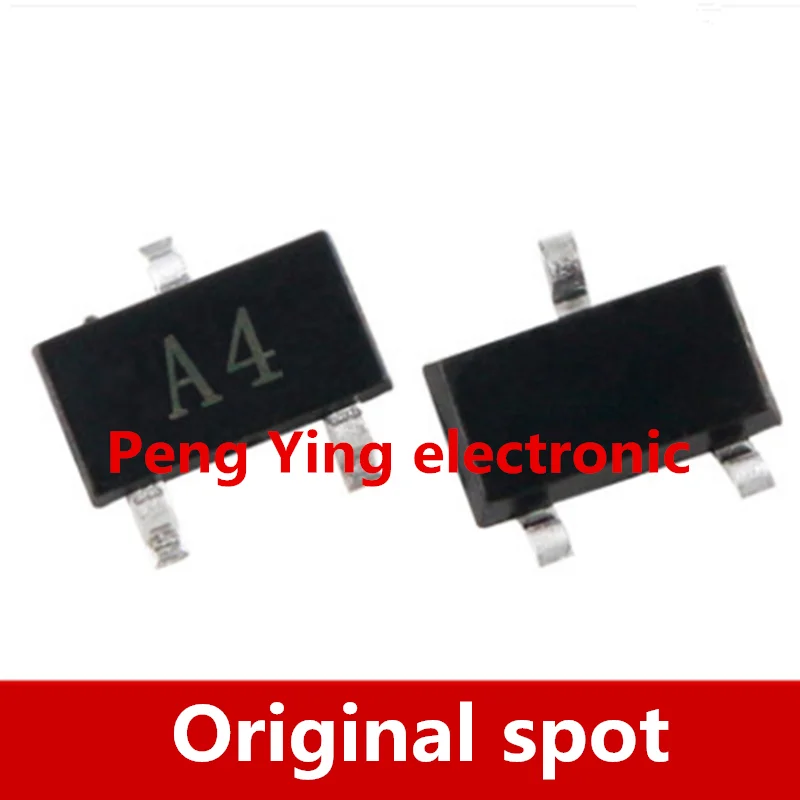

Оригинальный транзистор SOT-23 для электронных сигарет 500 шт. | Электронные
188,71 - 892,26 руб.

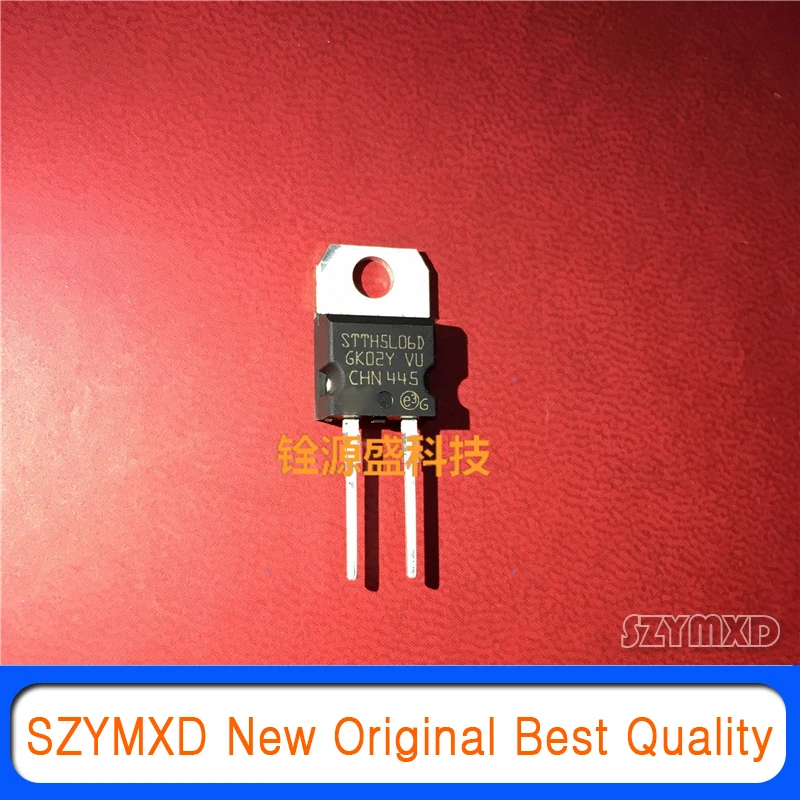

5 шт./лот новый оригинальный STTH5L06D 5A600V95ns ультра-быстрое зарядное устройство
230,76 руб. / набор

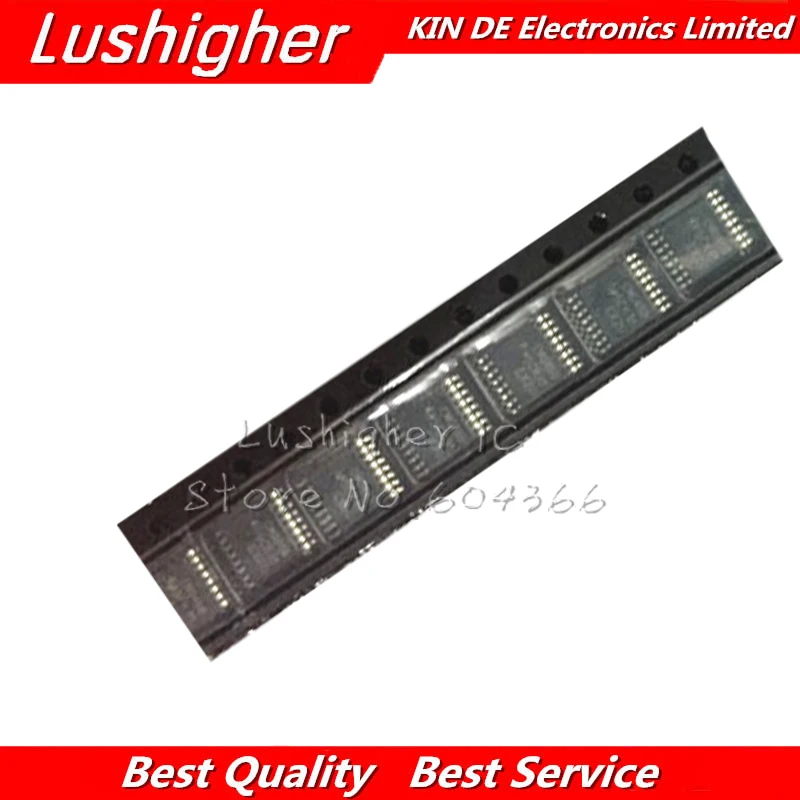

20 шт PIC16F636T-I/ST SSOP14 16F636T | Электронные компоненты и принадлежности

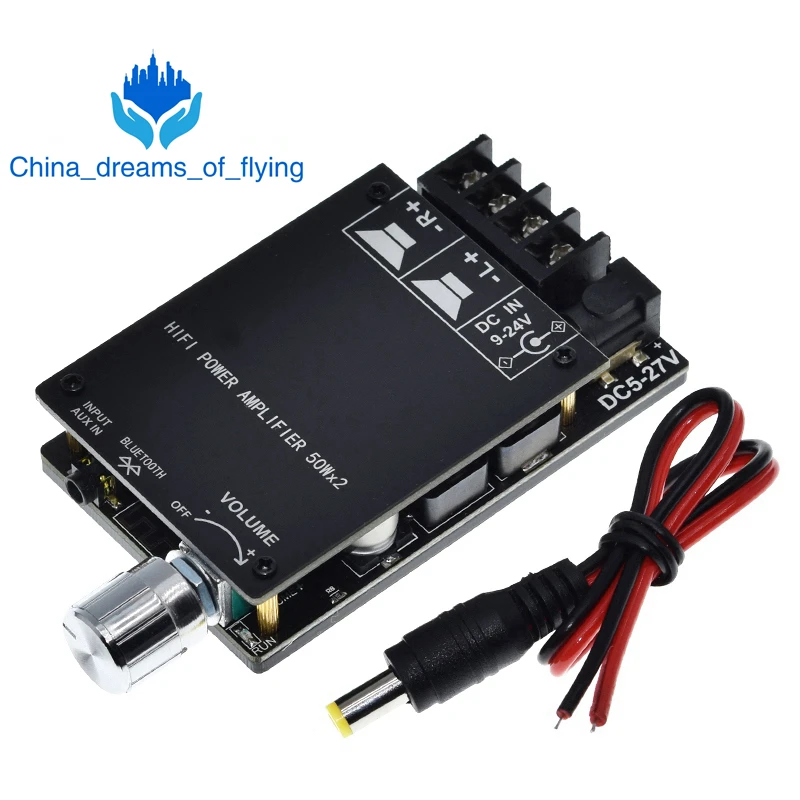

Плата цифрового усилителя мощности HIFI stereo Bluetooth 5 0 TPA3116 50WX2 усилитель звука для

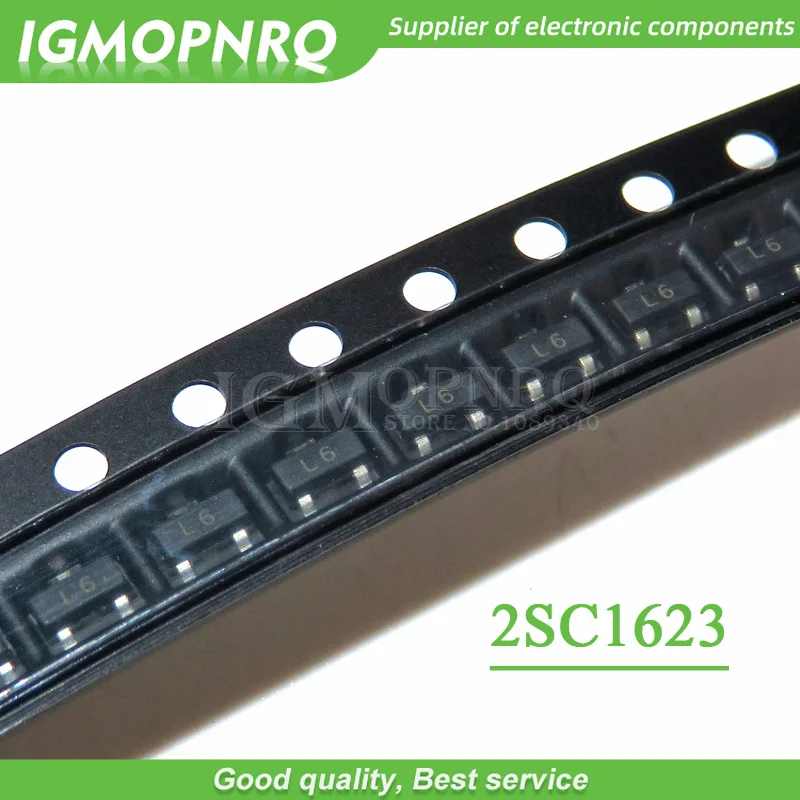

100 шт. Бесплатная доставка 2SC1623 L6 SOT23-3 биполярные транзисторы-BJT PNP транзистор
77,94 руб. / набор
ModuleFans
Магазина ModuleFans работает с 05.06.2012. его рейтинг составлет 94.35 баллов из 100. В избранное добавили 26332 покупателя. Средний рейтинг торваров продавца 4.8 в продаже представленно 3809 наименований товаров, успешно доставлено 285954 заказов. 22981 покупателей оставили отзывы о продавце.
Характеристики
WT588D-U WT588D-U-32M Voice Control Board 5V Mini USB Interface Sound Controller Module 32M DC 2.8V 5.5V DAC PWM WAV Output | Электронные
История изменения цены
*Текущая стоимость 415,36 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-19-2026 | 527.61 руб. | 538.5 руб. | 532.5 руб. |
| Jan-19-2026 | 427.51 руб. | 436.41 руб. | 431.5 руб. |
| Dec-19-2025 | 519.28 руб. | 529.53 руб. | 524 руб. |
| Nov-19-2025 | 515.26 руб. | 525.15 руб. | 520 руб. |
| Oct-19-2025 | 411.42 руб. | 419.95 руб. | 415 руб. |
| Sep-19-2025 | 506.52 руб. | 516.68 руб. | 511 руб. |
| Aug-19-2025 | 502.91 руб. | 512.78 руб. | 507 руб. |
| Jul-19-2025 | 498.83 руб. | 508.65 руб. | 503 руб. |
Описание товара
1. Package of 28 pins module, which can be replaced memory for gaining different lengths of storage time.
2. Supports 2M bit ~ 32M bit capacity SPI-Flash (Note: 1byte = 8bit)
3. WT588D-20SS voice used as a control core chip.
4. Embedded human voice processor, feel very natural and sweet.
5. Good audio quality output for 13Bit/DA converter and 12Bit/PWM processing of audio.
6. Support for loading 6K ~ 22KHz audio sampling rate.
7. PWM output can directly promote 0.5W/8 speakers and plenty of current.
8. Support DAC / PWM output.
9. Support for loading WAV audio format.
10. Support key control mode, one-wire serial control mode, three-wire serial control mode.
11. A variety of IO trigger ways can be seted to in button control mode.
12. The way of BUSY signal output can be set in a random manner.
13. Loading no more than 500 segments voice for editing.
14. Address bit is controlled by 220 segments voice, but a single address bit just can load up to 128.
15. Voice player to enter the sleep mode to stop immediately.
16. It is simple interface and convenient because of using WT588D Voice Chip that benefited to exert its functions.
17. A lot of operations can be finished in software. Such as setup control mode, inserting voice, compositing voice, calling voice, etc.
18. Free to insert mute, mute time range 10ms ~ 25min.
19. Support online USB download / offline USB download.?Moreover, it also can download data to SPI-Flash even if WT588D-U are working.
20. Operating voltage: DC2.8V ~ 5.5V.
21. Dormant current less than 10uA
22. Powerful anti-jamming. Widely used in the industrial field.
23. Memory:32M
Description
Button control mode is flexible to trigger and free to set any button to re-trigger .There are 15 trigger ways. Including trigger Impulse Repetition , trigger pluse Without Repetition , invalidation keys, no cycle Level , Recycled Level , Non-Maintained Cycle Level, Non-Cycle for The Last One ,Non-Cycle for The Next One , Cycle for The Last One , Cycle for The Next One, Volume +, Volume -, play / pause, stop, play / stop, etc .
One-wire serial control mode and three-wire serial control mode, not only can control voice play, stop, loop play and volume size by the MCU, but also can direct triggering any voice in address bit from 0 to 219.
Application
Widely range of applications. Almost related to all the voice places, such as Stop devices, annunciators , reminder, alarm clock, learning machine, intelligent home appliances, therapeutic equipment, electronic toys, telecommunications, reversing radar and a variety of automatic control devices, etc. Technology meet up to the requirements of industries application.
Package Included:
1 x module
