PEGATAH Security Camera Store
Магазина PEGATAH Security Camera Store работает с 07.05.2018. его рейтинг составлет 89.18 баллов из 100. В избранное добавили 71080 покупателя. Средний рейтинг торваров продавца 4.6 в продаже представленно 281 наименований товаров, успешно доставлено 2701 заказов. 1766 покупателей оставили отзывы о продавце.
Характеристики

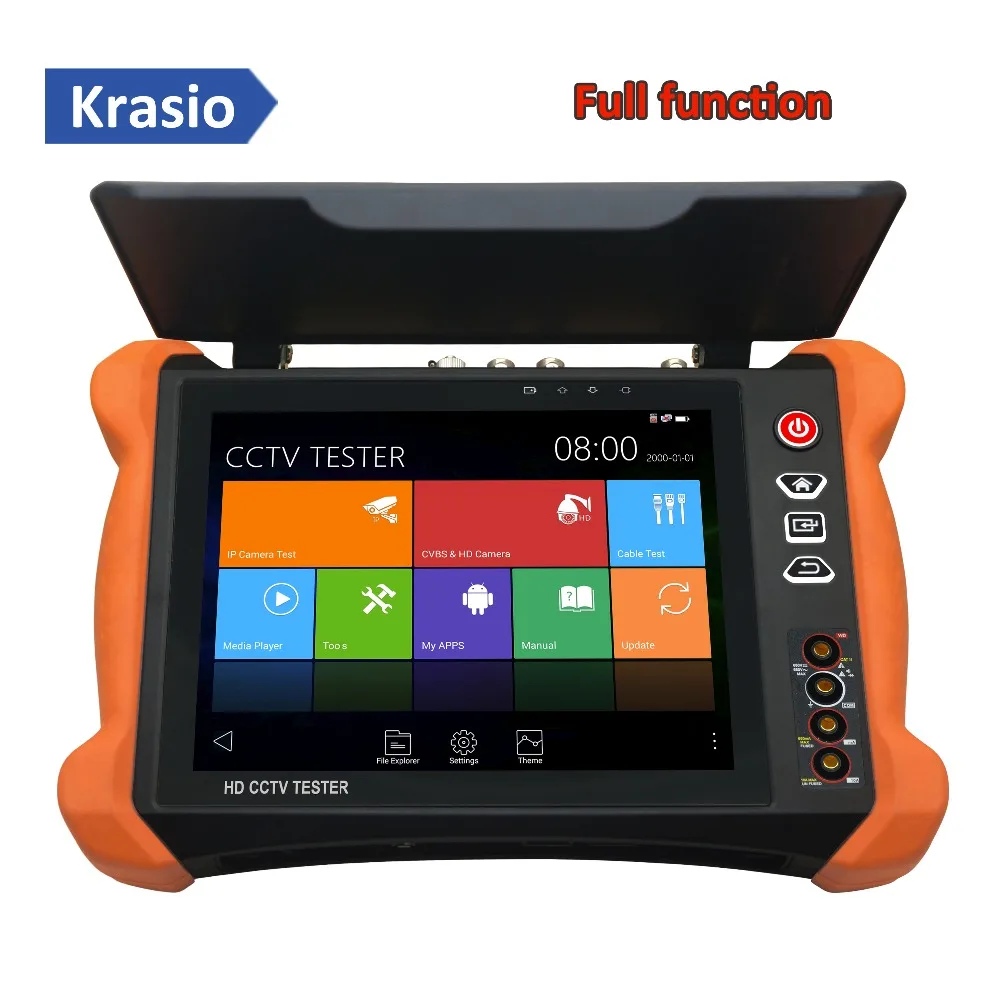

8 inch 2K Touch screen H.265 8MP IP Camera tester AHD TVI CVI SDI CVBS 6 in one CCTV Tester Cable tracer 4K output | Безопасность и
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-18-2026 | 0.22 руб. | 0.76 руб. | 0 руб. |
| Feb-18-2026 | 0.39 руб. | 0.46 руб. | 0 руб. |
| Jan-18-2026 | 0.49 руб. | 0.12 руб. | 0 руб. |
| Dec-18-2025 | 0.58 руб. | 0.70 руб. | 0 руб. |
| Nov-18-2025 | 0.1 руб. | 0.50 руб. | 0 руб. |
| Oct-18-2025 | 0.78 руб. | 0.12 руб. | 0 руб. |
| Sep-18-2025 | 0.71 руб. | 0.15 руб. | 0 руб. |
| Aug-18-2025 | 0.82 руб. | 0.87 руб. | 0 руб. |
| Jul-18-2025 | 0.84 руб. | 0.90 руб. | 0 руб. |
Описание товара
Buyers attention Models:

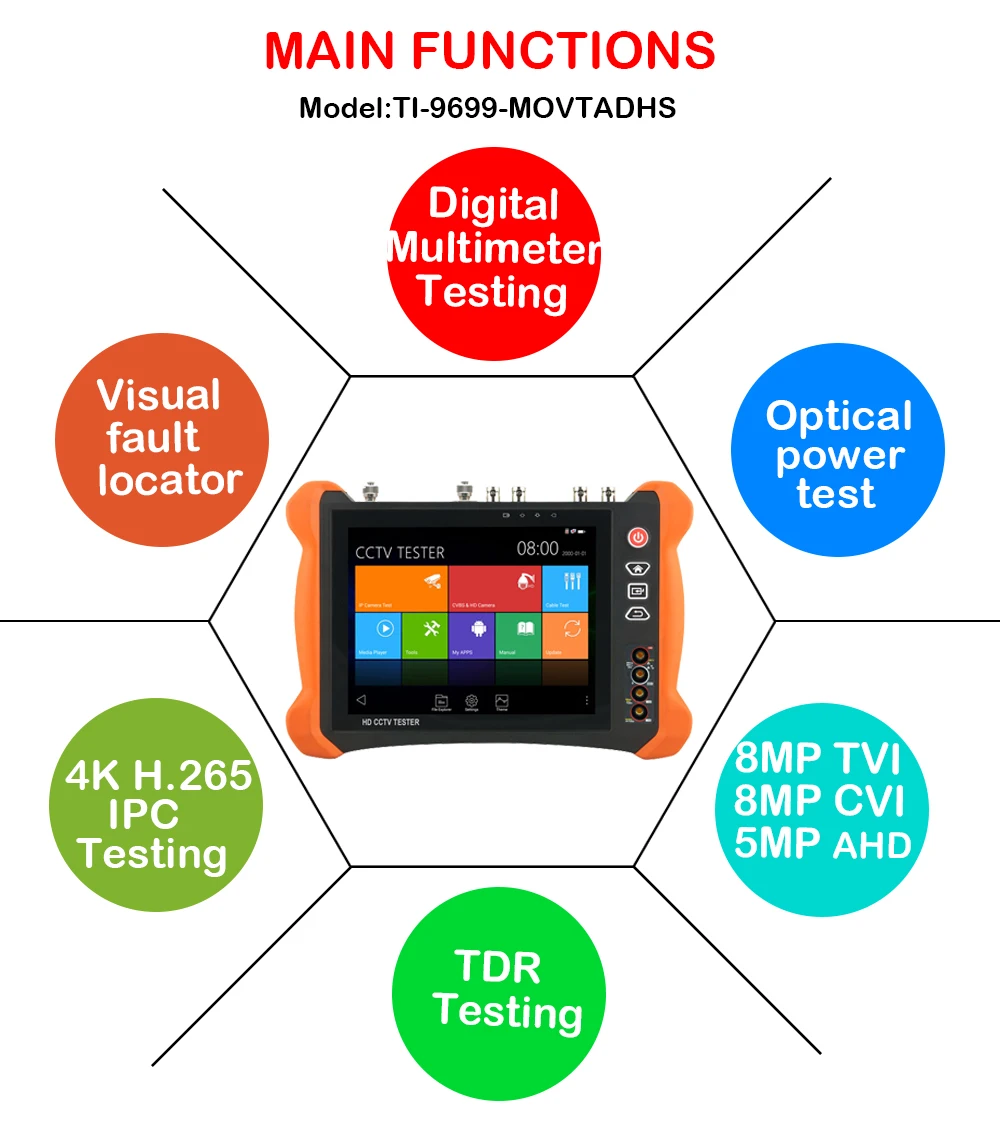

TI-9699-AHD: 8MPTVI / CVI 5MP AHD HDMI in/output cable tracer
TI-9699-AHDS:8MP TVI/ CVI 5MP AHD 1080P SDI HDMI in/output cable tracer
TI-9699-MOVTAHDS:8MP TVI / CVI 5MP AHD 1080P SDI HDMI in/output cable tracer+
Multimeter + optical power + TDR cable tester +red laser sourc
Notice:
Custom duty
For the weight of the item is more than 2.8KG, It would be shipped by DHL or EMS, When you choose DHL shipping way, DHL might charge custom clearance fees, please confirm whether you have the clearance ablity.
Due to customs duties ,buyers refuse to get the goods, the buyers should pay all the resulting freight.
Import duties ,taxs and charges are not included in the price or shipping charges, These charges are the buyers' responsibility, please check the custom clearance fees of your country before you place an order.
Features

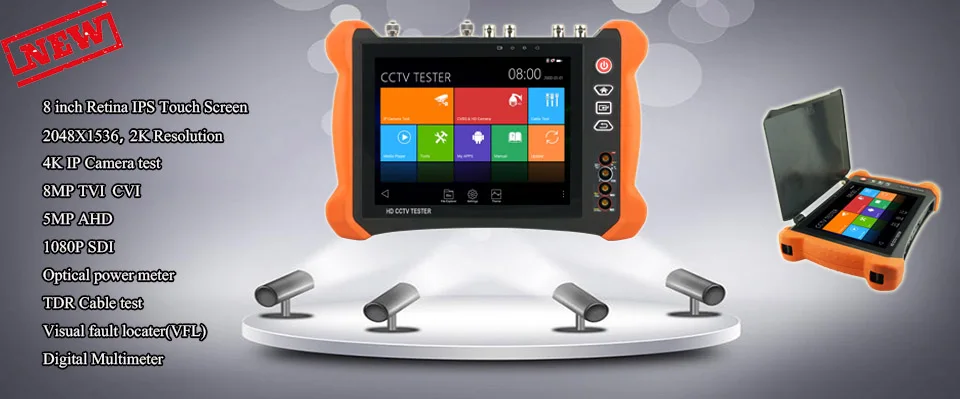

1. New -8 inch retina touch screen, 2K (2048*1536)resolution
2. New- 8MP CVI TVI test:15 FPS,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu*
3. 5MP AHD test: 12.5/20FPS,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu*
4. New- IP and analog testing at the same time ,converter test from analog to digital with dual test window IP & CVBS

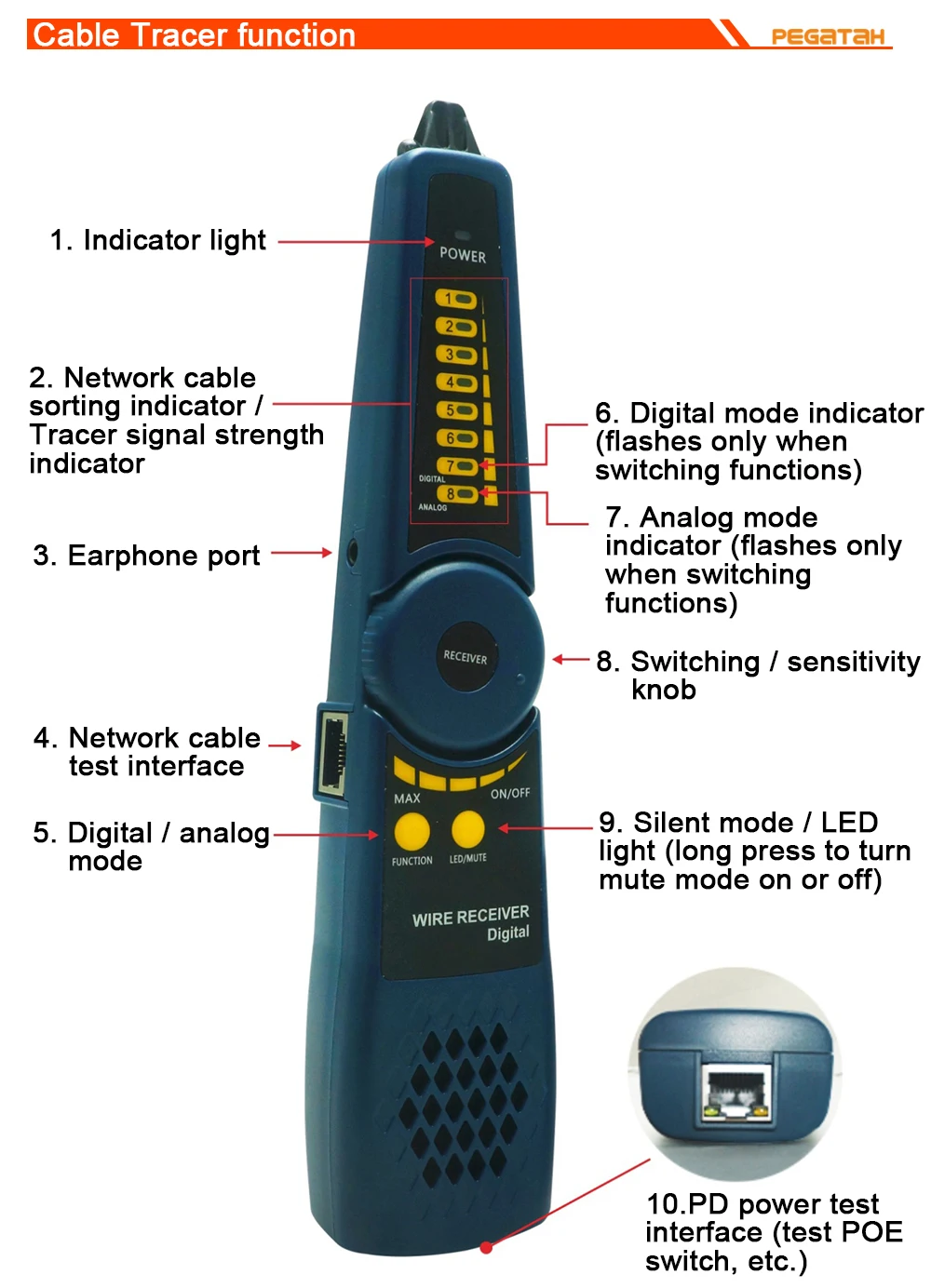

5. Cable tracer: search BNC cable, network cable and telephone cable from the mess cables
6. Improvement cable tester:UTP cable, telephone cable etc order and connectivity test, can save testing report, if specialnumber, need to customize
7. ONVIF camera test, support 4K, Network PTZ controller (ONVIF)

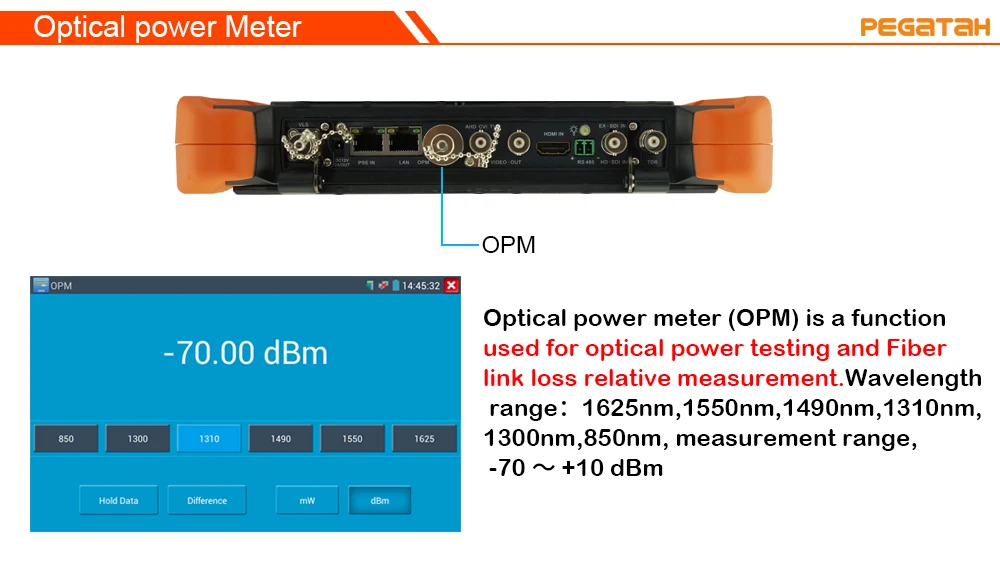

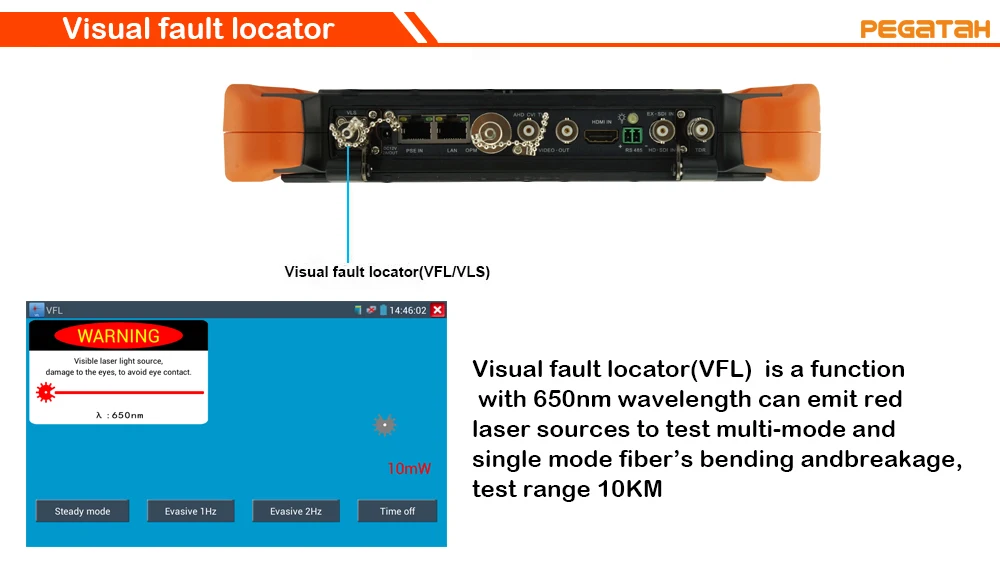

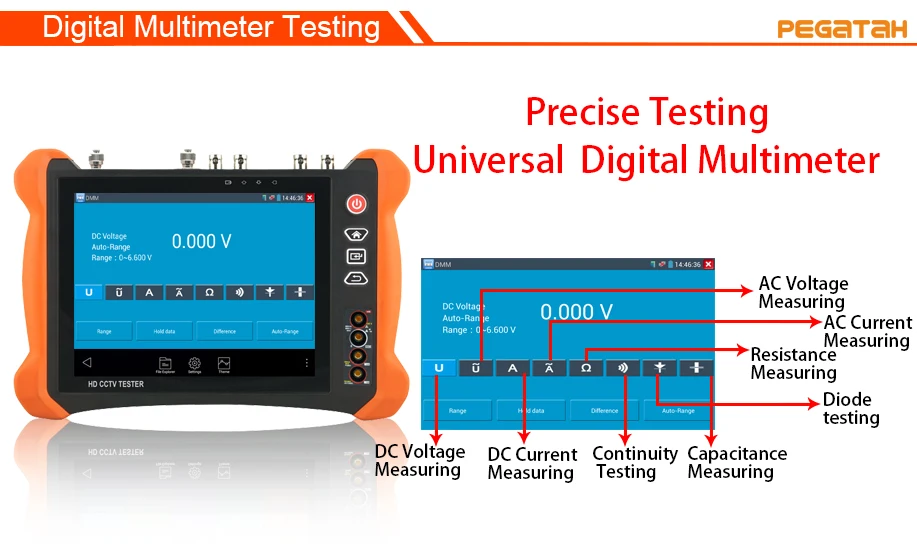

8. Support: optical power meter, Digital multimeter,Visual fault locator (TI-9699-MOVTADHS) model
9. Supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG
10. Language support: English, Chinese, Korean, Russian, Italian , Polish ,Spanish, French or Japanese
Specification

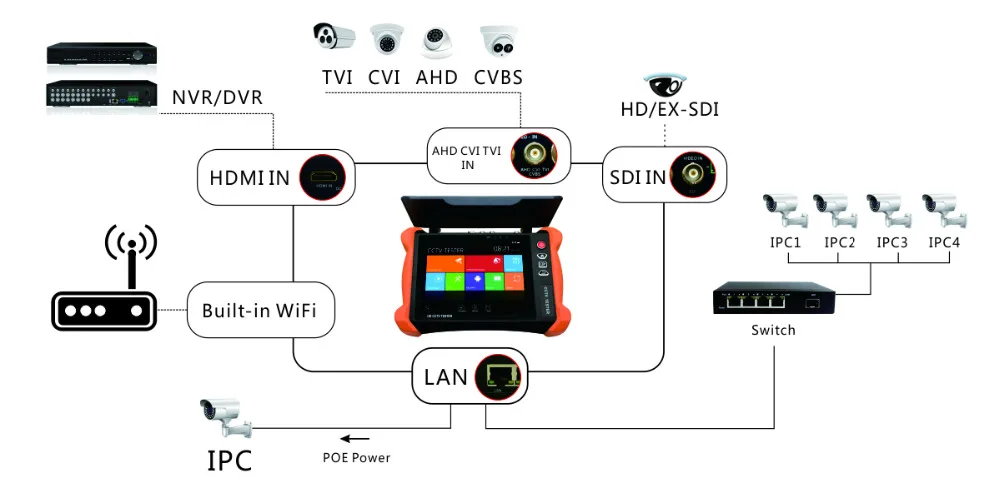

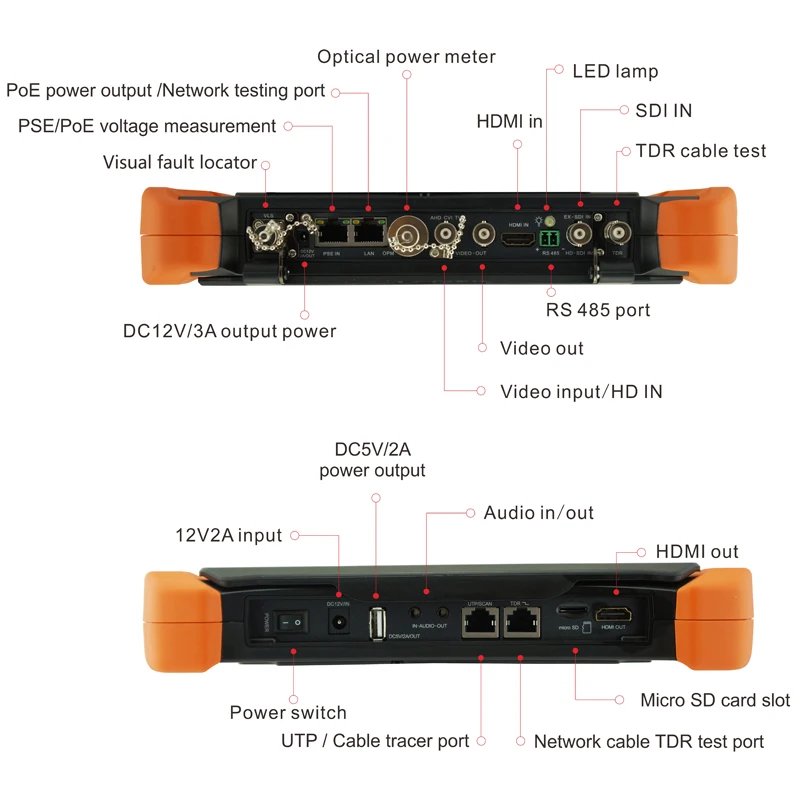

| Display | 8 inch touch screen with retina display ,2048*1536 resolution |

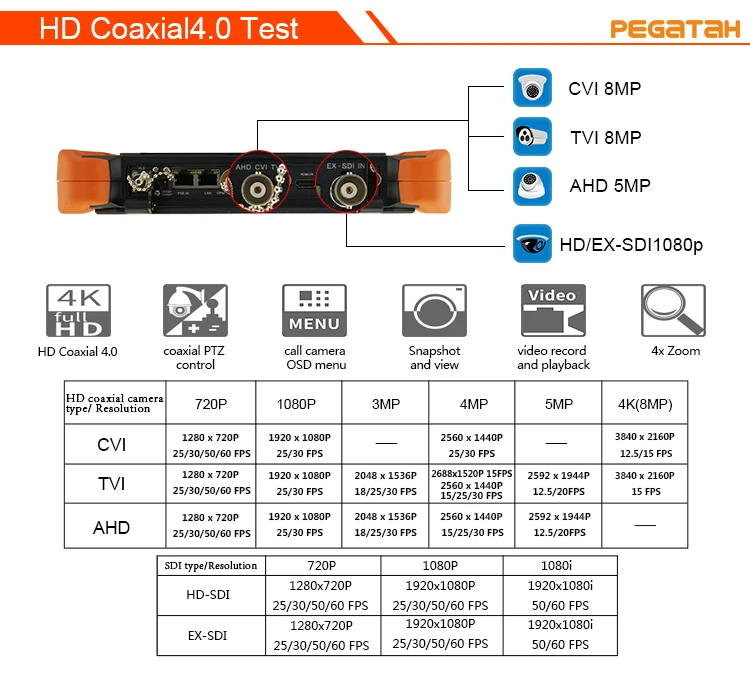

| TVI Test | 8MP TVI camera test,3840 x 2160P 15 FPS, UTC control/ call OSD menu |
| AHD Test | 5MP AHD test,2592 x 1944P 12.5/20FPS, UTC control d call OSD menu |
| CVI Test | 8MP CVI camera test: 3840 x 2160P 12.5/15 FPS,UTC control d call OSD menu |
| SDI Test | HD SDI/EX-SDI camera test ,support 1080P 25/30/50/60 FPS . |
| CVBS Test |
(1) 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt), (2) Analog video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement; (3) PTZ control,RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, etc; (4) CVBS loop test: the tester send and receive color bar generator signal, check BNC cable |
| IP Camera test |
(1) IPC test /IPC viewer /Rapid Video/RTSP /ONVIF; (2) Rapid Video: can create testing report; (3) Hik test tool: pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters; (4) Dahua test tool: Dahua camera test, modify the user name, password and IP parameters; |
| H.265 4K Camera test | H.264 & H .265 ,4K video display via mainstream |
| IP &CVBS test | IP& CVBS test at the same time ,converter test from analog to digital with dual test window |

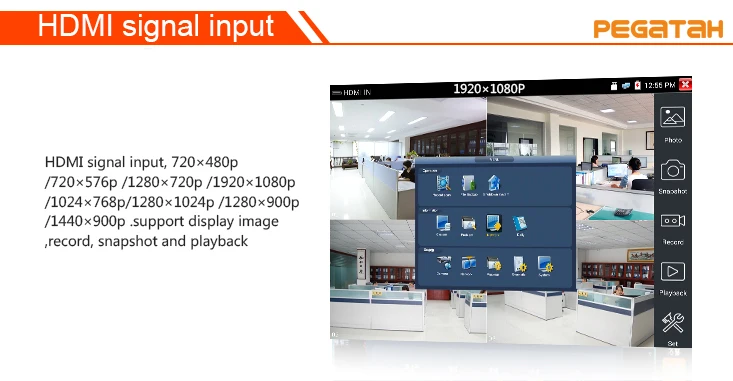

| HDMI input/Output | 1 channel HDMI input support 1080P, 1 channel HDMI output,support 4K |
| WIFI | Built in Wi-Fi ,display image from the wireless camera , create WIFI hotspot |
| IP camera type | Customized camera protocols welcome. ACTi,Dahua IPC-HFW2100P,Hikvision,DS-2CD864-E13,Samsung SNZ-5200,Tiandy TD-NC9200S2,Kodak IPC120L,Honeywell HICC-2300T, IPC,FSJ BY-1080Q,WEISKY IPC camera etc. |
| Audio in /out | Support record and save the audio/LED lamp, calculators, music players and other application tools |

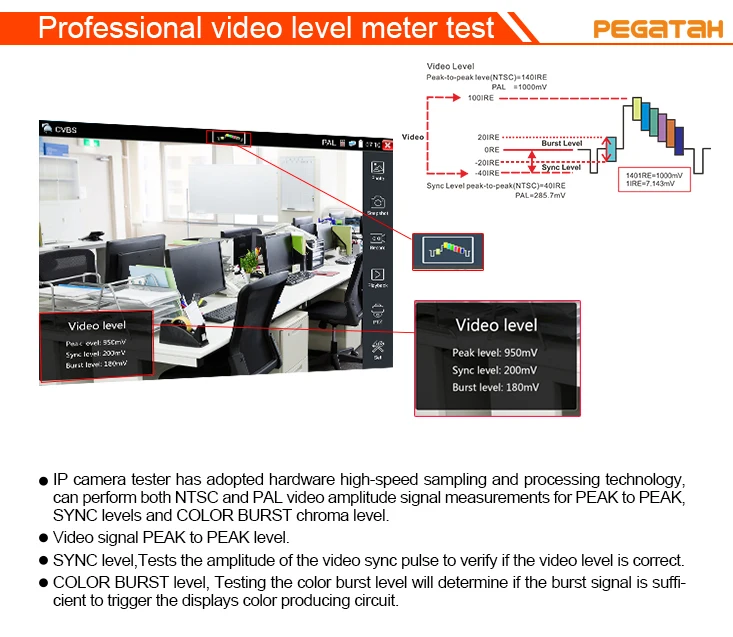

| Video Level Test | PEAK ,SYNC signal level, color burst chroma level measurement |
| Zoom Image | 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back |
| Power output |
(1) Output DC12V/3A power out ,supply temporarily power for the camera (2) 48V PoE power output, max power 24W (3) USB 5V 2A power output, as a power bank |
| Cable test |

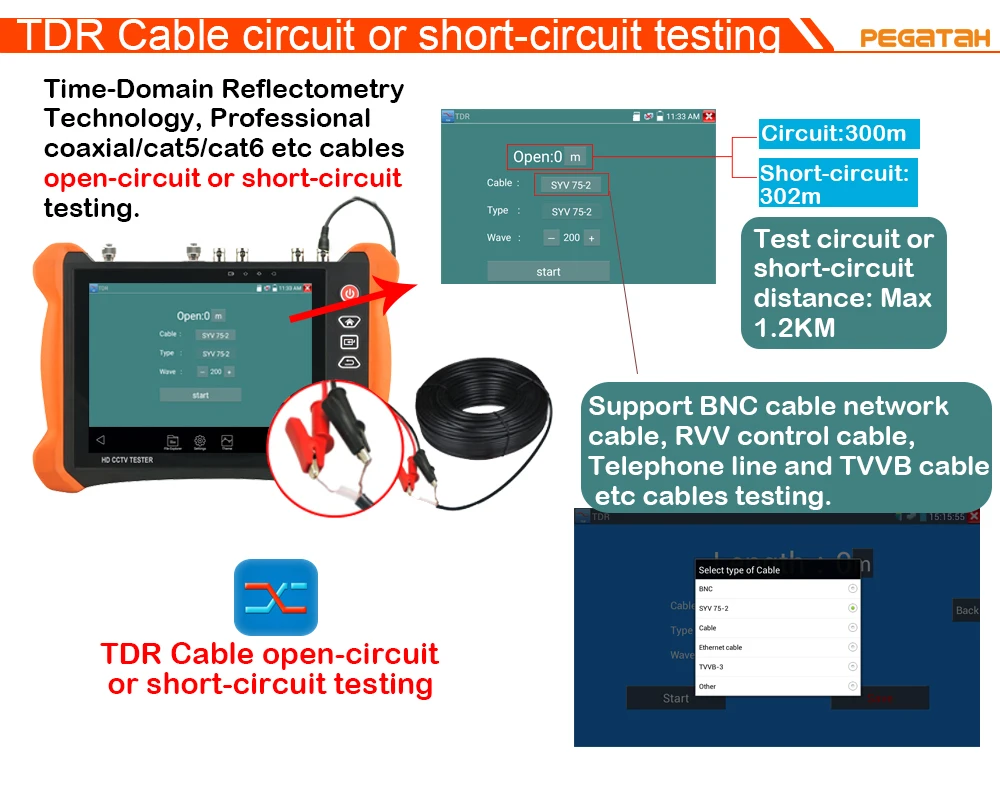

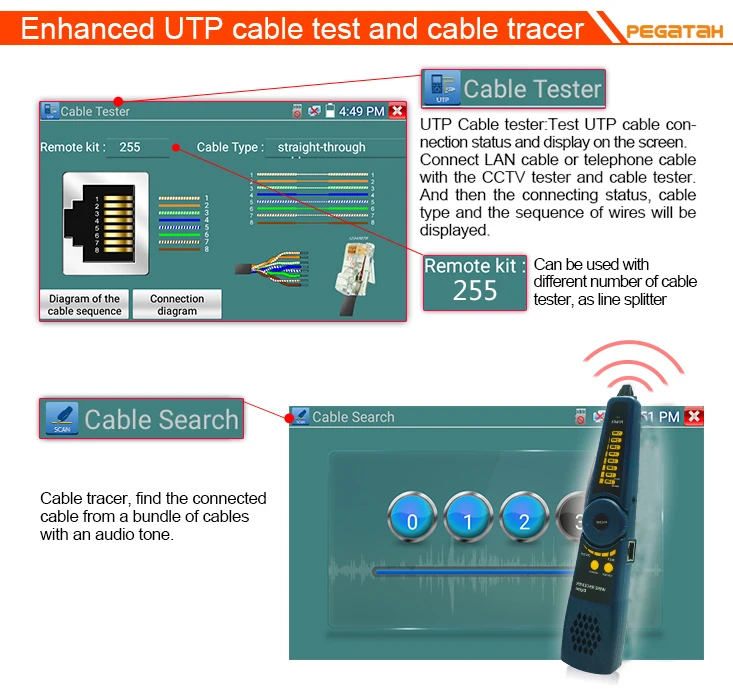

(1) Cable tracer: search BNC cable, network cable and telephone cable from the mess cables; (2) UTP cable test: Test UTP cable connection status and display on the screen. Read the number on the screen; (3) RJ45 cable TDR test: test cable pair status, length, attenuation, reflectivity, impedance, skew etc |
| Testerplay | screen projection: tester, android version mobile phone and PC display at the same time |
| Network test | Trace route, Link monitor , DHCP server, port flashing , Ping test |
| PoE power output | 48V PoE power output,Max power 24W |
| Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone; |
| Rapid Onvif | Auto log in and display image from the camera, activate Hikvision camera, and also can create testing report |
| Color bar generator | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color ) |
| Memory | 8GB SD card including |
| Data monitor | Captures and analyzes the command data from controlling device,also can send hexadecimal |
| Software | Customers self update software ,you can install apps with android version ,such as Skype, wechat etc |
| PoE test | Measurement POE switch or PSE power supply voltage and cable connection status |
| POWER | |
| External power supply | DC 12V 2A |
| Battery | Built-in 7.4V Lithium polymer battery ,5000mAh |
| Rechargeable | After charging 6~7 hours, normal working time 10 hours |
| Parameter | |
| Operation setting | OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish etc |
| Auto off | 1-30 (mins) |
| General | |
| Working Temperature | ,-10°C~+50°C |
| Working Humidity | 30%-90% |
| Dimension/Weight | 231mm x 172mm x 52mm / 3Kg |

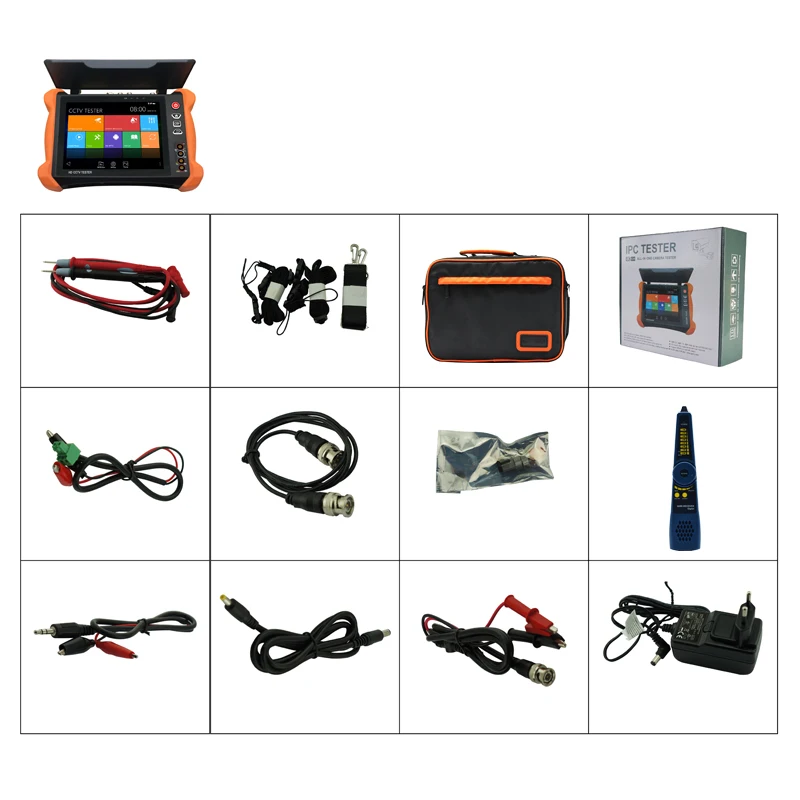

Packing list
1). Tester
2). Adaptor DC12V 2A
3) Network cable tester
4) Polymer lithium ion battery (7.4V DC 7000mAh)
5). BNC cable
6). RS485 cable
7). SC,ST connector(Only for optical power meter)
9). Output Power cable
10). Audio cable
11). TDR alligator clamp (only for TDR models)
12). Safety cord
13). Tool bag
14). Manual
15).8GB SD card
