Tarot Electric retractable tripod controller / blue TL8X002-02 Drone accessories

Product  Description ：

   Tarot  High perfermance of New Developing Electric Retractable landing gear control system , related items as follow :
   Electric landing gear controller  TL8X002
   New electric landing gear  TL65S01
   Small electric landing gear  TL65B43
   Small electric landing gear group  TL65B44
   Medium electric landing gear    TL8X003
   X-series electric landing gear    TL96030
   Large electric landing gear      TL4N001
   Large elecric landing gear group  TL4N002

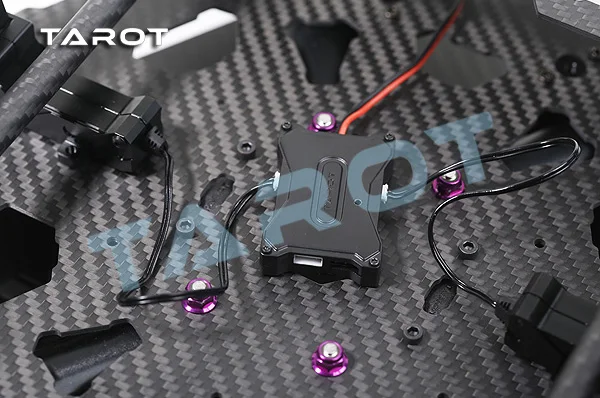

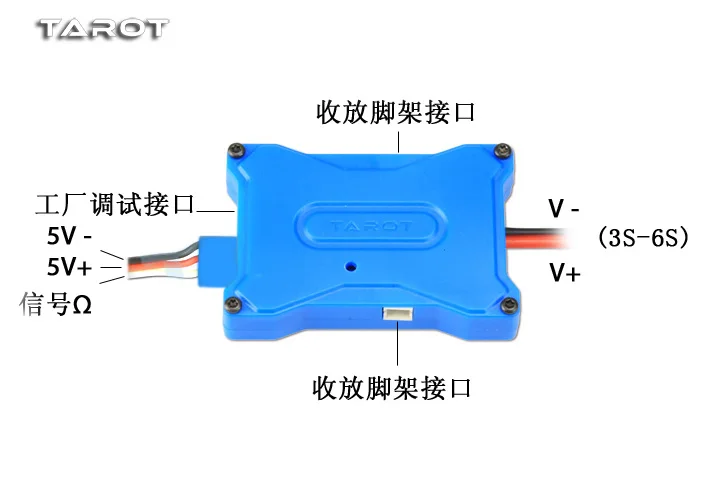

Supply voltage:

Operating voltage: 3S-6S (12.6V --- 25.2V)
Minimum voltage: 10V
Maximum voltage: 26V


Product Function Description:
1. reverse power protection: The power of positive and negative polarity will not damage
   the landing gear control panel.
2. the receiver is connected Description: Enter a channel through 3P line even ordinary receiver, the signal for the PWM,
   pulse width of zero value 1520us, the pulse width is greater than 1520us for landing gear, the pulse width is less than
   1520us is closed landing gear.
3. the receiver connection instructions: initial power-up if there is no receiver signal, the indicator flashes rapidly
   until the receiver detects the signal.
4. Power Protection: After initial power-up if the receiver is close to the landing gear of the action, landing gear
   does not respond, and the indicator light flashes slowly, until the receiver instruction becomes the landing gear, the
   light goes out.
5. work instructions: When the retractable landing gear operation is being performed, the indicator lit until the landing
   gear completely stopped, the light goes out.
6. runaway protection: When the work process, after the loss of receiver signal, the landing gear will automatically put down.
   How to check whether the motor positive and negative reversed:
   When the landing gear to work properly, remove the receiver signals to the control panel to enter the failsafe state, if
   the state is to put the landing gear then the positive and negative electrical wiring is correct, otherwise described motor
   positive and negative reversed.

Fault diagnosis:
1. the power did not respond: Please check the power of positive and negative connections are correct.
2. the landing gear during the operation to stop in the middle: Please check for foreign objects blocking retractable landing gear.
3. retractable landing gear to perform the action does not respond: Check if foreign objects blocking retractable landing gear.
4. after the landing gear completely stopped, the light does not go out: Check whether the supply voltage to meet the requirements.
5. after power has been rapidly flashing lights: Check the receiver is connected correctly.

Product Specifications:

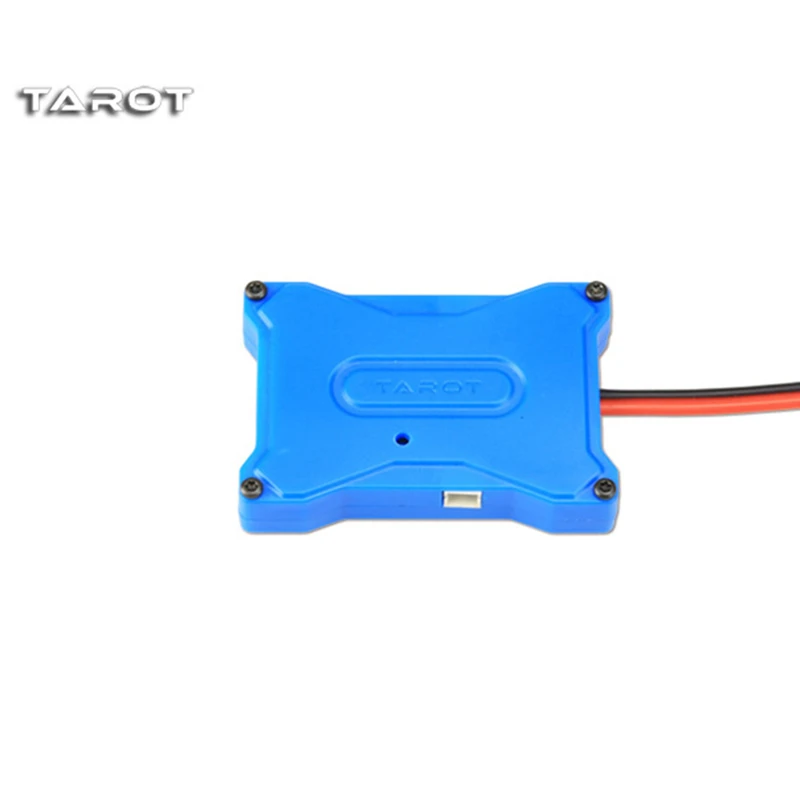

Electric retractable tripod control × 1 (47 × 32 × 9.5MM) 13G
