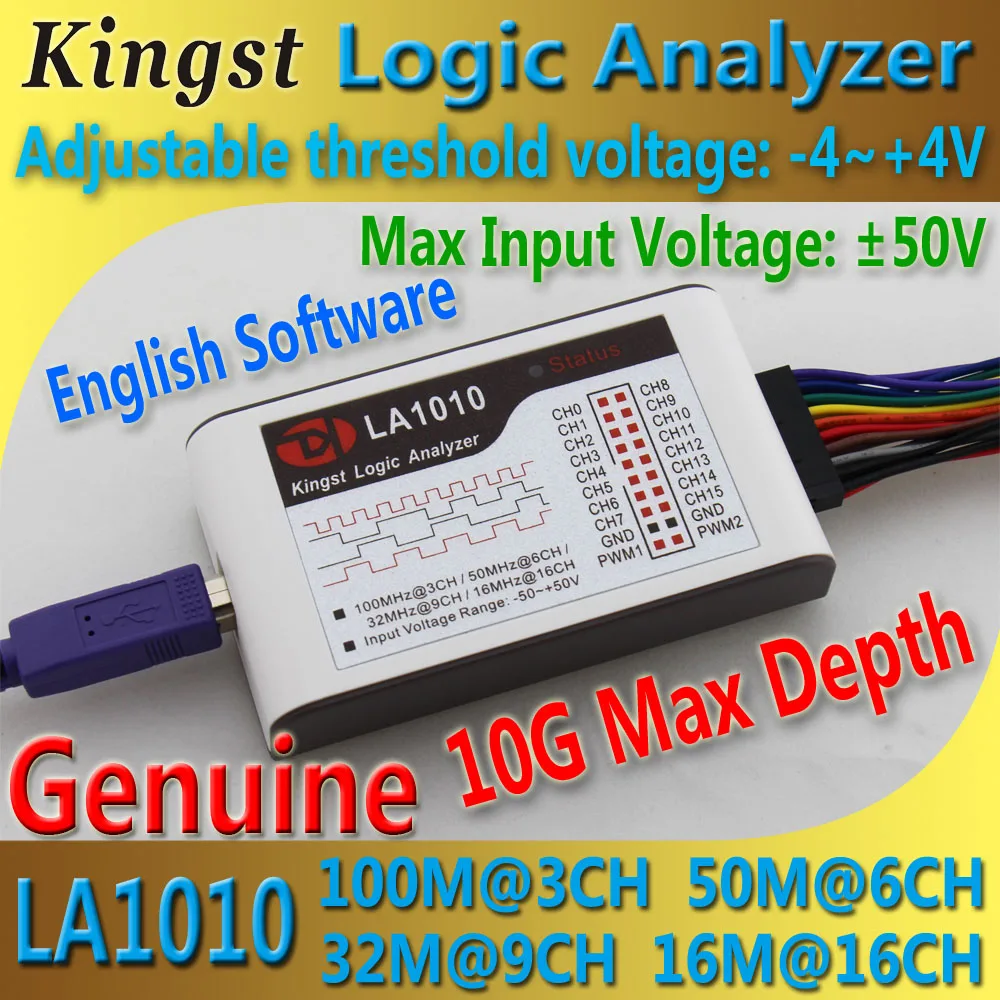

Kingst LA1010 USB Logic Analyzer 100M max sample rate16 Channels10B samples MCU ARM FPGA debug tool Oscilloscopes Drop Shipping |
8 958,89 руб.
Цифровой мультиметр Hantek DSO8060 осциллограф 2 канала 60 МГц портативный 5 в 1
64 691,03 руб.
2CH USB осциллограф ПК мобильный телефон Bluetooth Поддержка Android 4.0 | Инструменты
A true mixed signal oscilloscope with 16channel Logic Analyzer (DS1000D) | Инструменты
Hantek HT25COP For DSO8060 Digital Oscilloscope Signal Probe Coil-on-Plug Ignition Waveform Of Automobile Diagnostic-tool | Инструменты
Характеристики

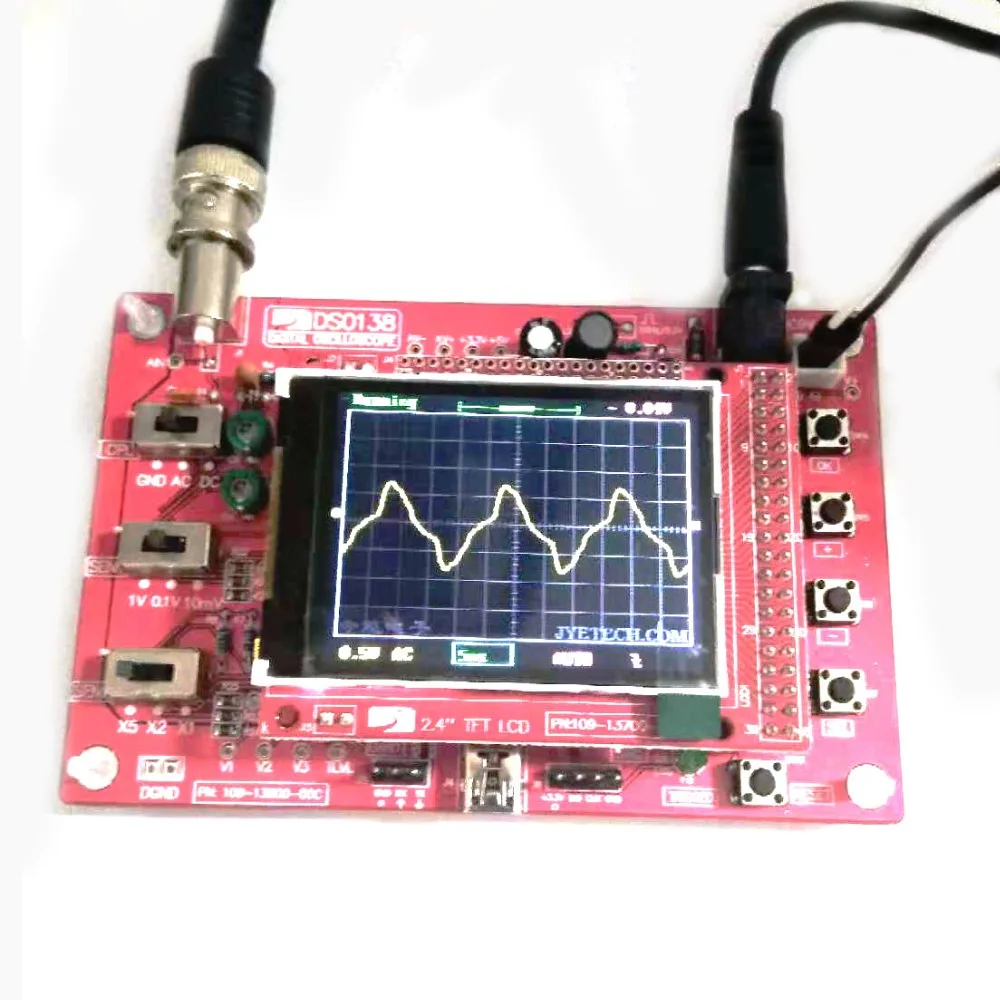

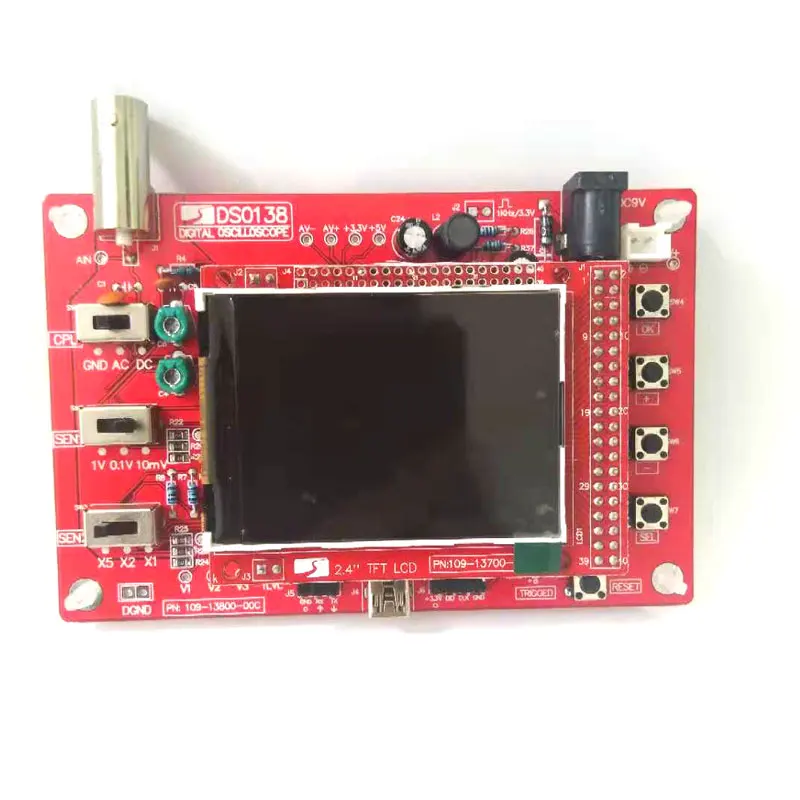

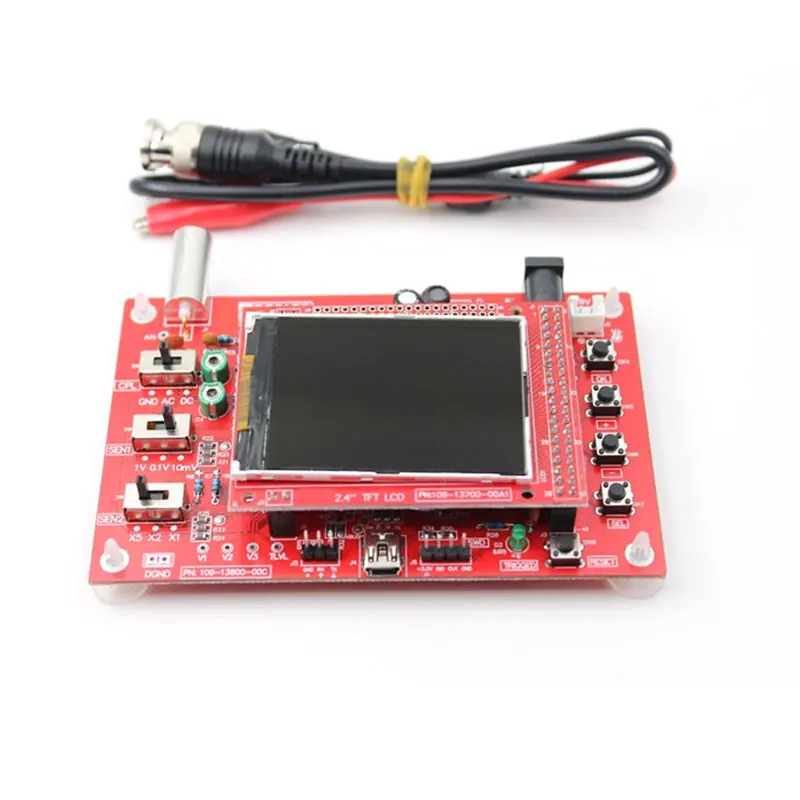

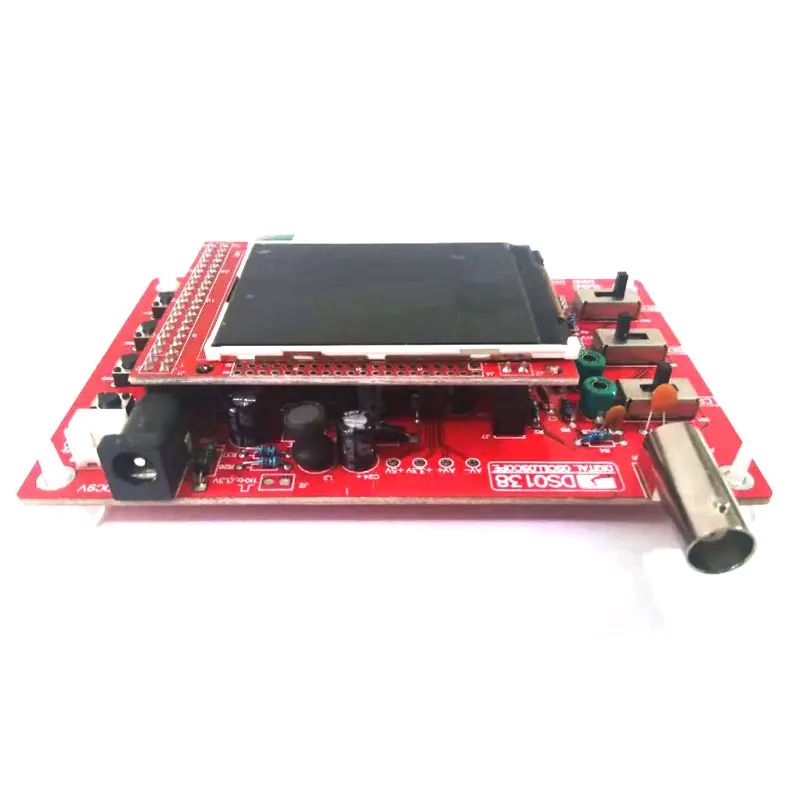

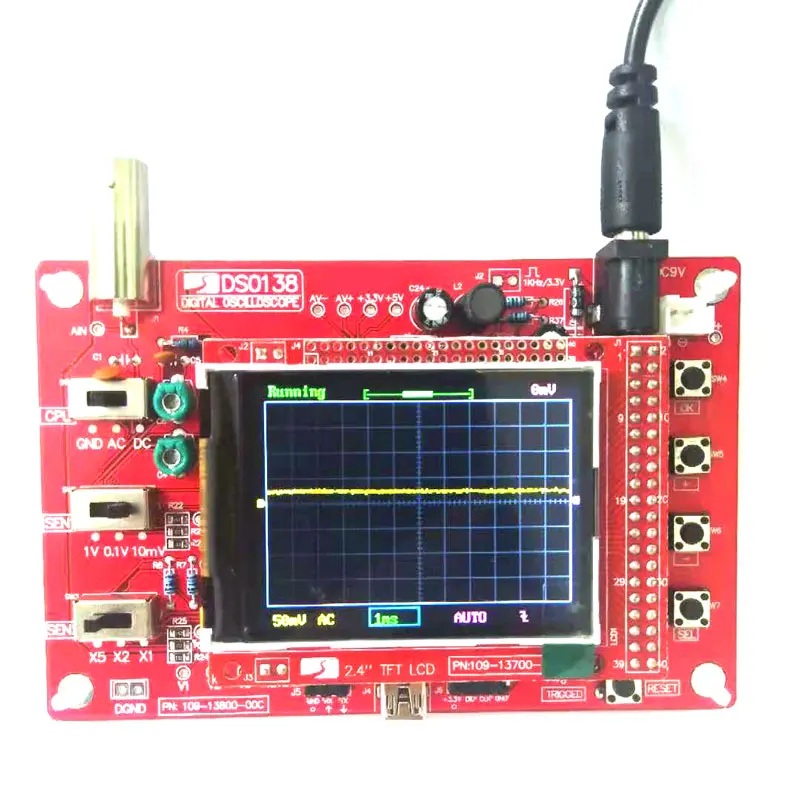

Fully Assembled DSO138 Open Source 2.4" TFT Digital Oscilloscope (1Msps) with FREE Probe Oscilloscoop Osciloscopio DIY | Инструменты
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-18-2026 | 0.2 руб. | 0.29 руб. | 0 руб. |
| Feb-18-2026 | 0.66 руб. | 0.43 руб. | 0 руб. |
| Jan-18-2026 | 0.56 руб. | 0.50 руб. | 0 руб. |
| Dec-18-2025 | 0.53 руб. | 0.78 руб. | 0 руб. |
| Nov-18-2025 | 0.93 руб. | 0.51 руб. | 0 руб. |
| Oct-18-2025 | 0.91 руб. | 0.49 руб. | 0 руб. |
| Sep-18-2025 | 0.12 руб. | 0.62 руб. | 0 руб. |
| Aug-18-2025 | 0.62 руб. | 0.98 руб. | 0 руб. |
| Jul-18-2025 | 0.46 руб. | 0.24 руб. | 0 руб. |
Описание товара

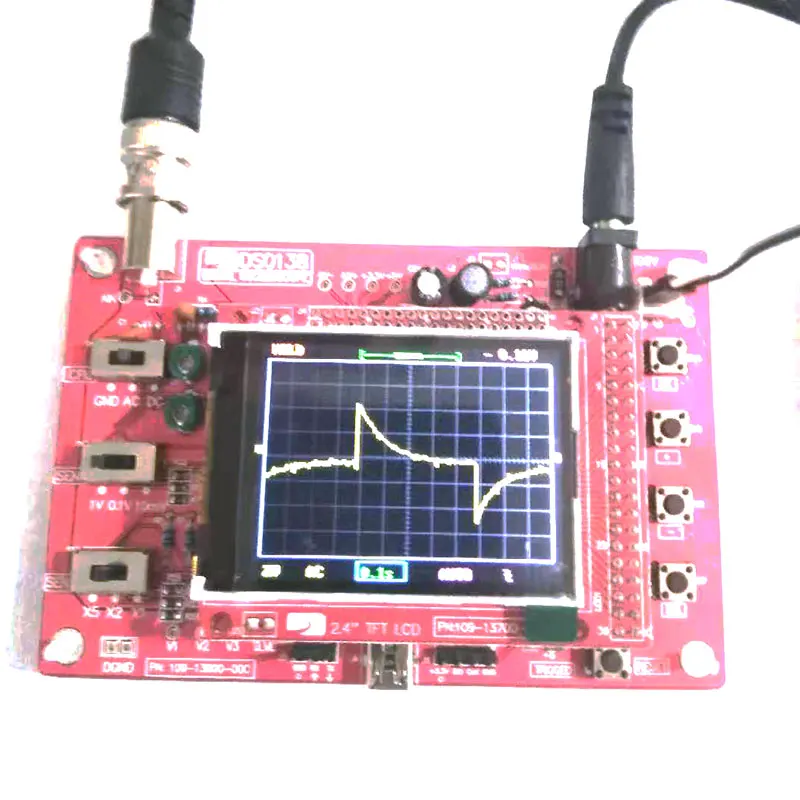

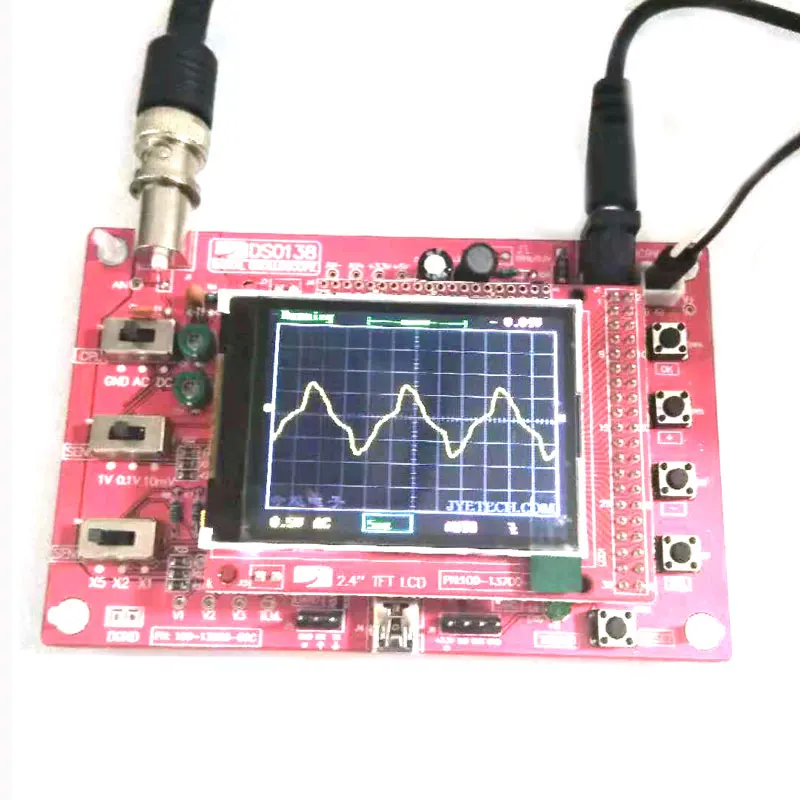

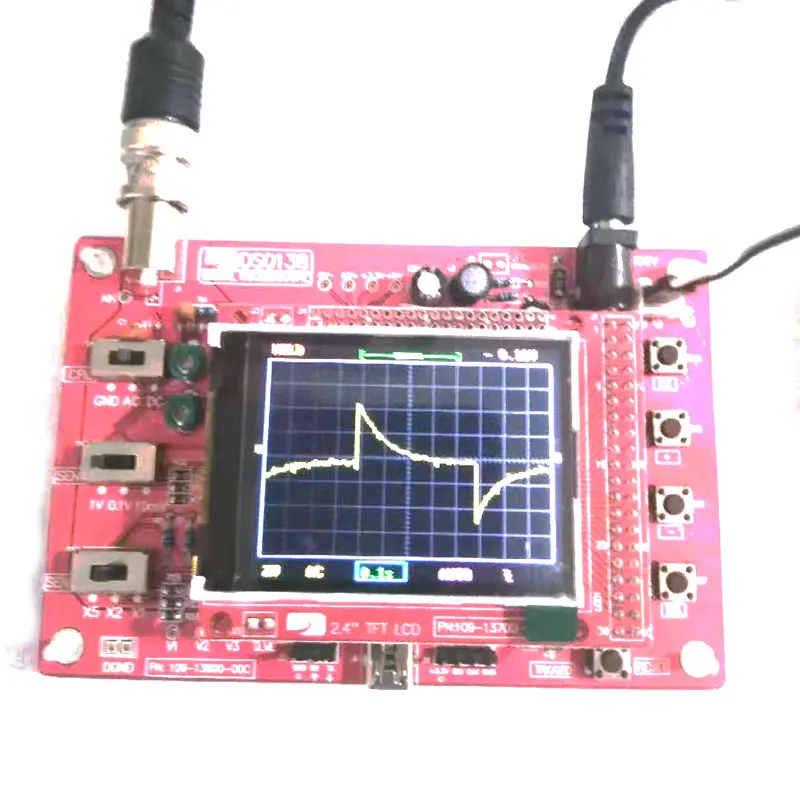

Features: This kit uses ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen, can be used as ARM test development board. Can be secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers. Adjustable vertical displacement, and with instructions. With automatic, regular and one-shot modes, easy to capture the moment waveform. Available rising or falling edge trigger. Observable previous trigger waveform (negative delay). Can freeze at any time waveform display (HOLD function). Comes 1Hz /3.3V square wave test signal source. With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values. Waveform storage function: will not lose the waveform after power off. Short-circuit and open-circuit detection: can help the user find out the soldering error. TFT controller recognition function. DSO138 2.4" TFT Handheld Pocket-size Digital Oscilloscope Kit DIY Parts for Oscilloscope Electronic Learning Set 1Msps This DSO138 digital oscilloscope kit adopts ARM Cortex-M3 processor and with 2.4-inch TFT screen. It's easy and reliable for circuit operation. It can display frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values. Note: This DIY kit is soldered. the power supply is US adapter. the accessary is not included Specifications: Maximum Real-time Sampling Rate: 1Msps Accuracy: 12Bit Sampling Buffer Depth: 1024 bytes Analog Bandwidth: 0-200KHz Vertical Sensitivity: 10mV / Div - 5V / Div (1-2-5 progressive manner) Input Impedance: 1MΩ Maximum Input Voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe) Coupling Modes: DC / AC / GND The Horizontal Time Base Range: 10μs / Div - 50s / Div (1-2-5 progressive manner) Supply Voltage: DC 9V PCB Size: 117 * 76mm / 4.6 * 3in Screen Size: 52 * 40mm / 2 * 1.57in Package Size: 18 * 12.5 * 3cm / 7.08 * 4.92 * 1.18in Package Weight: 119g / 4.21oz Package List: 1 * DSO138 soldered Oscilloscope Kit soldering 1 * Probe
3 * User Manual(English)
