Характеристики
10A 20A 30A 40A 50A 60A Solar Charge Controller 12V 24V Auto PWM 5V Output Regulator PV Home Battery Charger LCD Dual USB |
История изменения цены
*Текущая стоимость 1594.39 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-18-2026 | 1897.97 руб. | 1992.52 руб. | 1944.5 руб. |
| Feb-18-2026 | 1881.49 руб. | 1975.8 руб. | 1928 руб. |
| Jan-18-2026 | 1578.17 руб. | 1657.84 руб. | 1617.5 руб. |
| Dec-18-2025 | 1849.11 руб. | 1941.45 руб. | 1895 руб. |
| Nov-18-2025 | 1610.82 руб. | 1691.64 руб. | 1650.5 руб. |
| Oct-18-2025 | 1817.42 руб. | 1908.77 руб. | 1862.5 руб. |
| Sep-18-2025 | 1801.70 руб. | 1891.66 руб. | 1846 руб. |
| Aug-18-2025 | 1785.21 руб. | 1874.89 руб. | 1829.5 руб. |
| Jul-18-2025 | 1769.67 руб. | 1857.11 руб. | 1813 руб. |
Описание товара

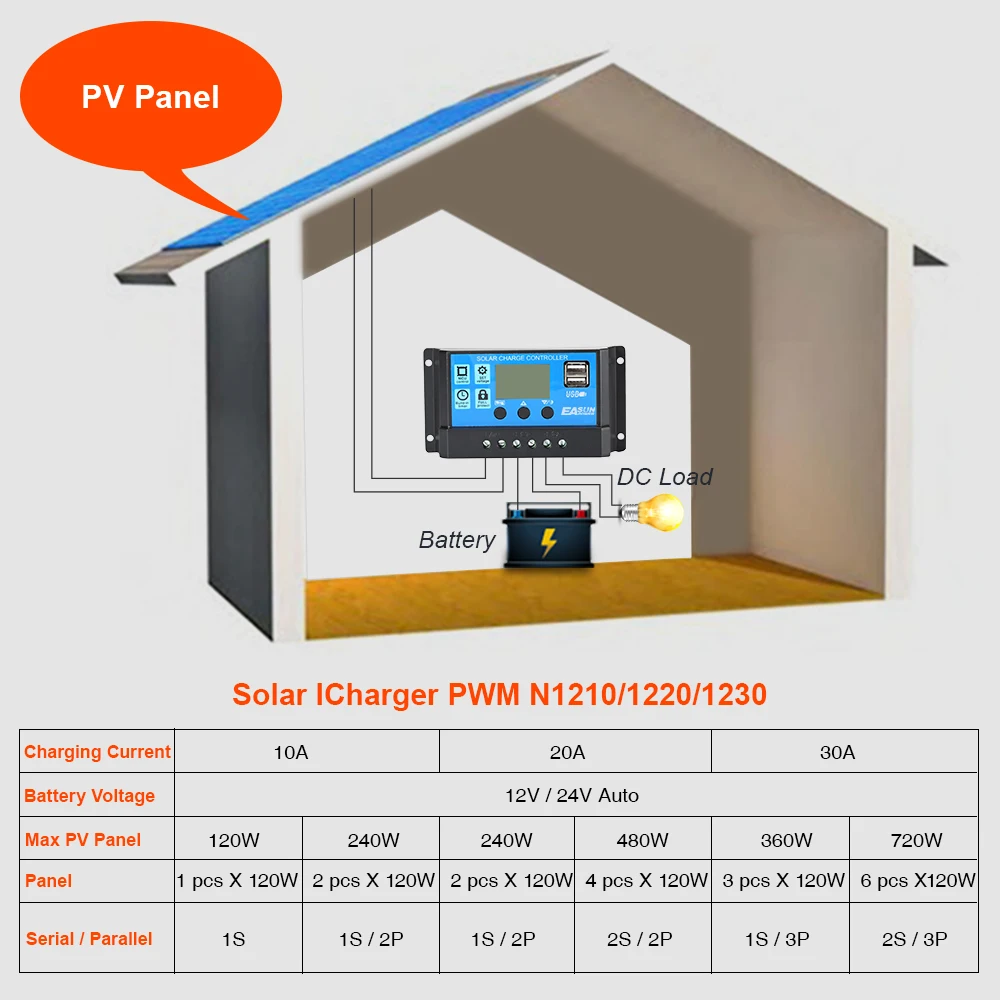

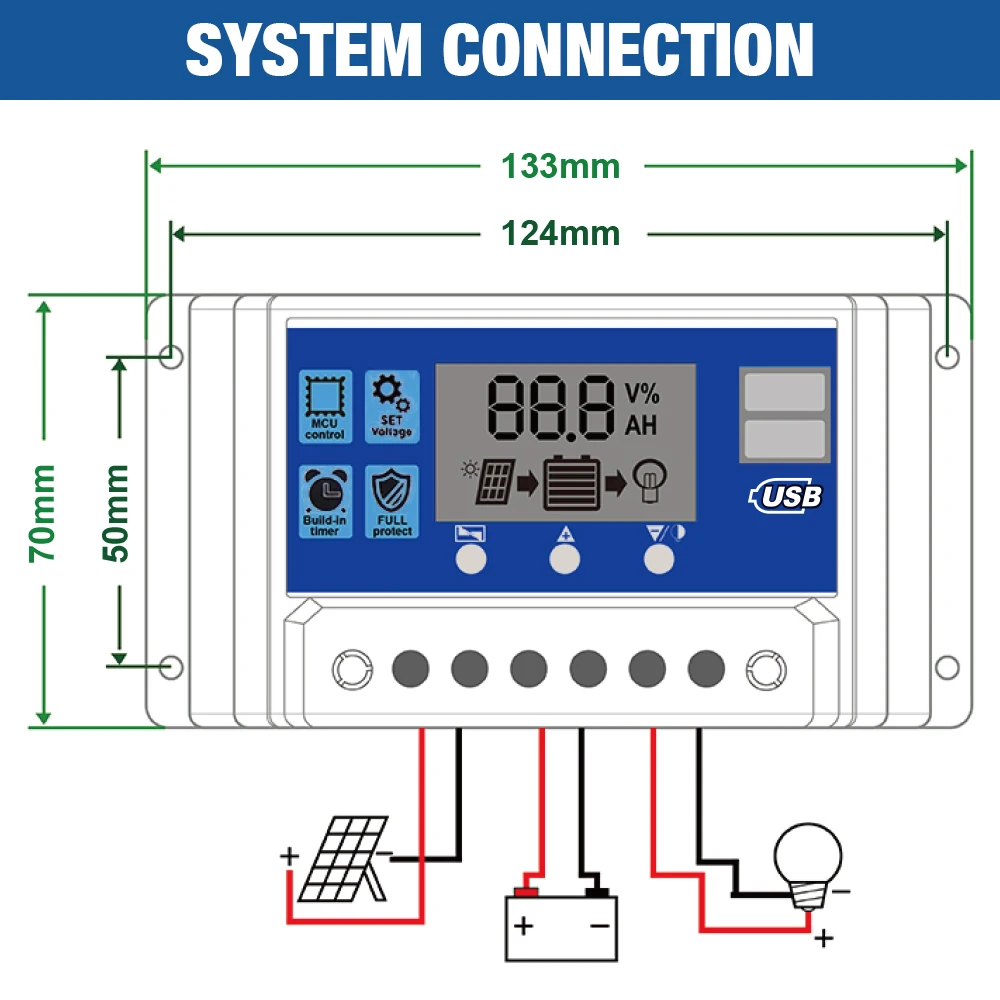

10A 20A 30A 40A 50A 60A 12V 24V PWM Auto Solar Charge Controller 5V Output Solar Cell Panel Regulator PV Home With LCD Dual USB SYSTEM CONNECTION1. Connect the battery to the charge regulator-plus and minus.2.Connect the photovoltaic module to the regulator-plus and minus.3.Connect the consumer to the charge regulator-plus and minus.The reverse order applies when deinstalling!An improper sequence order can damage the controller!This is NEW Solar Controller ,It can fully meet your home Photovoltaic system(including home lighting system )requirements .It can recongize 12V and 24V Lead acid ,Gel battery automatically There are optional 10A 20A 30A model 10A:if your battery is 12V ,the max solar panel input is 25V 120Wif your battery is 24V ,the max solar panel input is 50V 240W 20A:If your battery is 12V, the max solar panel input is 25V 240Wif your battery is 24V, the max solar panel input is 50V 480W 30Aif your battery is 12V ,the max solar panel input is 25V 360Wif your battery is 24V ,the max solar panel input is 50V 720WFeatures:1.Build-in industrial micro controller.2.Big LCD display,all adjustable parameter.3.Fully 4-stage PWM charge management.4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.5.Dual mosfet Reverse current protection ,low heat production.
MODEL | ICharger PWM 10A | ICharger PWM 20A | ICharger PWM 30A | ICharger PWM 40A | ICharger PWM 50A | ICharger PWM 60A |
Battery Voltage | 12V 24V Auto | |||||
Charging Current | 10A | 20A | 30A | 40A | 50A | 60A |
Discharging Current | 10A | 10A | 10A | 20A | 30A | 30A |
Max Solar input | 50V(for 24V battery) 25V(for 12V battery) | |||||
Equalization | 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood) | |||||
Float charge | 13.7V(defaul,adjustable) | |||||
Discharge stop | 10.7V(defaul,adjustable) | |||||
Discharge reconnect | 12.6V(defaul,adjustable) | |||||
Charge reconnect | 13V | |||||
Voltage of open light | Solar Panel 8V(Light lights delay) | |||||
Voltage of close light | Solar Panel 8V(Light off delay) | |||||
USB output | 5V/3A | |||||
Self-consume | <10mA | |||||
Operating temperature | -35°C~+60°C | |||||
Size | 133.5*70*35mm | 133.5*70*35mm | ||||
*all red color voltage X2 ,while using 24V system.
MENU:switch between different display,or to enter/exit setting by long press.
UP: press to increase value.
DOWN:presss to decrease value.
Setting:
WARRANTY/QUALITY:
CE certified.
100% QC before shipment.
Standard 1 year product warranty
Warranty will cover only items that are deemed to fail under normal usage. Accidental damage due to environmental causes or incorrect usage and installation will not be covered in warranty (but still serviceable
Contact us directly for warranty issue
