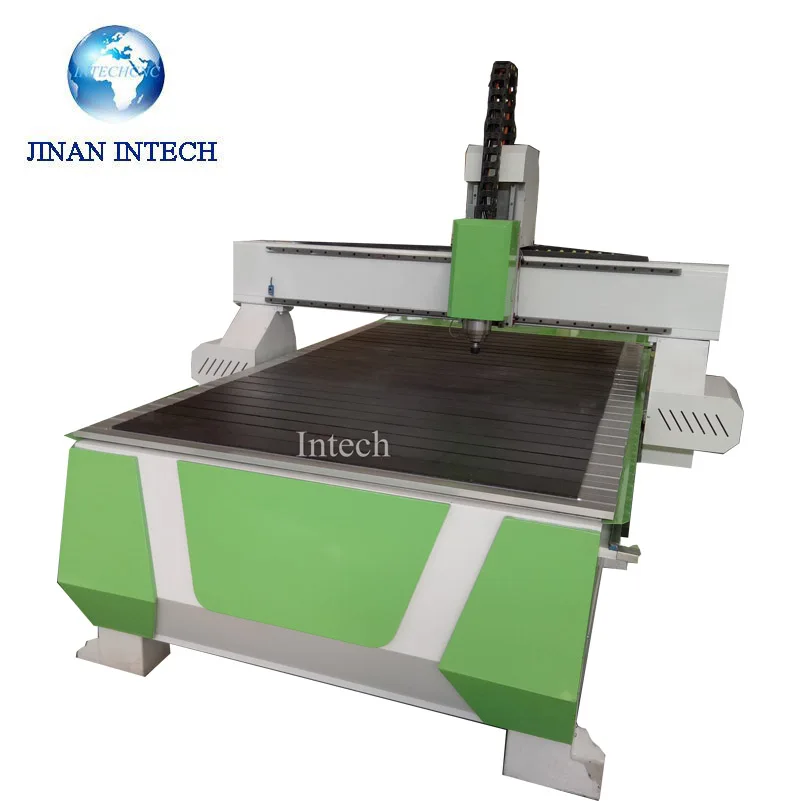

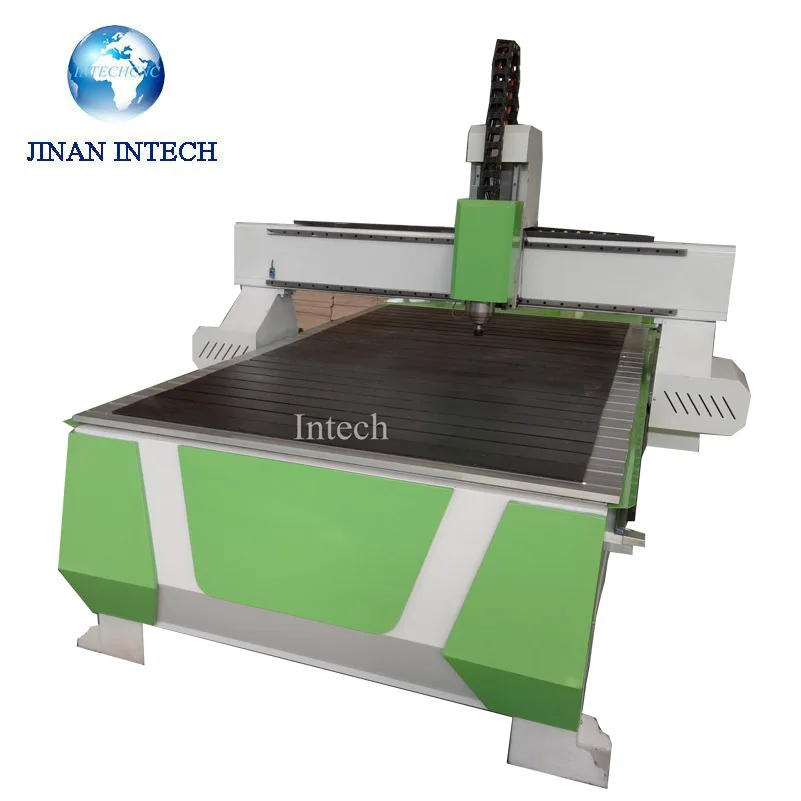

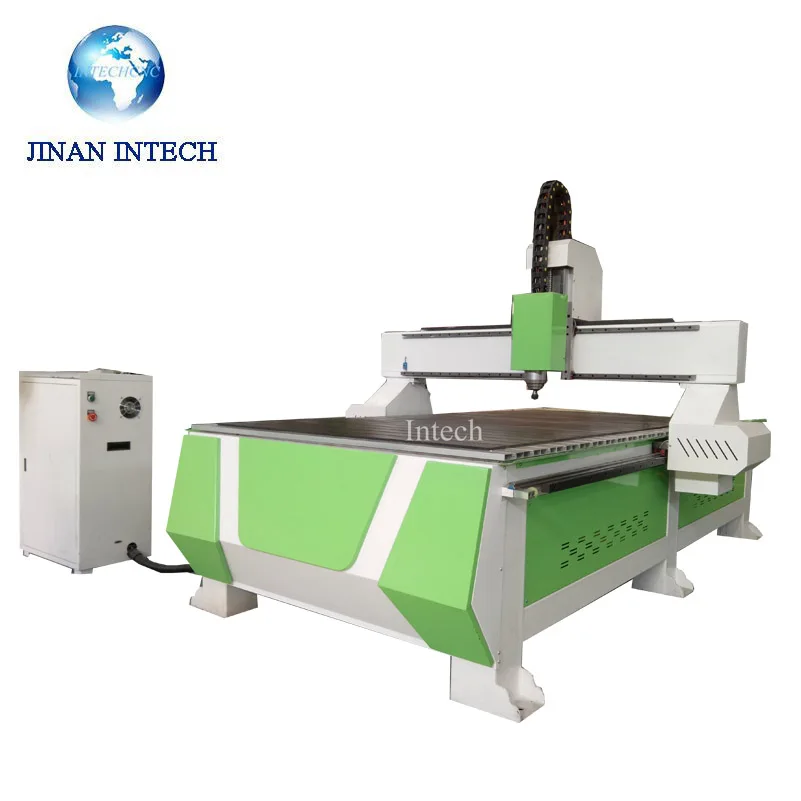

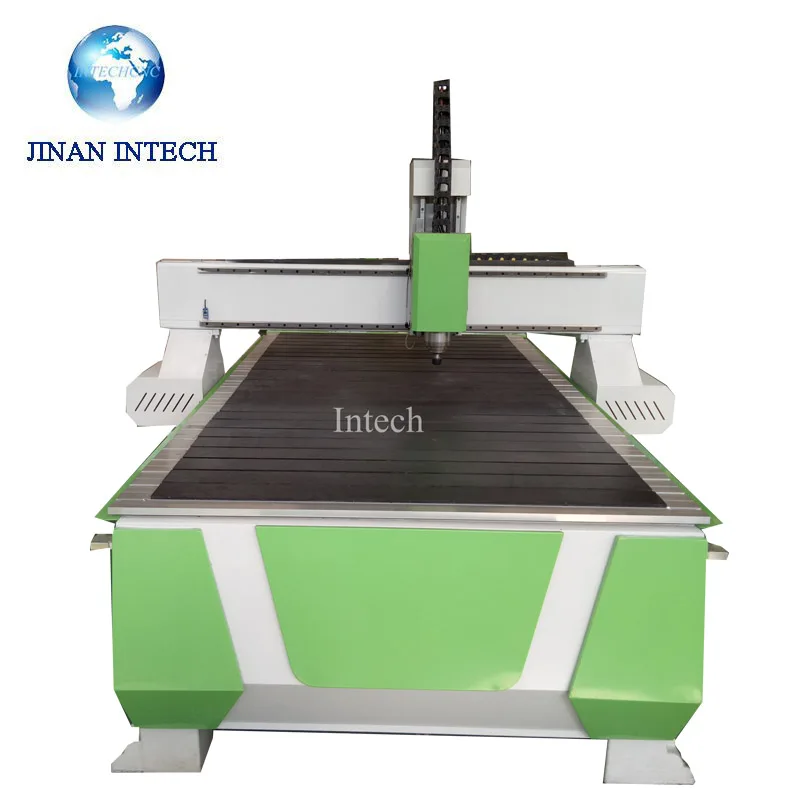

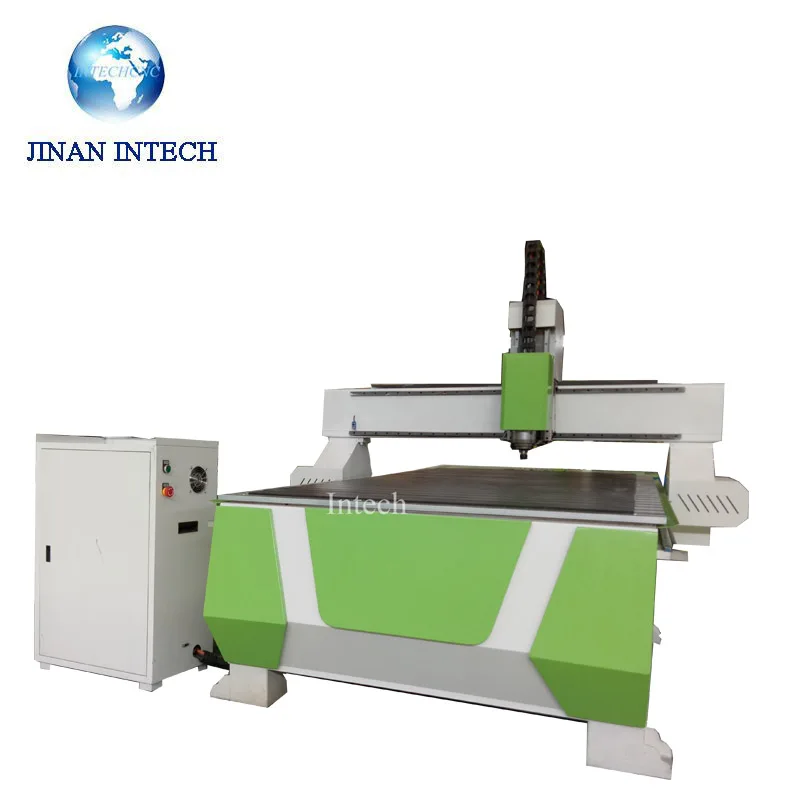

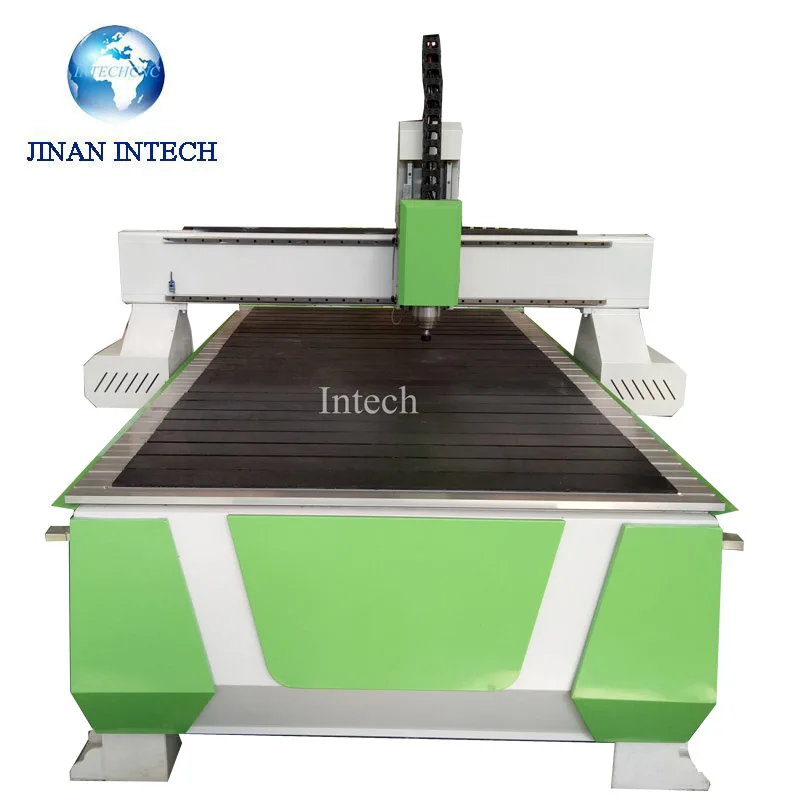

Steady performance LFM1325 stepper motor cnc router 3040 5 axis mold
Product Description
Main Features 1. Z axis feeding height 200mm 2. Square tube welded steel frame structure-8mm thickness 3. Aluminum T-slot table or Vacuum table +5.5kw Vacuum pump 4. X axis rack and pinion drive, Y axis 2 way rack and pinion drive and Z axis 2510 Ball screw 5. X, Y, Z axis Taiwan square rails PMI 6. 450B stepper motor and MA860H Leadshine driver or servo motor and driver 7. 3.0KW water cooling spindle and 3.7kw Fuling inverter, other spindles are optional 8. Nc-Studio-5.4.49 control system, DSP or Mach 3 is optional | |
Working area | 1300*2500*200mm |
Table style | Aluminum T-slot table with pvc; |
Machine structure | 8mm thickness welded steel tube,cast iron vertical shafts and steel gantry |
Spindle | 3.0kw water cooling spindle |
Spindle rotating speed | 0-24000rpm |
Collect size | ER20 |
Guide rail | Hiwin square guide rail |
Driving method | X,Y axis by helical gear rack,Z axis by TBI ball screw |
Motors and drivers | Stepper motor450B,Leadshine drivers MA860H |
Control system | Mach3 USB control system |
Invert | Fuling invert |
Max.idling speed | 25m/min |
Max.working speed | 12m/min |
Working accuracy | <0.05/300mm |
Instruction formate | G cose*u00*mmg*plt |
Working voltage | AC220V,1 phase,50-60Hz |
Compatible software | Type3/Castmate |
Control cabinet | Independent |
Other | Tool sensor,oiling system,water pump,tool box etc. |
Application Wood Processing: processing of various furniture such as door, window, cabinet, screen and so on Advertisement: engraving and cutting various labels and number plate. Art crafts: engraving characters of any languages and graphics on gifts and souvenirs. | |
Applicable materials wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials. | |
Standard configuration | 1)Working area:1300*2500mm aluminum T-slot table with pvc; 2)Bed structure: welded steel tube, cast iron vertical shafts and steel gantry; 3)Guide rail:square linear guide rail; 4)Driving method: X,Y axis by helical gear rack, Z axis by TBI ball screw 5)Spindle:3.0 KW water cooling spindle; 6)Motors and drivers:86BYG-450B stepper motors and MA860H Leadshine Driver; 7)Control system:Ncstudio control system; 8)Software: Artcam; 9)Tool box;Tool sensor; |
Options | 1)4.5kw water cooling spindle; 2)Rotary axis(80mm//100mm//150mm diameter); 3)Mach3/DSP control system; 4)Dust collector; 5)Vacuum table with 5.5kw vacuum pump |
1.2 years quality guaranty, the machine with main parts(excluding the consumables) shall be
changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
Company Information
1) This is the first time I use this kind of machine, is it easy operate?
There are English manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or Skype.
2)Can you recommend a CNC ROUTER MACHINE to me,thanks?
Yes, In order to give you a suitable router machine, please tell me the max working
area, materials for processing and the thickness for materials processing engraving
or cutting.
Then perfect suitable CNC router will be recommended
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
we will give you 24hours service from phone and Skype.
4) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly,
please tell us your port name. There will be best shipping freight and machine price
send to you
5)Payment terms
a. 30% by T/T in advance,70% by T/T before shipping b. L/C is acceptable ,if the amount is big,please issue the draft for our confirmation at first.
6)Delivery terms
We will arrange the delivery as the terms we both agreed with after the confirmation by the buyer.
