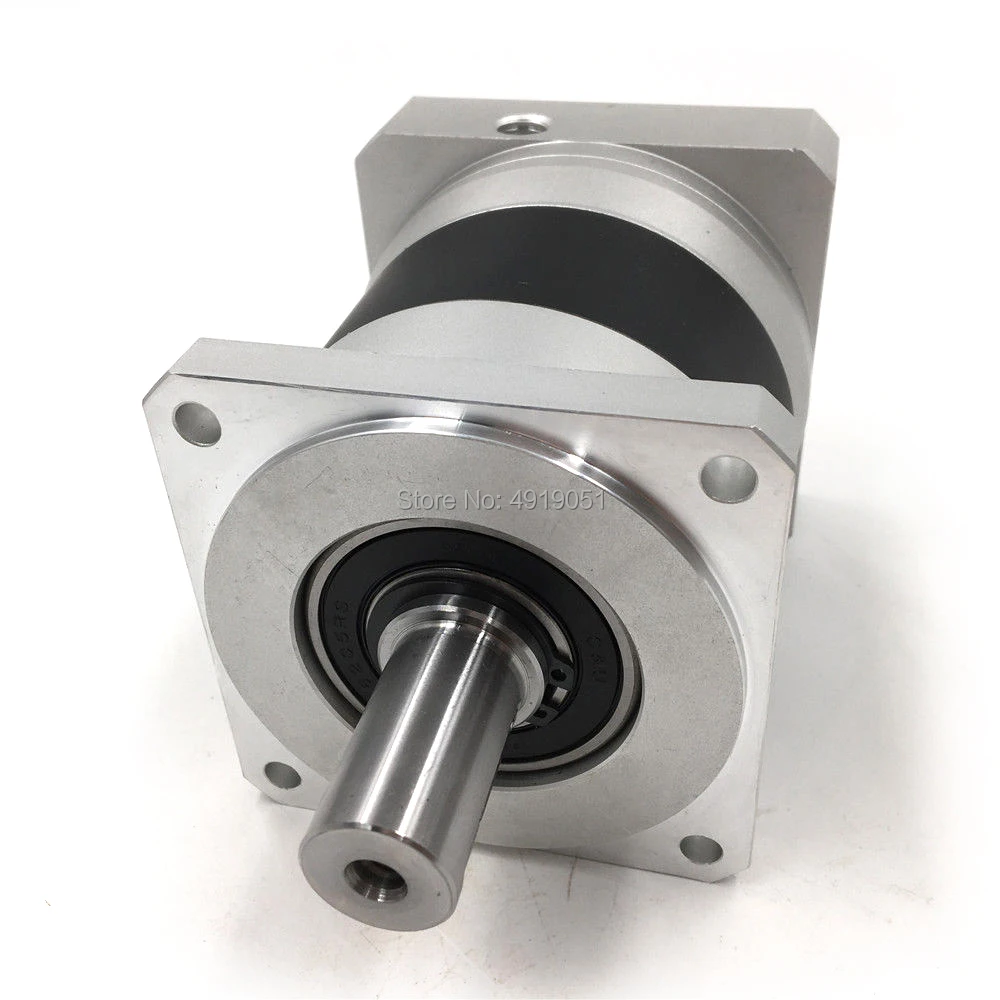

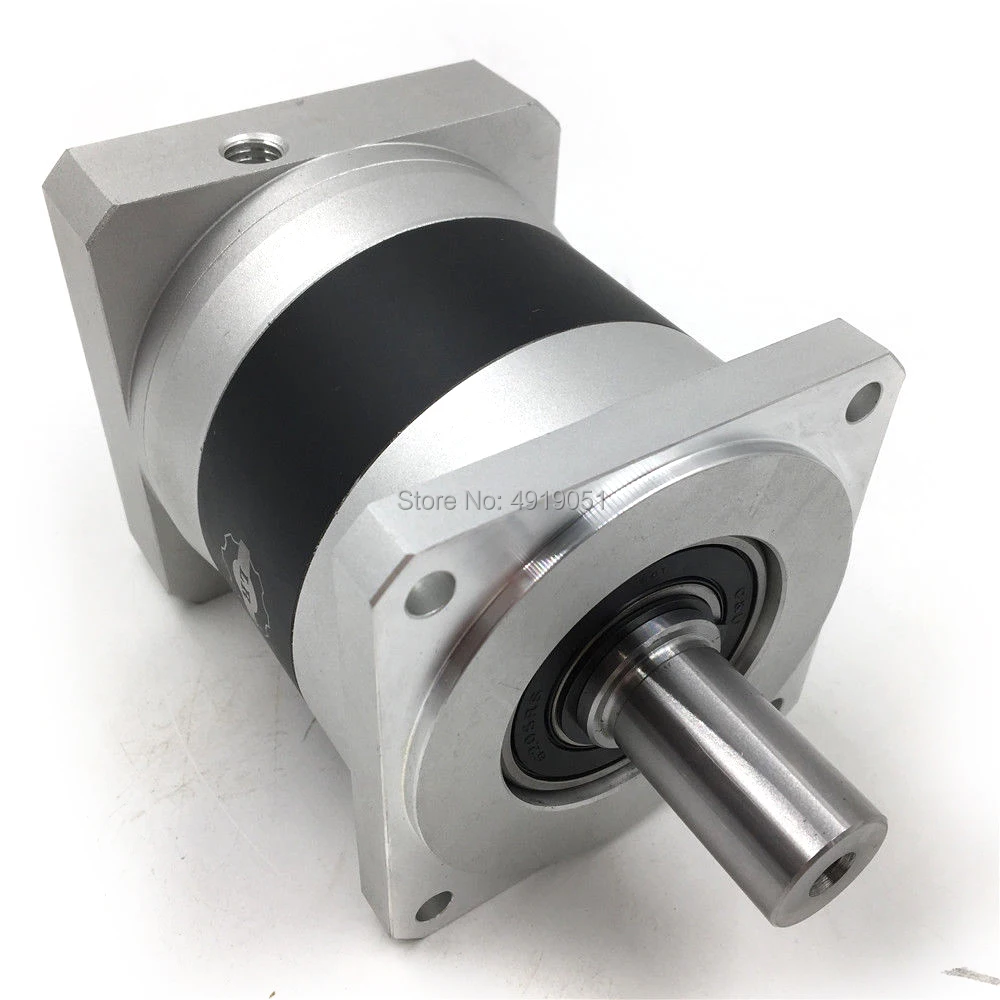

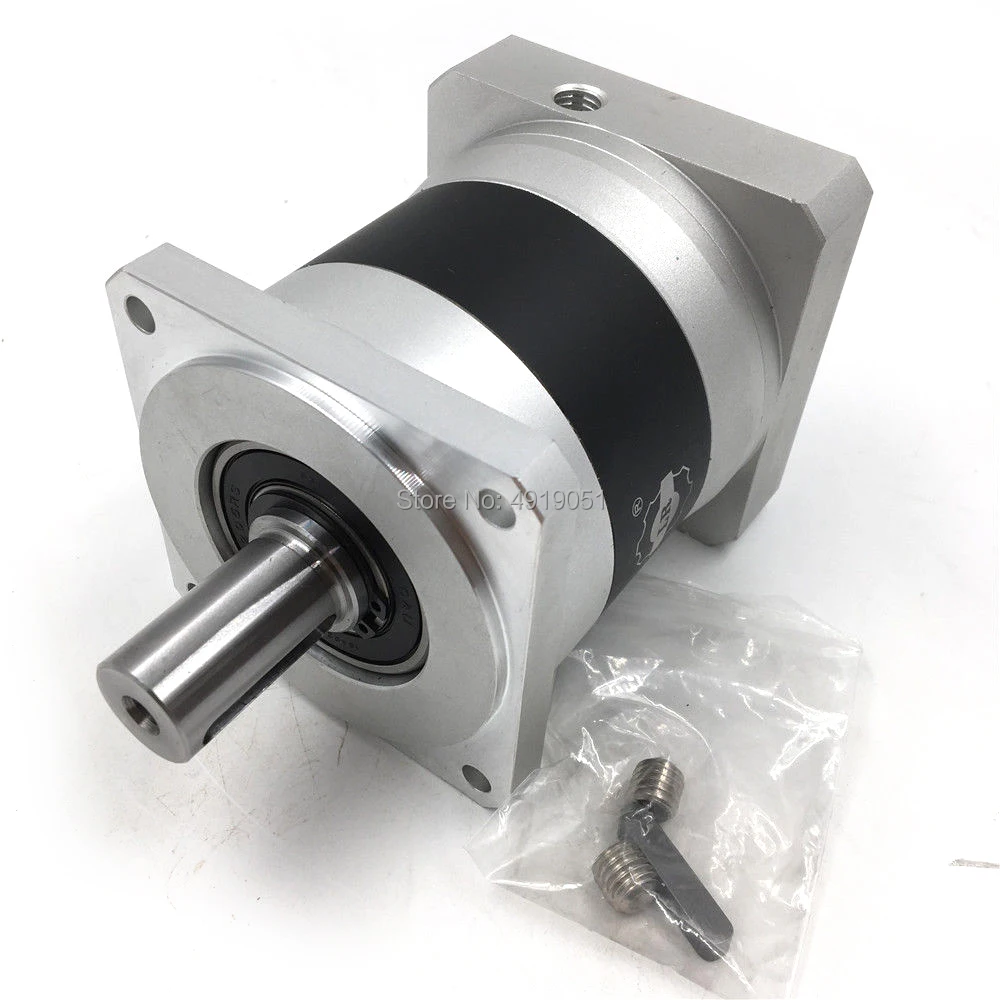

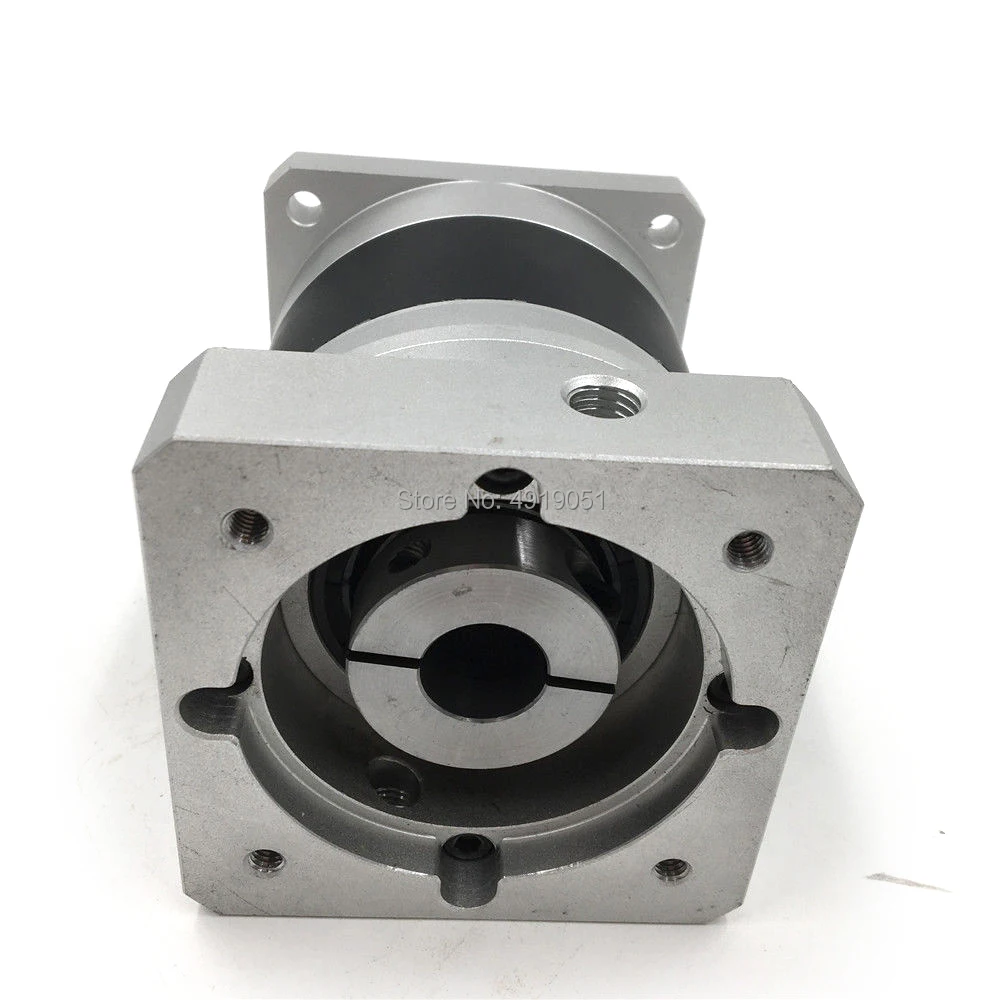

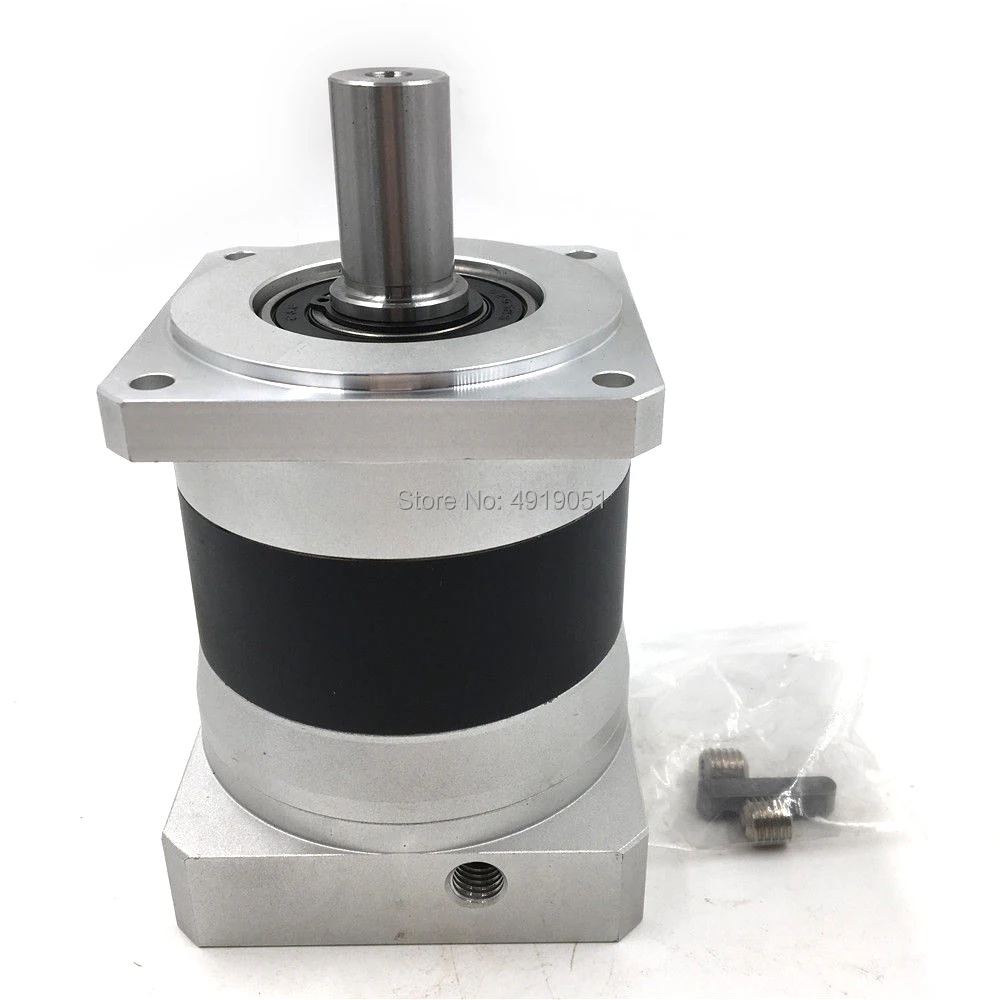

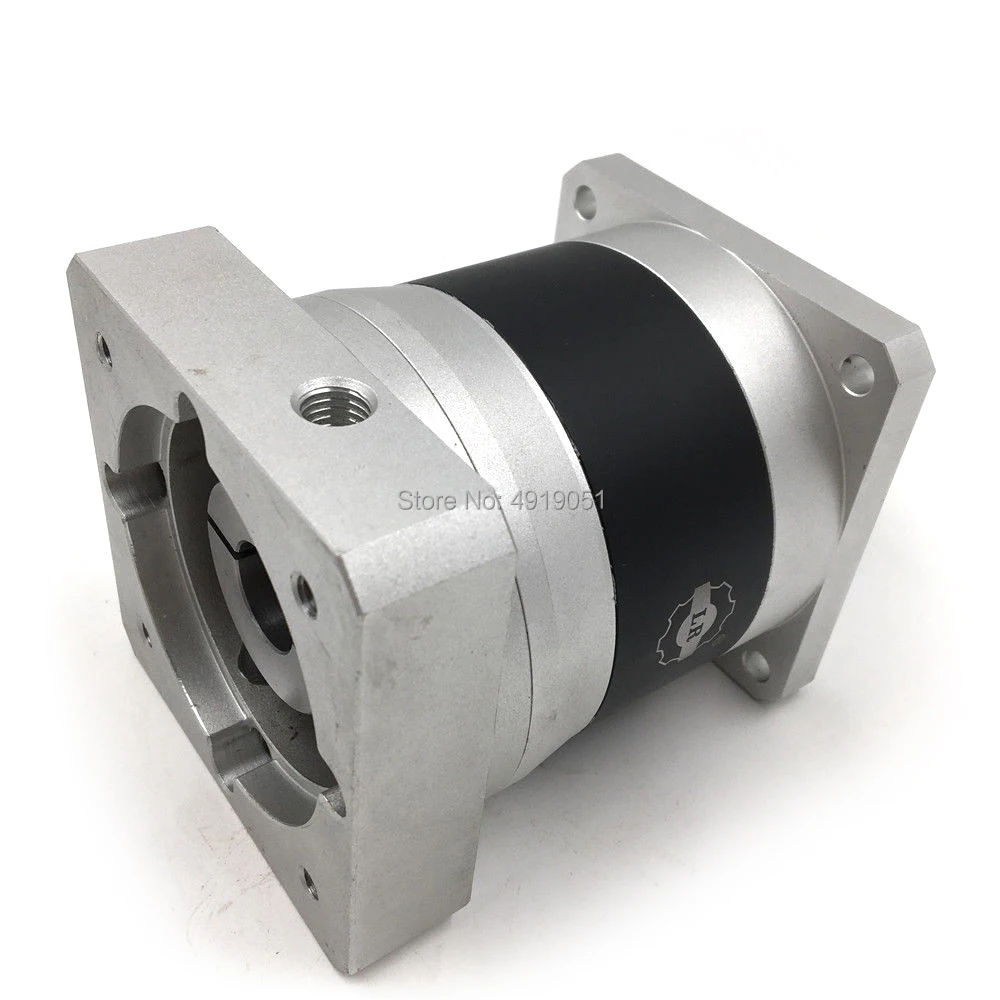

Low Noise Servo Planetary Gearbox 80:1 for Flange 80mm Nema32 Servo Motor



Application area

CNC Machining, Medical Apparatus, Textile Machinery, Packaging equipment.



Model	LFR90-L3-80
Type	Planetary Reducer
Speed ratio	80:1
Input Shaft Size	19mm
Output Bore Size	20mm
Input Flange Model	NEMA32
Stage Level	1
Max Output speed(rpm)	6000
Rated input speed (rpm)	3500
Arcmin	＜12
Full load efficiency(%)	90
Torque with no load (Nm)	0.3
Rated output Torque (Nm)	125
Max output Torque (Nm)	250
Maximum allowable radial force(N)	1300
Maximum allowable axible force(N)	1100
Noise(dB)	≤58
Torsional rigidity	7:12
Protection	IP65
Application	Matched with Servo/Stepper Motor
Country of Origin	China(One year warranty)
SUPPLY LRF60 speed ratio	3/4/5/7/10/ 16/20/25/28/35/40/50/80/100





Stage	stage 1					stage 2									stage 3
Ratio	3	4	5	70	10		12	16	20	25	28	35	40	50	70	80	100
Rated Output Torque(Nm)	60	88	95	40	98		98	98	105	98	105	98	105	75	125	125
Max output Torque(Nm)	120	176	190	132	80		196	196	196	210	196	210	196	210	150	250	250
Moment of Inertia(Kgm⊃2;)	0.72	0.52	0.45	0.41	0.35		0.72	0.52	0.45	0.45	0.41	0.41	0.35	0.35	0.35	0.45	0.45
Rated input speed(rpm)	3500					3500									3500
Max input speed(rpm)	6000					6000									6000
Maximum allowable radial force(N)	1050					1300									1500
Maximum allowable axible force(N)	850					1100									1300
Torque with no load (Nm)	0.7					0.4									0.3
Full load efficiency(%)	96					94									90
Arcmin	＜8					＜10									＜12
Noise(dB)	≤58
Working time(h)	＞20000
Torsional rigidity(Nm/armin)	2.3
Rotation	Same direction of input and output
Protection	IP65
