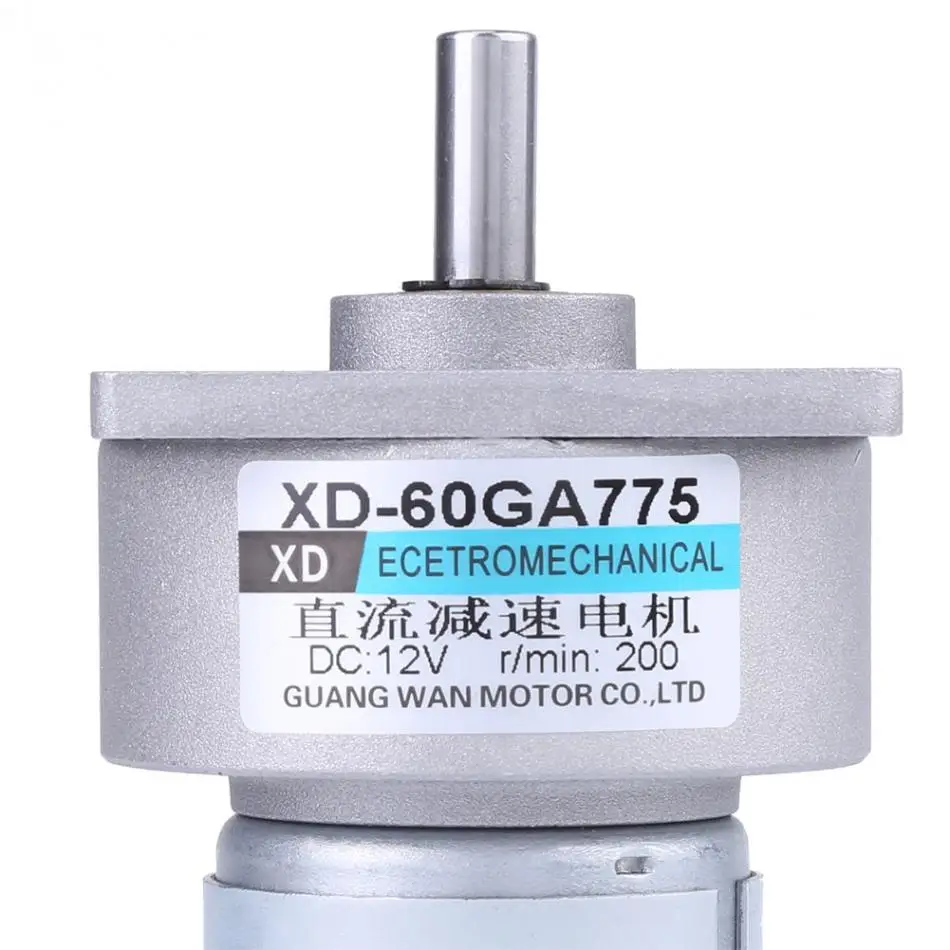

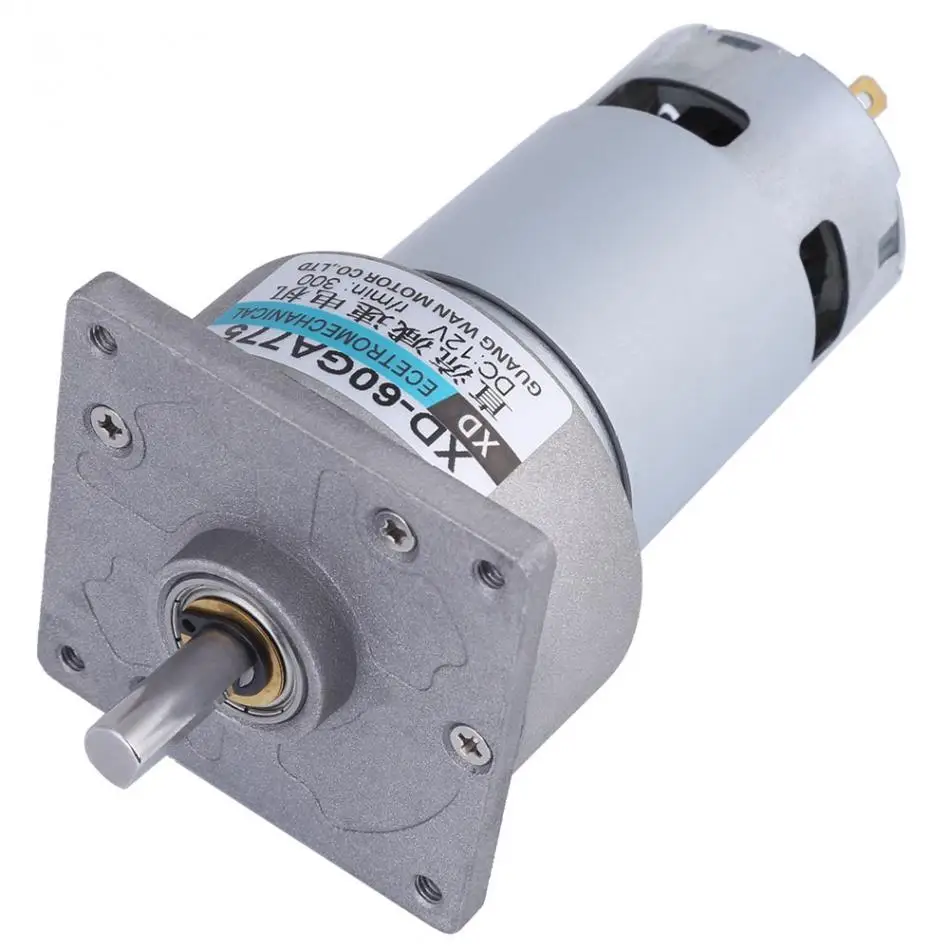

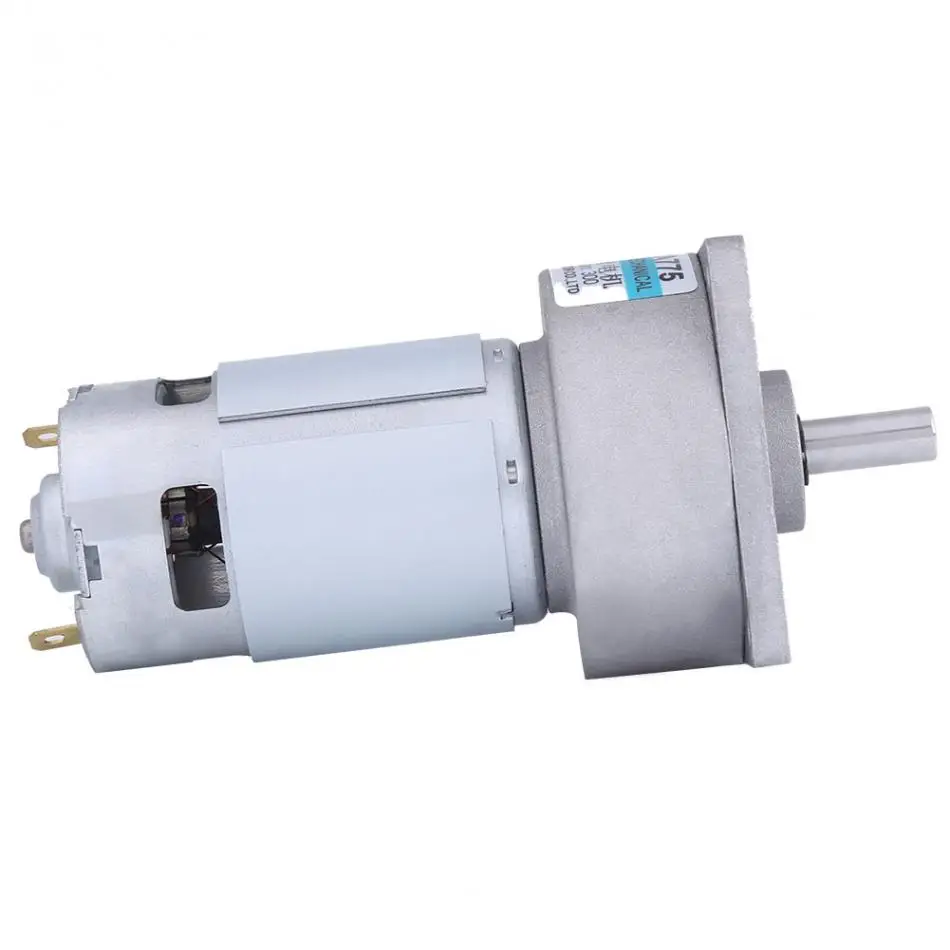

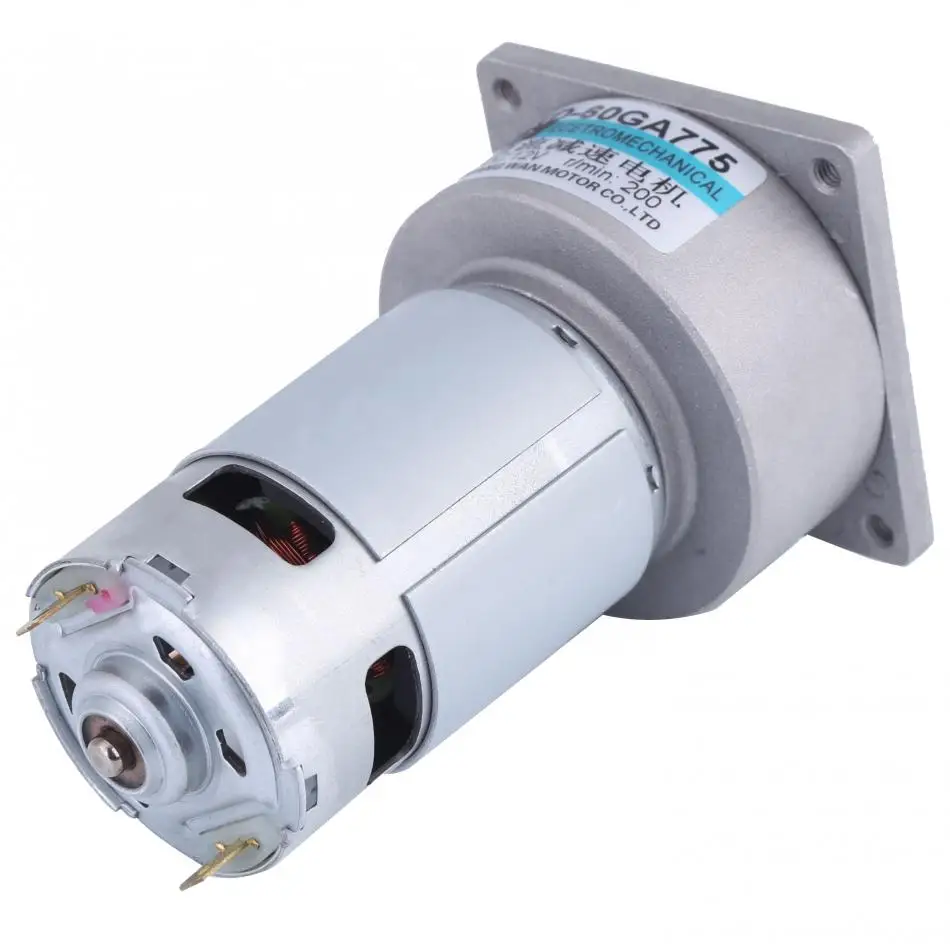

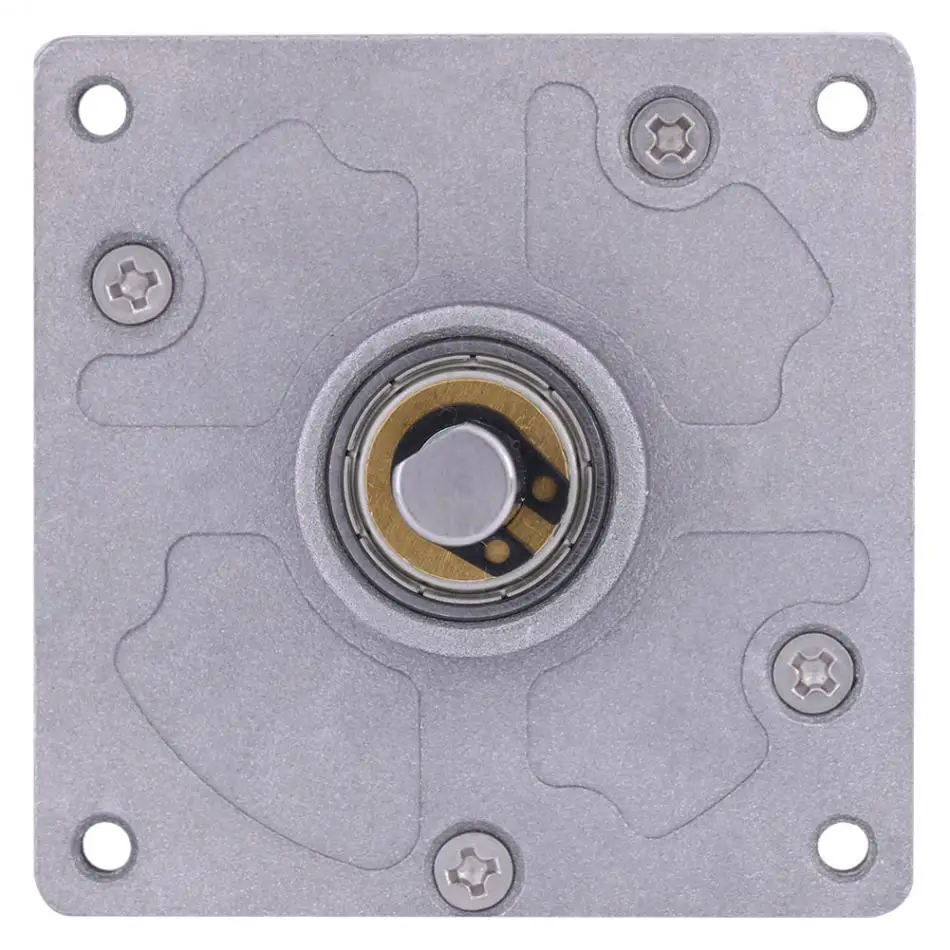

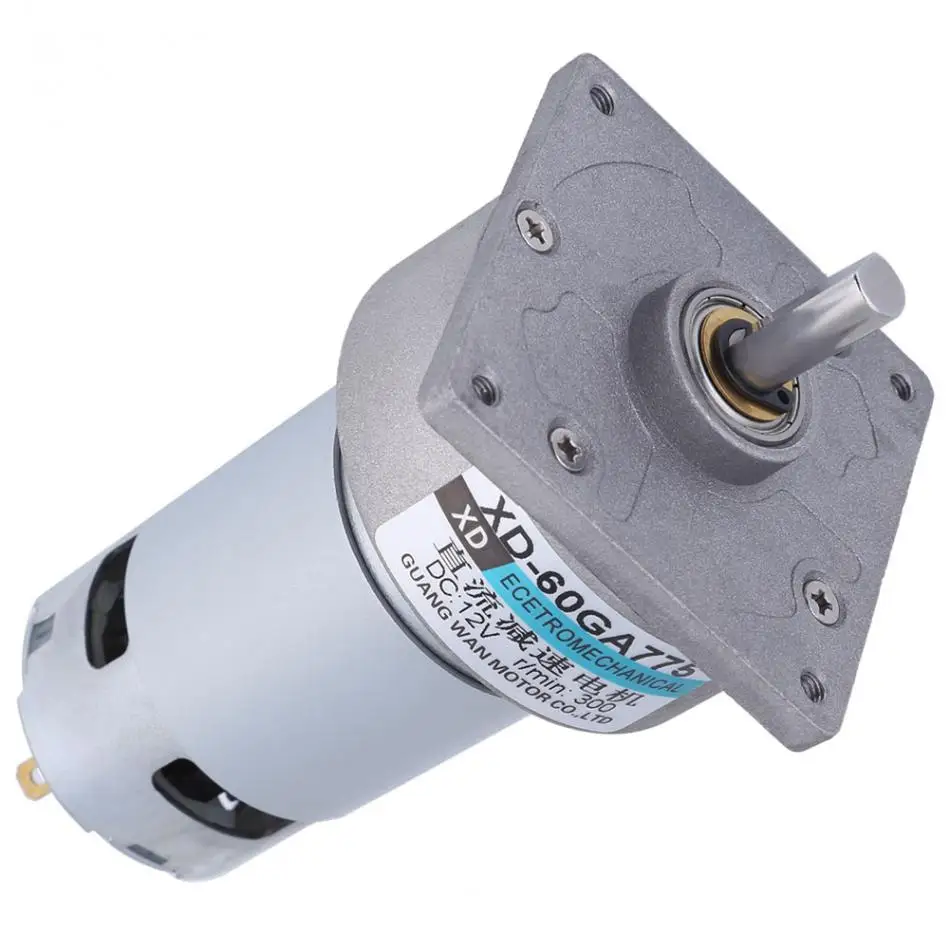

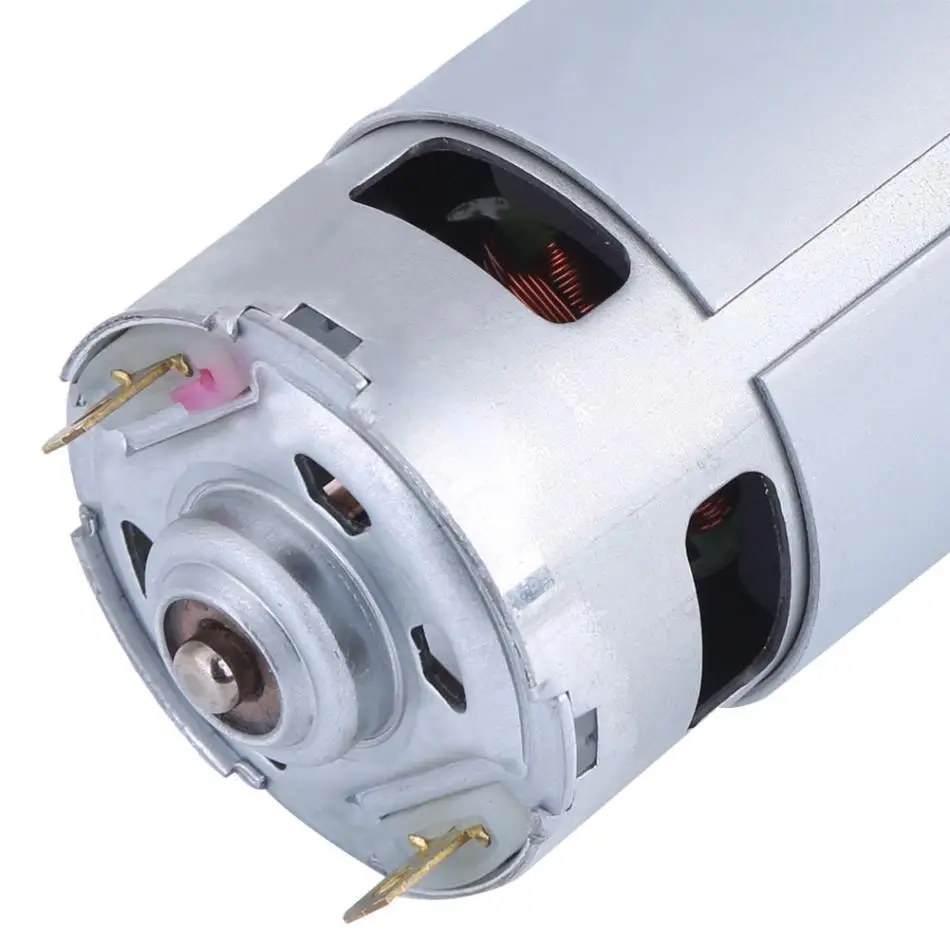

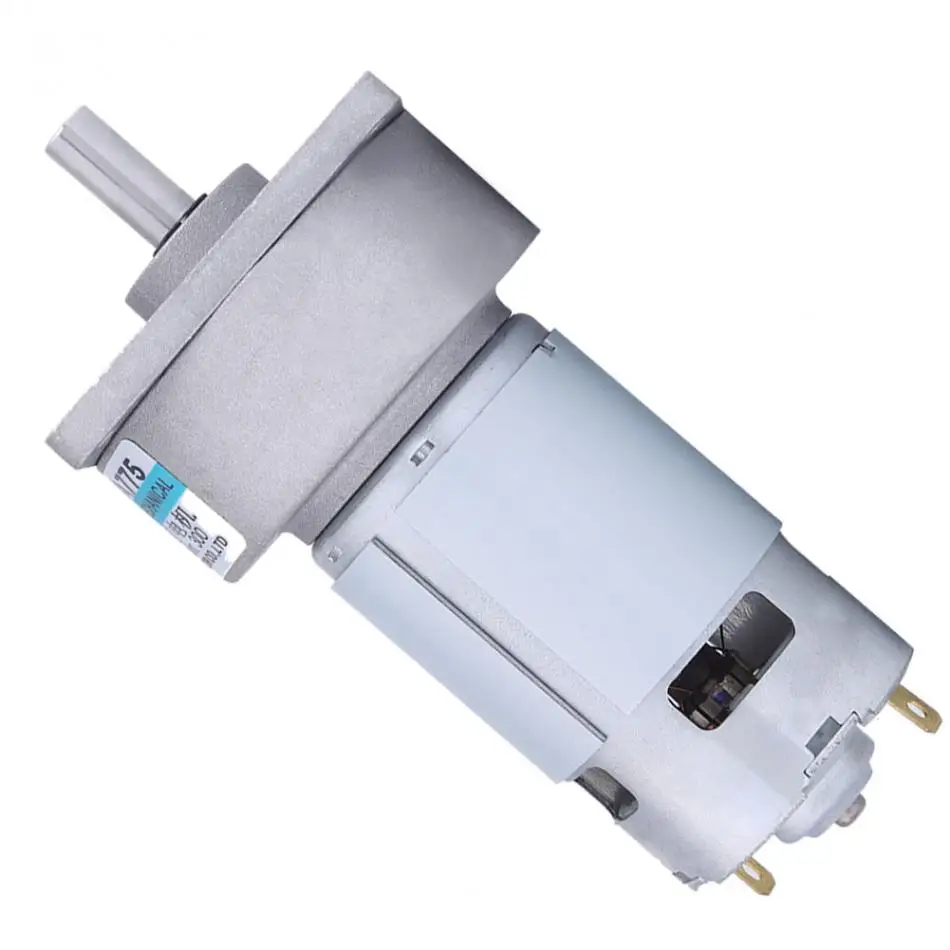

60GA775 DC12V 35W  DC Geared Motor Large Torque Adjustable Speed Micro DC Motor 200 RPM 300 RPM

Features:

• This DC geared motor features high t orque, and low noise.
• Small size, with four screw holes, convenient for installation.
• This motor is adopted of pure copper wire coil, with low heat and low loss.

• The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life.

• The position of the bearing is good, so with high work efficiency, at same time, help reducing the friction.
• Supporting speed regulation, and clockwise  and counterclockwise rotation.
• Used in grill, automatic doors and windows.

Specifications:

Product type: brush DC motor

Model: XD-60GA775

Rated power: 35W

Rated voltage: 12 (V)

Rated speed(Optional): 200/300 (RPM)

3C rated voltage range: < DC 36V

Current: 3 A

T orque: 3.82kg.fcm (200 RPM), 2.55kg.fcm(300 RPM)

Motor size: 10 x 6cm/3.94 x 2.36inch

Shaft size:1.9 x 0.8cm/0.75 x 0.31inch

Screw hole: 4MM

Speed regulation: yes

clockwise and counterclockwise: yes

Weight: 510g(300 RPM), 540g,(200 RPM)

Package Included:

1 x XD-60GA775 Micro Geared Motor
