Большие продажи! GX-100 Автомобильный Двигатель Топливная система Очиститель без

---

Universal Automotive Non-Dismantle Fuel System Cleaner Bottle Auto gasonline Injector Clean tool For Petrol Cars



The injector clean kits can match with your different kinds of adapter to use for almost all the EU,Asia,USA cars and light trucks. Non-Dismantle injector Throttle and fuel system.   The system is not only characteristic of high and low pressure cleaning function. At the same time put the function of the whole combustion chamber fuel system of several major functions in one product, such as cleaning throttle valve and the fuel nozzle.   Kindly take care,

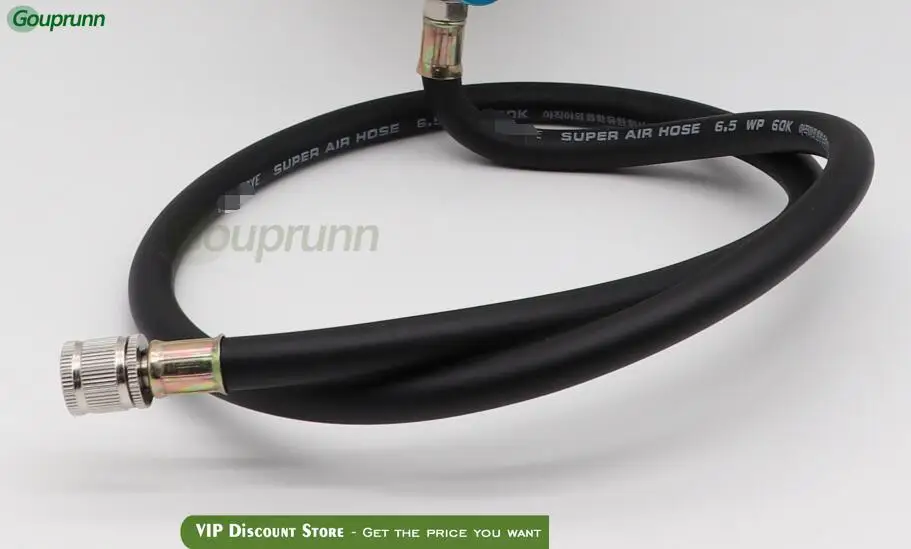

Our tube with corrosion-proof is used for fuel clean fluid with long-life,  Air condition tube are not for fuel system cleaner . Do not confuse them.

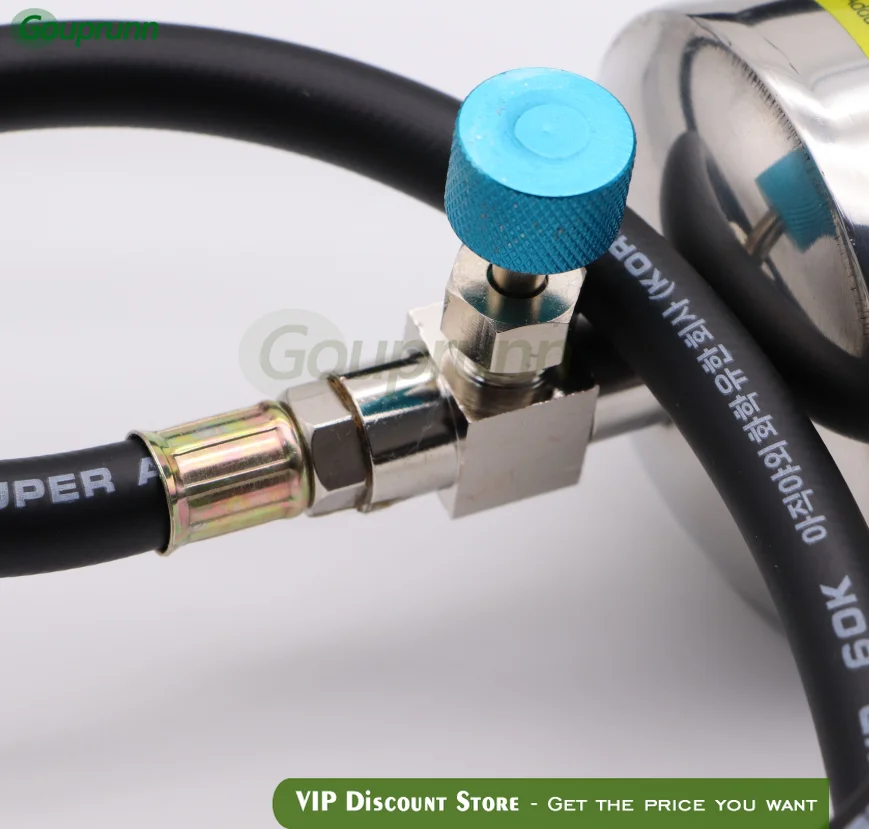

The blue Pin Valve adjust cleaning agent flow rate

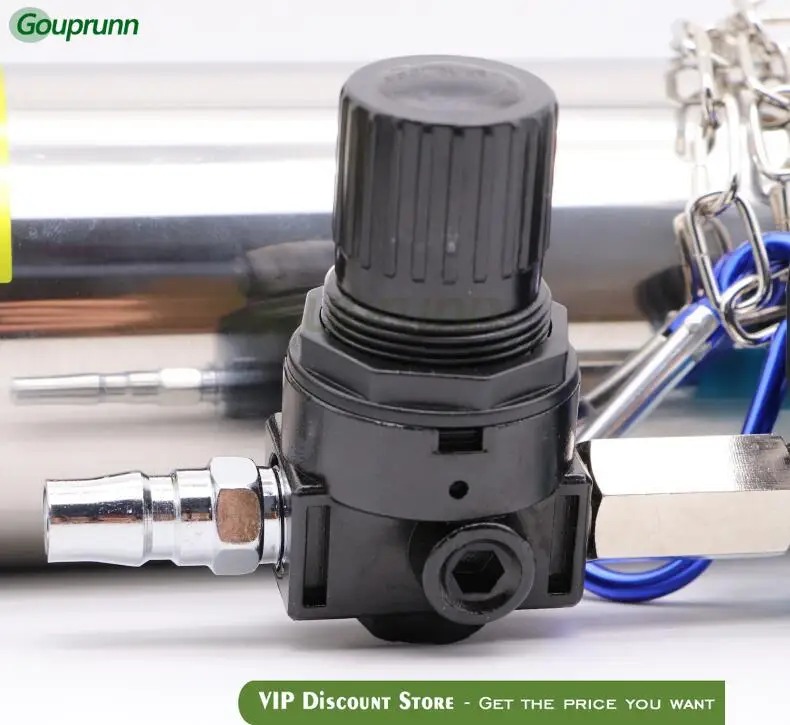

  Check fuel injection model, throttle or EFI:     EFI Model :   1. Find out the fuel return hose, disconnect it and plug it with suitable adaptor; 2. Find out the fuel inlet hose, disconnect it and connect it with the outlet hose of the cleaner with proper adaptor; 3. Connect the outlet and return hose of the fuel tank, and open the tank cover; if there is not return hose, please move the fuse of the fuel pump so that the pump will not work; 4. Charge the cleaning fluid into the tank of the cleaner; 5. Connect the air source power to the air port of the cleaner, adjust its pressure 40-50PSI; 6. Check all connect point to make sure there is not leakage; 7. Start the engine to clean the fuel system.   The Black Pressure Valve can adjust the pressure:

The head can match with different connectors or spare parts to use for complicated fuel system
To the Throttle Style:   To the throttle style system, the way of connection is the same, just adjust the pressure of the air source 1-5PSI.     The way to identify the inlet and return hose:   1. Generally speaking, inlet hose is bigger, return hose is samaller; 2. There is always a filter connected in the inlet hose side, and a buffer in the return side; 3. There is arrow on the hose to show the fuel flow direction.     NOTE:   To the throttle style system, the way of connection is the same, just adjust the pressure of the air source 1-5PSI     Specifications:

The Link is for Main Bottle like the product picture showed.   Pressure          0-140PSI Weight            1.1 kg Tank               900ml
Kindly note:For this Link normally we shipped from Russia Warehouse, we will send by IML or CDEK_RU, If warehouse can't arrive your place by them, then we will ship by Russian Post.
